KitchenAid
Range Hood

Model # KHLU162MSS1 Official KitchenAid range hood

Here are the diagrams and repair parts for Official KitchenAid KHLU162MSS1 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Range Hood Light Bulb 8189593
#4

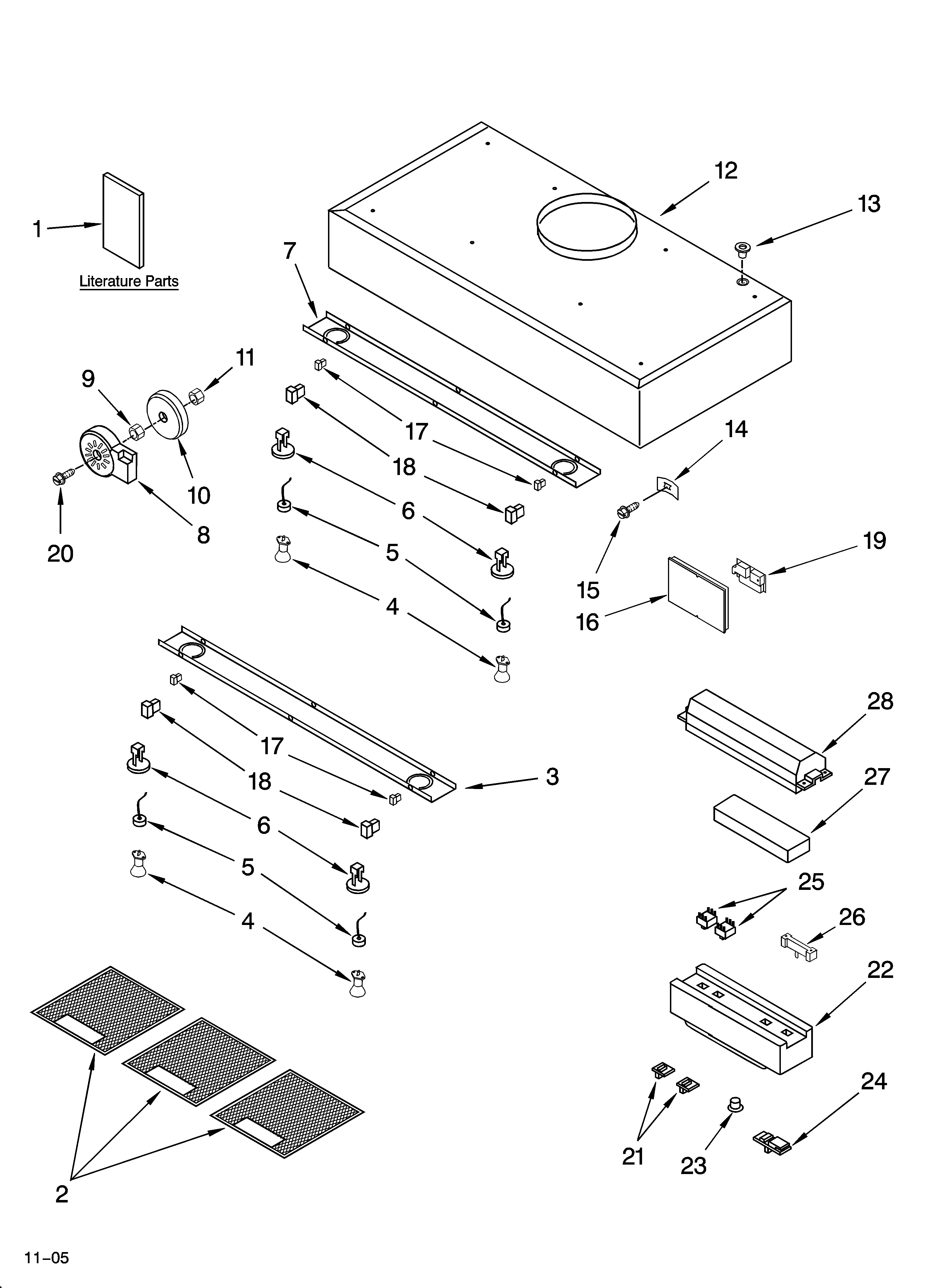

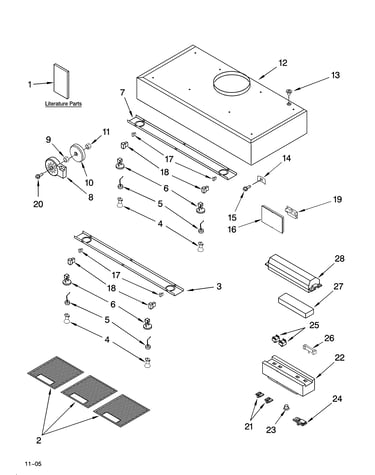

Hood parts diagram

Range hood light bulb

Part #8189593

Replaced by #WPW10252088

?
Manufacturer substitution
This part replaces 8189593. Substitute parts can look different from the original.
$70.71 |
8% OFF Phone Price : $76.71
In Stock
Slide Switch 8189621
#25

Hood parts diagram

Slide switch

Part #8189621

Replaced by #W11731942

?
Manufacturer substitution
This part replaces 8189621. Substitute parts can look different from the original.
$38.56
In Stock
Filter 8190541
#2

Hood parts diagram

Filter

Part #8190541

Replaced by #WPW10281491

?
Manufacturer substitution
This part replaces 8190541. Substitute parts can look different from the original.
$120.21 |
9% OFF Phone Price : $132.21
In Stock
Slide Switch 8189618
#21

Hood parts diagram

Slide switch

Part #8189618

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Motor Speed Switch 8190548
#26

Hood parts diagram

Range hood motor speed switch

Part #8190548

The manufacturer no longer makes this part, and there's no substitute part

Box Distributor 4360303
#16

Hood parts diagram

Box distributor

Part #4360303

The manufacturer no longer makes this part, and there's no substitute part

Control Box 8190547
#22

Hood parts diagram

Control box

Part #8190547

The manufacturer no longer makes this part, and there's no substitute part

Nut 8190411
#9

Hood parts diagram

Nut

Part #8190411

The manufacturer no longer makes this part, and there's no substitute part

Support 8189623
#27

Hood parts diagram

Support

Part #8189623

The manufacturer no longer makes this part, and there's no substitute part

Support 8190550
#3

Hood parts diagram

Support

Part #8190550

The manufacturer no longer makes this part, and there's no substitute part
