Model # CAB090SNSA Official ICP commercial split-system air conditioner
Here are the diagrams and repair parts for Official ICP CAB090SNSA commercial split-system air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
CAB090SNSA Commercial Split-System Air Conditioner
#5

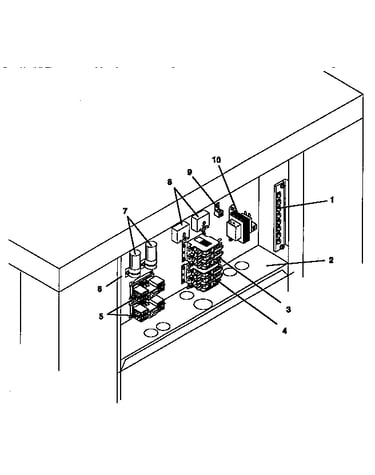

Electrical control replacement parts diagram
Contactor
Part #1050699
Replaced by #94-388
?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
#19

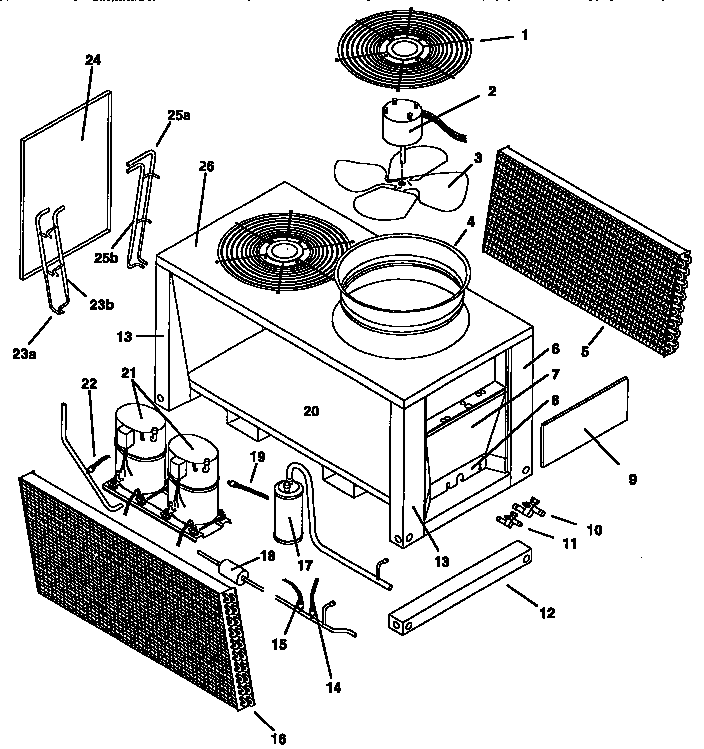

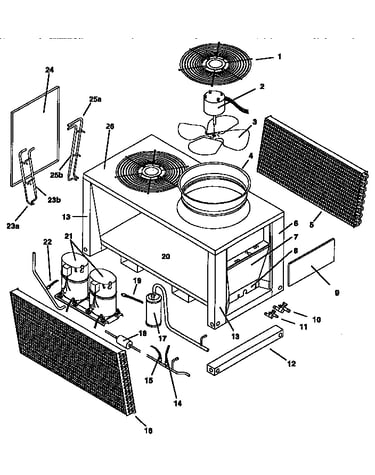

Replacement parts diagram
Control lo p
Part #1071932
$110.07
In Stock
#17
Replacement parts diagram
Accumulator
Part #1071851
$358.95
In Stock
#2
Replacement parts diagram
Motor
Part #1070461
$688.43
In Stock
#3
Electrical control replacement parts diagram
Contactor
Part #607339
Replaced by #90-163
?
Manufacturer substitution
This part replaces 607339. Substitute parts can look different from the original.
$38.53
In Stock
#22
Replacement parts diagram
Control hi p
Part #1071933
Replaced by #1071749
?
Manufacturer substitution
This part replaces 1071933. Substitute parts can look different from the original.
$65.33
In Stock
#3
Replacement parts diagram
Fan cc"b/" s
Part #1070476
Replaced by #1080797
?
Manufacturer substitution
This part replaces 1070476. Substitute parts can look different from the original.
$286.49
In Stock
#4
Electrical control replacement parts diagram
Contactor
Part #1070823
Replaced by #90-163
?
Manufacturer substitution
This part replaces 1070823. Substitute parts can look different from the original.
$38.53
In Stock
#1
Replacement parts diagram
Grille
Part #1070460
Replaced by #1113097
?
Manufacturer substitution
This part replaces 1070460. Substitute parts can look different from the original.
$528.55
In Stock
#24
Replacement parts diagram
Panel rear
Part #1068632
The manufacturer no longer makes this part, and there's no substitute part
