Drill/Driver

Model # BD-1025CRK Official Ryobi cordless drill/driver

Here are the diagrams and repair parts for Official Ryobi BD-1025CRK cordless drill/driver, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forBD-1025CRK Power Tools

  • Clutch 6190082
    #30

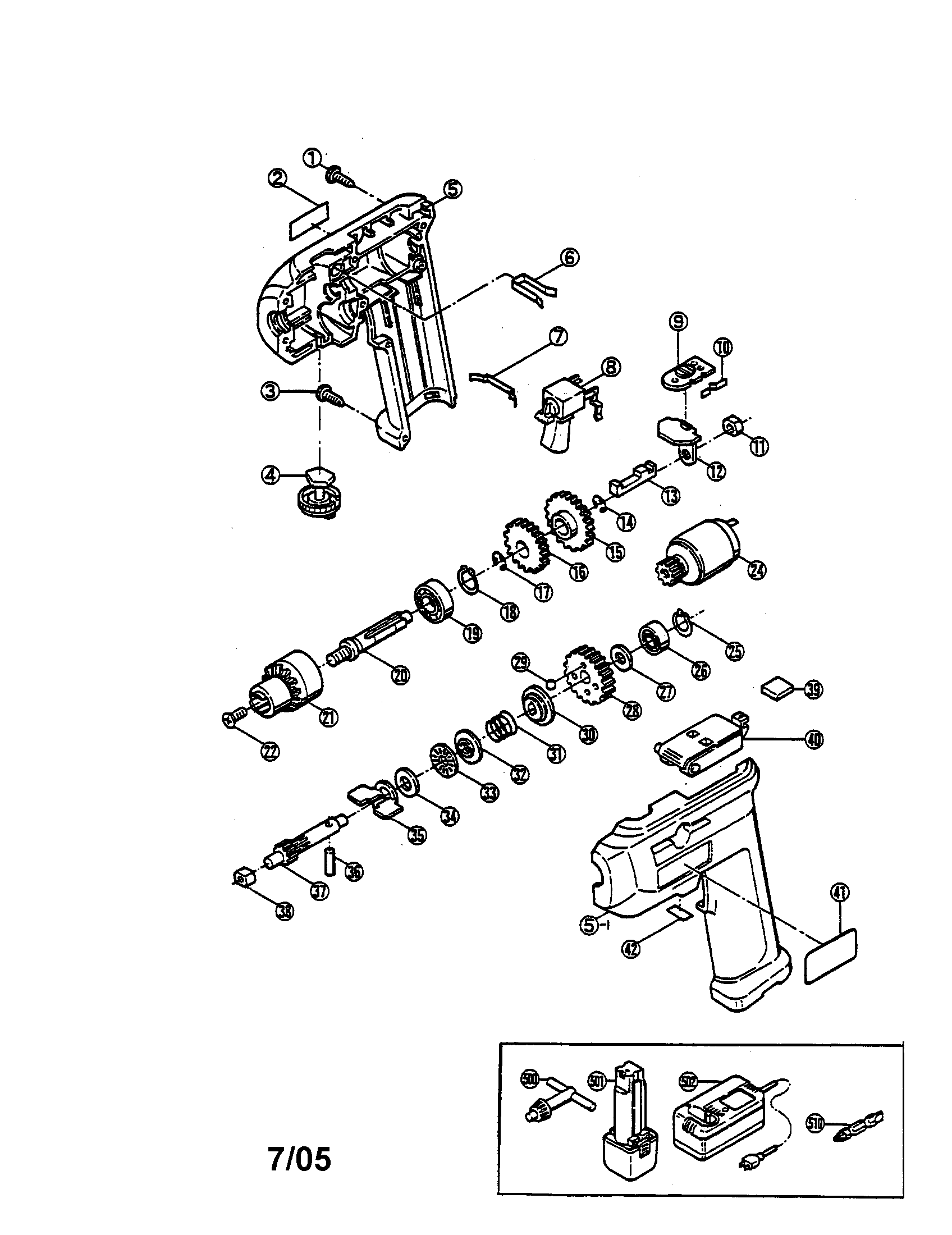

    Cordless driver drill diagram

    Clutch

    Part #6190082

    The manufacturer no longer makes this part, and there's no substitute part

  • Brand Seal 6921145
    #41

    Cordless driver drill diagram

    Brand seal

    Part #6921145

    The manufacturer no longer makes this part, and there's no substitute part

  • Label 6920048
    #43

    Cordless driver drill diagram

    Label

    Part #6920048

    The manufacturer no longer makes this part, and there's no substitute part

  • Name Plate (bd1025cvr) 6912997
    #2A

    Cordless driver drill diagram

    Name plate (bd1025cvr)

    Part #6912997

    The manufacturer no longer makes this part, and there's no substitute part

  • Vsr Switch (bd1025cvr) 6550401
    #8A

    Cordless driver drill diagram

    Vsr switch (bd1025cvr)

    Part #6550401

    The manufacturer no longer makes this part, and there's no substitute part

  • Guide Plate 6151202
    #12

    Cordless driver drill diagram

    Guide plate

    Part #6151202

    The manufacturer no longer makes this part, and there's no substitute part

  • Key Holder 6151151
    #6

    Cordless driver drill diagram

    Key holder

    Part #6151151

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 9060420
    #1

    Cordless driver drill diagram

    Screw

    Part #9060420

    The manufacturer no longer makes this part, and there's no substitute part

  • Retaining Ring S-6 9510600
    #25

    Cordless driver drill diagram

    Retaining ring s-6

    Part #9510600

    The manufacturer no longer makes this part, and there's no substitute part

  • Compression Spring 6180150
    #31

    Cordless driver drill diagram

    Compression spring

    Part #6180150

    The manufacturer no longer makes this part, and there's no substitute part
