Ryobi
Drill/Driver

Model # BD-1025CRK Official Ryobi cordless drill/driver

Here are the diagrams and repair parts for Official Ryobi BD-1025CRK cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Reversible Switch 6550041
#8

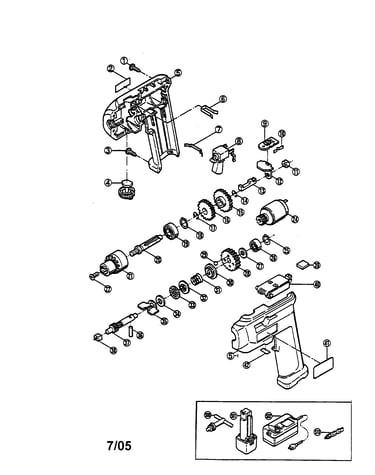

Cordless driver drill diagram

Reversible switch

Part #6550041

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060420
#1

Cordless driver drill diagram

Screw

Part #9060420

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing #626z 9810626
#26

Cordless driver drill diagram

Ball bearing #626z

Part #9810626

The manufacturer no longer makes this part, and there's no substitute part

Compression Spring 6180150
#31

Cordless driver drill diagram

Compression spring

Part #6180150

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060430
#3

Cordless driver drill diagram

Screw

Part #9060430

The manufacturer no longer makes this part, and there's no substitute part

Ring 9511000
#18

Cordless driver drill diagram

Ring

Part #9511000

The manufacturer no longer makes this part, and there's no substitute part

Vsr Switch (bd1025cvr) 6550401
#8A

Cordless driver drill diagram

Vsr switch (bd1025cvr)

Part #6550401

The manufacturer no longer makes this part, and there's no substitute part

Battery 6400123
#501

Cordless driver drill diagram

Battery

Part #6400123

The manufacturer no longer makes this part, and there's no substitute part

Intermediate Gear 6200182
#28

Cordless driver drill diagram

Intermediate gear

Part #6200182

The manufacturer no longer makes this part, and there's no substitute part

Parallel Key 6100161
#13

Cordless driver drill diagram

Parallel key

Part #6100161

The manufacturer no longer makes this part, and there's no substitute part
