Model # 390253250 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390253250 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

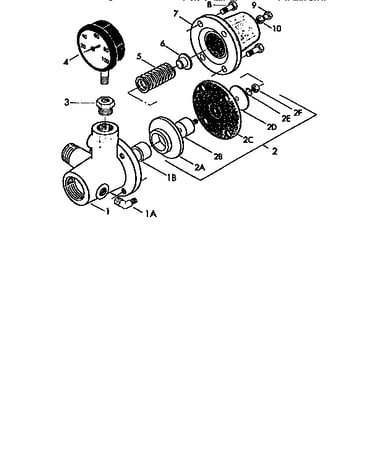

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 88 parts |

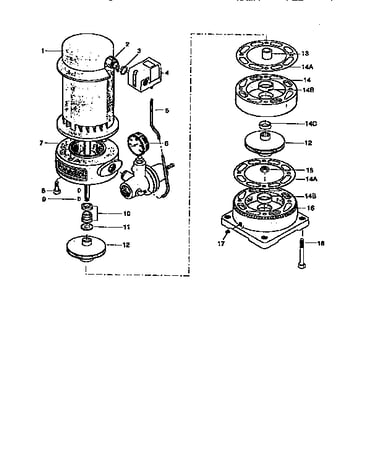

Multi stage jet diagram

Pump motor (replaces j218-600)

Part #J218-600C

$150.29 |

7% OFF Phone Price : $162.29

Back Order

Qty

Switch tube

Part #U37-672P

Replaced by #U37-673P

This item is not returnable

$19.98 |

9% OFF Phone Price : $21.98

Back Order

Qty

Multi stage jet diagram

Switch

Part #2782

Replaced by #TC2153-P2

$59.89 |

9% OFF Phone Price : $65.89

Back Order

Qty

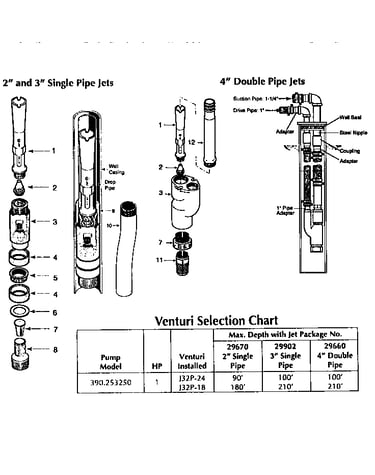

Jet packages diagram

Pump jet body leather seal, 2-in

Part #J57-1

$63.99 |

9% OFF Phone Price : $69.99

In Stock

Qty

#7B

Jet packages diagram

Pump check valve

Part #N212-12P

$118.69 |

9% OFF Phone Price : $130.69

In Stock

Qty

Pump impeller nut

Part #U36-175D

This item is not returnable

$20.37

In Stock

Qty

Pump hose fitting, 90-degree

Part #U111-212T

This item is not returnable

$27.69 |

18% OFF Phone Price : $33.69

Back Order

Qty

Pump wear ring

Part #J23-10

This item is not returnable

$28.33

Back Order

Qty

Pump motor shaft spring retainer

Part #J24-11

This item is not returnable

$21.29 |

22% OFF Phone Price : $27.29

Back Order

Qty

Pump impeller spacer

Part #J43-23

$36.76

Back Order

Qty
