Kenmore
Dehumidifier

Model # 58054501801 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 58054501801 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Dehumidifier Wire Harness 6877A20025K
#9-A

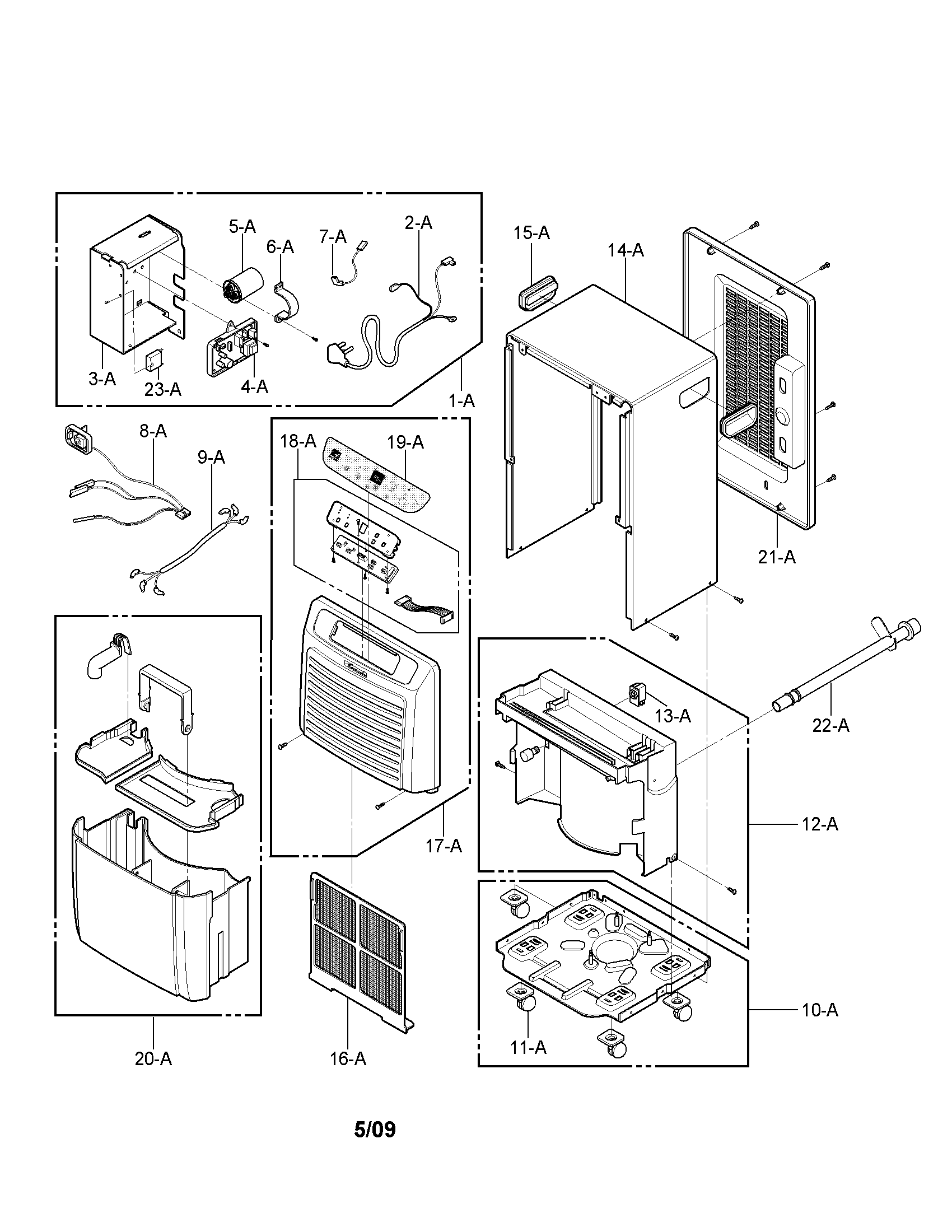

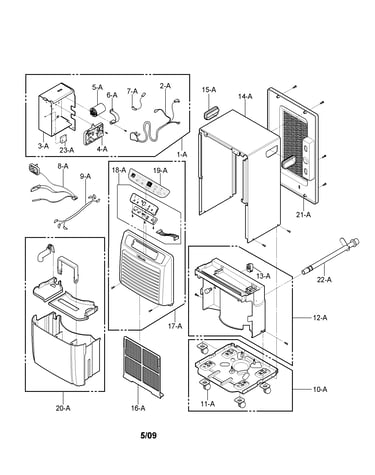

Outer case and control parts diagram

Dehumidifier wire harness

Part #6877A20025K

$24.09
In Stock
Clamp 4H00442J
#6-A

Outer case and control parts diagram

Clamp

Part #4H00442J

This item is not returnable
$4.51
In Stock
Brkt,wshr 4810AR4155A
#7-C

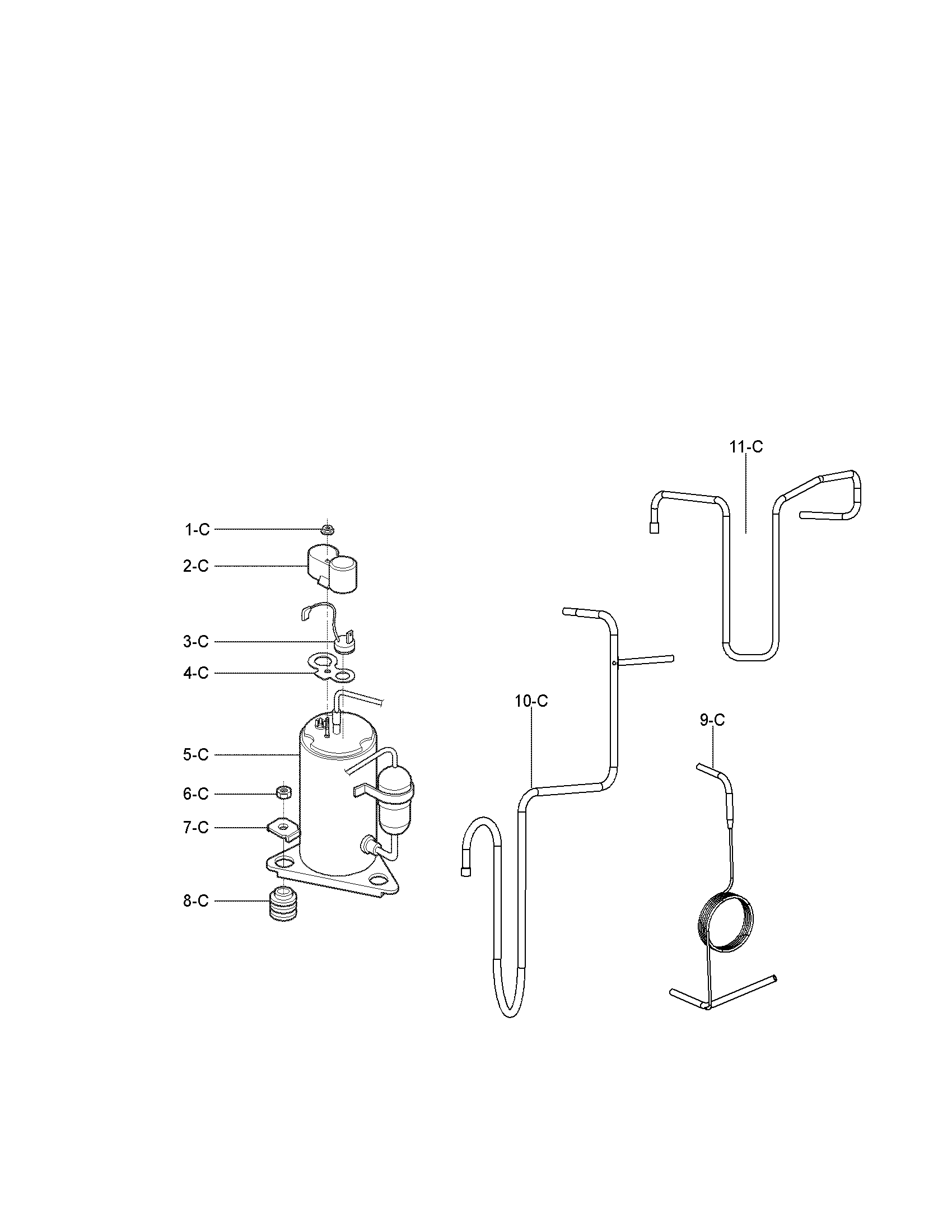

Compressor parts diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
$4.51
In Stock
Dehumidifier Control Board Wire Harness 6862A20013R
#7-A

Outer case and control parts diagram

Dehumidifier control board wire harness

Part #6862A20013R

This item is not returnable
$7.00
In Stock
Tube Diode AJR72927401
#11-C

Compressor parts diagram

Tube diode

Part #AJR72927401

$28.49
In Stock
Handle 3650A20004A
#15-A

Outer case and control parts diagram

Handle

Part #3650A20004A

This item is not returnable
$7.00
In Stock
Hex Nut 1NHA0801206
#6-C

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Dehumidifier Blower Wheel 5900A20007B
#5-B

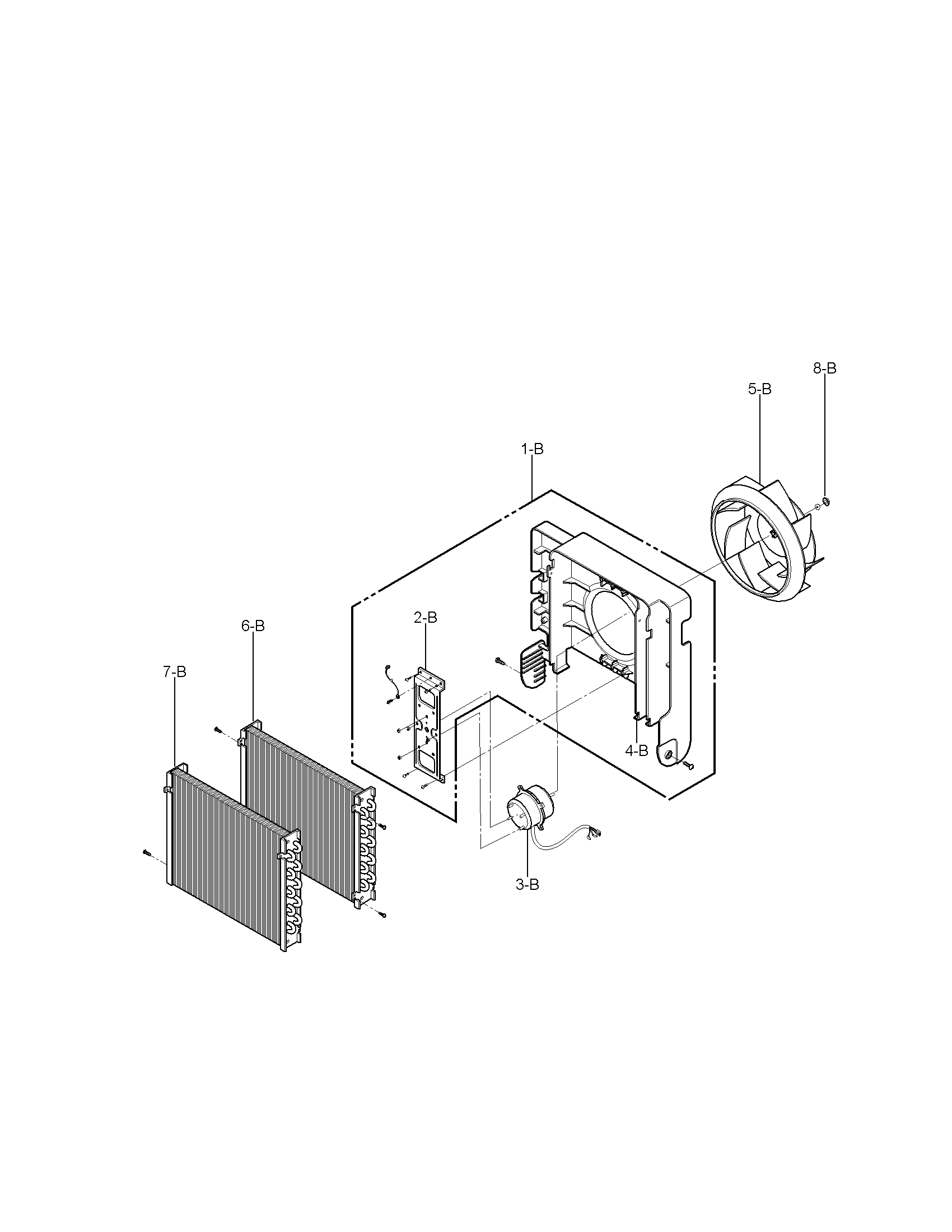

Cycle parts diagram

Dehumidifier blower wheel

Part #5900A20007B

This item is not returnable
$10.60
In Stock
Dehumidifier Capillary Line AJR32779301
#9-C

Compressor parts diagram

Dehumidifier capillary line

Part #AJR32779301

$23.07
In Stock
Nut 4H00947A
#8-B

Cycle parts diagram

Nut

Part #4H00947A

This item is not returnable
$4.51
In Stock
