Lawn Sweeper

Model # 48624223 Official Craftsman lawn sweeper

Here are the diagrams and repair parts for Official Craftsman 48624223 lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Lawn Tractor Lawn Sweeper Attachment Wheel Bearing (replaces Af-45088) 45088
#56

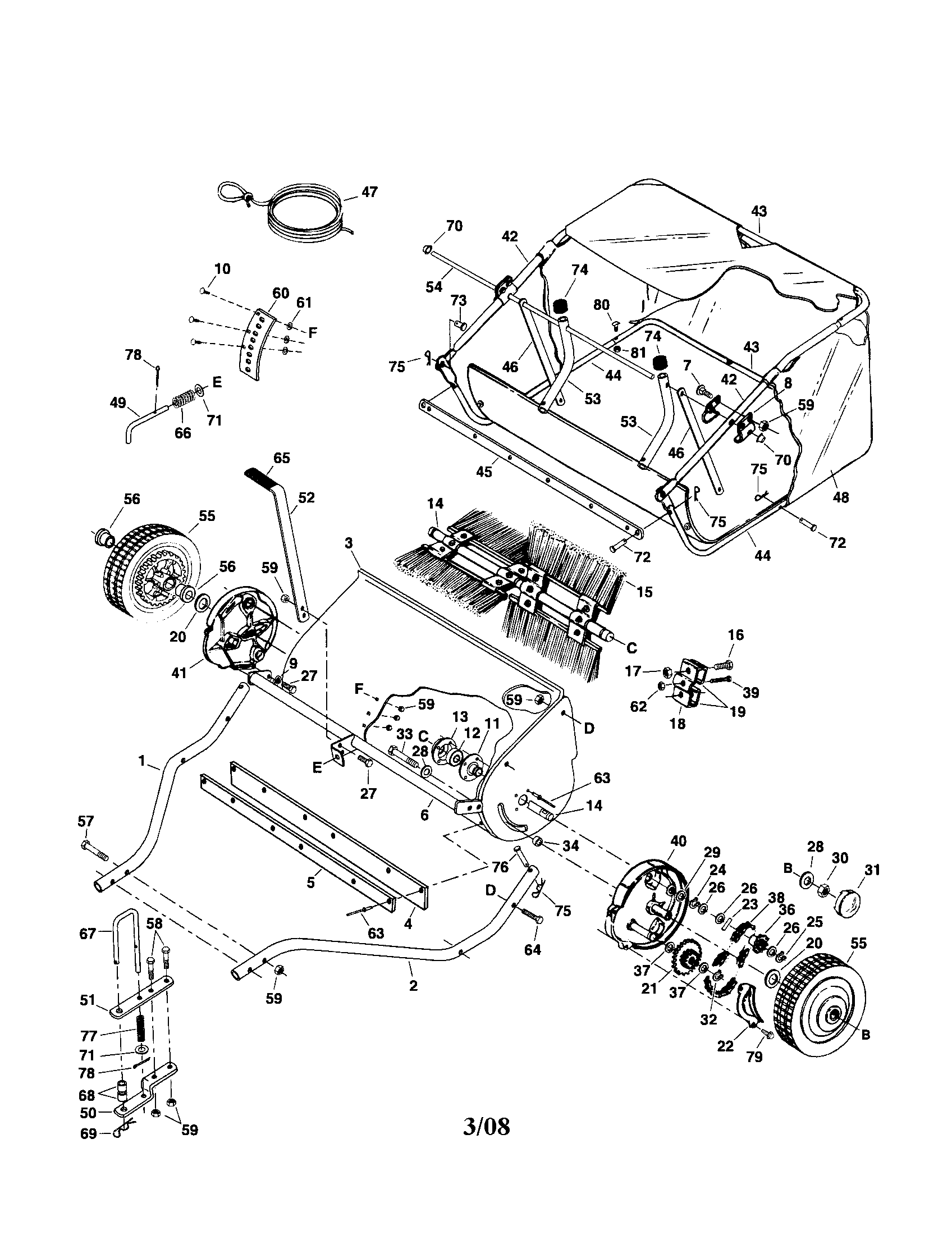

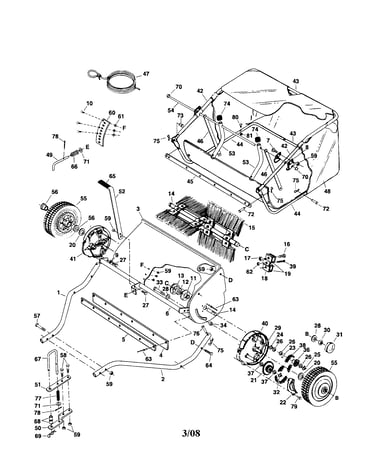

Lawnsweeper diagram

Lawn tractor lawn sweeper attachment wheel bearing (replaces af-45088)

Part #45088

BEST SELLER
$6.76 |
13% OFF Phone Price : $7.76
In Stock
Lawn Sweeper Brush Retainer (replaces Af-23580) 23580
#18

Lawnsweeper diagram

Lawn sweeper brush retainer (replaces af-23580)

Part #23580

BEST SELLER
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#69

Lawnsweeper diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
Back Order
Lawn & Garden Equipment Push Cap Nut, 3/8-in 44917
#70

Lawnsweeper diagram

Lawn & garden equipment push cap nut, 3/8-in

Part #44917

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn Sweeper Brush Retainer (replaces Af-23581) 23581
#19

Lawnsweeper diagram

Lawn sweeper brush retainer (replaces af-23581)

Part #23581

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Ratchet Sprocket 43889
#36

Lawnsweeper diagram

Lawn tractor lawn sweeper attachment ratchet sprocket

Part #43889

This item is not returnable
$11.43 |
15% OFF Phone Price : $13.43
Back Order
Lawn & Garden Equipment Bearing 44232
#12

Lawnsweeper diagram

Lawn & garden equipment bearing

Part #44232

This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Lawn & Garden Equipment Lock Washer 43086
#9

Lawnsweeper diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn Tractor Lawn Sweeper Attachment Hopper Bag Frame, Lower 48726
#44

Lawnsweeper diagram

Lawn tractor lawn sweeper attachment hopper bag frame, lower

Part #48726

Replaced by #48726BL3

?
Manufacturer substitution
This part replaces 48726. Substitute parts can look different from the original.
$23.91
In Stock
Lawn & Garden Equipment Nut 47189
#17

Lawnsweeper diagram

Lawn & garden equipment nut

Part #47189

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
