Model # 70462144 Official Ikea range hood

Here are the diagrams and repair parts for Official Ikea 70462144 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

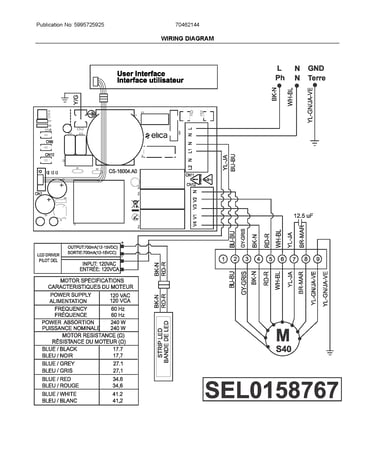

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Lamp,support ,housing 5304523619
#587

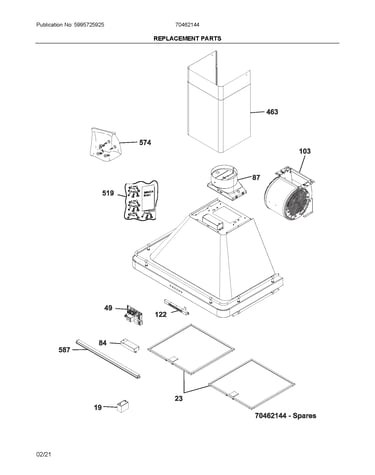

Replacement parts diagram

Lamp,support ,housing

Part #5304523619

$200.87
In Stock
Capacitor 5304523602
#19

Replacement parts diagram

Capacitor

Part #5304523602

$55.53
In Stock
Ikea Motor 5304523633
#103

Replacement parts diagram

Ikea motor

Part #5304523633

$347.76
In Stock
Transformer 5304523603
#84

Replacement parts diagram

Transformer

Part #5304523603

$115.14
In Stock
Board-switch,terminal 5304523613
#49

Replacement parts diagram

Board-switch,terminal

Part #5304523613

$161.16
In Stock
Ikea Range Hood Flue Cover 5304523635
#463

Replacement parts diagram

Ikea range hood flue cover

Part #5304523635

$262.69 |
$12.00 OFF Phone Price : $274.69
In Stock
Ikea Slide 5304523634
#122

Replacement parts diagram

Ikea slide

Part #5304523634

$203.51
In Stock
Ikea Range Hood Grease Filter 5304523632
#23

Replacement parts diagram

Ikea range hood grease filter

Part #5304523632

$149.59 |
7% OFF Phone Price : $161.59
In Stock
Ikea Mounting 5304523637
#574

Replacement parts diagram

Ikea mounting

Part #5304523637

$108.84
In Stock
Connector,pipe Or Tubing 5304523604
#87

Replacement parts diagram

Connector,pipe or tubing

Part #5304523604

$107.86
In Stock
