Model # TFC20M6AW2 Official Tappan freezer - 5995245932

Here are the diagrams and repair parts for Official Tappan TFC20M6AW2 freezer - 5995245932, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 48 parts |

#40

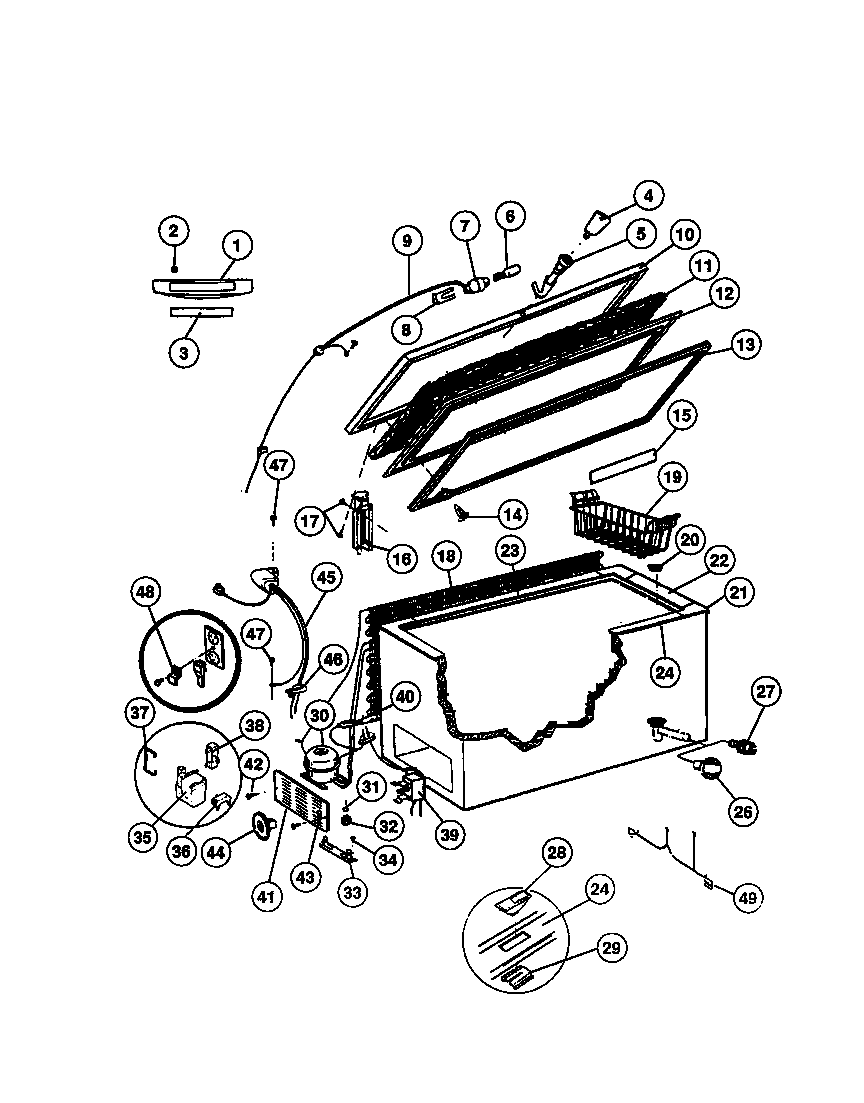

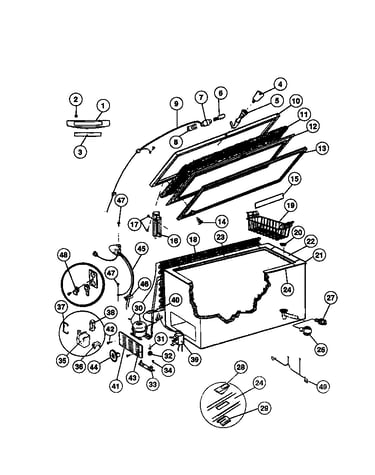

Door, cabinet, unit diagram

Filter

Part #5308000027

Replaced by #5303305677

$12.71 |

14% OFF Phone Price : $14.71

In Stock

Qty

Door, cabinet, unit diagram

Key

Part #5308037402

Replaced by #297147700

$9.25 |

10% OFF Phone Price : $10.25

In Stock

Qty

#38

Door, cabinet, unit diagram

Capacitor

Part #216236200

Replaced by #5304464438

$47.29 |

11% OFF Phone Price : $53.29

In Stock

Qty

Chest Freezer Temperature Control 5303212610

#39

Door, cabinet, unit diagram

Chest freezer temperature control

Part #5303212610

Replaced by #5304496560

$35.89 |

14% OFF Phone Price : $41.89

In Stock

Qty

#34

Door, cabinet, unit diagram

Screw (i

Part #216036600

Replaced by #216036601

$12.57

In Stock

Qty

#42

Door, cabinet, unit diagram

Screw

Part #5300050149

Replaced by #131420300

This item is not returnable

$15.80

In Stock

Qty

#23

Door, cabinet, unit diagram

Moulding-gre

Part #216111203

$13.49

In Stock

Qty

#37

Door, cabinet, unit diagram

Kelvinator clip

Part #216158300

This item is not returnable

$2.29

In Stock

Qty

Freezer Inner Door Panel Rivet 5303212828

#14

Door, cabinet, unit diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |

9% OFF Phone Price : $21.49

In Stock

Qty

#46

Door, cabinet, unit diagram

Freezer wire harness clamp

Part #5303212614

This item is not returnable

$2.16

In Stock

Qty
