Model # 79074143710 Official Kenmore gas range
Here are the diagrams and repair parts for Official Kenmore 79074143710 gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

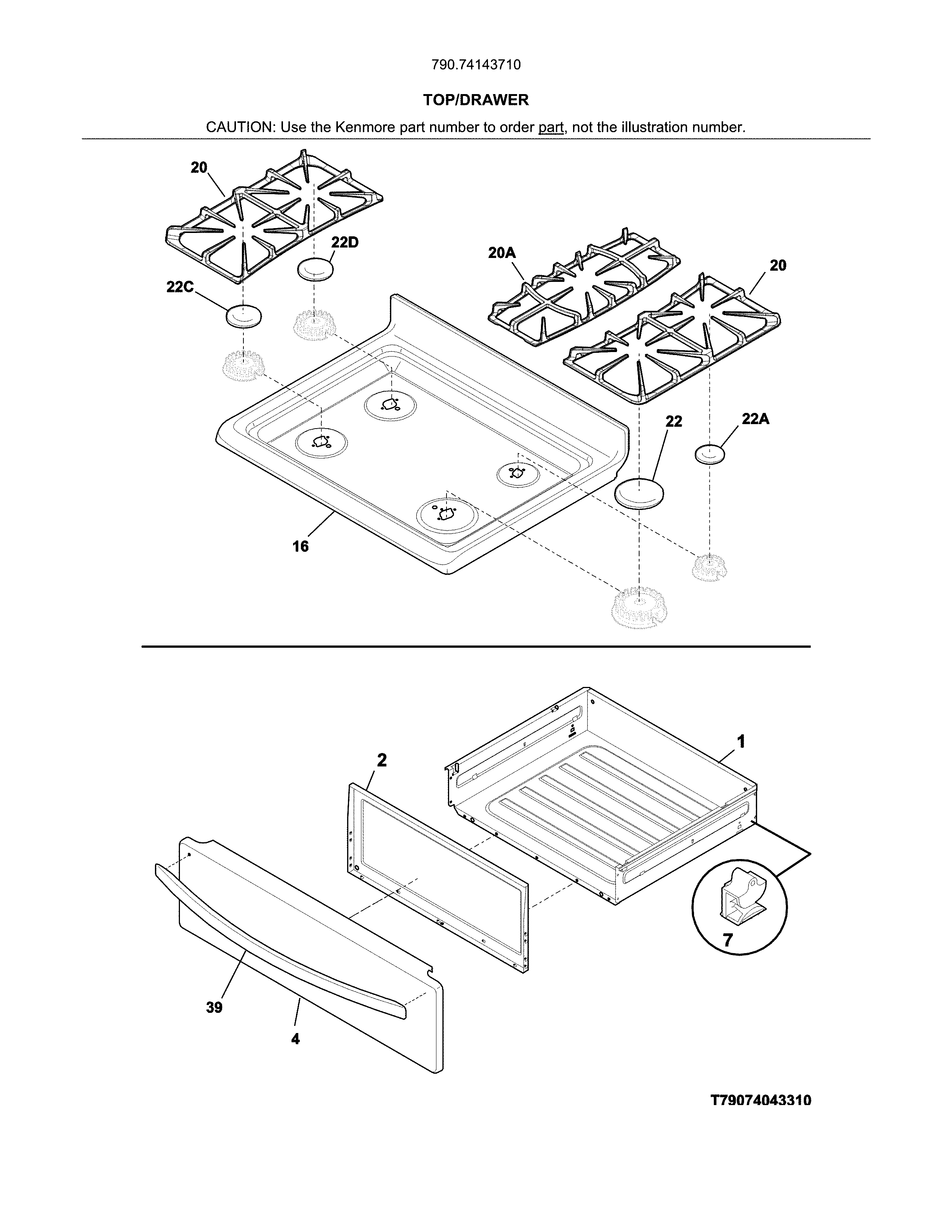

SELECT DIAGRAM
Browse Parts for79074143710 Ranges
- #19

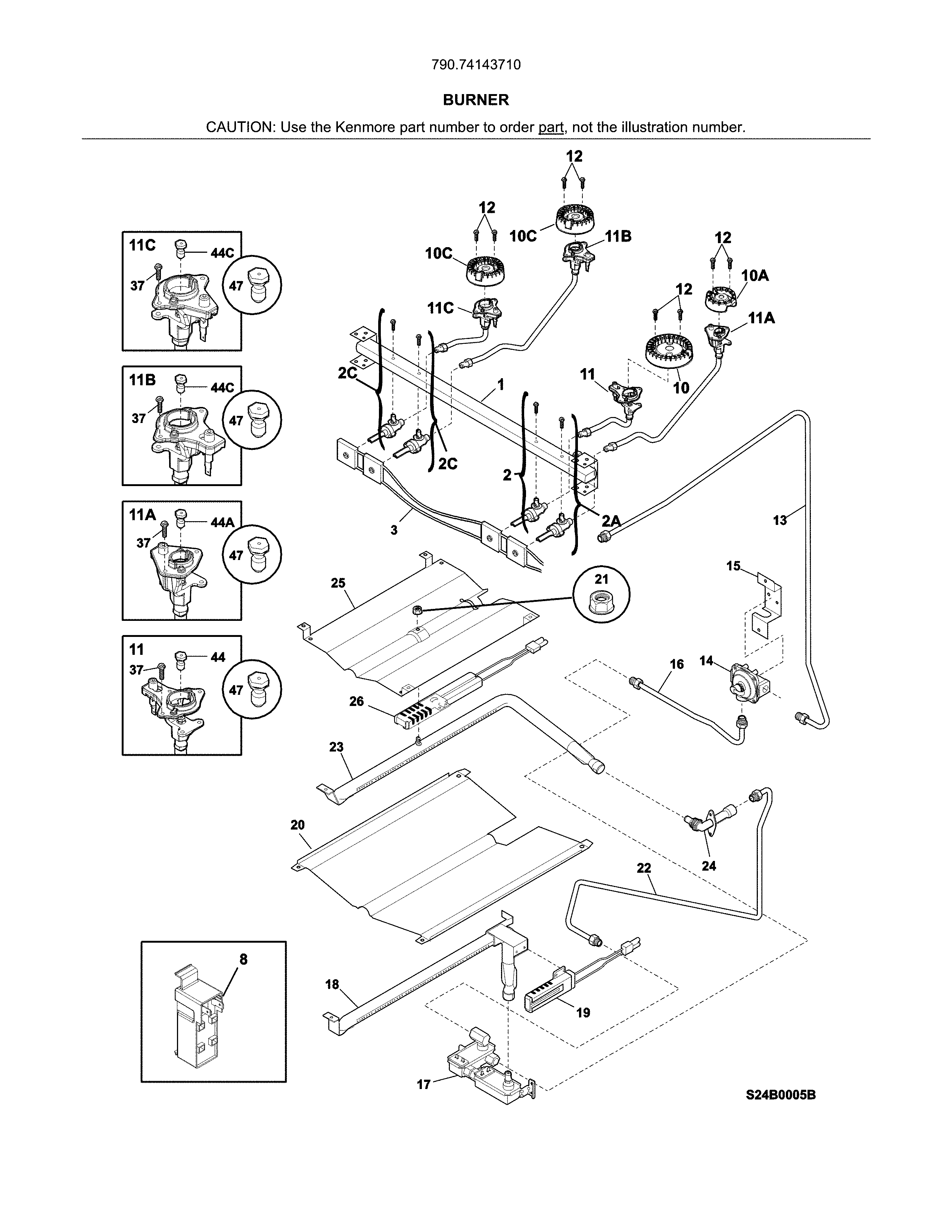

Burner diagram
Bake igniterPart #5304508786
Replaced by #316489403
?Manufacturer substitutionThis part replaces 5304508786. Substitute parts can look different from the original.$97.98 |11% OFF Phone Price : $109.98In Stock - #37

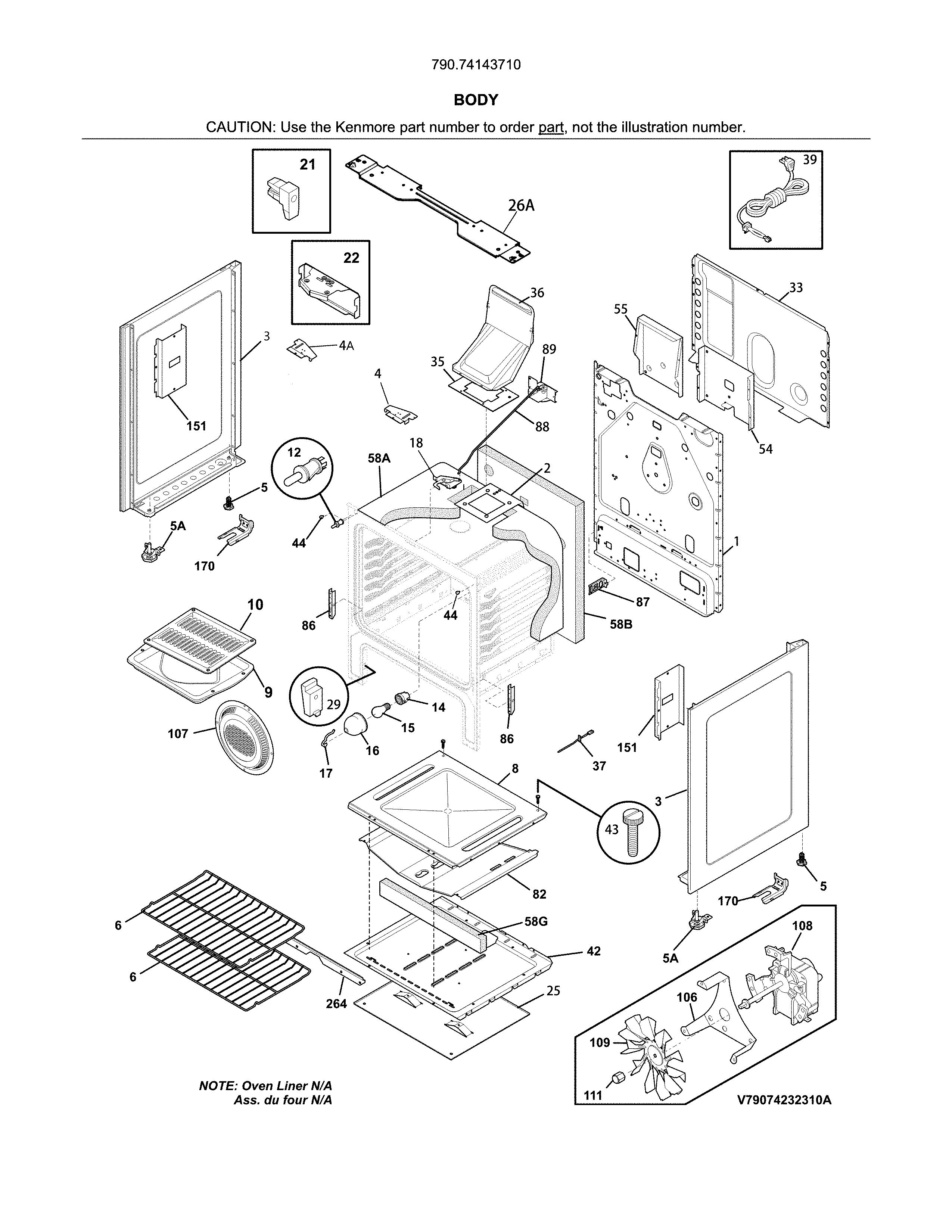

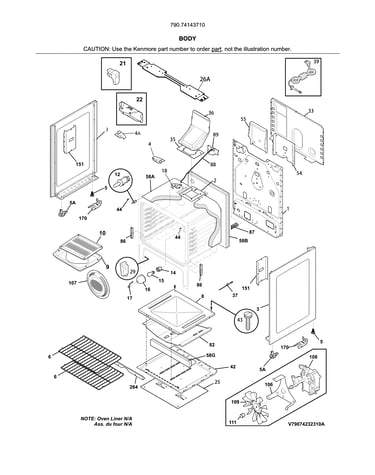

Body diagram
Range oven temperature sensorPart #316490003
Replaced by #316490000
?Manufacturer substitutionThis part replaces 316490003. Substitute parts can look different from the original.$45.23 |12% OFF Phone Price : $51.23In Stock - #15
Body diagram
Appliance light bulb, 40-wattPart #316538901
Replaced by #316538904
?Manufacturer substitutionThis part replaces 316538901. Substitute parts can look different from the original.$15.89 |11% OFF Phone Price : $17.89In Stock - #16

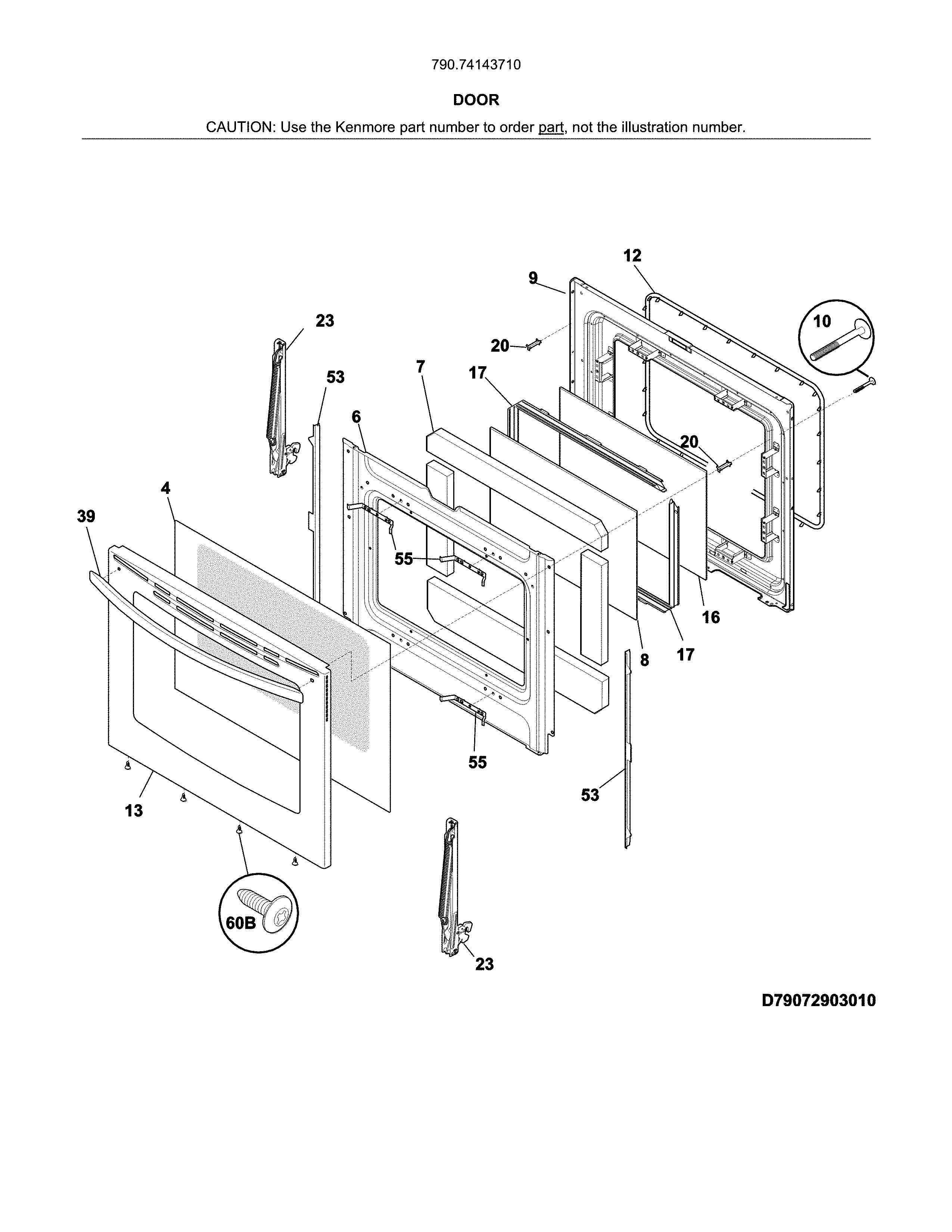

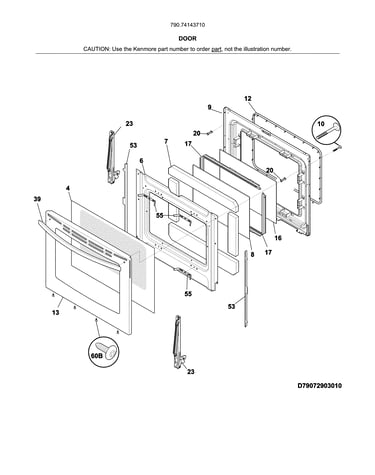

Door diagram
Range oven door inner glassPart #316117503
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117503. Substitute parts can look different from the original.$77.39 |7% OFF Phone Price : $83.39In Stock - #8
Door diagram
Range oven door inner glassPart #316117502
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117502. Substitute parts can look different from the original.$77.39 |7% OFF Phone Price : $83.39In Stock - #37
Burner diagram
Range screwPart #316240600
$10.83 |16% OFF Phone Price : $12.83In Stock - #12
Burner diagram
Range screwPart #316540900
$14.57 |12% OFF Phone Price : $16.57In Stock - #20A

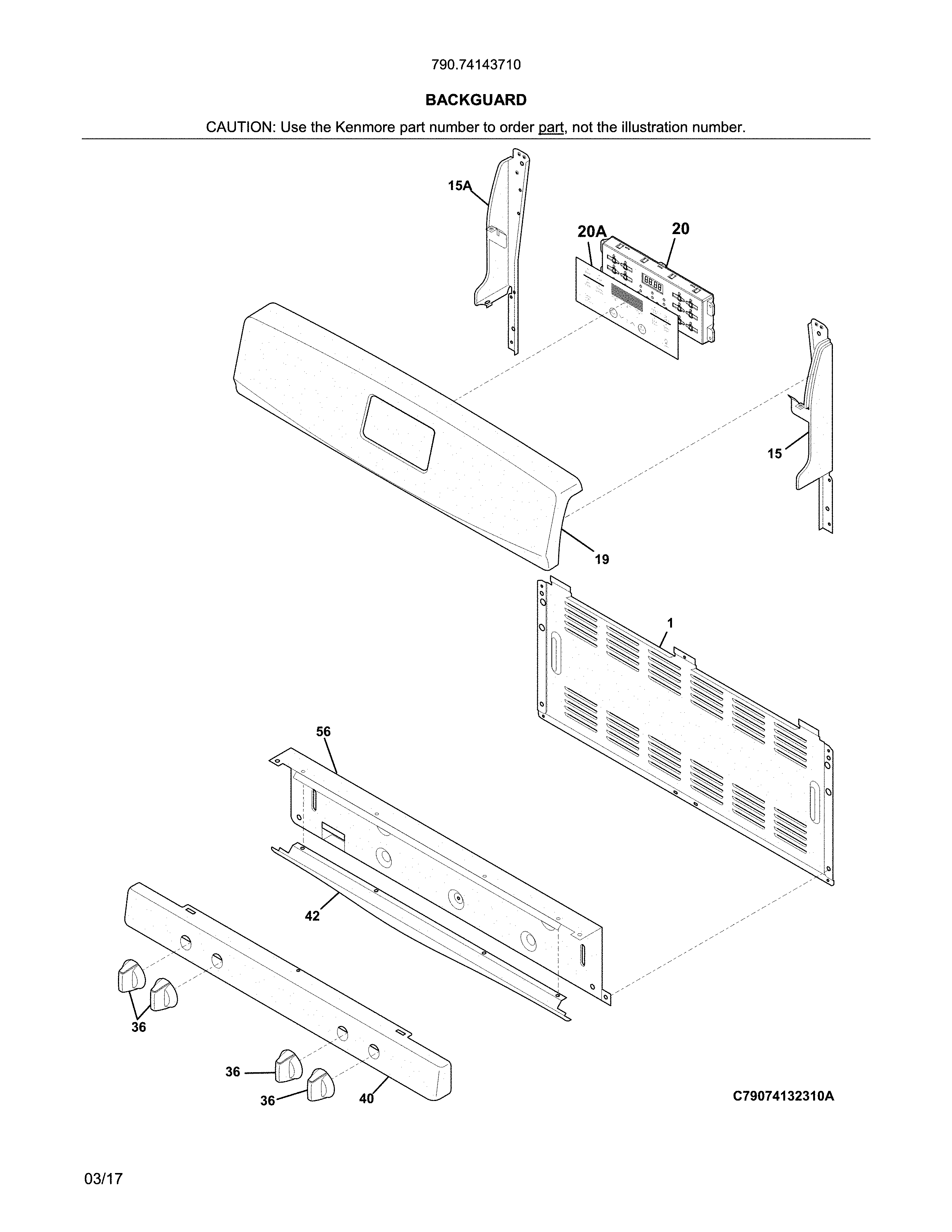

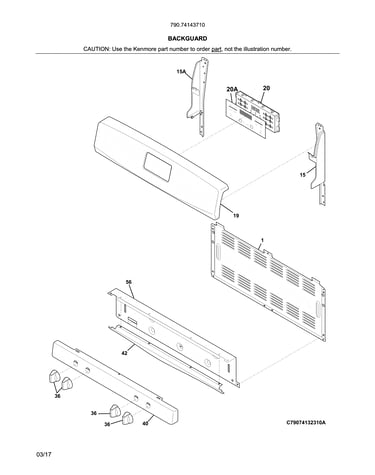

Backguard diagram
Range oven control overlayPart #316633007
$30.17 |17% OFF Phone Price : $36.17In Stock - #20
Backguard diagram
Frigidaire range oven control boardPart #316630001
This item is not returnable$271.29 |$12.00 OFF Phone Price : $283.29In Stock - #10C
Burner diagram
Range surface burner headPart #316558300
$37.14 |14% OFF Phone Price : $43.14In Stock
