Model # D55140 TYPE 1 Official DeWalt air compressor

Here are the diagrams and repair parts for Official DeWalt D55140-TYPE-1 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 32 parts |

#36

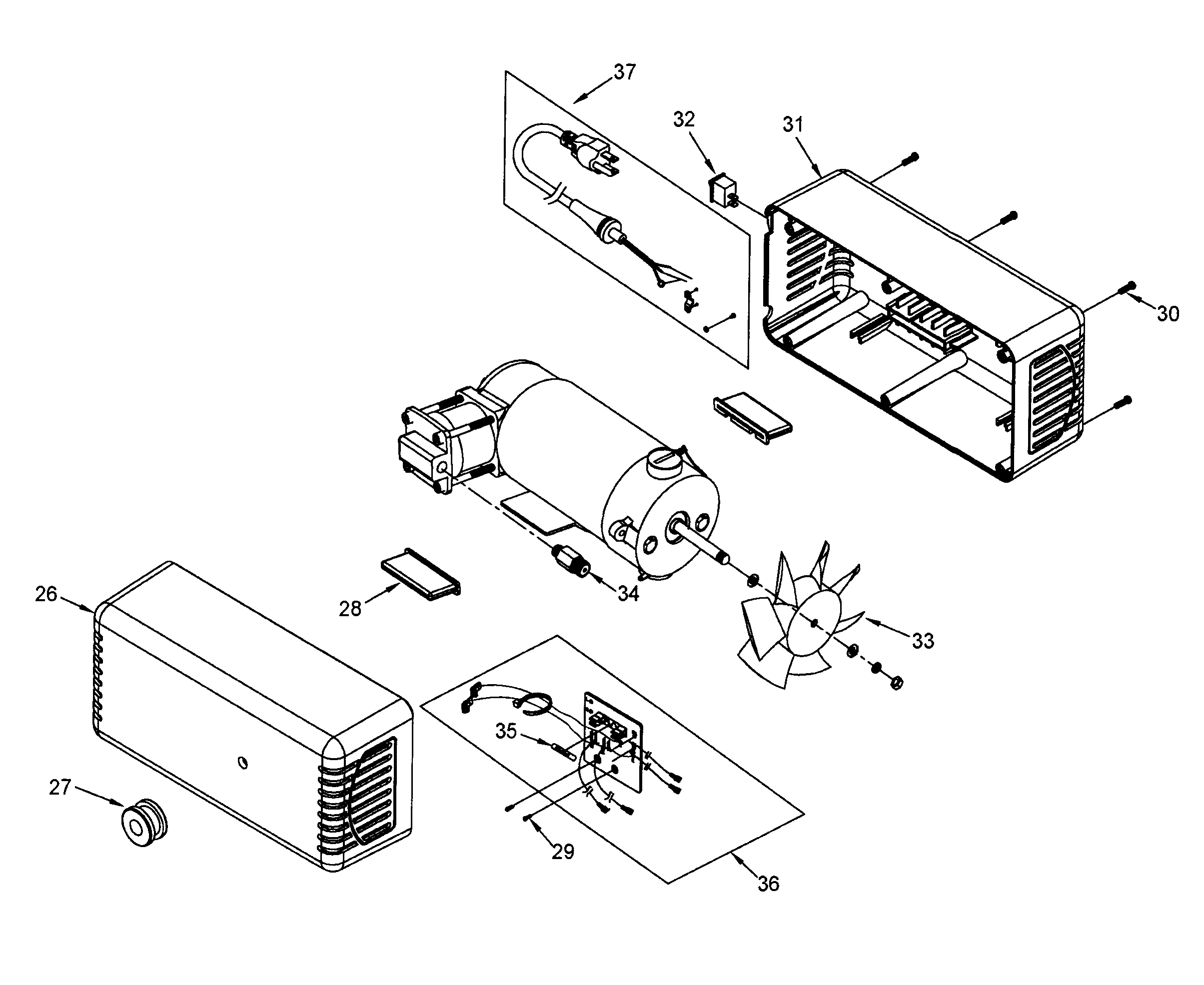

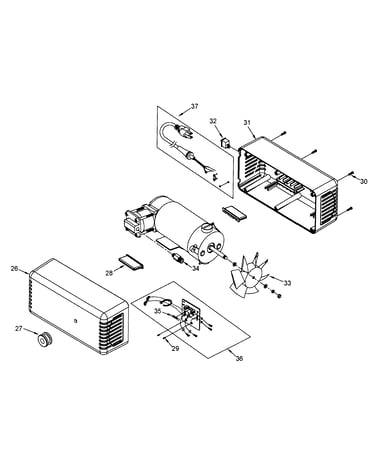

Compressor diagram

Pcb

Part #5140040-38

The manufacturer no longer makes this part, and there's no substitute part

#35

Compressor diagram

Fuse

Part #5140040-37

The manufacturer no longer makes this part, and there's no substitute part

#33

Compressor diagram

Fan

Part #5140040-35

The manufacturer no longer makes this part, and there's no substitute part

#20

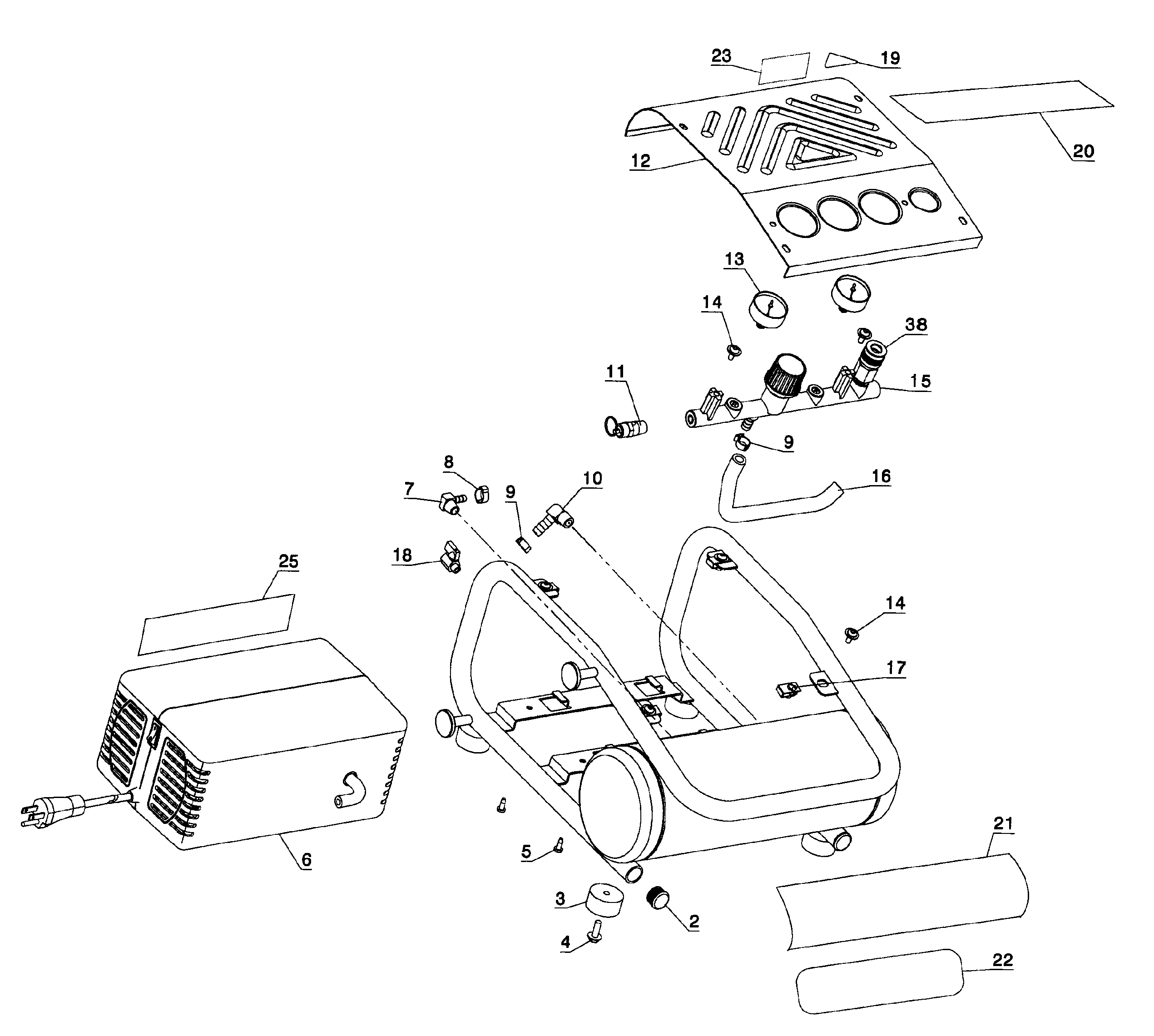

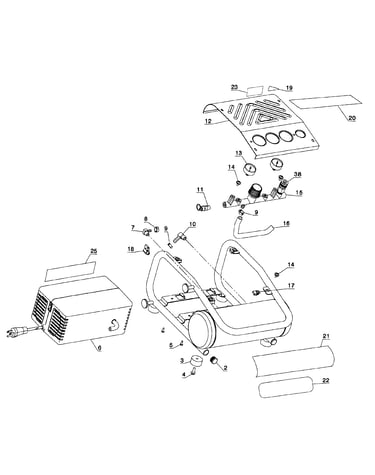

Base & frame diagram

Label

Part #N000228

The manufacturer no longer makes this part, and there's no substitute part

#28

Compressor diagram

Bushing

Part #5140040-30

The manufacturer no longer makes this part, and there's no substitute part

#22

Base & frame diagram

Label

Part #A17566

The manufacturer no longer makes this part, and there's no substitute part

#10

Base & frame diagram

Elbow

Part #A10011

The manufacturer no longer makes this part, and there's no substitute part

#31

Compressor diagram

Shroud

Part #5140040-33

The manufacturer no longer makes this part, and there's no substitute part

#19

Base & frame diagram

Decal

Part #5130060-00

The manufacturer no longer makes this part, and there's no substitute part

#17

Base & frame diagram

Nut

Part #5130010-00

The manufacturer no longer makes this part, and there's no substitute part
