Model # WTMC632SUS/01 Official Bosch dryer

Here are the diagrams and repair parts for Official Bosch WTMC632SUS-01 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Dryer Drum Support Roller 422200

#315

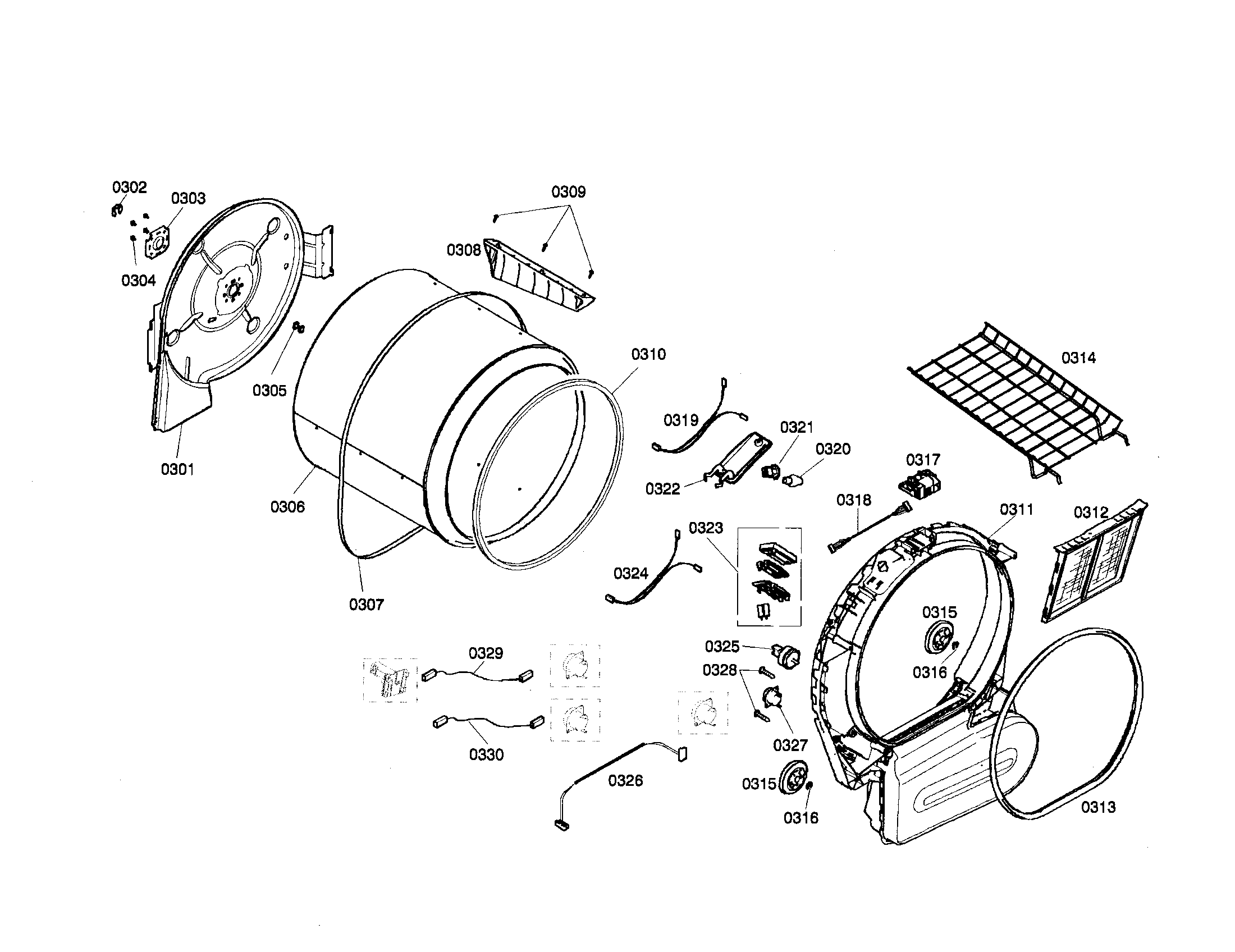

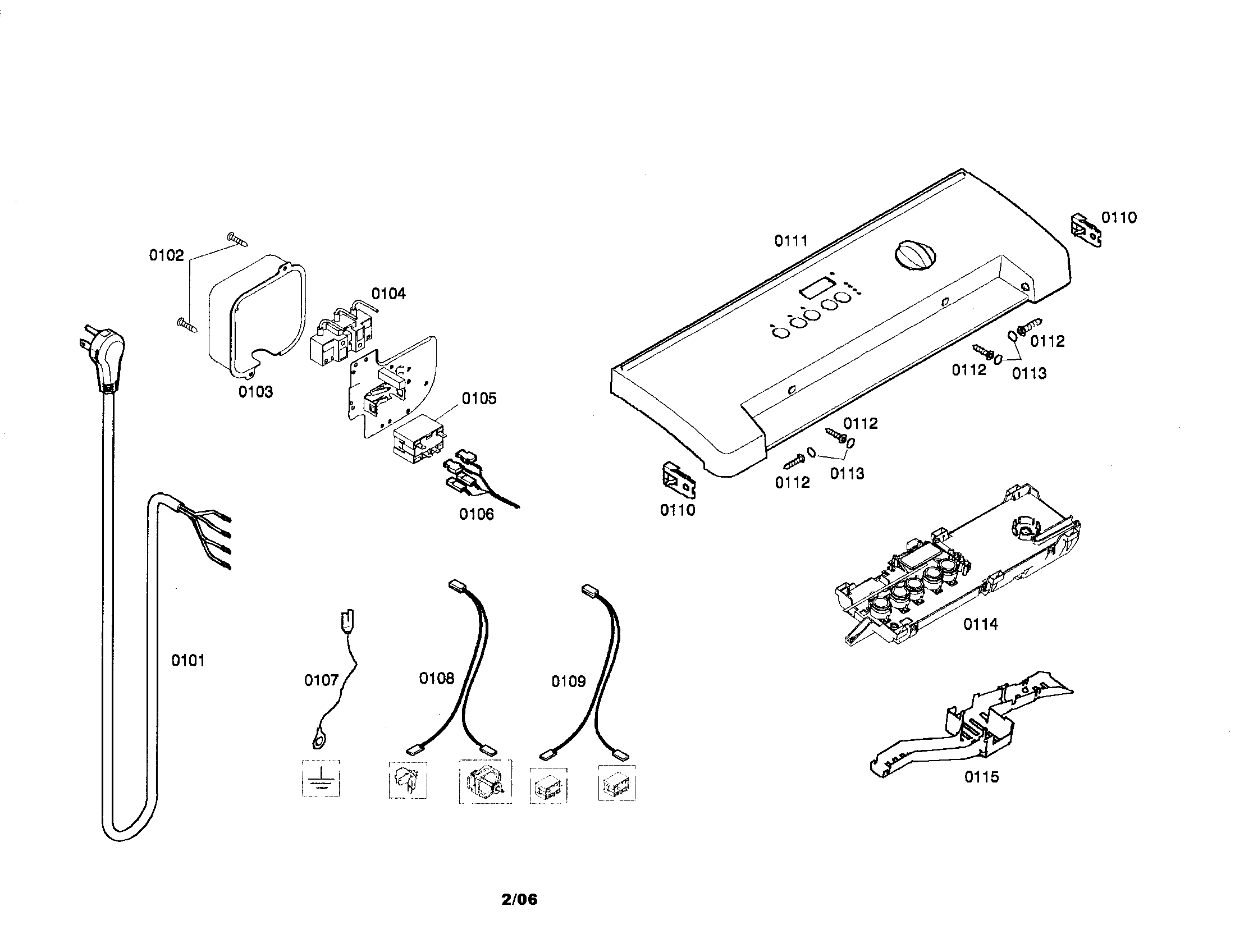

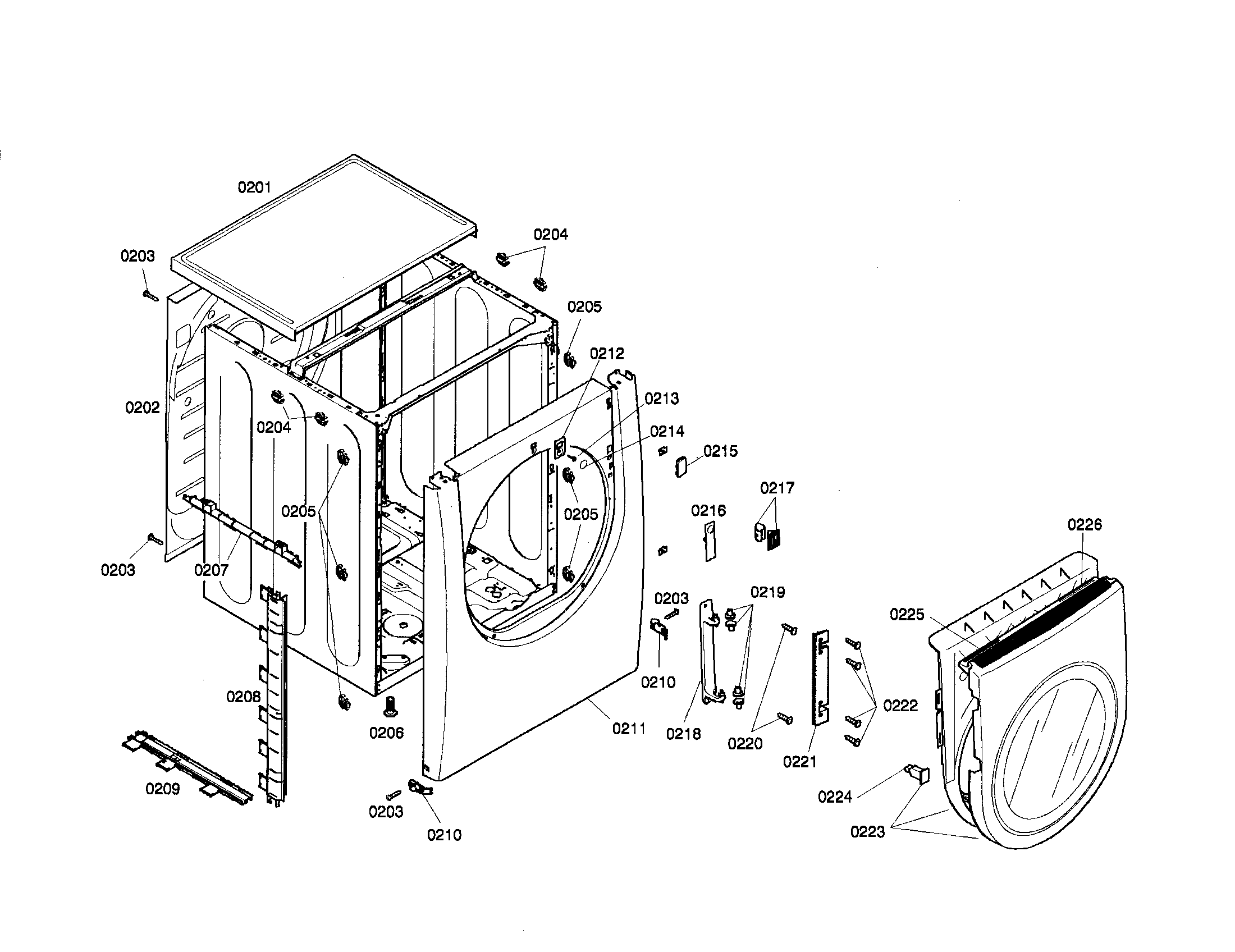

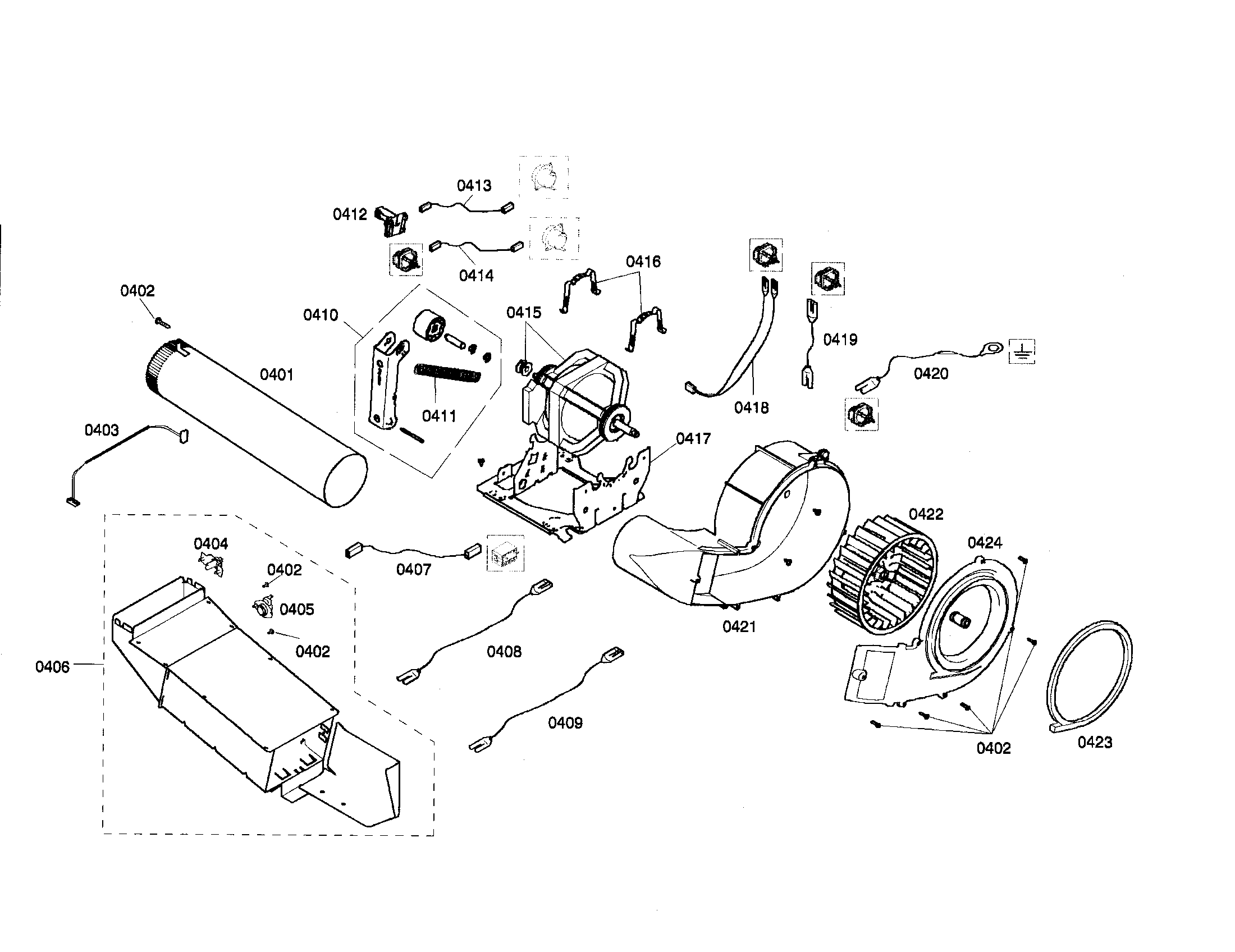

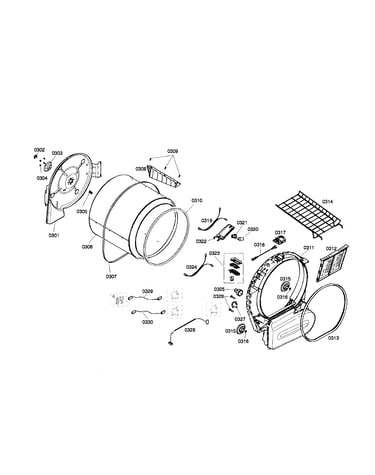

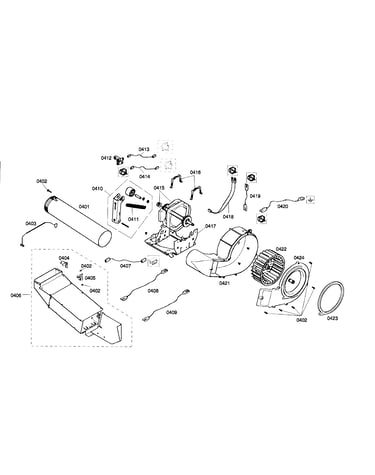

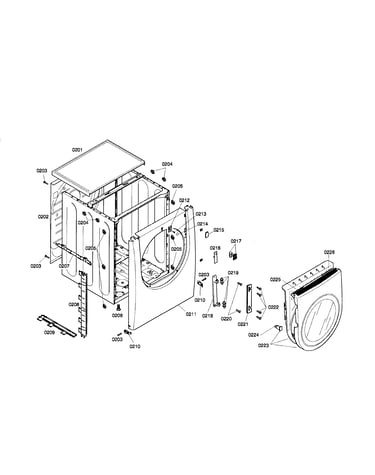

All parts diagram

Dryer drum support roller

Part #422200

Replaced by #00422200

?
Manufacturer substitution
This part replaces 422200. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Dryer Door Hinge 491647

#218

All parts diagram

Dryer door hinge

Part #491647

Replaced by #00491647

?
Manufacturer substitution
This part replaces 491647. Substitute parts can look different from the original.
$35.89 |
14% OFF Phone Price : $41.89
In Stock
Switch 422183

#317

All parts diagram

Switch

Part #422183

Replaced by #00422183

?
Manufacturer substitution
This part replaces 422183. Substitute parts can look different from the original.
$75.58
In Stock
Dryer Sensor 422202

#323

All parts diagram

Dryer sensor

Part #422202

Replaced by #00422202

?
Manufacturer substitution
This part replaces 422202. Substitute parts can look different from the original.
$35.39 |
14% OFF Phone Price : $41.39
In Stock
Dryer Drive Motor 436441

#415

All parts diagram

Dryer drive motor

Part #436441

The manufacturer no longer makes this part, and there's no substitute part

Relay 422203

#105

All parts diagram

Relay

Part #422203

Replaced by #00422203

?
Manufacturer substitution
This part replaces 422203. Substitute parts can look different from the original.
$58.89 |
9% OFF Phone Price : $64.89
In Stock
Lock Cap 602993

#212

All parts diagram

Lock cap

Part #602993

Replaced by #00424040

?
Manufacturer substitution
This part replaces 602993. Substitute parts can look different from the original.
This item is not returnable
$5.89
In Stock
Dryer Drum Lamp 422173

#320

All parts diagram

Dryer drum lamp

Part #422173

This item is not returnable
$20.34
In Stock
Circlip 424034

#316

All parts diagram

Circlip

Part #424034

Replaced by #00424034

?
Manufacturer substitution
This part replaces 424034. Substitute parts can look different from the original.
This item is not returnable
$4.57 |
18% OFF Phone Price : $5.57
In Stock
Ntc 154166

#325

All parts diagram

Ntc

Part #154166

Replaced by #10010119

?
Manufacturer substitution
This part replaces 154166. Substitute parts can look different from the original.
$34.11
In Stock
