Model # MDD8000AWS0 Official Maytag dishwasher

Here are the diagrams and repair parts for Official Maytag MDD8000AWS0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Silverware Basket W10169389
#3

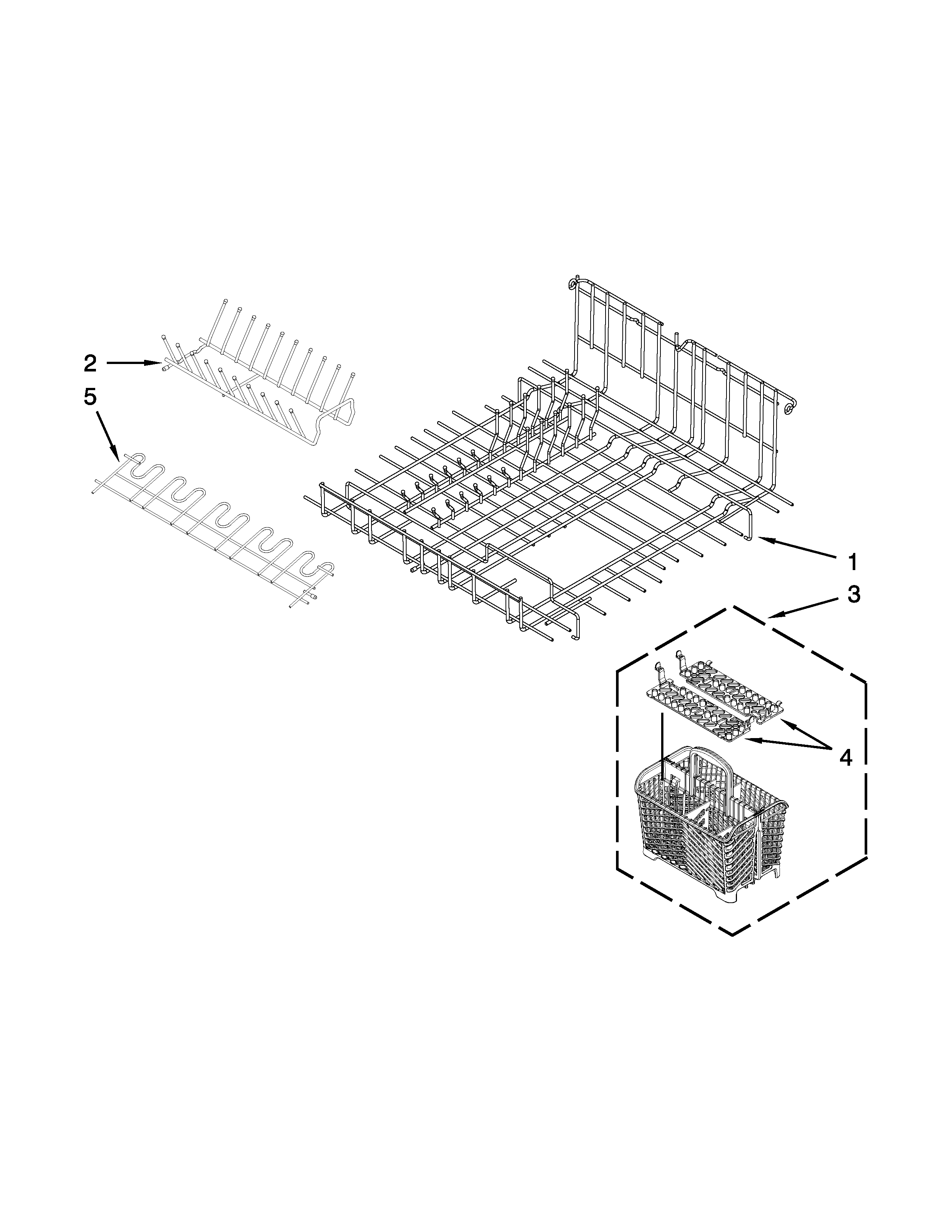

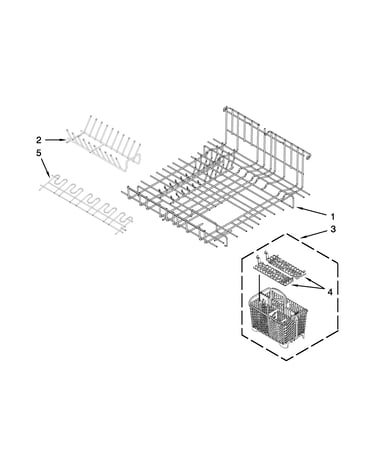

Upper and lower rack parts diagram

Silverware basket

Part #W10169389

Replaced by #WP6-918873

?
Manufacturer substitution
This part replaces W10169389. Substitute parts can look different from the original.
$20.61 |
23% OFF Phone Price : $26.61
Back Order
Dishwasher Drain Pump W10190553
#17

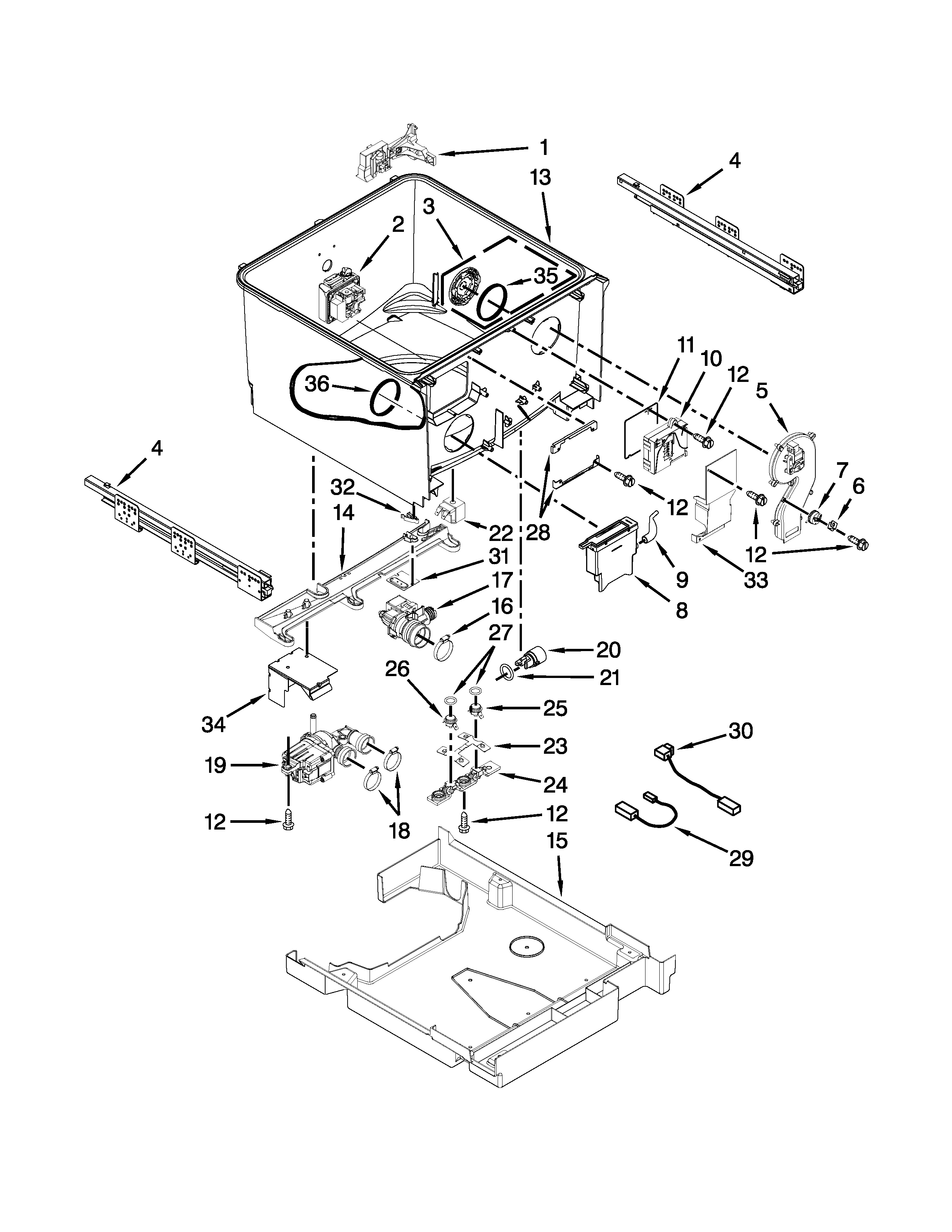

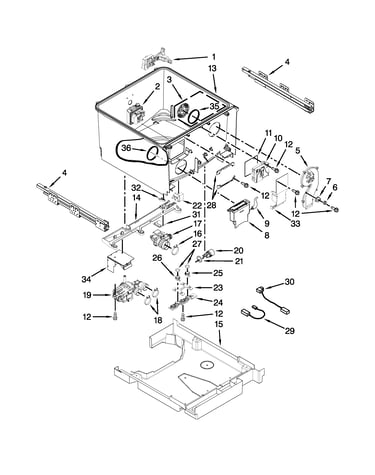

Tub parts diagram

Dishwasher drain pump

Part #W10190553

Replaced by #WP6-920639

?
Manufacturer substitution
This part replaces W10190553. Substitute parts can look different from the original.
$155.31 |
7% OFF Phone Price : $167.31
In Stock
Dishwasher Vent Fan Motor Assembly W10155595
#5

Tub parts diagram

Dishwasher vent fan motor assembly

Part #W10155595

Replaced by #WPW10155595

?
Manufacturer substitution
This part replaces W10155595. Substitute parts can look different from the original.
$119.48 |
9% OFF Phone Price : $131.48
In Stock
Inlet Valve W10186746
#18

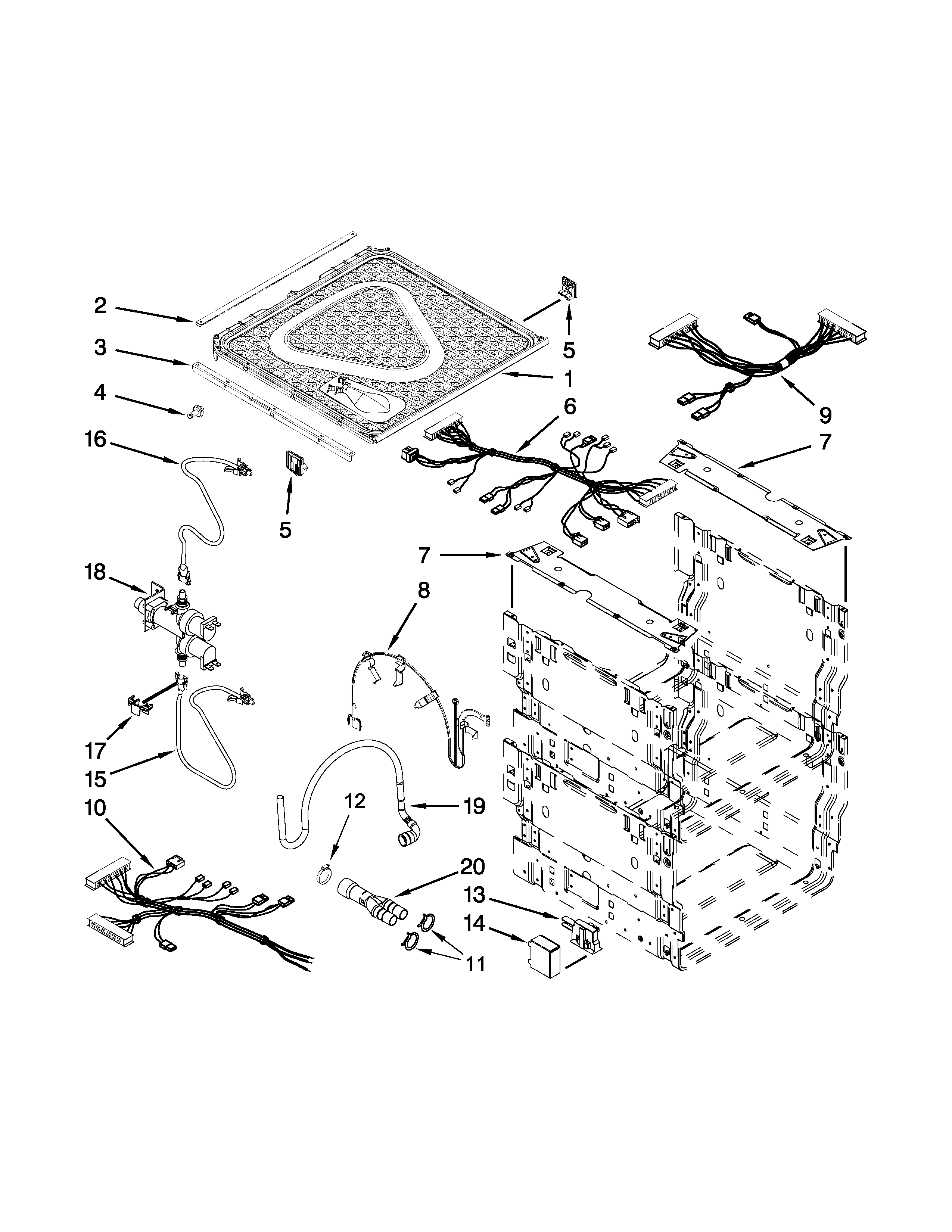

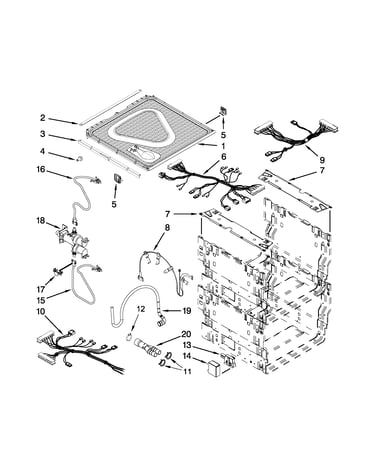

Frame and lid parts diagram

Inlet valve

Part #W10186746

Replaced by #WPW10186746

?
Manufacturer substitution
This part replaces W10186746. Substitute parts can look different from the original.
$102.99 |
10% OFF Phone Price : $114.99
In Stock
Dishwasher Wire Harness W10117969
#6

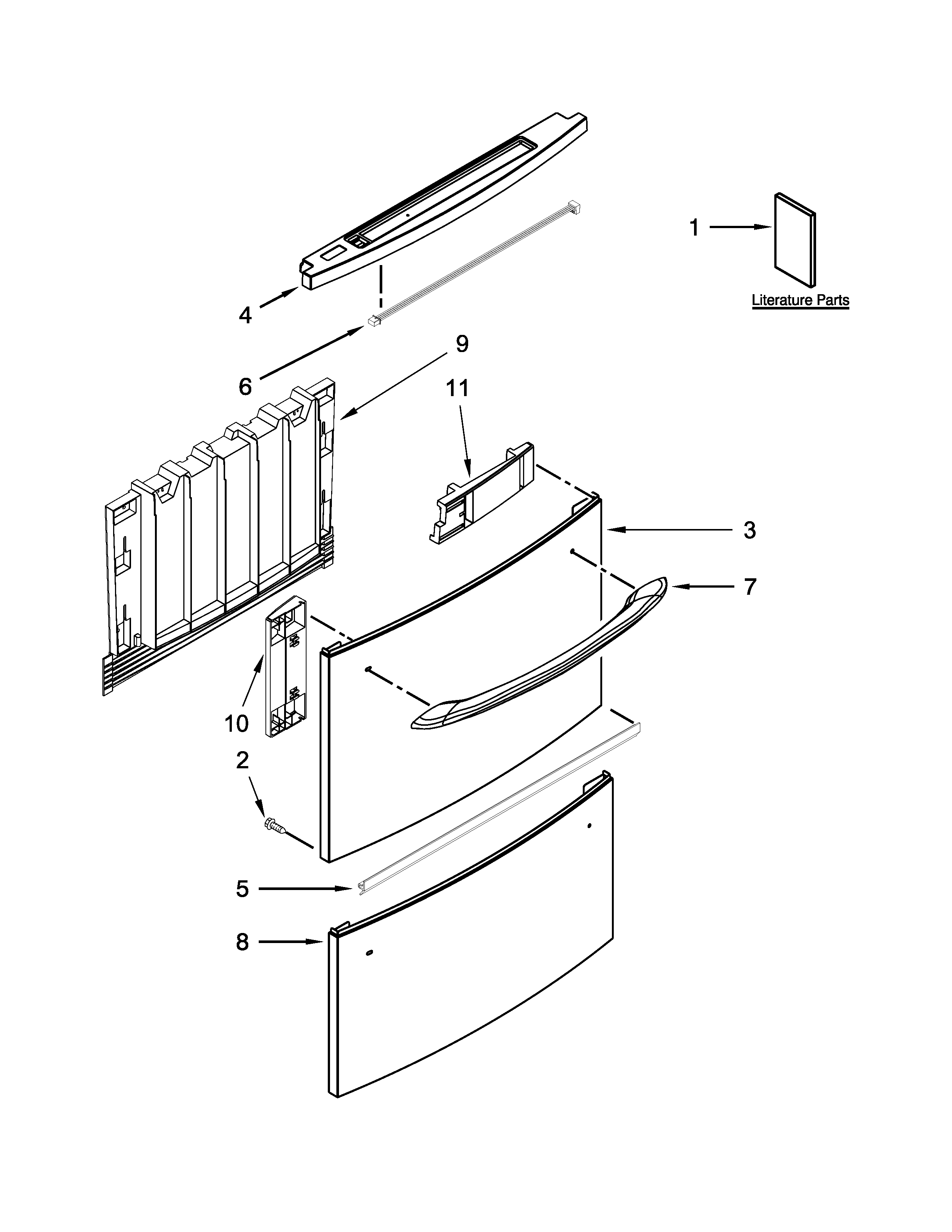

Front panel parts diagram

Dishwasher wire harness

Part #W10117969

$90.38
In Stock
Dishwasher Fill Hose Retainer W10189242
#17

Frame and lid parts diagram

Dishwasher fill hose retainer

Part #W10189242

$11.79 |
15% OFF Phone Price : $13.79
In Stock
Catch W10190274
#32

Tub parts diagram

Catch

Part #W10190274

This item is not returnable
$17.00 |
11% OFF Phone Price : $19.00
In Stock
Hose 99003765
#16

Frame and lid parts diagram

Hose

Part #99003765

Replaced by #WP99003765

?
Manufacturer substitution
This part replaces 99003765. Substitute parts can look different from the original.
$32.87
In Stock
Toe Kick Base Y6920295
#4

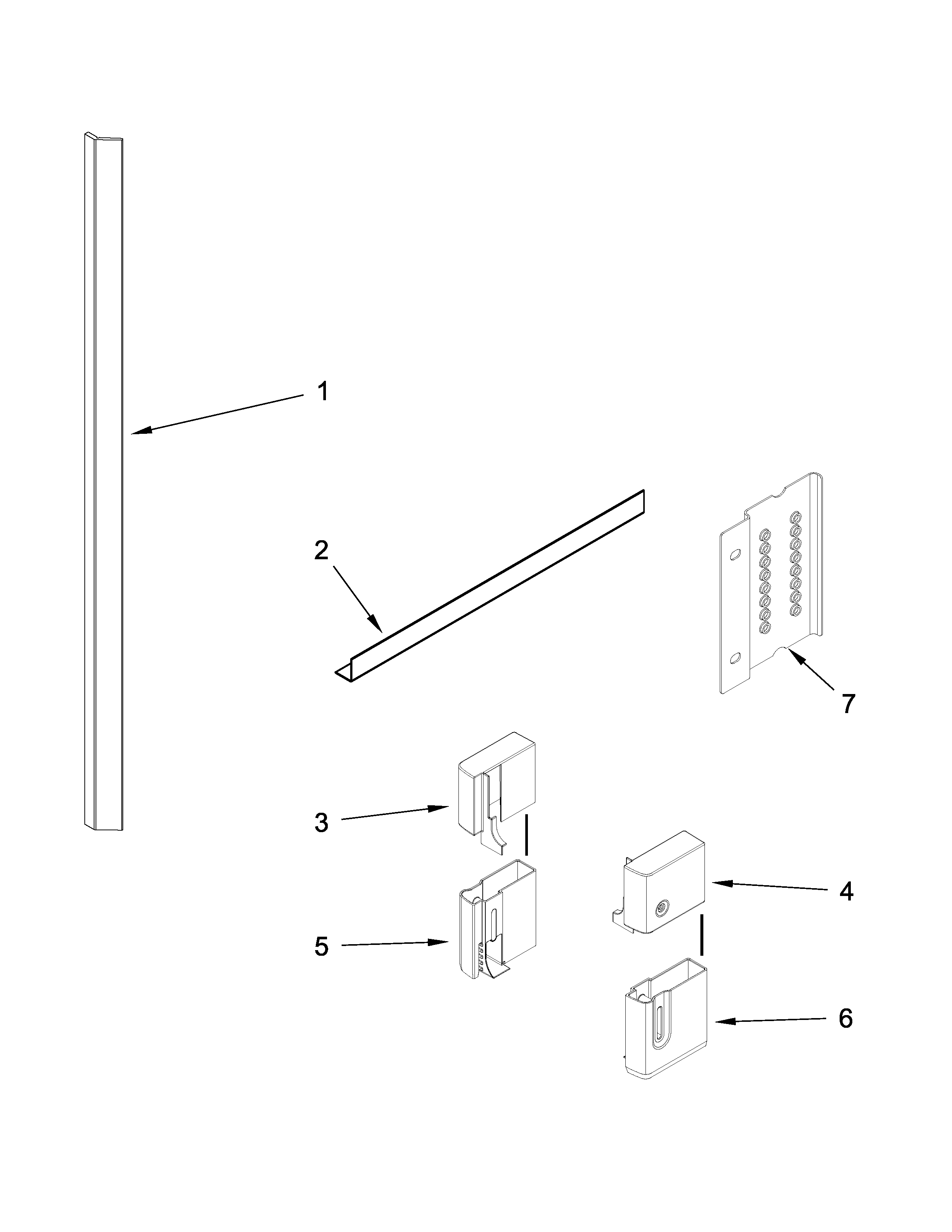

Accessory parts diagram

Toe kick base

Part #Y6920295

Replaced by #WPY6920295

?
Manufacturer substitution
This part replaces Y6920295. Substitute parts can look different from the original.
$22.99
In Stock
Bracket W10118491
#31

Tub parts diagram

Bracket

Part #W10118491

Replaced by #WPW10258873

?
Manufacturer substitution
This part replaces W10118491. Substitute parts can look different from the original.
$44.51
In Stock
