Model # 867810510 Official Kenmore evaporator blower coil

Here are the diagrams and repair parts for Official Kenmore 867810510 evaporator blower coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

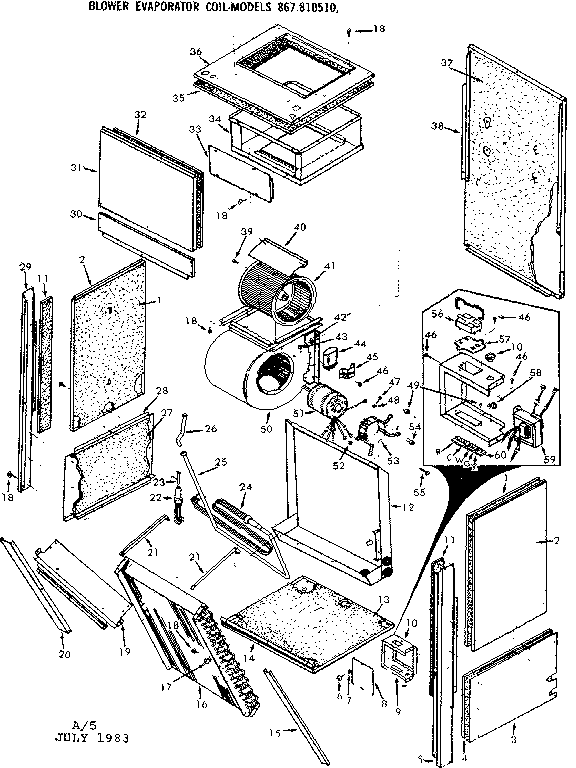

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Motor 3/4 Hp 707102
#51

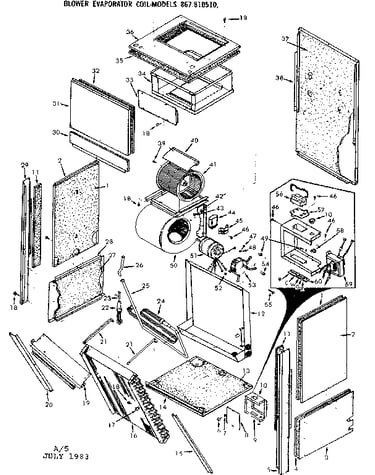

Unit parts diagram

Motor 3/4 hp

Part #707102

Replaced by #45461

?
Manufacturer substitution
This part replaces 707102. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Capacitor 707426
#44

Unit parts diagram

Capacitor

Part #707426

Replaced by #12908

?
Manufacturer substitution
This part replaces 707426. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Blower Fan Wheel 600586
#41

Unit parts diagram

Furnace blower fan wheel

Part #600586

$127.13 |
9% OFF Phone Price : $139.13
In Stock
Process Tube 707048
#23

Unit parts diagram

Process tube

Part #707048

Replaced by #100108370

?
Manufacturer substitution
This part replaces 707048. Substitute parts can look different from the original.
$36.67
In Stock
Screw 92637
#46

Unit parts diagram

Screw

Part #92637

The manufacturer no longer makes this part, and there's no substitute part

Panel 704086
#28

Unit parts diagram

Panel

Part #704086

The manufacturer no longer makes this part, and there's no substitute part

Fan Relay 704447
#56

Unit parts diagram

Fan relay

Part #704447

The manufacturer no longer makes this part, and there's no substitute part

Insulation 707020
#1

Unit parts diagram

Insulation

Part #707020

The manufacturer no longer makes this part, and there's no substitute part

Insulation 704607
#13

Unit parts diagram

Insulation

Part #704607

The manufacturer no longer makes this part, and there's no substitute part

Support Coil 707044
#21

Unit parts diagram

Support coil

Part #707044

The manufacturer no longer makes this part, and there's no substitute part
