Model # JBS03GV1 Official GE electric range

Here are the diagrams and repair parts for Official GE JBS03GV1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Infinite Control Switch WB23X5092

#3

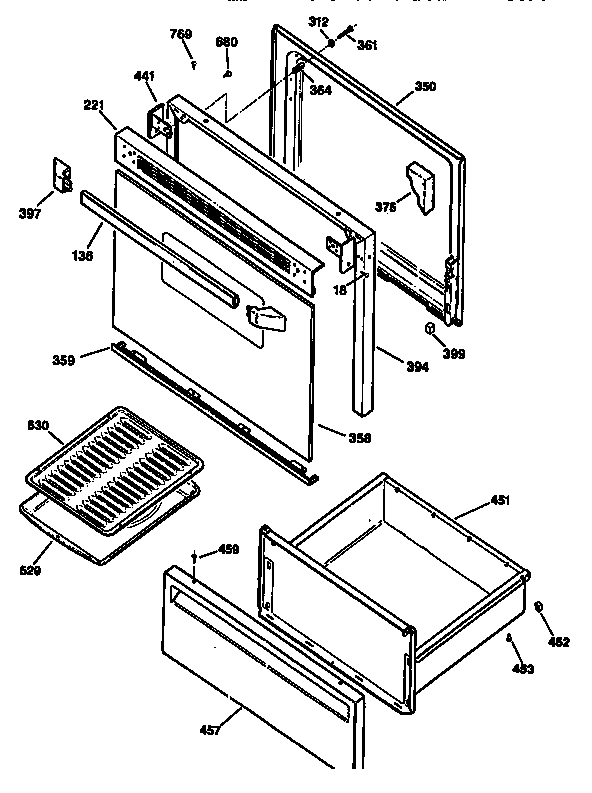

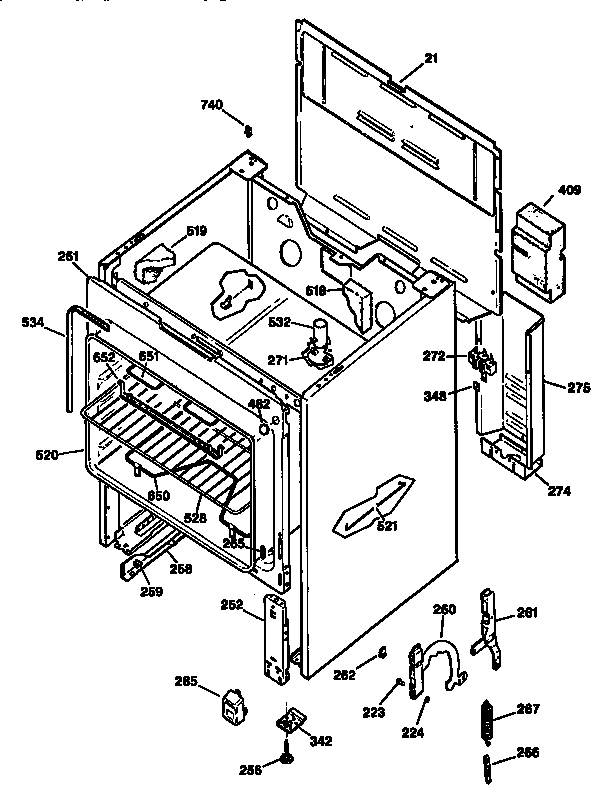

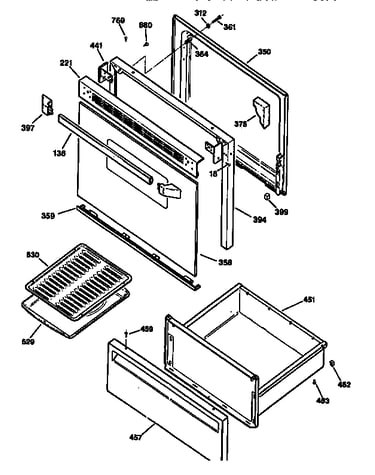

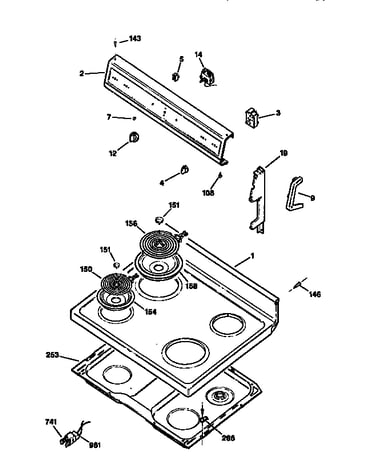

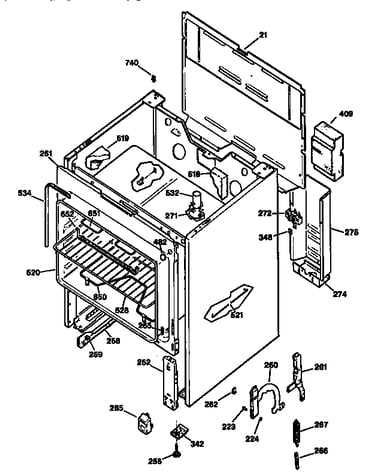

All parts diagram

Infinite control switch

Part #WB23X5092

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB23X5092. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Infinite Control Switch WB32X5095

#3A

All parts diagram

Infinite control switch

Part #WB32X5095

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB32X5095. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Range Bake Element (replaces 8030, Wb44x10003, Wb44x5061, Wb44x5072, Wb44x5082r, Wb44x5083) WB44X5082

#650

All parts diagram

Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)

Part #WB44X5082

BEST SELLER
$47.68 |
11% OFF Phone Price : $53.68
In Stock
"8""p.i. S/u" WB30X5130

#156

All parts diagram

"8""p.i. s/u"

Part #WB30X5130

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5130. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Range Drip Pan WB32X5076

#158

All parts diagram

Range drip pan

Part #WB32X5076

Replaced by #WB31K10266

?
Manufacturer substitution
This part replaces WB32X5076. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Drip Pan WB32X5075

#154

All parts diagram

Range drip pan

Part #WB32X5075

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB32X5075. Substitute parts can look different from the original.
This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
6"p.i. S/u WB30X5129

#150

All parts diagram

6"p.i. s/u

Part #WB30X5129

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30X5129. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Broil Unit F WB44X0185

#651

All parts diagram

Broil unit f

Part #WB44X0185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X0185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Clip Receptacle WB02X8228

#741

All parts diagram

Clip receptacle

Part #WB02X8228

Replaced by #WB2X8228

?
Manufacturer substitution
This part replaces WB02X8228. Substitute parts can look different from the original.
This item is not returnable
$30.23 |
17% OFF Phone Price : $36.23
In Stock
End Cap Handle WB07X7183

#397

All parts diagram

End cap handle

Part #WB07X7183

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB07X7183. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
