Frigidaire
Electric Wall Oven

Model # FFET2726TWB Official Frigidaire electric oven

Here are the diagrams and repair parts for Official Frigidaire FFET2726TWB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

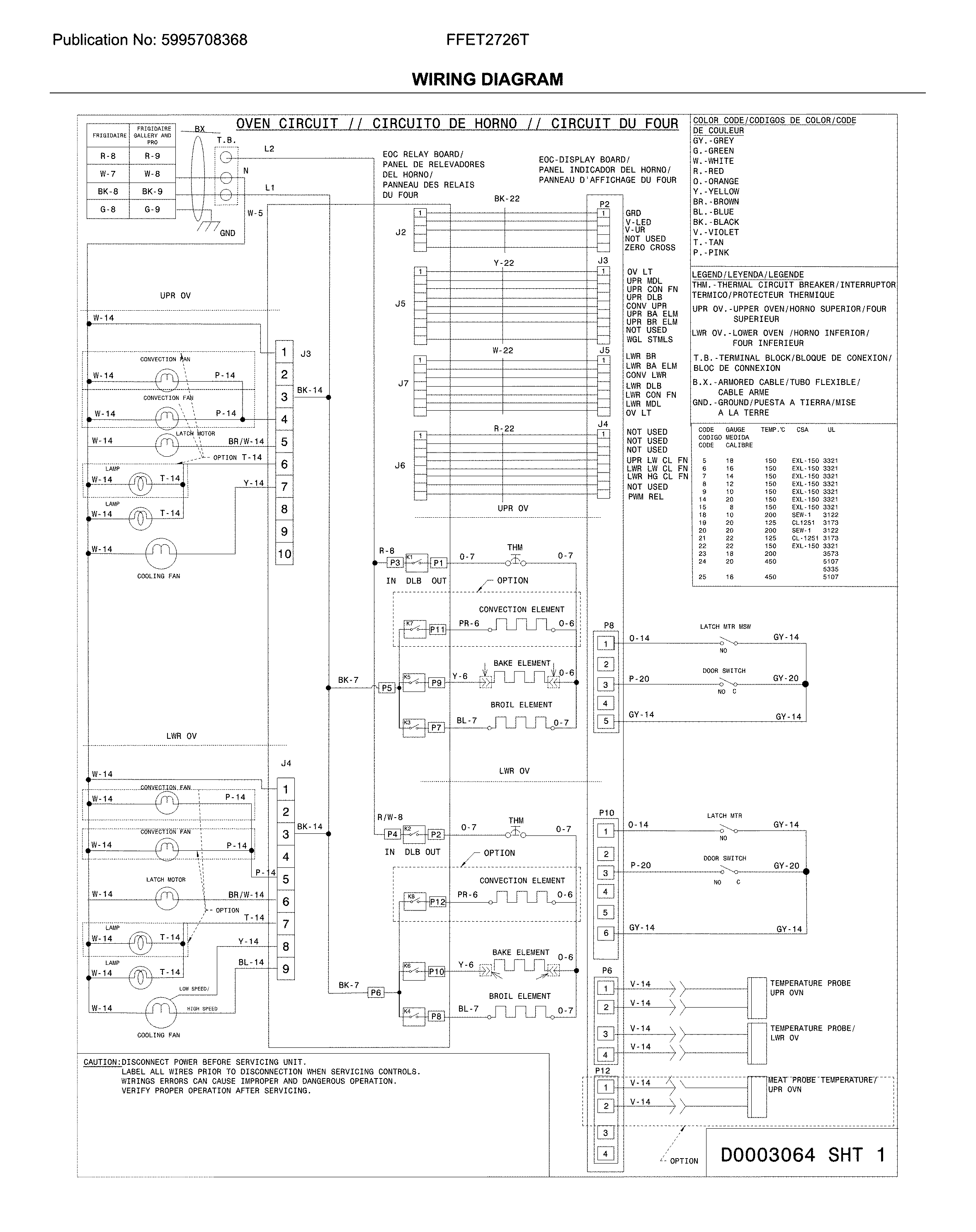

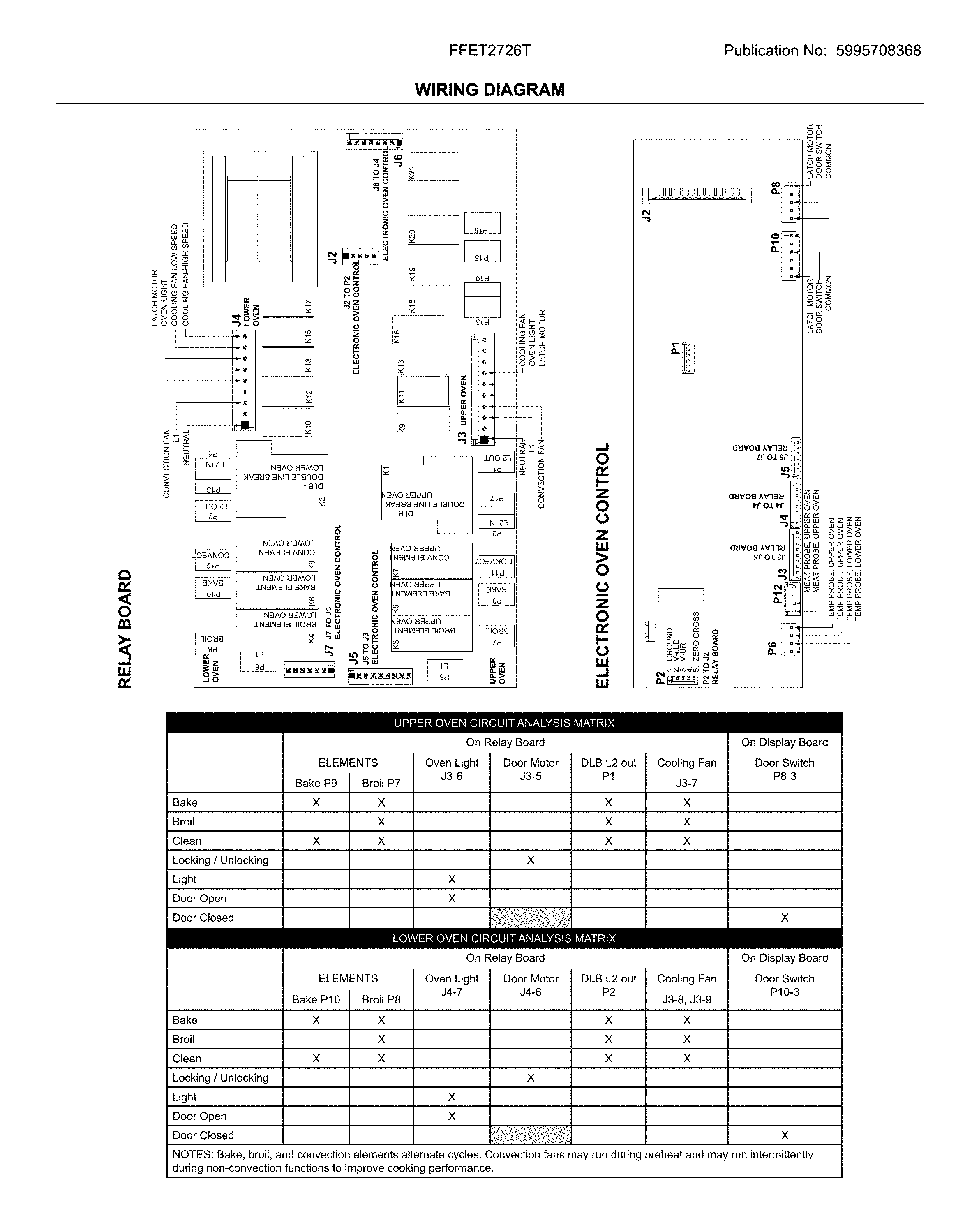

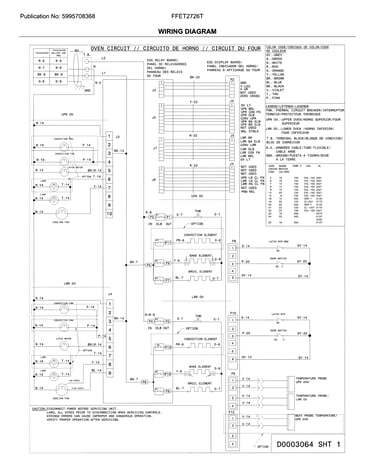

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

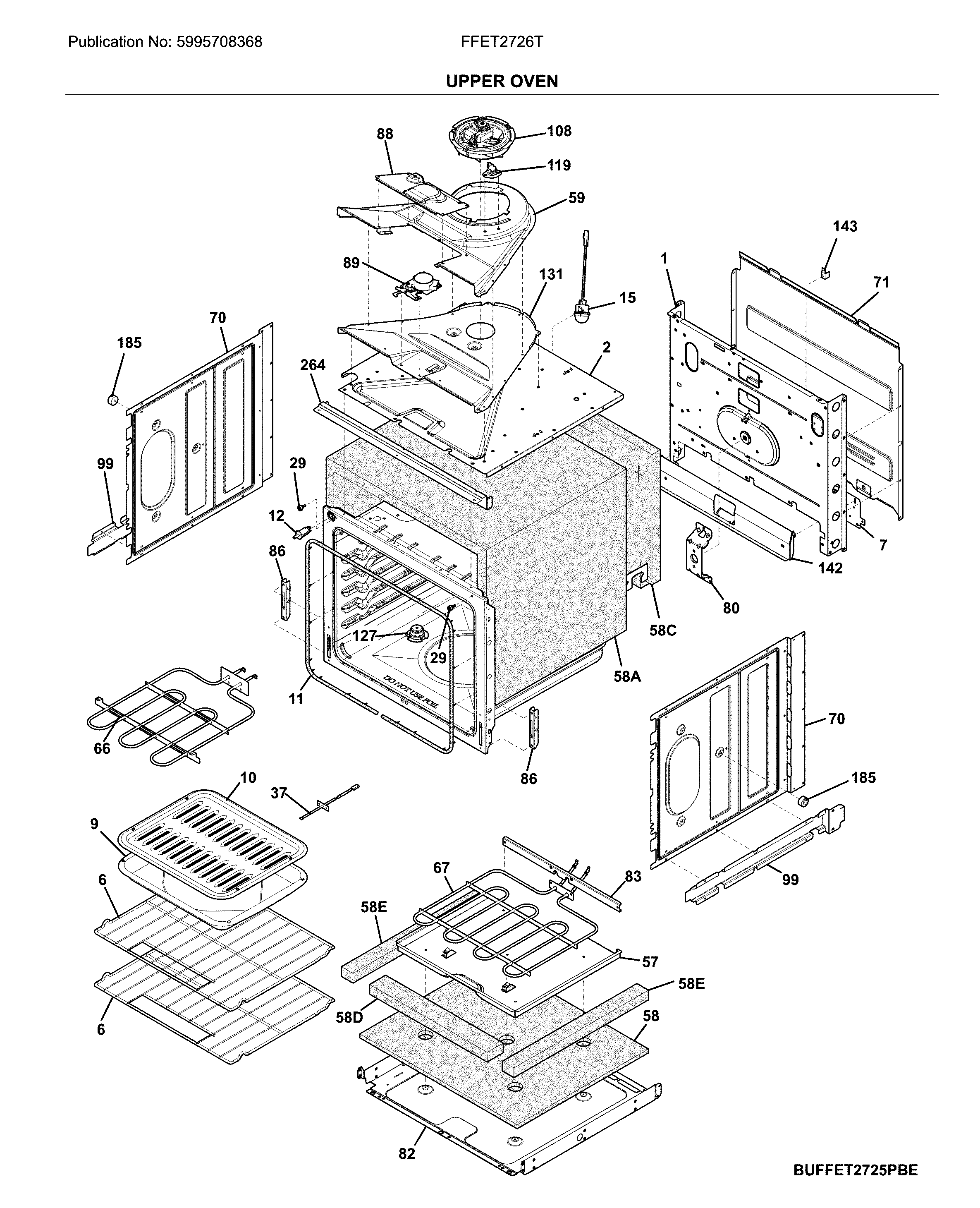

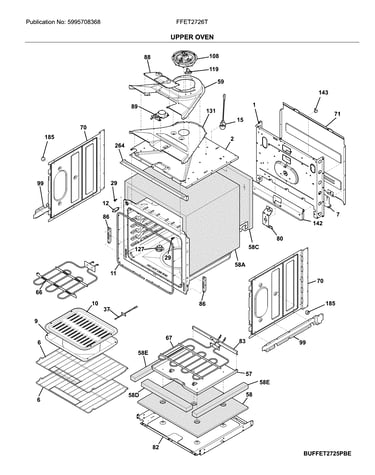

Upper oven diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Frigidaire Wall Oven Relay Control Board 316443913
#97

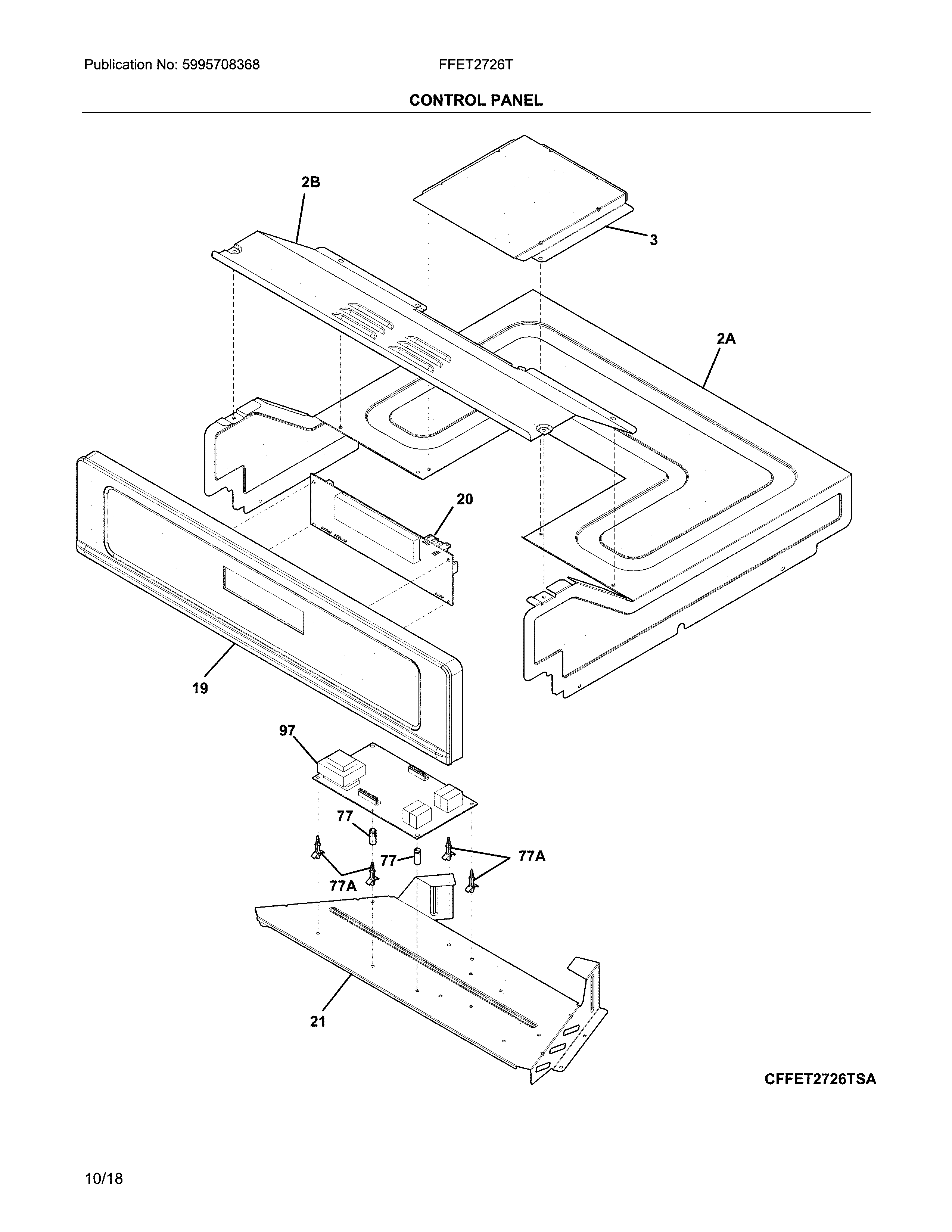

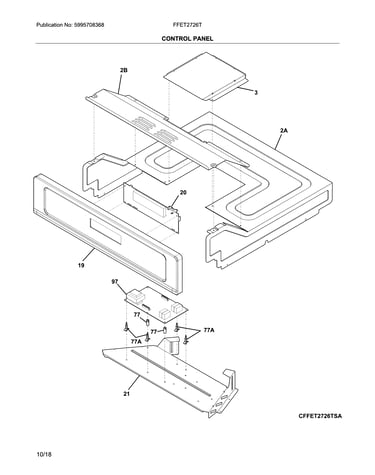

Control panel diagram

Frigidaire wall oven relay control board

Part #316443913

BEST SELLER
This item is not returnable
$245.98 |
5% OFF Phone Price : $257.98
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
Range oven light bulb (replaces 808564103)

Part #318946500

$38.98 |
13% OFF Phone Price : $44.98
In Stock
Range Door Light Switch 318394802
Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Range Screw 316001003
#NI

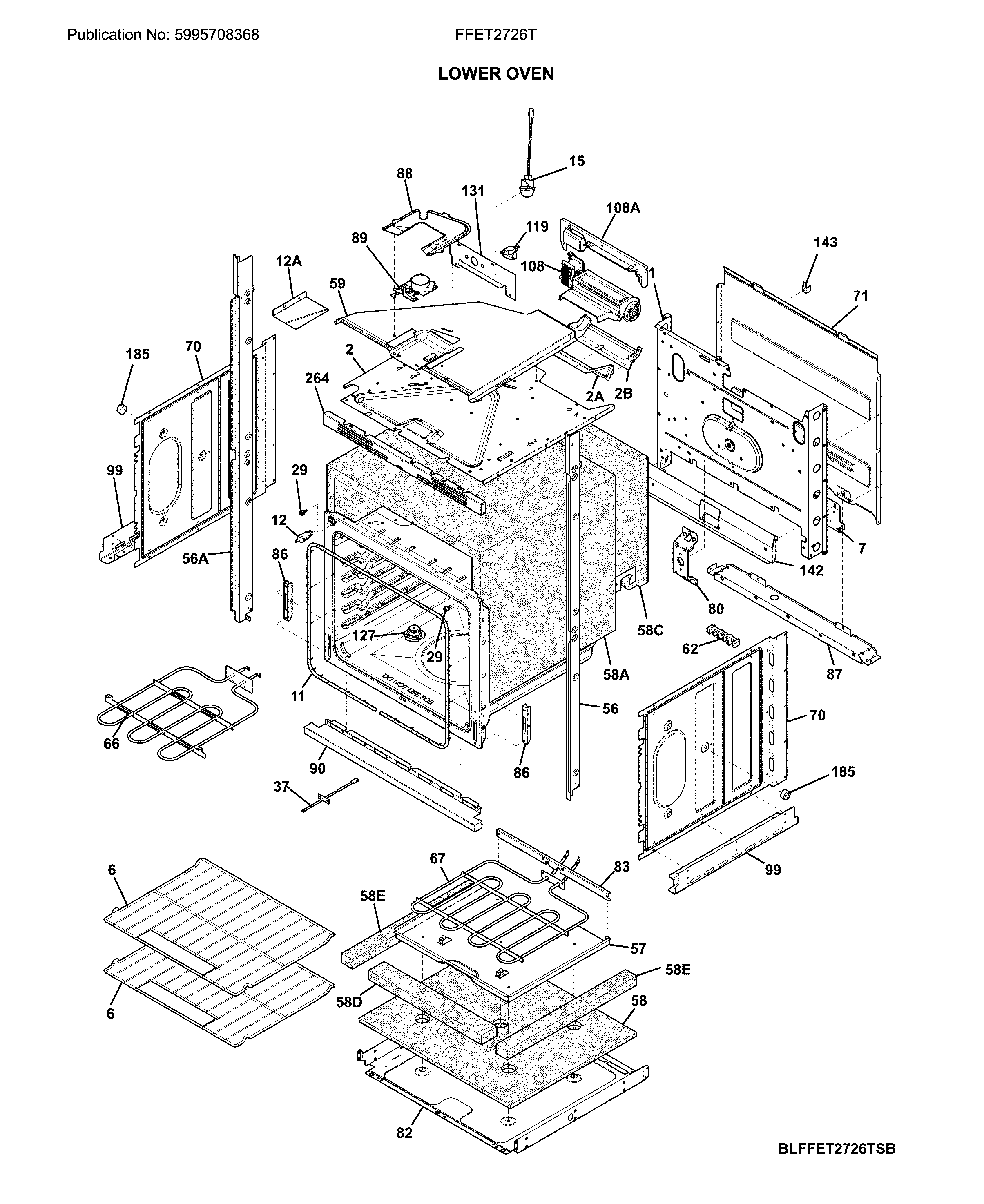

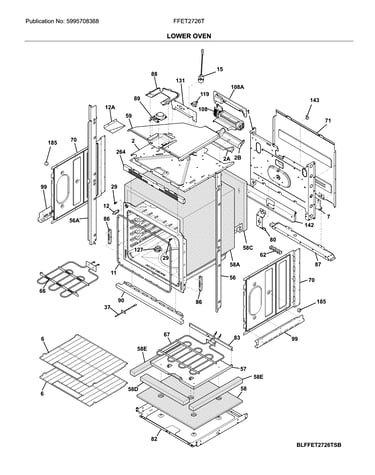

Lower oven diagram

Range screw

Part #316001003

Replaced by #316001017

?
Manufacturer substitution
This part replaces 316001003. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Range Broil Element 139028200
Range broil element

Part #139028200

$73.39 |
8% OFF Phone Price : $79.39
In Stock
Wall Oven Rack 139011900
Wall oven rack

Part #139011900

$45.59 |
12% OFF Phone Price : $51.59
In Stock
Wall Oven Wire Harness (replaces 318394443) 5304506955
#NI

Lower oven diagram

Wall oven wire harness (replaces 318394443)

Part #5304506955

$119.49 |
9% OFF Phone Price : $131.49
In Stock
Range Screw (replaces 5304471237) 316418900
Range screw (replaces 5304471237)

Part #316418900

This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Bracket,glass Retainer ,(4) 318382302
#42

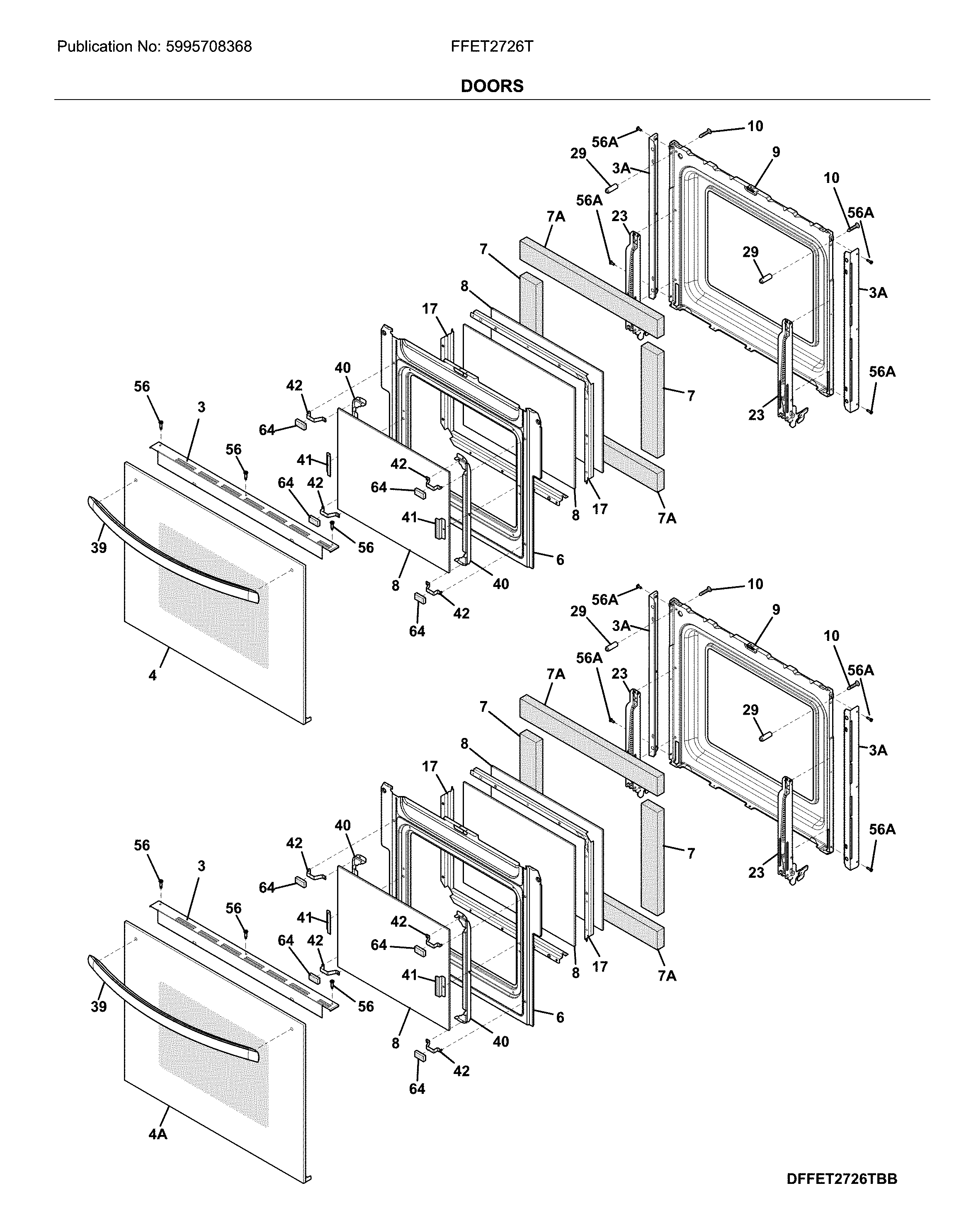

Doors diagram

Bracket,glass retainer ,(4)

Part #318382302

$43.42
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more
