Model # 453811300 Official Kenmore 9" 2-speed personal fan
Here are the diagrams and repair parts for Official Kenmore 453811300 9" 2-speed personal fan, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
453811300 9" 2-Speed Personal Fan
#5

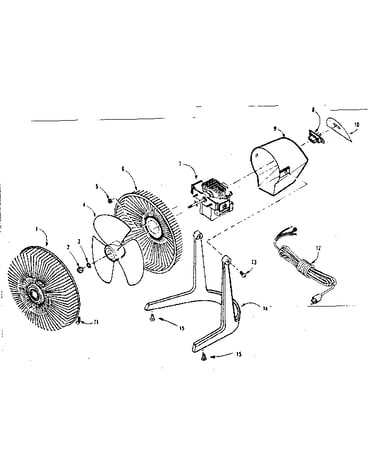

Functional replacement parts diagram
Hex nut
Part #STD541006
The manufacturer no longer makes this part, and there's no substitute part
#3
Functional replacement parts diagram
Lock washer
Part #2090049
The manufacturer no longer makes this part, and there's no substitute part
#16
Functional replacement parts diagram
Ornament
Part #2002418
The manufacturer no longer makes this part, and there's no substitute part
#1
Functional replacement parts diagram
Guard
Part #2096045
The manufacturer no longer makes this part, and there's no substitute part
#13
Functional replacement parts diagram
Screw
Part #STD512507
The manufacturer no longer makes this part, and there's no substitute part
#8
Functional replacement parts diagram
2 spd switch
Part #2055006
The manufacturer no longer makes this part, and there's no substitute part
#14
Functional replacement parts diagram
Stand
Part #2002376
The manufacturer no longer makes this part, and there's no substitute part
#9
Functional replacement parts diagram
Motor cover
Part #2002251
The manufacturer no longer makes this part, and there's no substitute part
#12
Functional replacement parts diagram
Cord set
Part #2050027
The manufacturer no longer makes this part, and there's no substitute part
#11
Functional replacement parts diagram
Guard clip
Part #2010351
The manufacturer no longer makes this part, and there's no substitute part
