Universal/Multiflex (Frigidaire)
Chest Freezer

Model # CFC25M4HW0 Official Universal/Multiflex (Frigidaire) freezer

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) CFC25M4HW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Filter Drier 216634500
#4

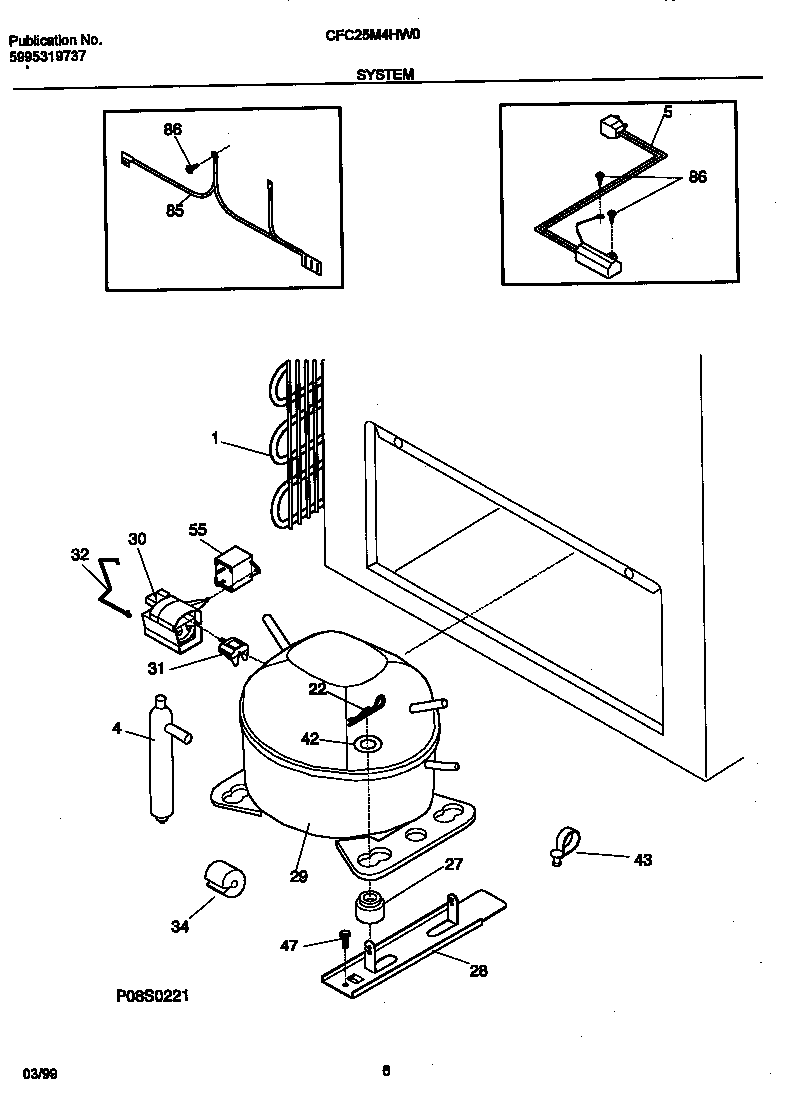

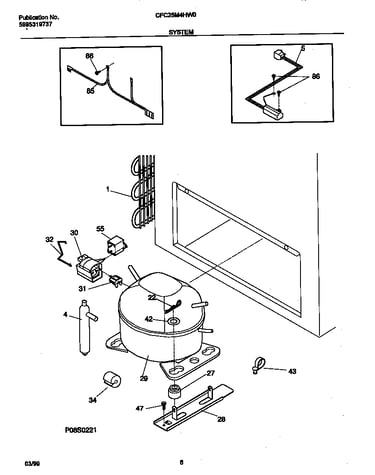

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 216388700
#5

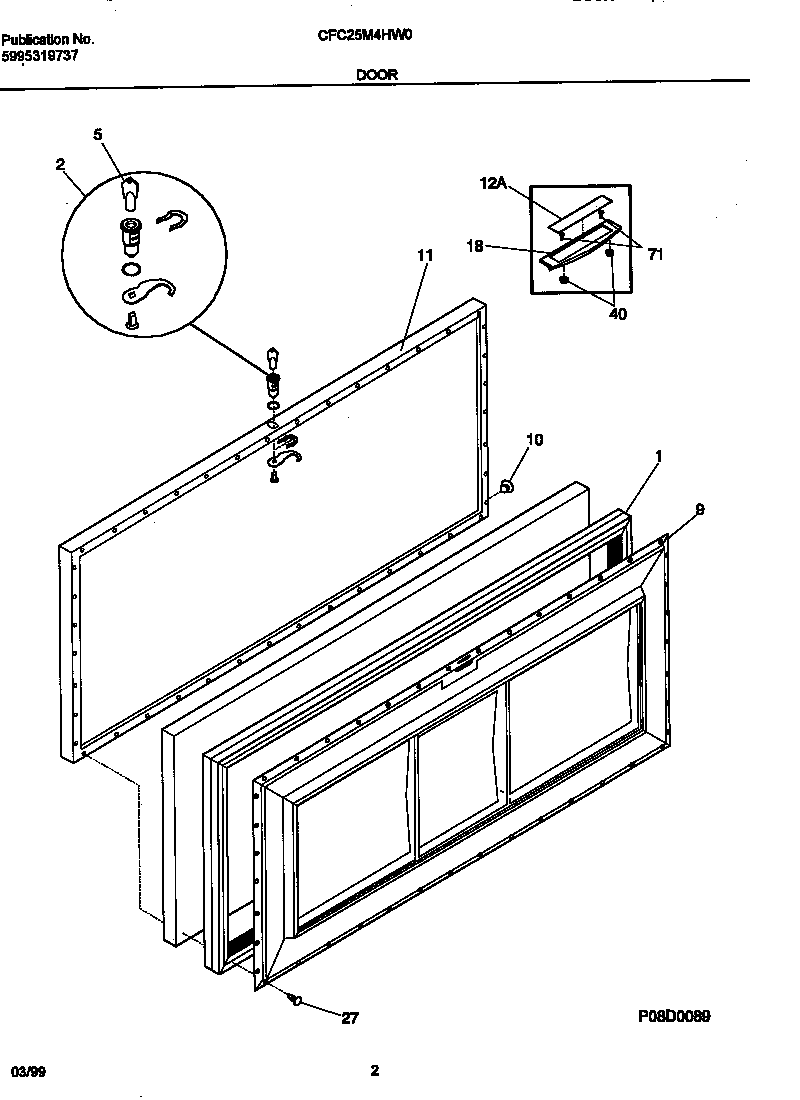

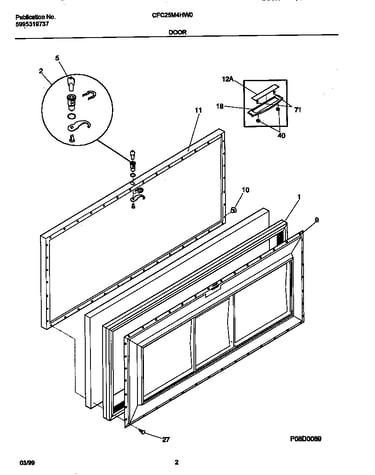

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Compressor 5303925323
#29B

System diagram

Compressor

Part #5303925323

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 5303925323. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Capacitor 216236200
#55

System diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Freezer Lid Gasket 216469301
#1

Door diagram

Freezer lid gasket

Part #216469301

Replaced by #216469311

?
Manufacturer substitution
This part replaces 216469301. Substitute parts can look different from the original.
$143.04 |
8% OFF Phone Price : $155.04
In Stock
Screw (i 216036600
#86

System diagram

Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
$12.57
In Stock
Screw 5303302714
Screw

Part #5303302714

Replaced by #131420300

?
Manufacturer substitution
This part replaces 5303302714. Substitute parts can look different from the original.
This item is not returnable
$15.80
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

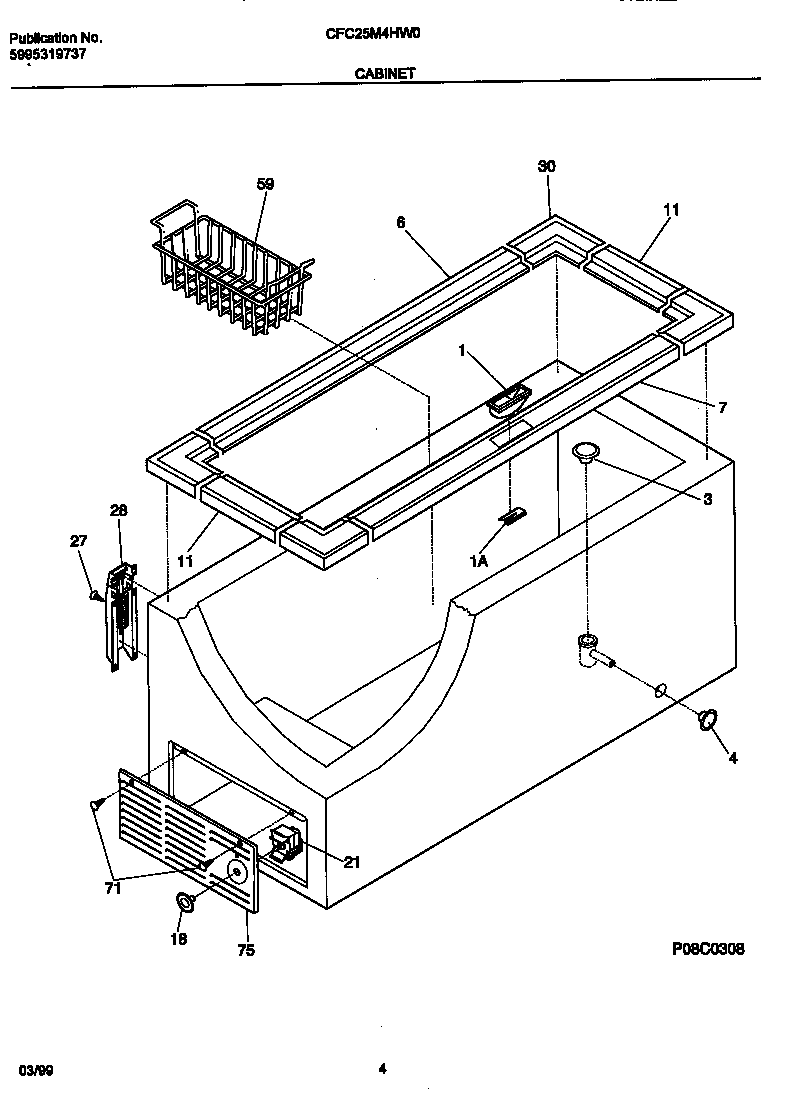

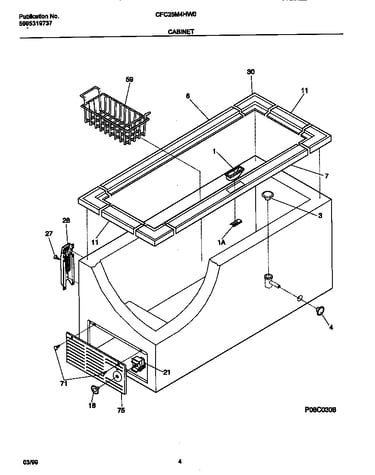

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Kelvinator Clip 216158300
#32

System diagram

Kelvinator clip

Part #216158300

This item is not returnable
$2.29
In Stock
