Model # VCH-6 Official Thermador range hood control housing

Here are the diagrams and repair parts for Official Thermador VCH-6 range hood control housing, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |

Range Hood Light Socket 14-09-941
#11

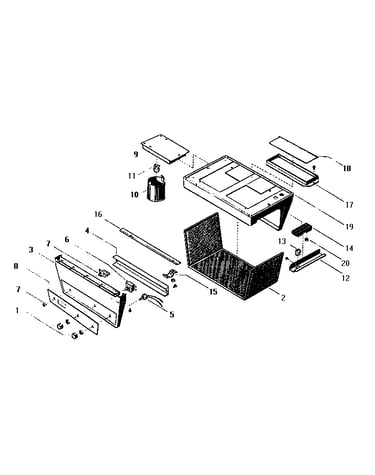

Control housing diagram

Range hood light socket

Part #14-09-941

This item is not returnable
In Stock
Lamp Box 19-07-028
#9

Control housing diagram

Lamp box

Part #19-07-028

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 19-09-527
#8

Control housing diagram

Control panel

Part #19-09-527

The manufacturer no longer makes this part, and there's no substitute part

Filter 19-07-062
#2

Control housing diagram

Filter

Part #19-07-062

The manufacturer no longer makes this part, and there's no substitute part

Molex Receptacle, Original 19-09-413
#13

Control housing diagram

Molex receptacle, original

Part #19-09-413

The manufacturer no longer makes this part, and there's no substitute part

Damper 19-03-317
#17

Control housing diagram

Damper

Part #19-03-317

The manufacturer no longer makes this part, and there's no substitute part

Knob 13-09-333
#1

Control housing diagram

Knob

Part #13-09-333

The manufacturer no longer makes this part, and there's no substitute part

Door Housing 19-07-026
#3

Control housing diagram

Door housing

Part #19-07-026

The manufacturer no longer makes this part, and there's no substitute part

Housing 19-07-205
#19

Control housing diagram

Housing

Part #19-07-205

The manufacturer no longer makes this part, and there's no substitute part

Switch Box 19-07-029
#4

Control housing diagram

Switch box

Part #19-07-029

The manufacturer no longer makes this part, and there's no substitute part
