Model # MBV1976AAB Official Maytag personal vending machine

Here are the diagrams and repair parts for Official Maytag MBV1976AAB personal vending machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 74 parts |

#23

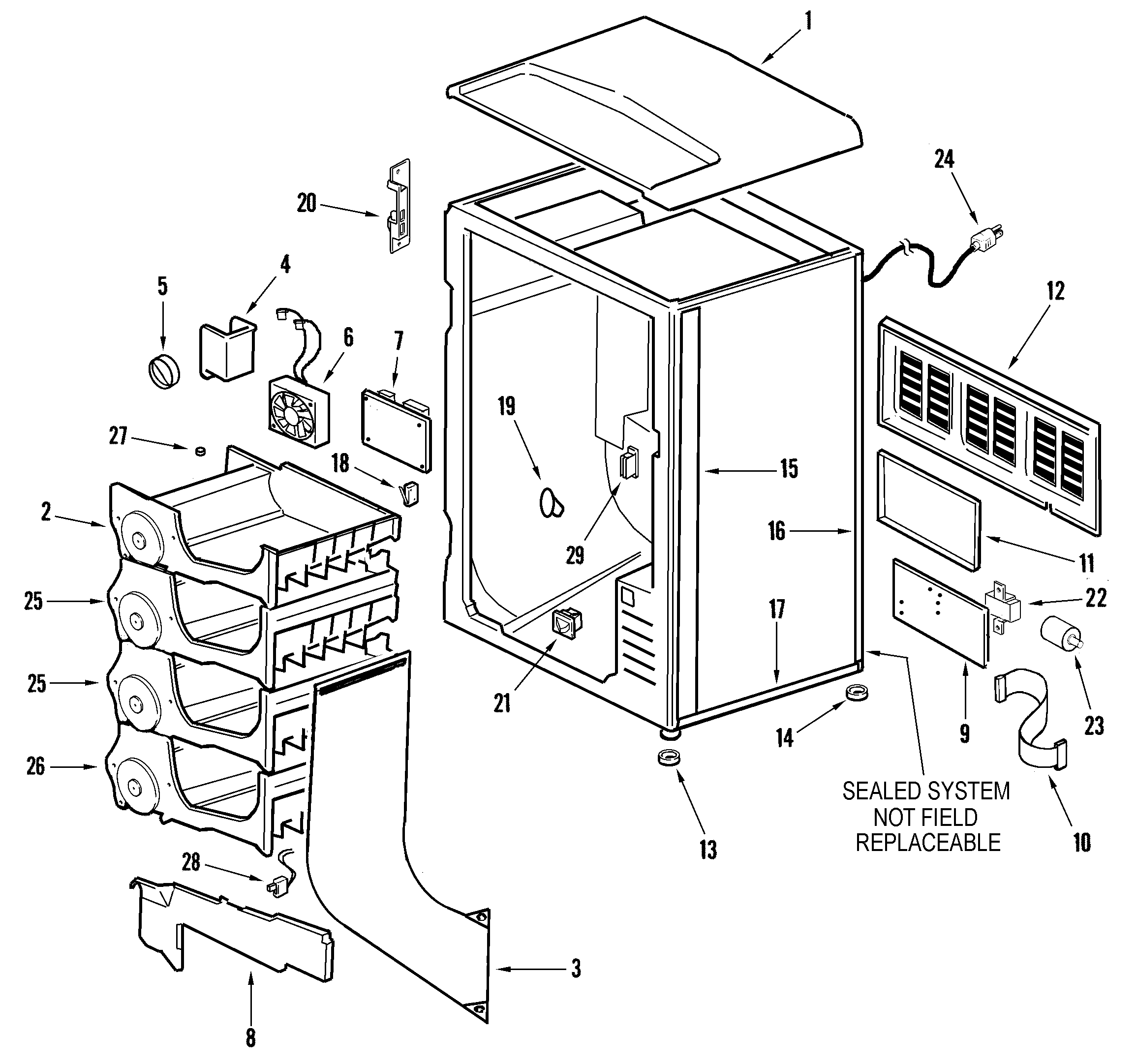

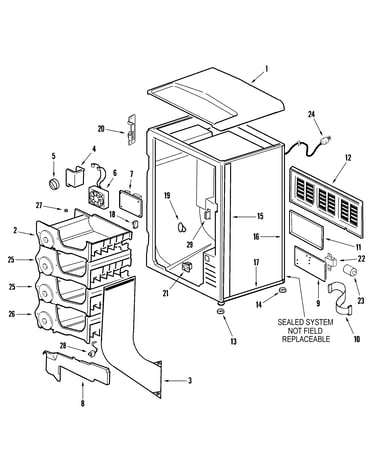

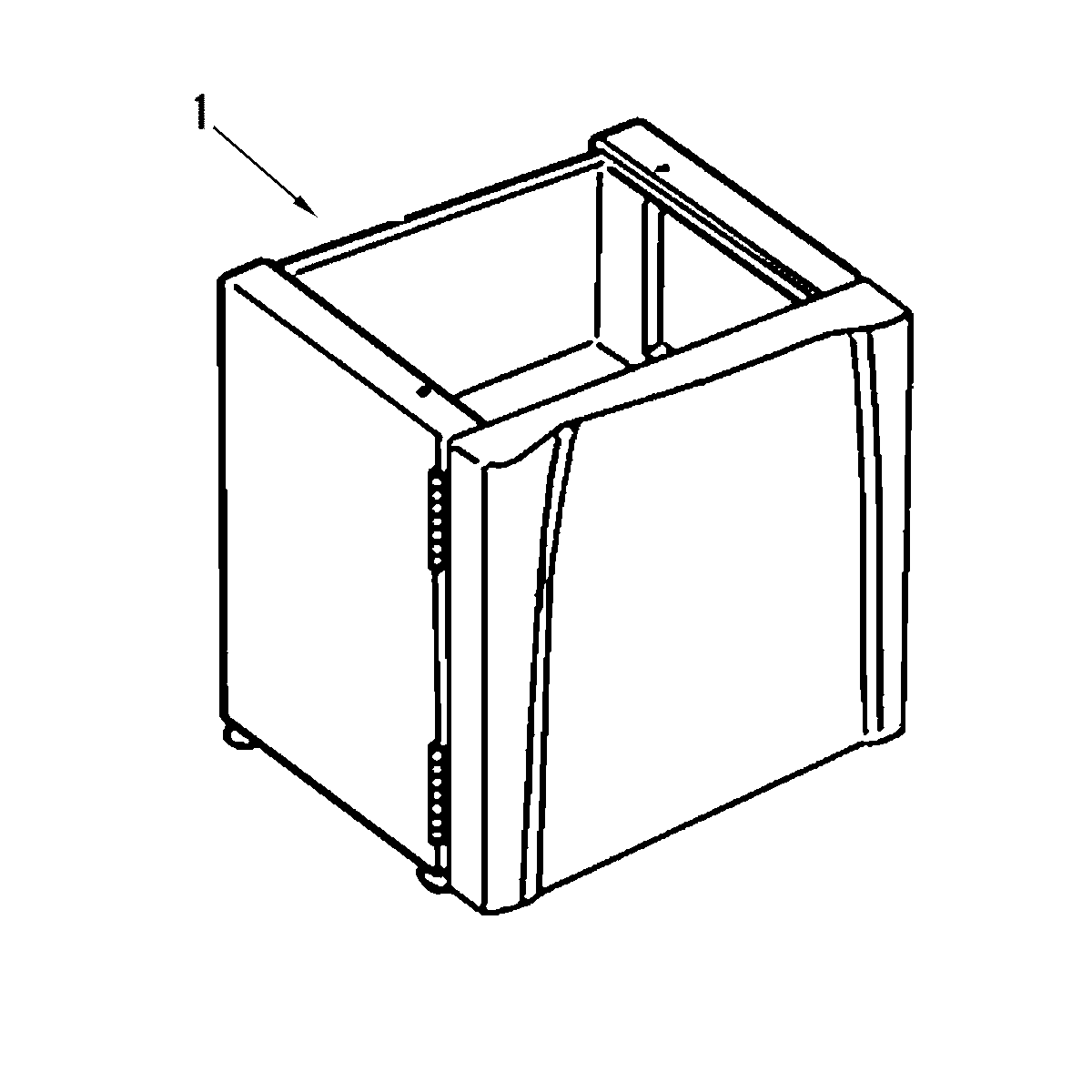

Cabinet diagram

Run capacitor

Part #11001155

Replaced by #W11105120

$203.00 |

6% OFF Phone Price : $215.00

In Stock

Qty

#13

Cabinet diagram

Foot

Part #11001108

This item is not returnable

$3.29

In Stock

Qty

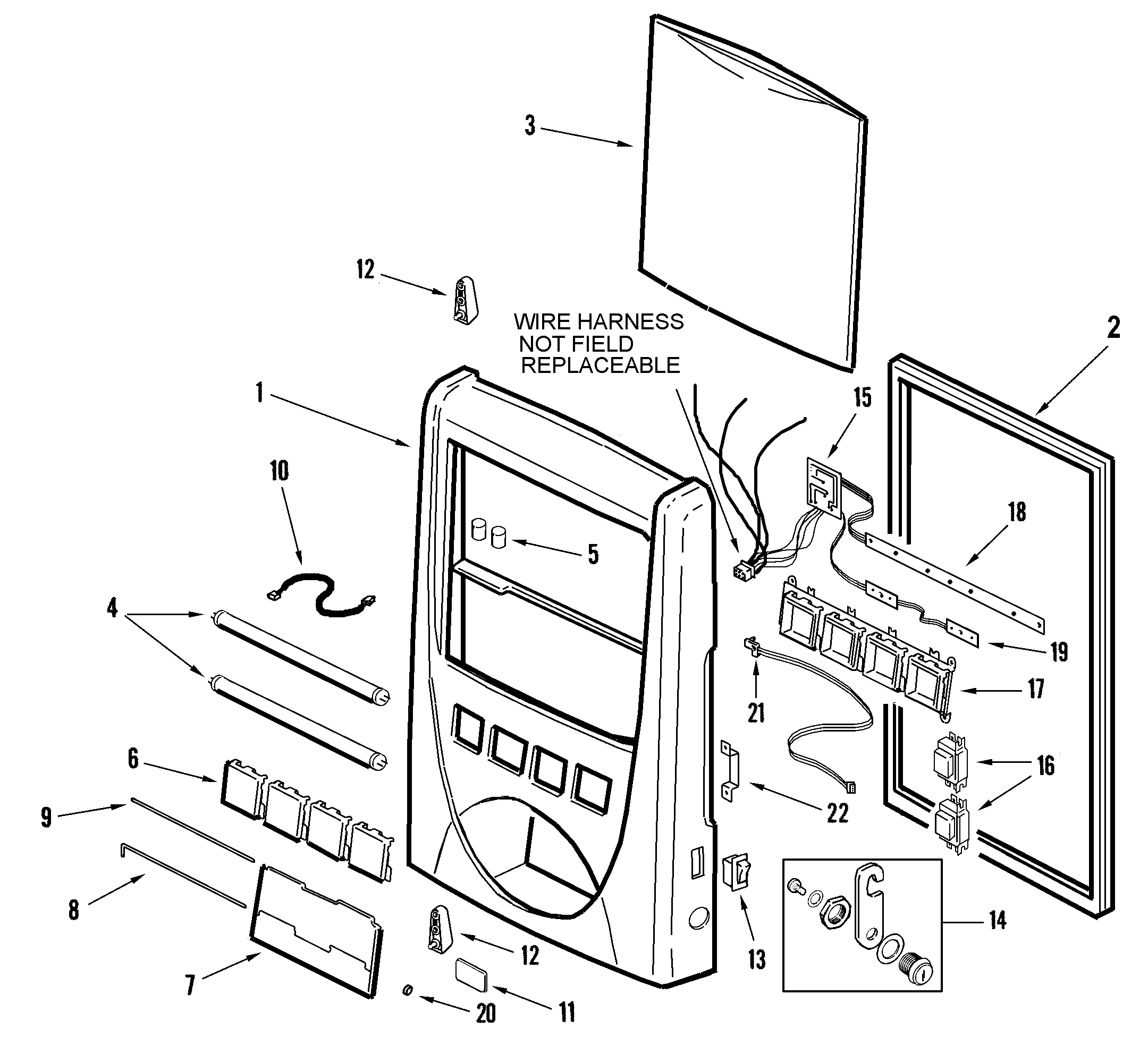

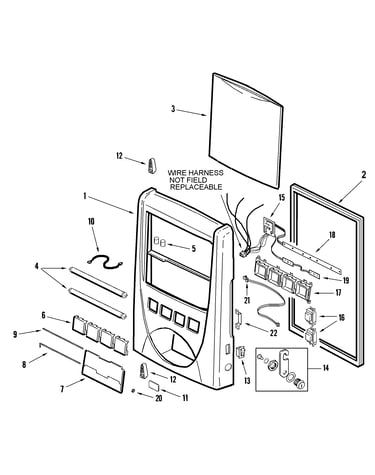

Door diagram

Door assembly

Part #11001085

$26.89 |

18% OFF Phone Price : $32.89

In Stock

Qty

Cabinet diagram

Bracket, dis

Part #11001120

$20.96

In Stock

Qty

#11

Cabinet diagram

Main cover

Part #11001117

$20.96

In Stock

Qty

#26

Cabinet diagram

Dispenser

Part #11001187

$118.49

In Stock

Qty

Door diagram

Button

Part #11001080

$20.49

In Stock

Qty

#22

Cabinet diagram

Vending machine transformer

Part #11001154

Replaced by #WP11001154

$44.79 |

12% OFF Phone Price : $50.79

In Stock

Qty

Screw

Part #11001087

Replaced by #WP98008545

This item is not returnable

$4.67 |

18% OFF Phone Price : $5.67

In Stock

Qty

Cabinet diagram

Panel

Part #11001077

The manufacturer no longer makes this part, and there's no substitute part

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Foot
$3.29
Qty
