Kenmore
Mechanical Sewing Machine

Model # 158960 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 158960 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

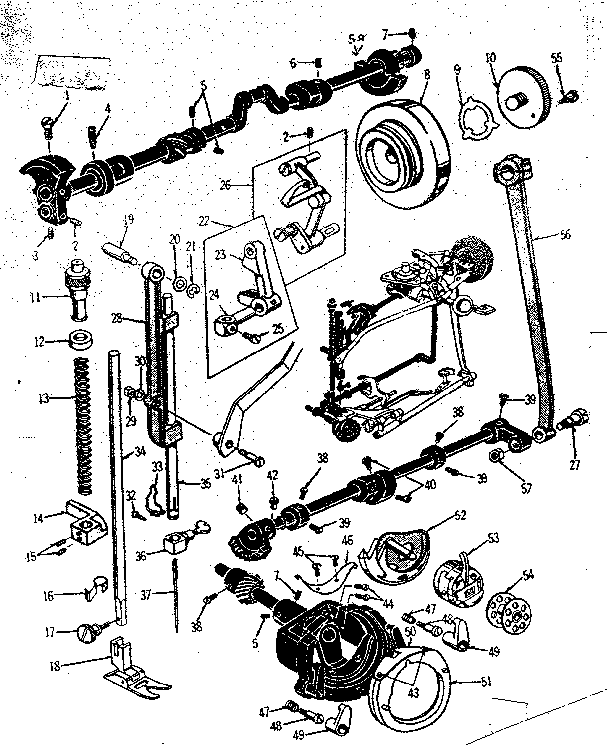

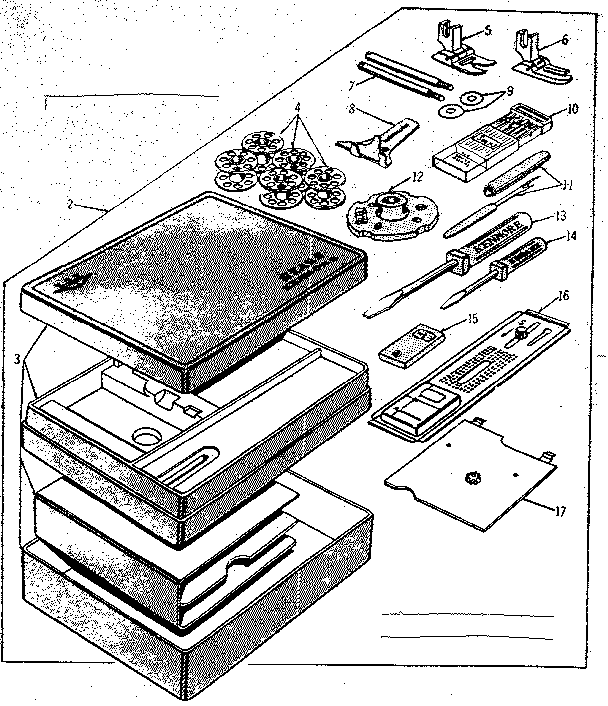

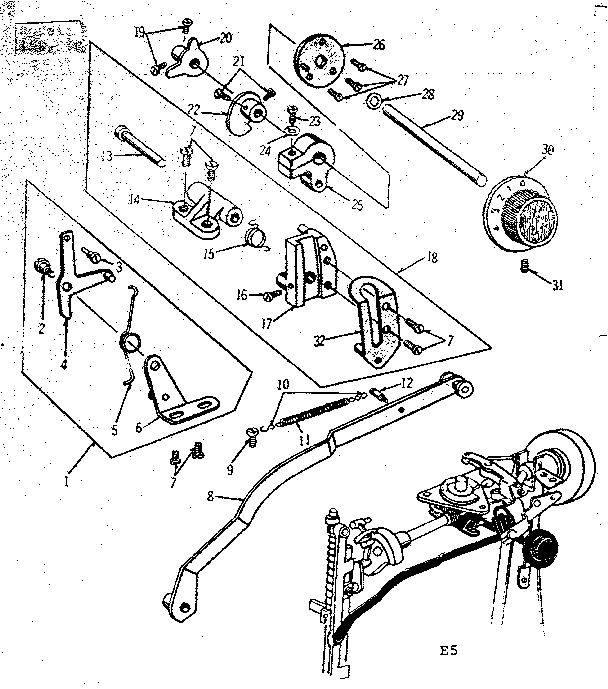

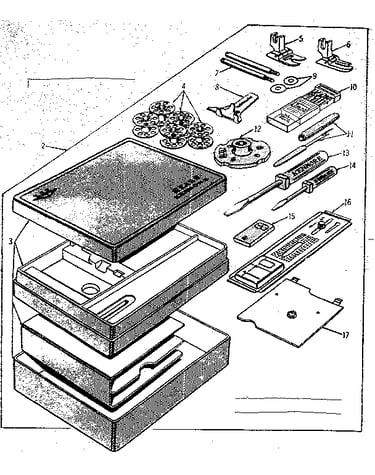

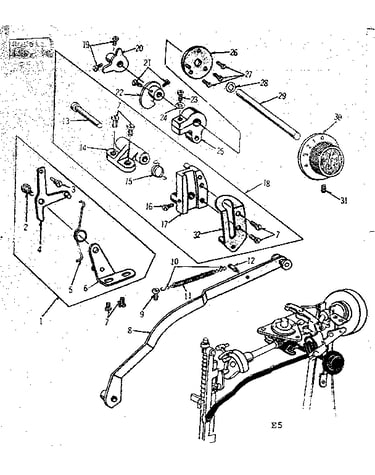

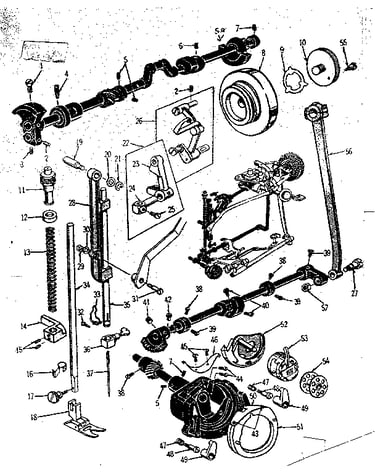

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 302 parts  |
Set Screw 200
#32

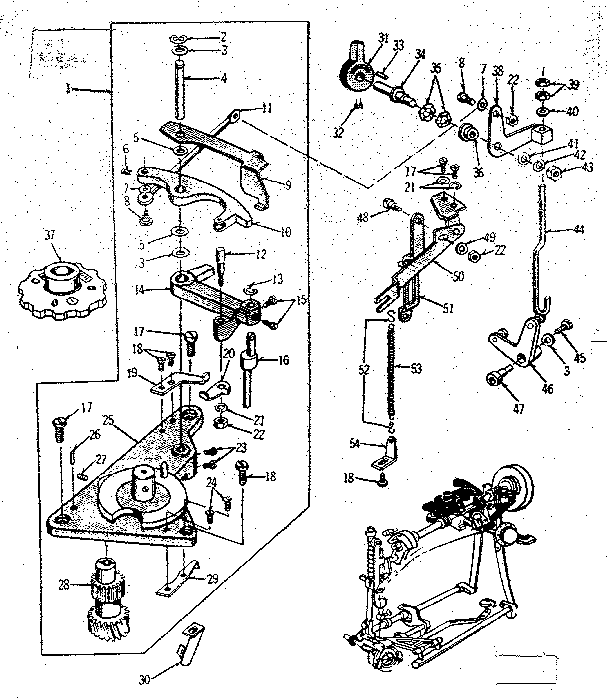

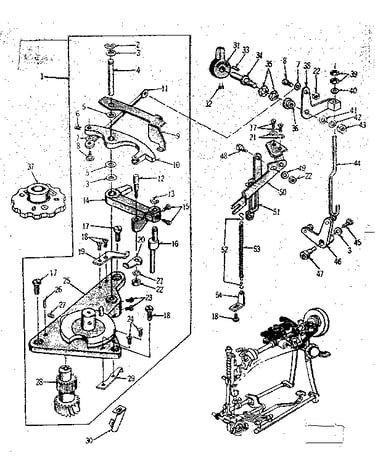

Zigzag guide assembly diagram

Set screw

Part #200

The manufacturer no longer makes this part, and there's no substitute part

Block 26781
#46

Zigzag guide assembly diagram

Block

Part #26781

The manufacturer no longer makes this part, and there's no substitute part

Nut 2458
#39

Zigzag guide assembly diagram

Nut

Part #2458

The manufacturer no longer makes this part, and there's no substitute part

Regulator 26784
#4

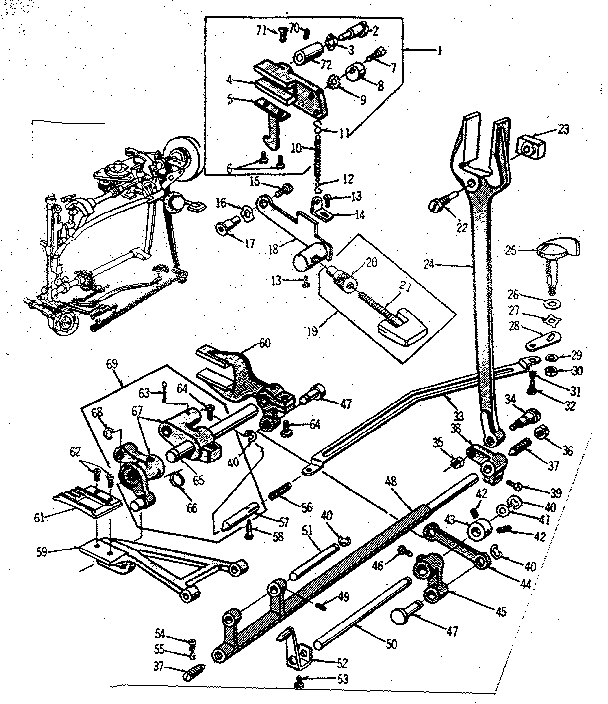

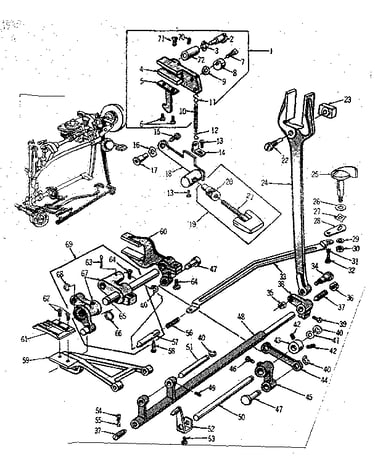

Feed regulator assembly diagram

Regulator

Part #26784

The manufacturer no longer makes this part, and there's no substitute part

Rod Screw 26873
#8

Zigzag guide assembly diagram

Rod screw

Part #26873

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Plate 26951
#15

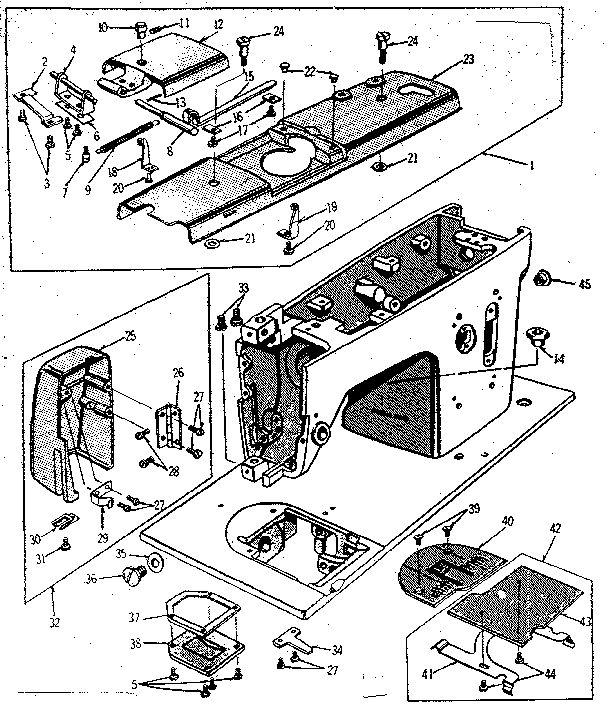

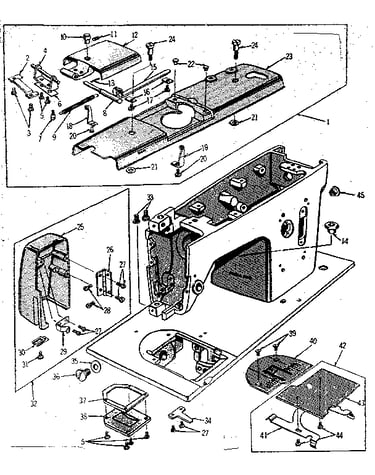

Needle plate diagram

Kenmore plate

Part #26951

The manufacturer no longer makes this part, and there's no substitute part

Stud 2242
#48

Zigzag guide assembly diagram

Stud

Part #2242

The manufacturer no longer makes this part, and there's no substitute part

Lamp Plate 27525
#27

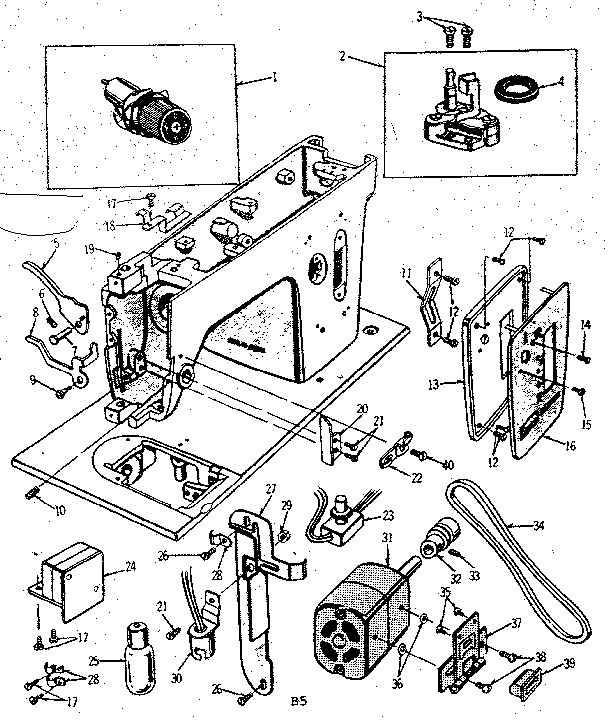

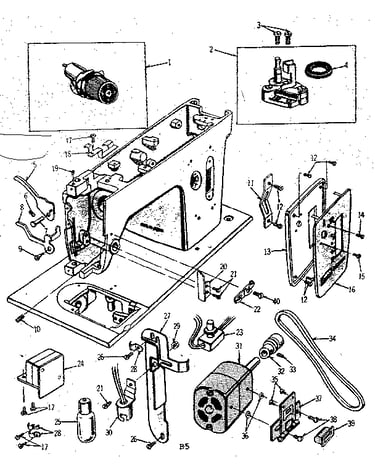

Motor assembly diagram

Lamp plate

Part #27525

The manufacturer no longer makes this part, and there's no substitute part

Bushing 1829
#72

Feed regulator assembly diagram

Bushing

Part #1829

The manufacturer no longer makes this part, and there's no substitute part

Packing 8653
#37

Needle plate diagram

Packing

Part #8653

The manufacturer no longer makes this part, and there's no substitute part
