Model # 58053701300 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 58053701300 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Caster 4441A30001B
#12-A

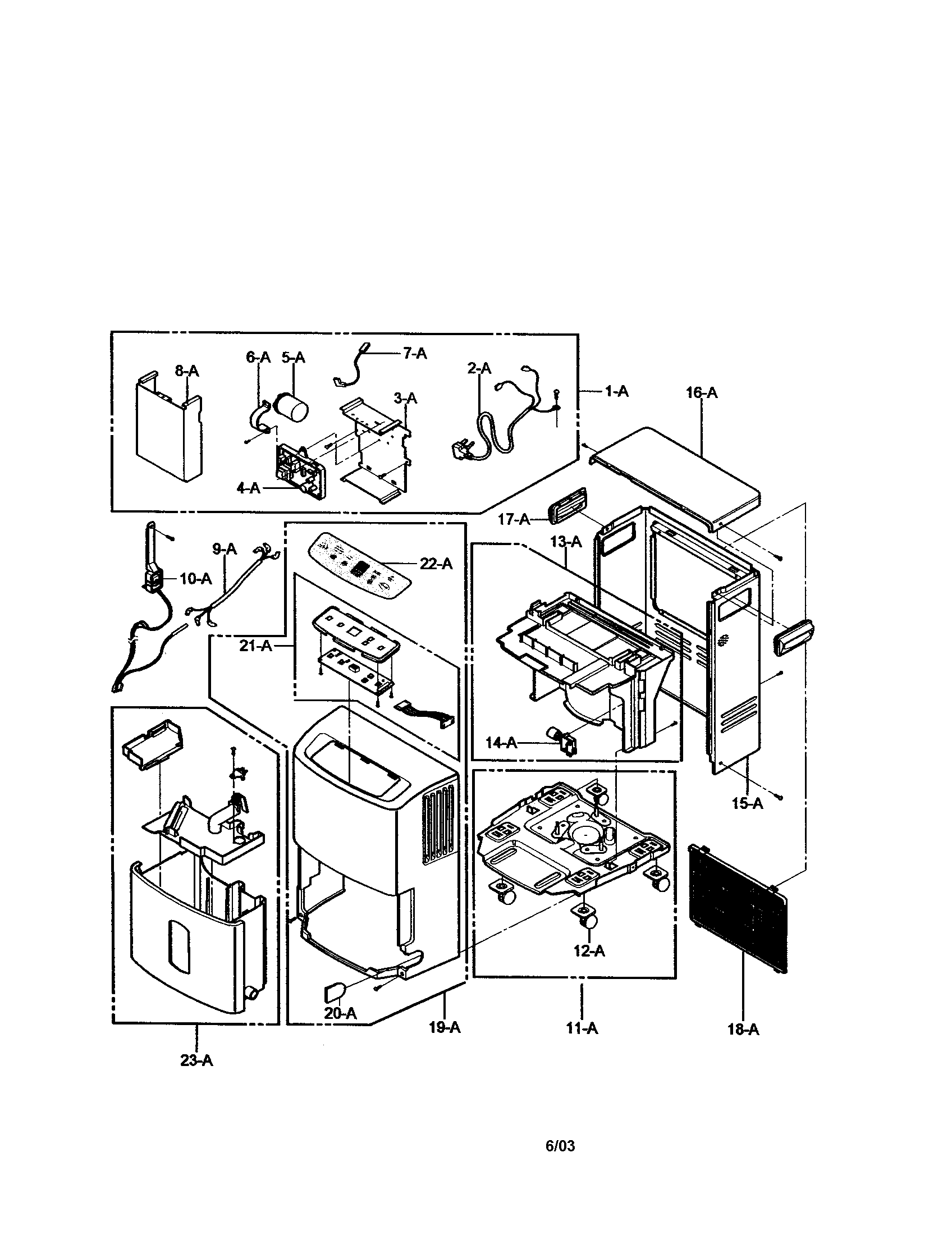

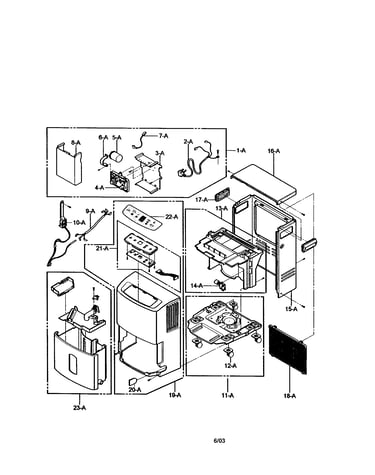

Outer case and control diagram

Caster

Part #4441A30001B

Replaced by #MHA62753001

?
Manufacturer substitution
This part replaces 4441A30001B. Substitute parts can look different from the original.
$14.51
In Stock
Dehumidifier Control Board Wire Harness 6862A20013R
#7-A

Outer case and control diagram

Dehumidifier control board wire harness

Part #6862A20013R

This item is not returnable
$7.00
In Stock
Kenmore Housing 3661A10019B
#1-B

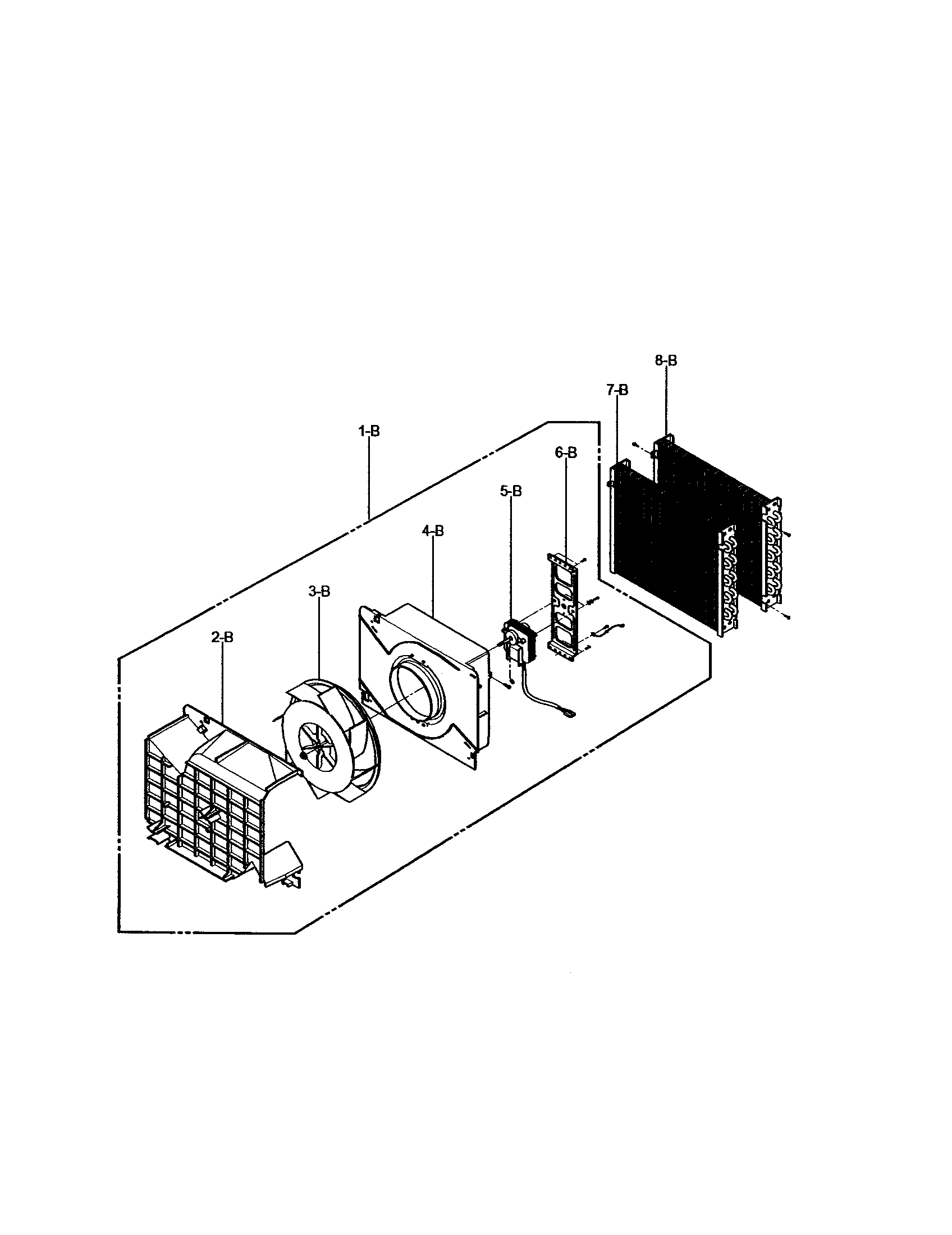

Cycle diagram

Kenmore housing

Part #3661A10019B

$138.99
In Stock
Goldstar Room Air Conditioner Compressor Overload Protector 6750U-L048A
#3-C

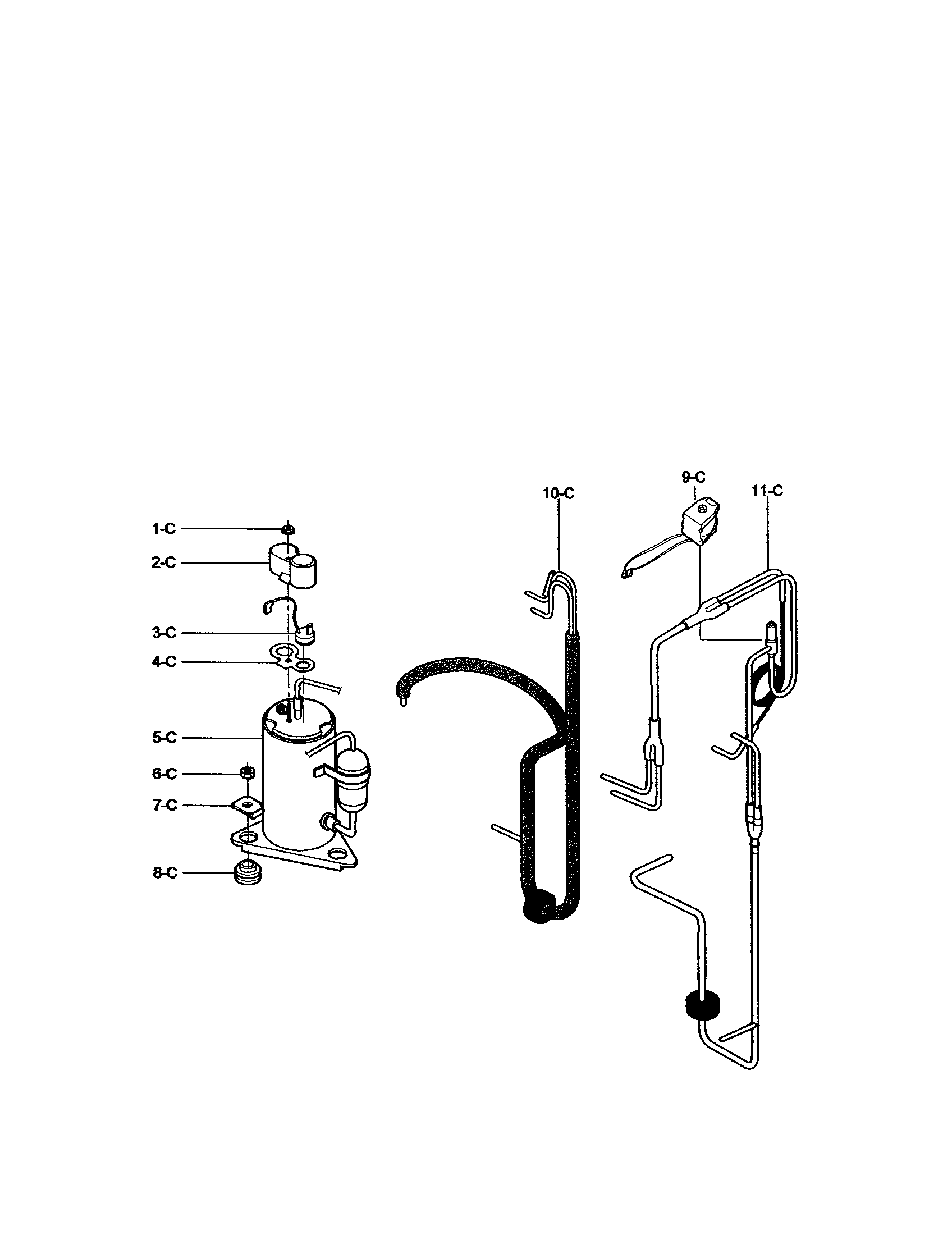

Compressor diagram

Goldstar room air conditioner compressor overload protector

Part #6750U-L048A

This item is not returnable
$24.09
In Stock
Control Box 4994A20056B
#3-A

Outer case and control diagram

Control box

Part #4994A20056B

$18.83
In Stock
Kenmore Orifice 4948A10023B
#4-B

Cycle diagram

Kenmore orifice

Part #4948A10023B

$24.09
In Stock
Clamp 4H00442J
#6-A

Outer case and control diagram

Clamp

Part #4H00442J

This item is not returnable
$4.51
In Stock
Hex Nut 1NHA0801206
#6-C

Compressor diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Brkt,wshr 4810AR4155A
#7-C

Compressor diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
$4.51
In Stock
Bushing 4830A30005A
#8-C

Compressor diagram

Bushing

Part #4830A30005A

The manufacturer no longer makes this part, and there's no substitute part
