Model # 1106305651 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 1106305651 washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

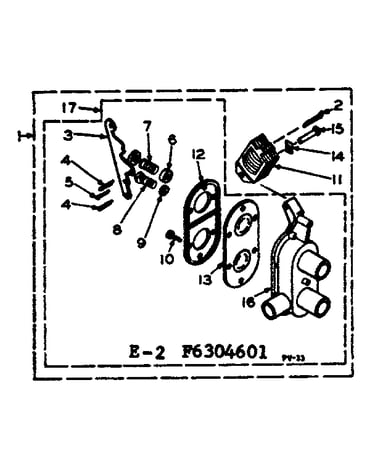

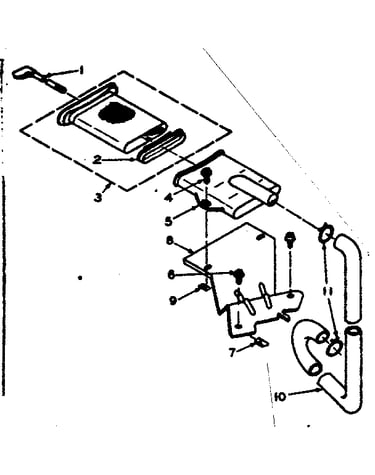

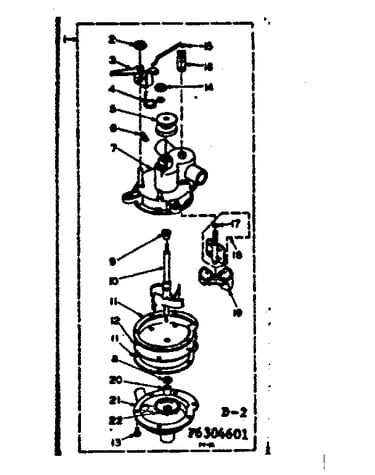

SELECT DIAGRAM
Browse Parts for
1106305651 Washer
#115

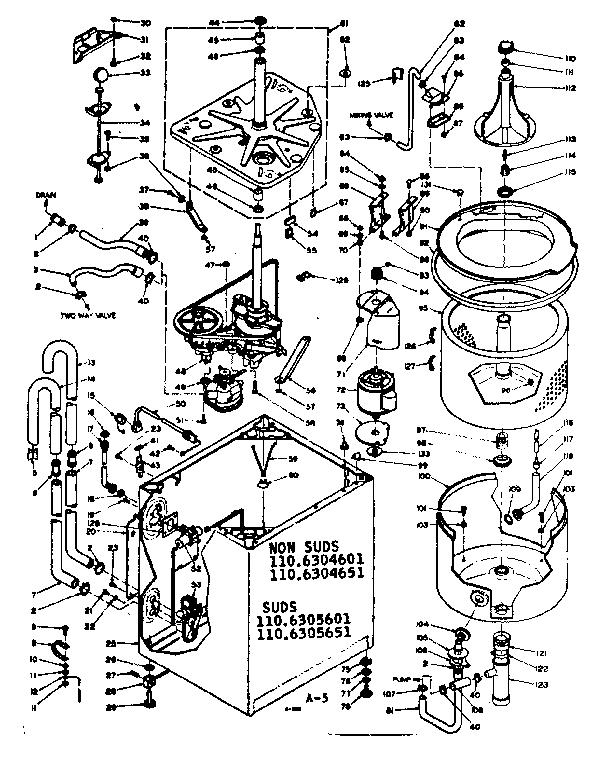

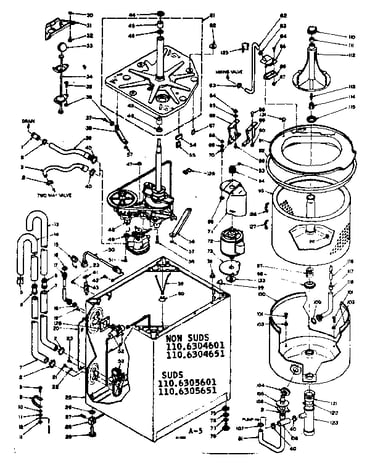

Machine sub-assembly diagram
Washer spanner nut
Part #21366
Replaced by #WP21366
?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#14

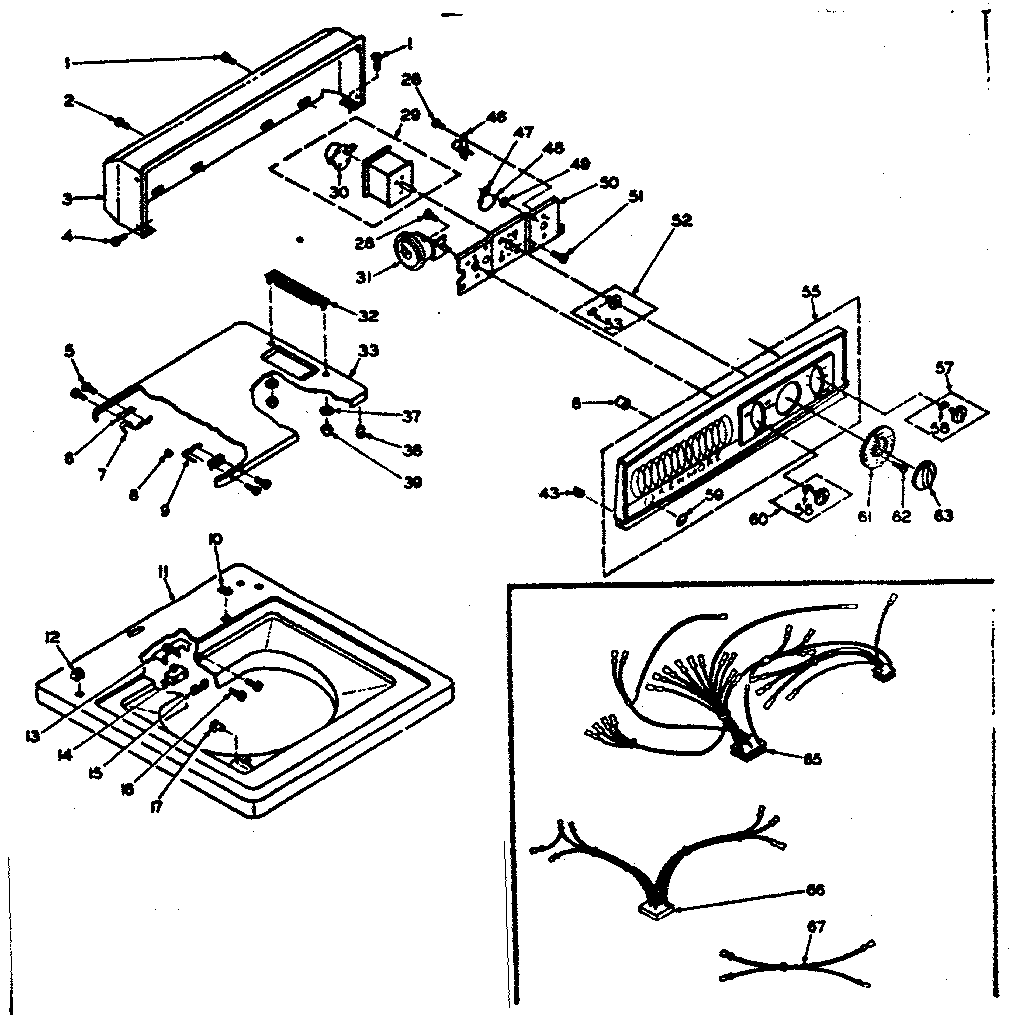

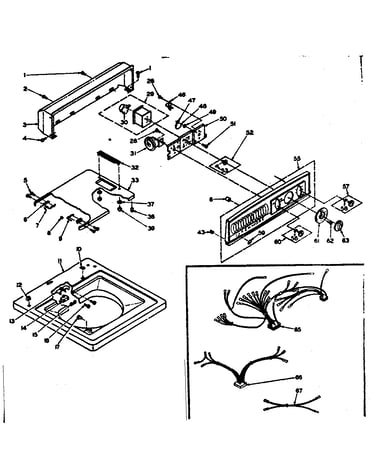

Top and console diagram
Lid switch
Part #86628
Replaced by #W10820036
?
Manufacturer substitution
This part replaces 86628. Substitute parts can look different from the original.
$27.26 |
18% OFF Phone Price : $33.26
In Stock
#28
Top and console diagram
Tap screw
Part #90767
Replaced by #WP90767
?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#13
Top and console diagram
Lever
Part #21018
Replaced by #WP691581
?
Manufacturer substitution
This part replaces 21018. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
#38
Top and console diagram
Bumper
Part #93770
Replaced by #WP9724509
?
Manufacturer substitution
This part replaces 93770. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#17
Top and console diagram
Washer lid hinge bearing
Part #21258
Replaced by #WP21258
?
Manufacturer substitution
This part replaces 21258. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#16
Machine sub-assembly diagram
Filter washer
Part #21092
Replaced by #285452A
?
Manufacturer substitution
This part replaces 21092. Substitute parts can look different from the original.
This item is not returnable
$5.66 |
15% OFF Phone Price : $6.66
In Stock
#6
Top and console diagram
Washer lid hinge bracket
Part #21097
Replaced by #WP21097
?
Manufacturer substitution
This part replaces 21097. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#32A
Machine sub-assembly diagram
Carriage bolt
Part #126211
The manufacturer no longer makes this part, and there's no substitute part
#27
Machine sub-assembly diagram
Pin
Part #98439
Replaced by #WP62837
?
Manufacturer substitution
This part replaces 98439. Substitute parts can look different from the original.
$9.71 |
10% OFF Was : $10.79
In Stock
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
