Black & Decker
Electric Pressure Washer

Model # PW1500 TYPE 1 Official Black & Decker 14-amp pressure washer

Here are the diagrams and repair parts for Official Black & Decker PW1500-TYPE-1 14-amp pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

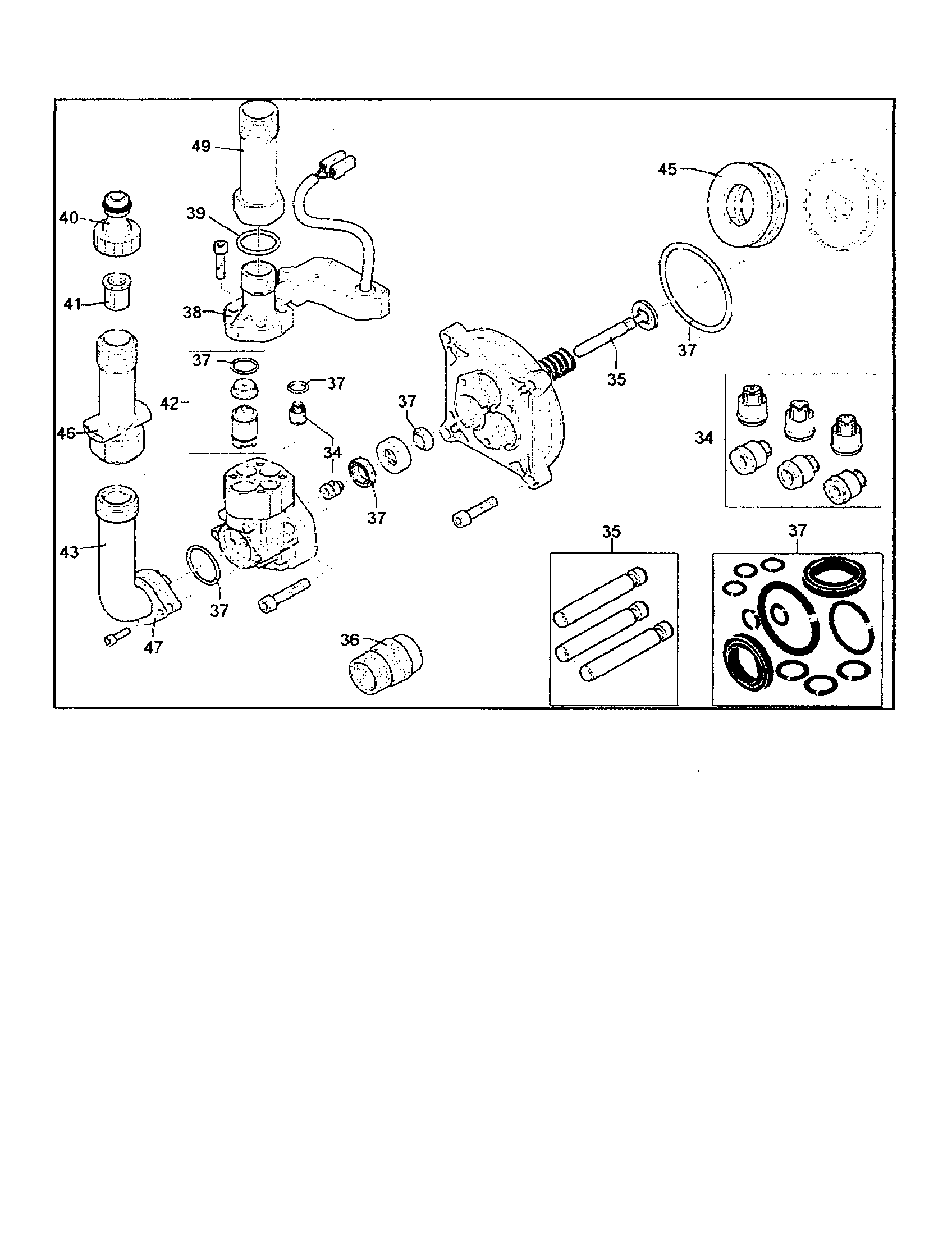

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Black & Decker Wheel 5140008-53

#53

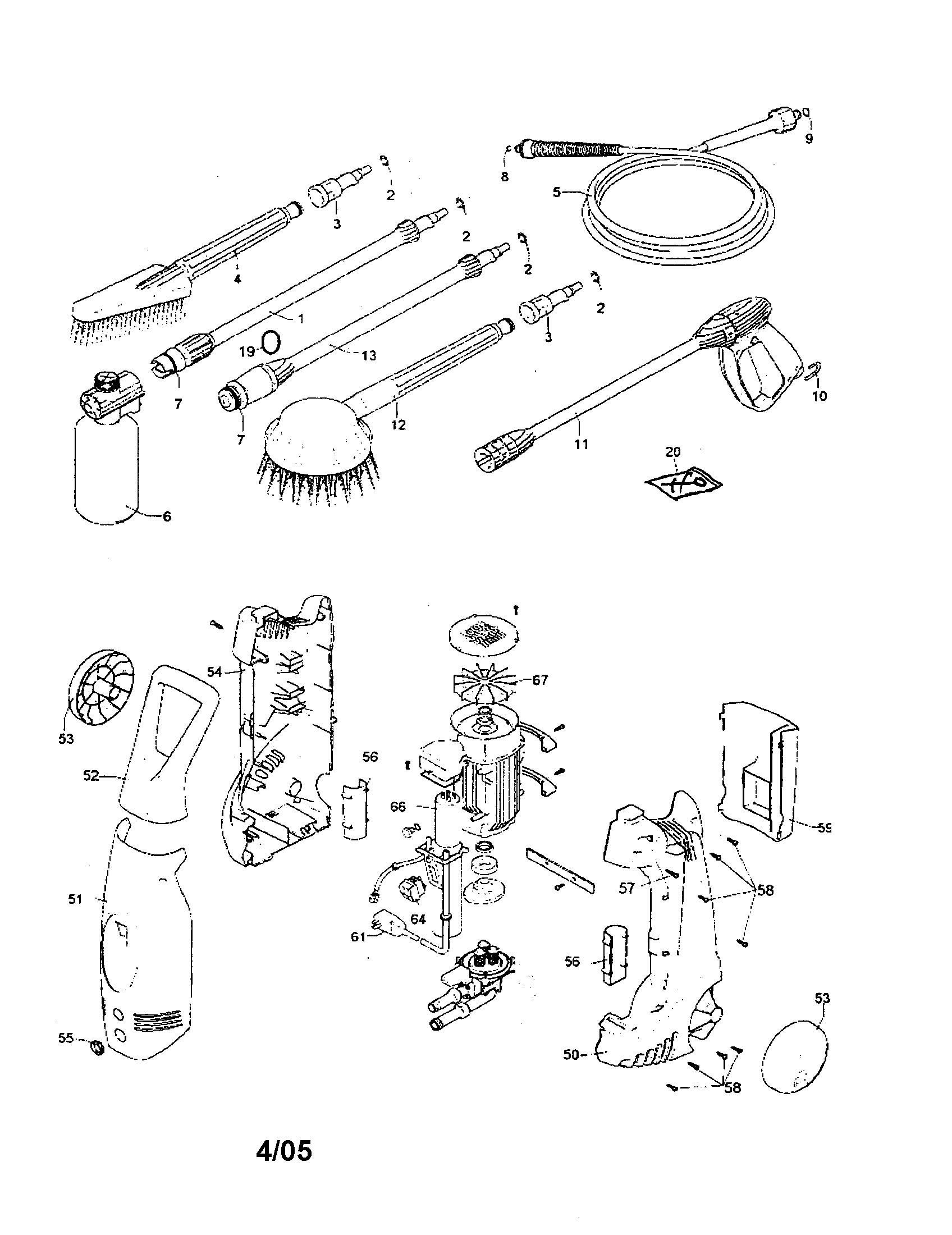

All parts diagram

Black & decker wheel

Part #5140008-53

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Detergent Tank 5140008-26

#6

All parts diagram

Black & decker detergent tank

Part #5140008-26

The manufacturer no longer makes this part, and there's no substitute part

Fixed Brush 5140008-24

#4

All parts diagram

Fixed brush

Part #5140008-24

The manufacturer no longer makes this part, and there's no substitute part

Housing Half 5140008-54

#54

All parts diagram

Housing half

Part #5140008-54

The manufacturer no longer makes this part, and there's no substitute part

Plug And Cable 5140008-61

#61

All parts diagram

Plug and cable

Part #5140008-61

The manufacturer no longer makes this part, and there's no substitute part

Brush Adapter (2) 5140008-23

#3

All parts diagram

Brush adapter (2)

Part #5140008-23

The manufacturer no longer makes this part, and there's no substitute part

O-ring 5140008-19

#19

All parts diagram

O-ring

Part #5140008-19

The manufacturer no longer makes this part, and there's no substitute part

Suction Fitting 5140008-36

#36

All parts diagram

Suction fitting

Part #5140008-36

The manufacturer no longer makes this part, and there's no substitute part

O-ring Kit 5140008-37

#37

All parts diagram

O-ring kit

Part #5140008-37

The manufacturer no longer makes this part, and there's no substitute part

Nozzle-spray 5140008-21

#1

All parts diagram

Nozzle-spray

Part #5140008-21

The manufacturer no longer makes this part, and there's no substitute part
