KitchenAid
Stand Mixer

Model # 5KPM5BOB4 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid 5KPM5BOB4 mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

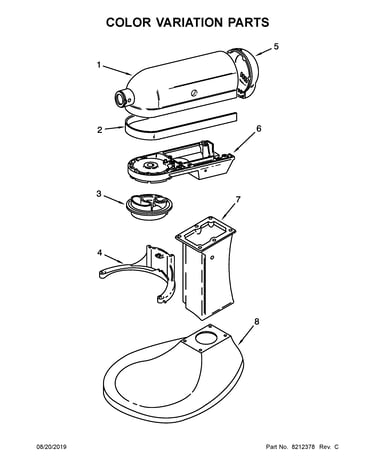

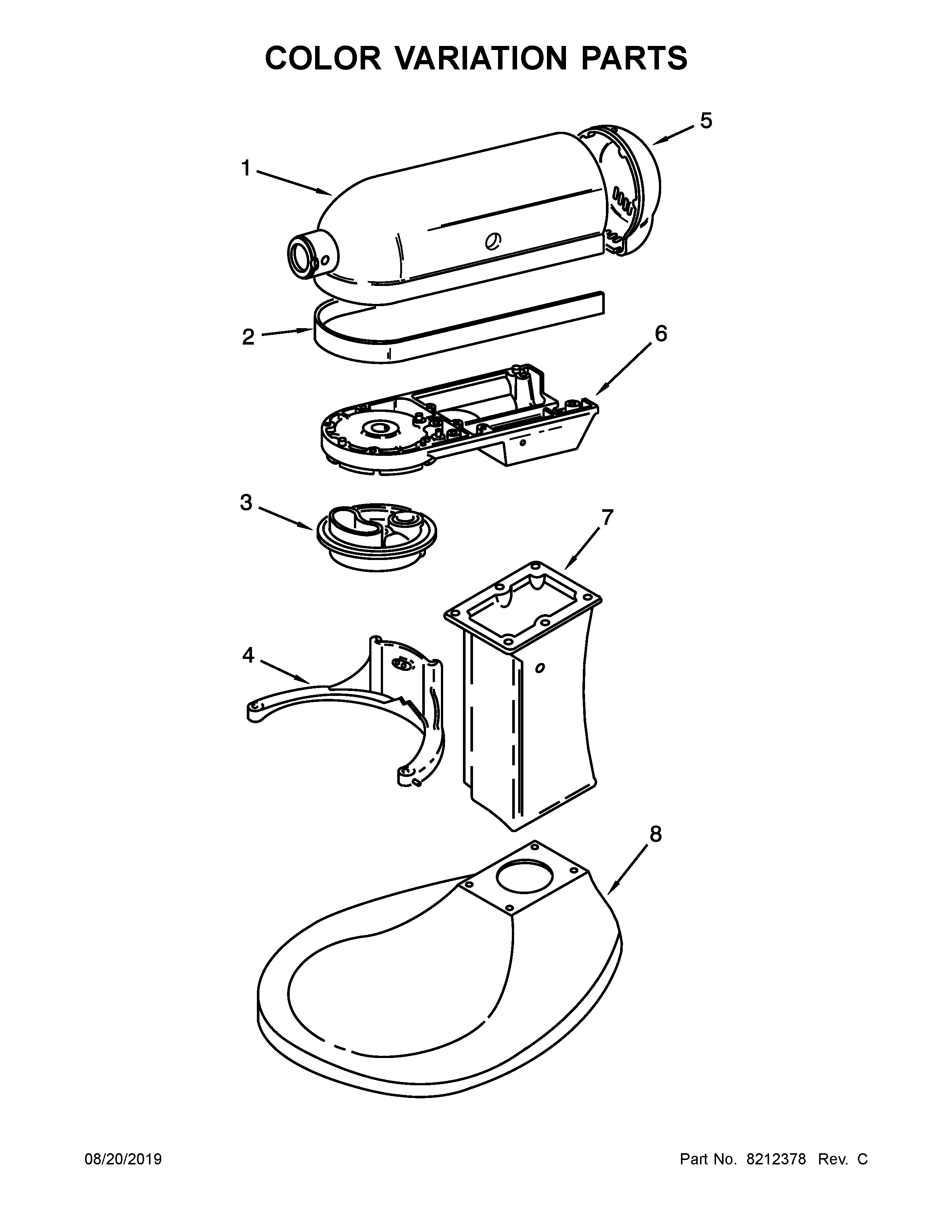

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Pin-bowl 240185
#19

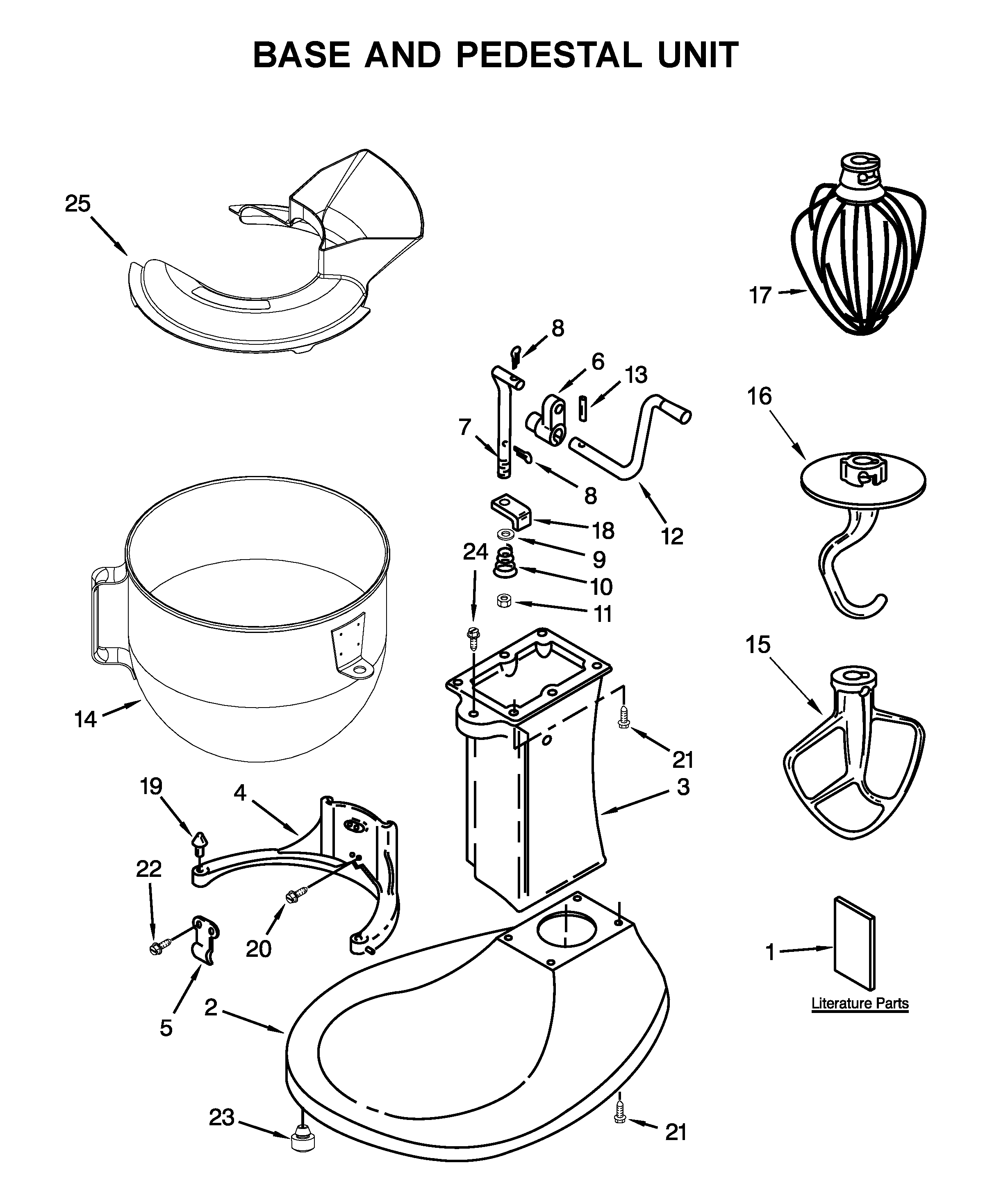

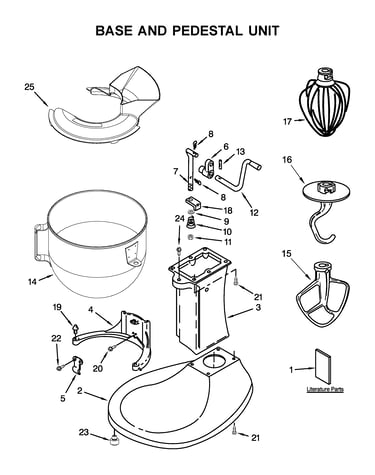

Base and pedestal unit diagram

Pin-bowl

Part #240185

Replaced by #WP240185

?
Manufacturer substitution
This part replaces 240185. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Spring 3182857
#5

Base and pedestal unit diagram

Spring

Part #3182857

Replaced by #WP3182857

?
Manufacturer substitution
This part replaces 3182857. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Stand Mixer Worm Gear Assembly 240309-2
#34

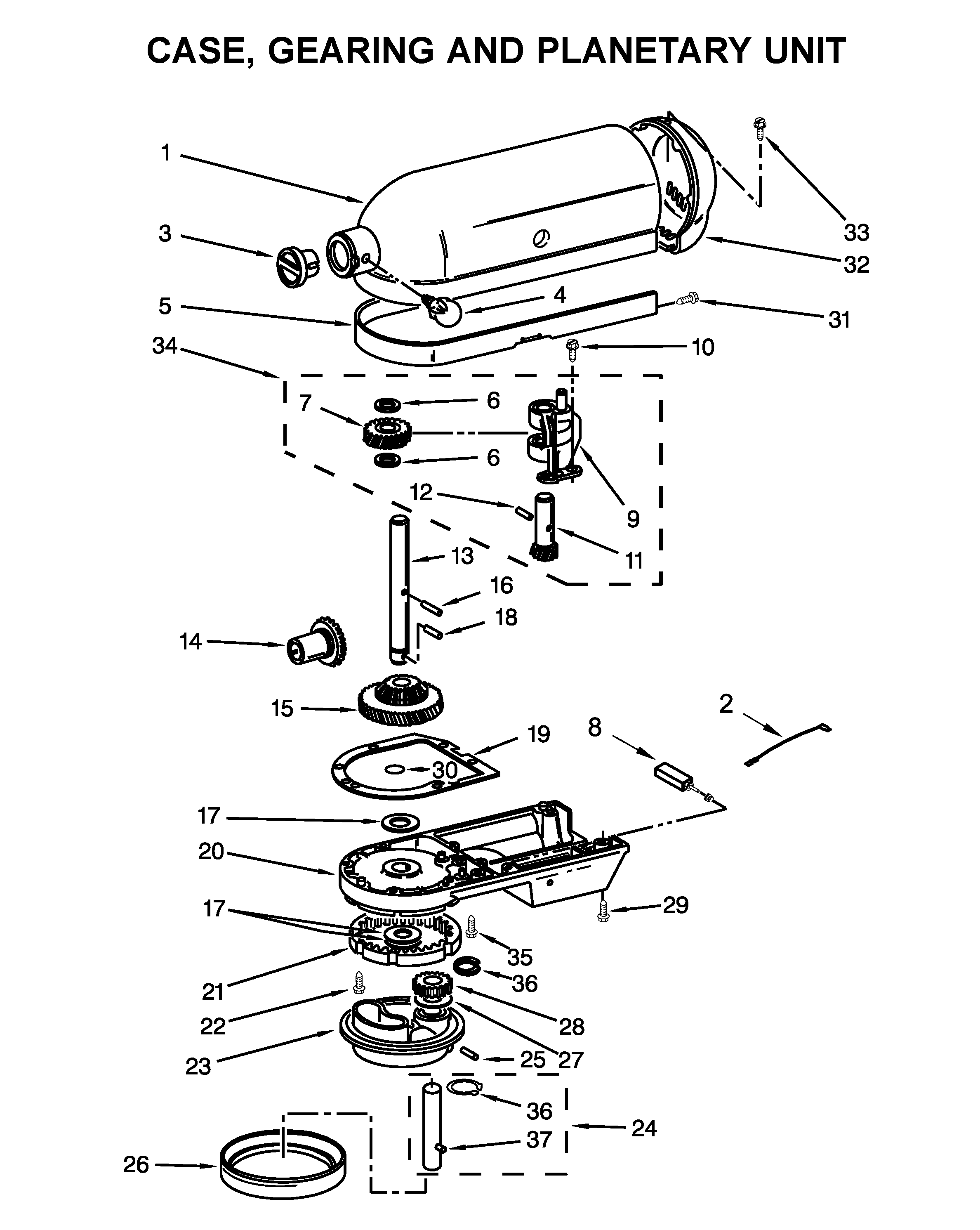

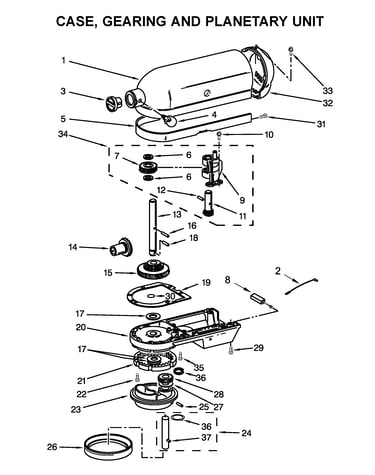

Case, gearing and planetary unit diagram

Stand mixer worm gear assembly

Part #240309-2

Replaced by #WP240309-2

?
Manufacturer substitution
This part replaces 240309-2. Substitute parts can look different from the original.
$30.24 |
17% OFF Phone Price : $36.24
In Stock
Pin-dowel 240018-1
Pin-dowel

Part #240018-1

Replaced by #WP9707223

?
Manufacturer substitution
This part replaces 240018-1. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
Pin-groove 9705444
#12

Case, gearing and planetary unit diagram

Pin-groove

Part #9705444

Replaced by #WP9705444

?
Manufacturer substitution
This part replaces 9705444. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Ring-o 67500-55
#30

Case, gearing and planetary unit diagram

Ring-o

Part #67500-55

Replaced by #WP67500-55

?
Manufacturer substitution
This part replaces 67500-55. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Brush-mtr W10380496
#22

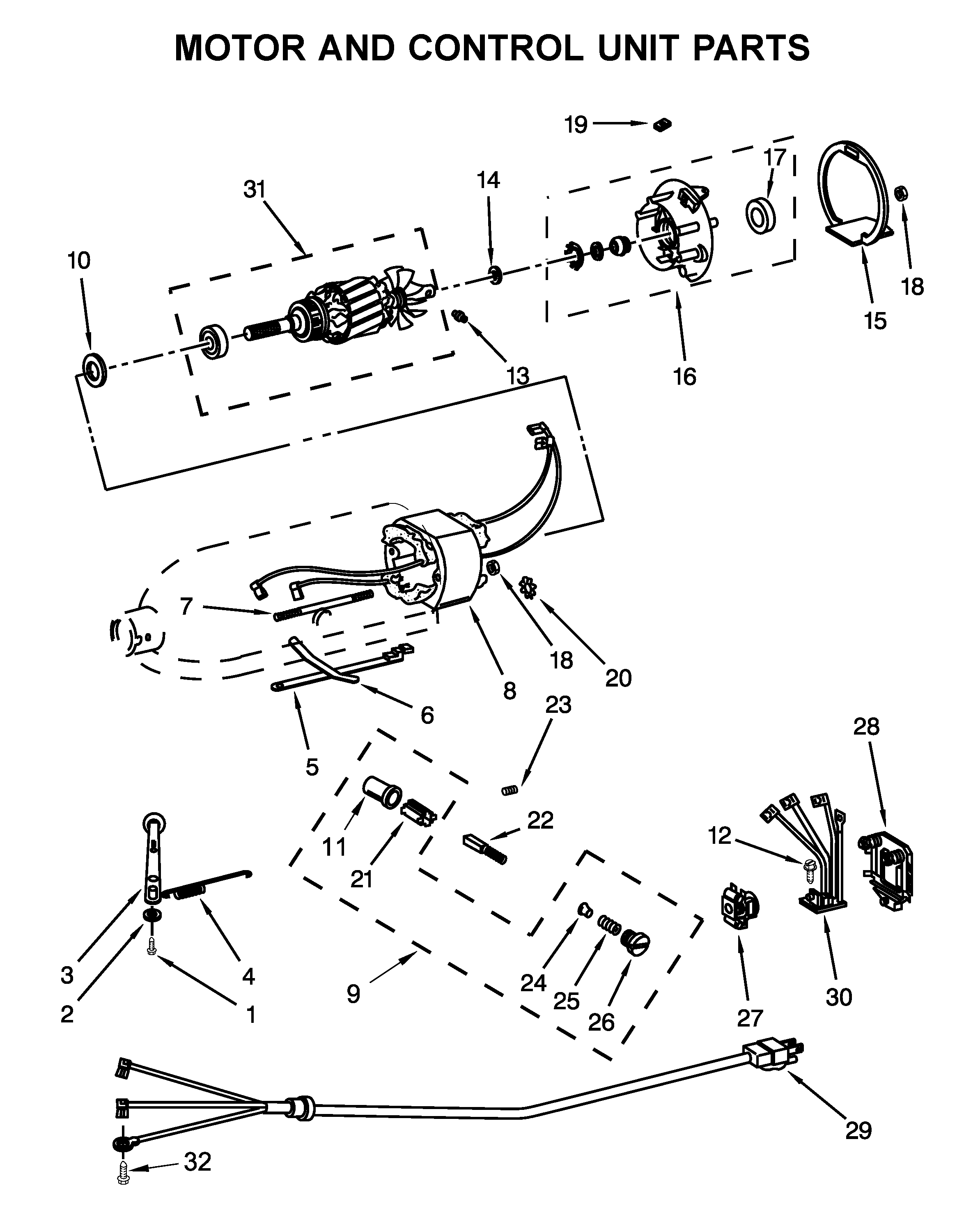

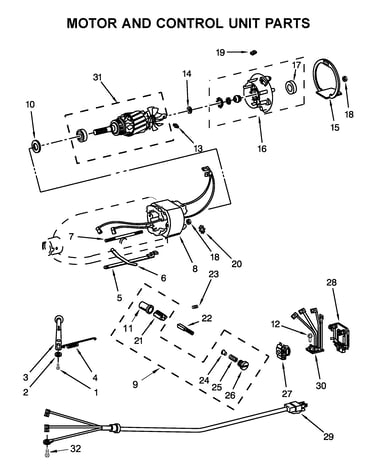

Motor and control unit parts diagram

Brush-mtr

Part #W10380496

Replaced by #WPW10380496

?
Manufacturer substitution
This part replaces W10380496. Substitute parts can look different from the original.
$7.50 |
12% OFF Phone Price : $8.50
In Stock
Pin-groove 9705443
#18

Case, gearing and planetary unit diagram

Pin-groove

Part #9705443

Replaced by #WP9705443

?
Manufacturer substitution
This part replaces 9705443. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
Speed Lever 9709276
#3

Motor and control unit parts diagram

Speed lever

Part #9709276

Replaced by #WP9709276

?
Manufacturer substitution
This part replaces 9709276. Substitute parts can look different from the original.
This item is not returnable
$5.79 |
15% OFF Phone Price : $6.79
In Stock
Phase Contro W10911442
#30

Motor and control unit parts diagram

Phase contro

Part #W10911442

Replaced by #W11174552

?
Manufacturer substitution
This part replaces W10911442. Substitute parts can look different from the original.
This item is not returnable
$17.99 |
10% OFF Phone Price : $19.99
In Stock

Most common symptoms to help you fix your stand mixers

Choose a symptom to see related stand mixer repairs.

View all

Why does my stand mixer run on low speed, but rotate slowly?

Main causes: bad wiring connections, faulty speed control plate, electronic control board failure…

Read more

Why does my stand mixer run on high speed only?

Main causes: phase control board failure, wiring connection problem, faulty electronic control board…

Read more

Why does my stand mixer leak oil?

Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m…

Read more

Why is my stand mixer motor sparking?

Main cause: worn carbon motor brushes…

Read more

Why isn't my stand mixer spinning?

Main causes: bad worm gear, damaged planetary gear assembly…

Read more

Why do the stand mixer attachments rub the bottom of the bowl?

Main cause: attachment clearance setting needs adjustment…

Read more

Why won't my stand mixer run at all?

Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit…

Read more
