Model # 143039003 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143039003 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

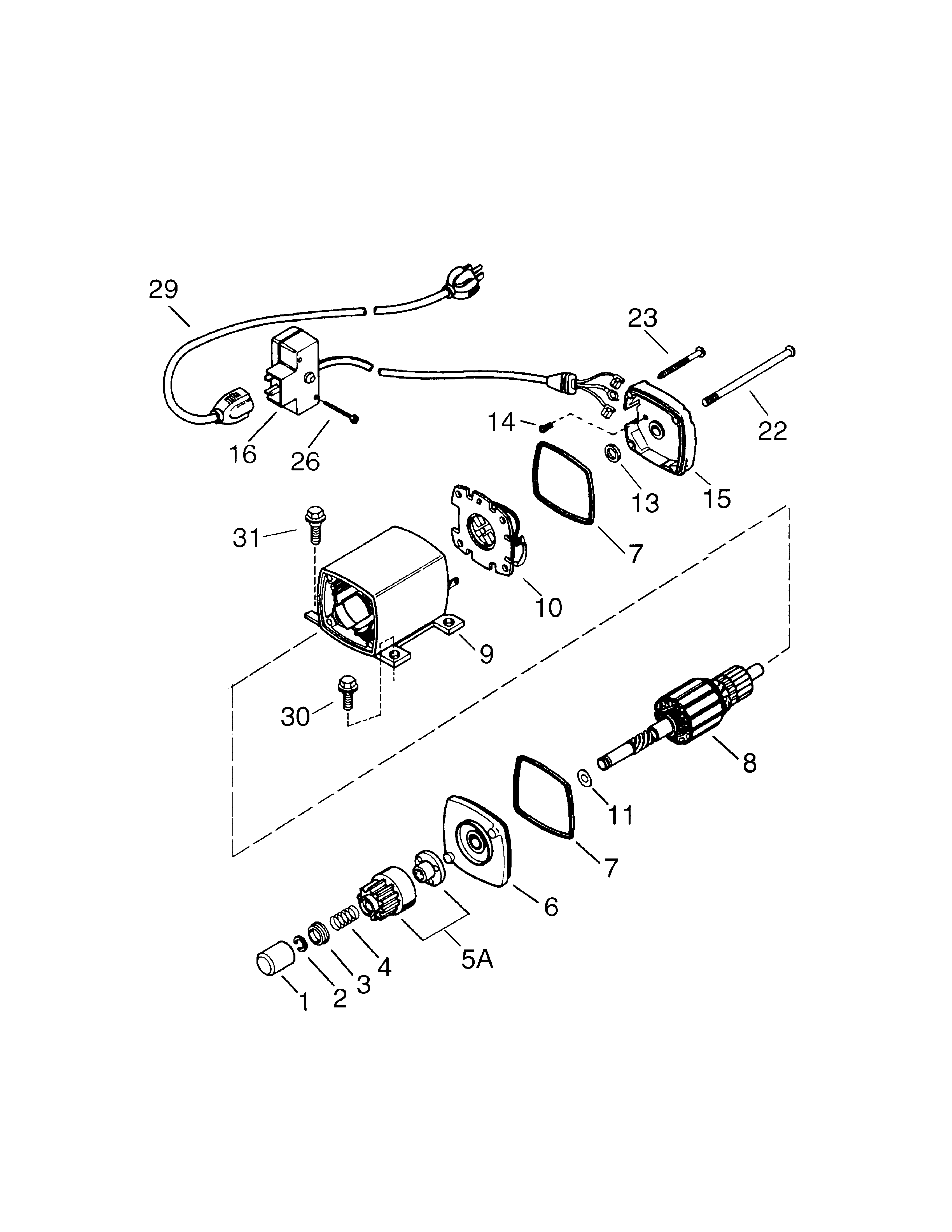

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Lawn Mower O-ring 631028
Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Needle Seat 631021
Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock

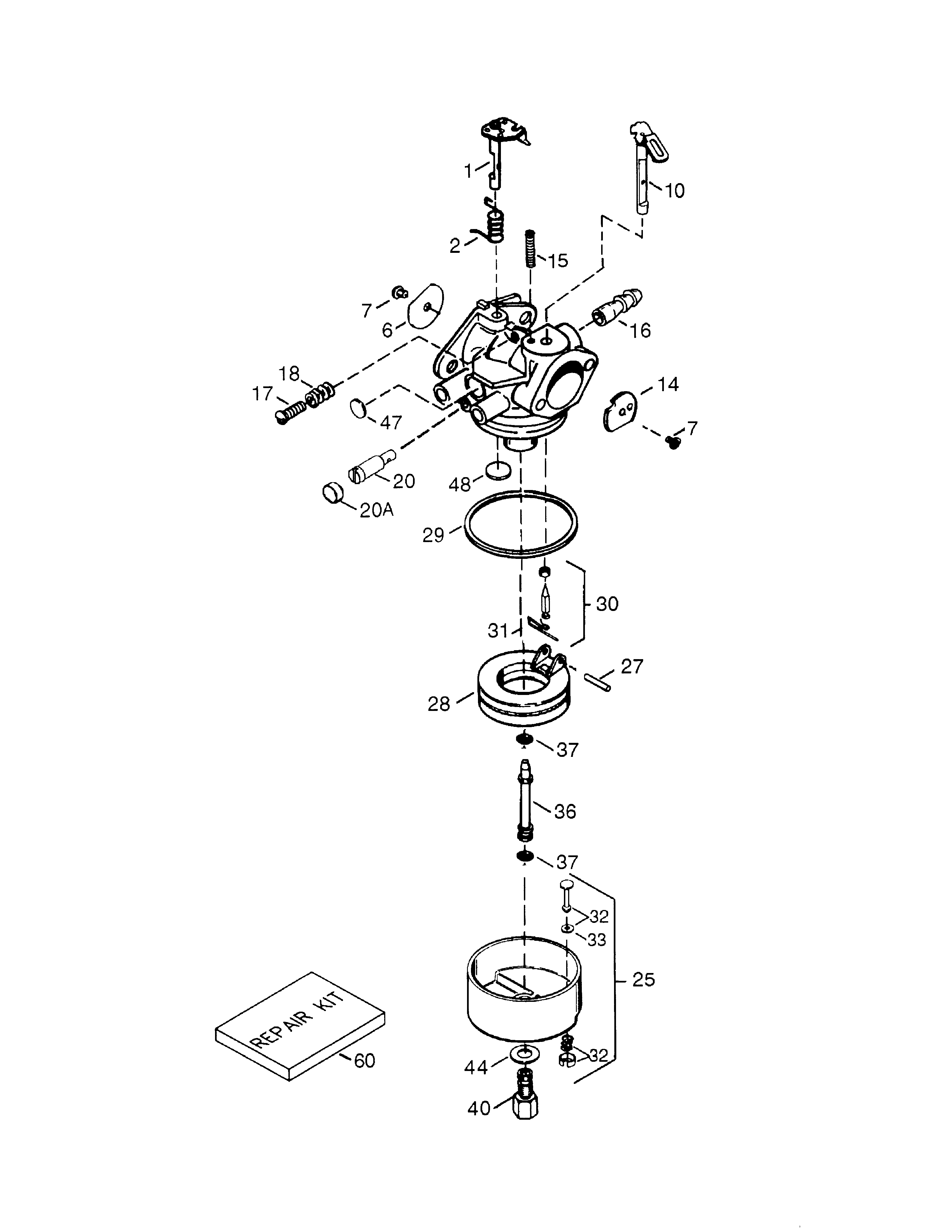

Carburetor 640052
Carburetor

Part #640052

Replaced by #640349

?
Manufacturer substitution
This part replaces 640052. Substitute parts can look different from the original.
BEST SELLER
$66.60 |
8% OFF Phone Price : $72.60
In Stock

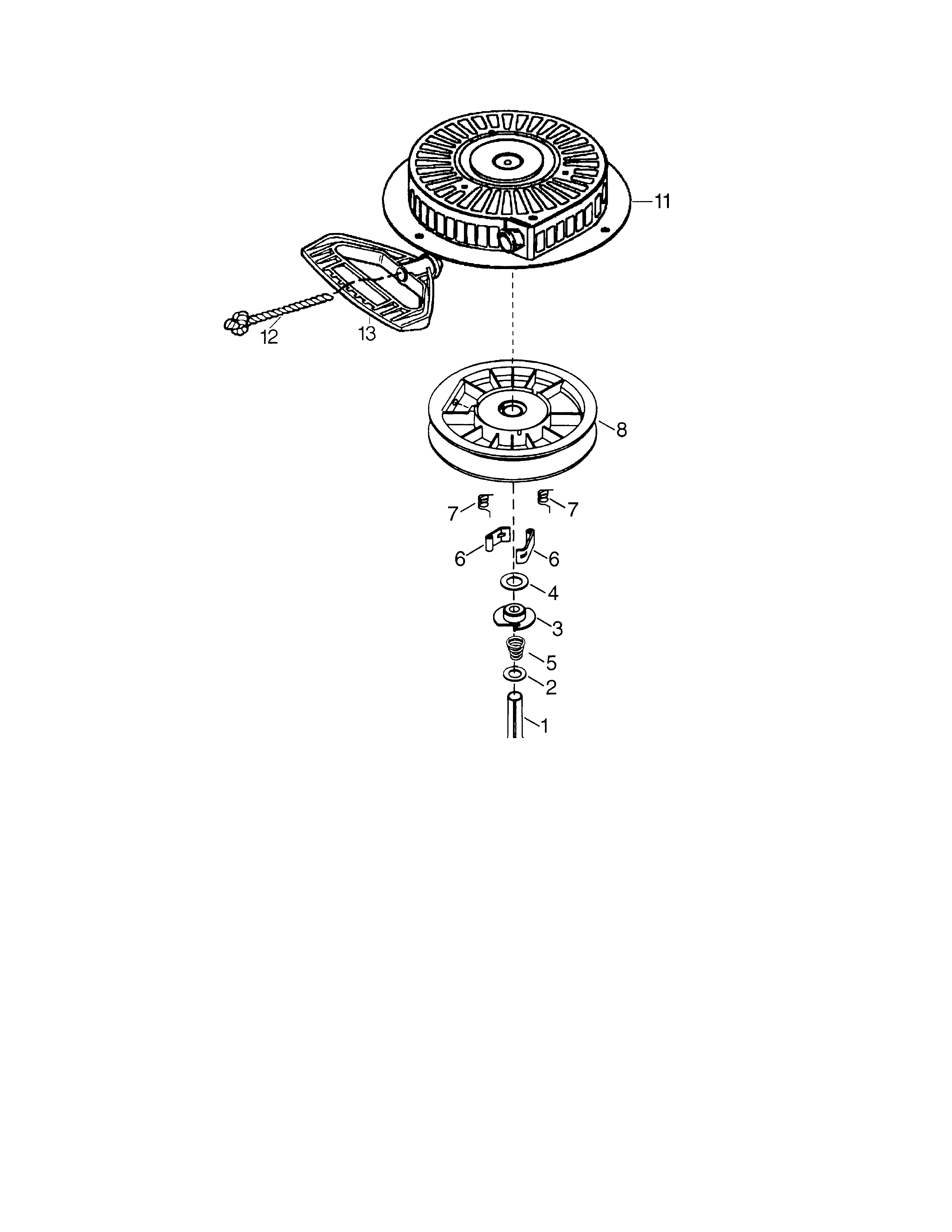

Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Ignition Key 35593
#328

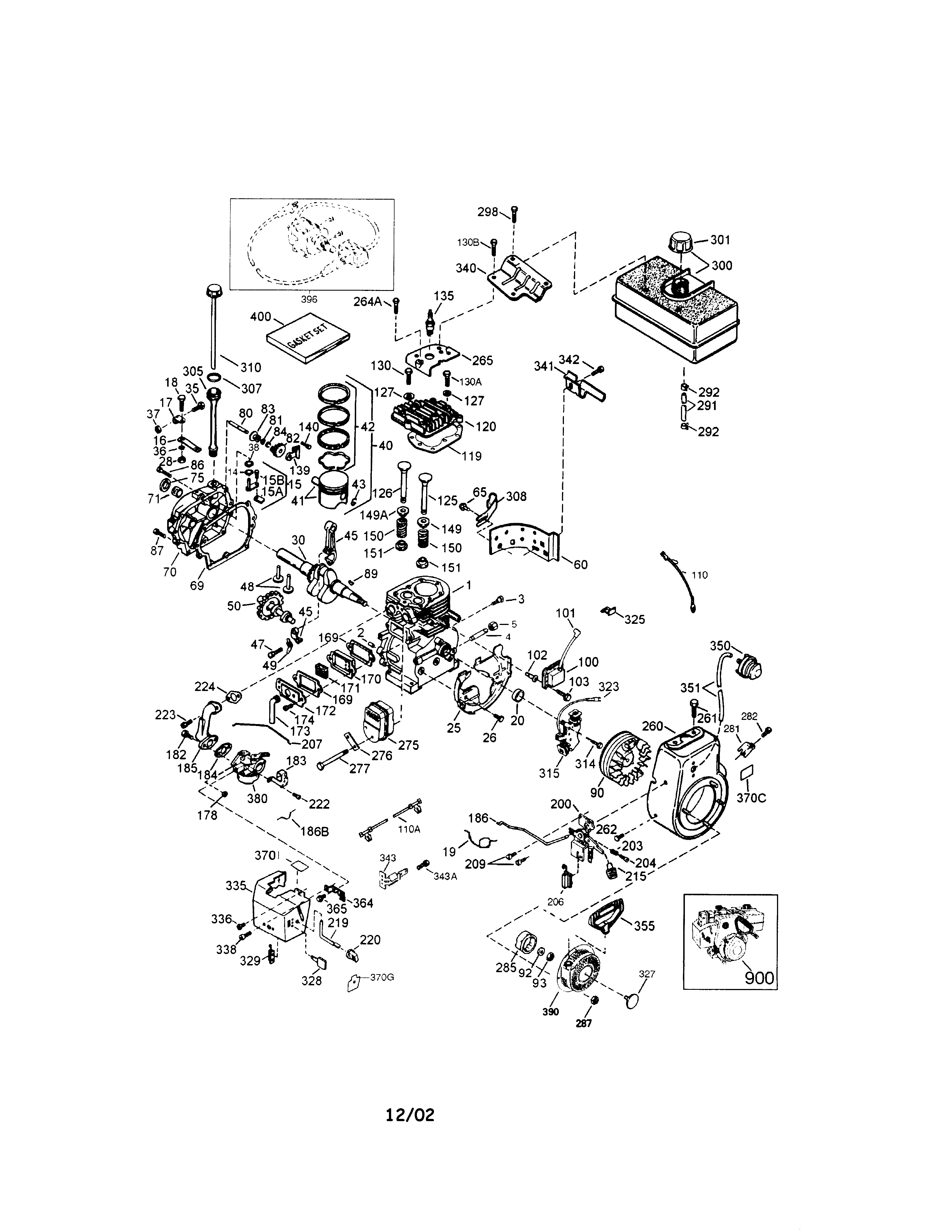

Engine/tank diagram

Ignition key

Part #35593

Replaced by #35062

?
Manufacturer substitution
This part replaces 35593. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.09 |
20% OFF Phone Price : $5.09
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Air Filter (replaces 28424l) 28424
#171

Engine/tank diagram

Cook top side trim kit lawn & garden equipment engine air filter (replaces 28424l)

Part #28424

BEST SELLER
This item is not returnable
$4.14 |
19% OFF Phone Price : $5.14
In Stock
Float 632019
Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Lauson Lawn & Garden Equipment Engine Fuel Line (replaces 30241, 430217, 503-1199, 503-1577, Tc-30962) 30962
#291

Engine/tank diagram

Lauson lawn & garden equipment engine fuel line (replaces 30241, 430217, 503-1199, 503-1577, tc-30962)

Part #30962

This item is not returnable
$6.76 |
13% OFF Phone Price : $7.76
In Stock
Generac Lawn & Garden Equipment Engine Service Manual (replaces 692509, 730546, 740048) 740049
#NI

Engine/tank diagram

Generac lawn & garden equipment engine service manual (replaces 692509, 730546, 740048)

Part #740049

This item is not returnable
$12.19 |
14% OFF Phone Price : $14.19
In Stock
Lamination 35135A
#100

Engine/tank diagram

Lamination

Part #35135A

Replaced by #35135B

?
Manufacturer substitution
This part replaces 35135A. Substitute parts can look different from the original.
$58.79 |
9% OFF Phone Price : $64.79
Back Order
