Gas Cooktop

Model # ZGU364LDP3SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU364LDP3SS gas cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part

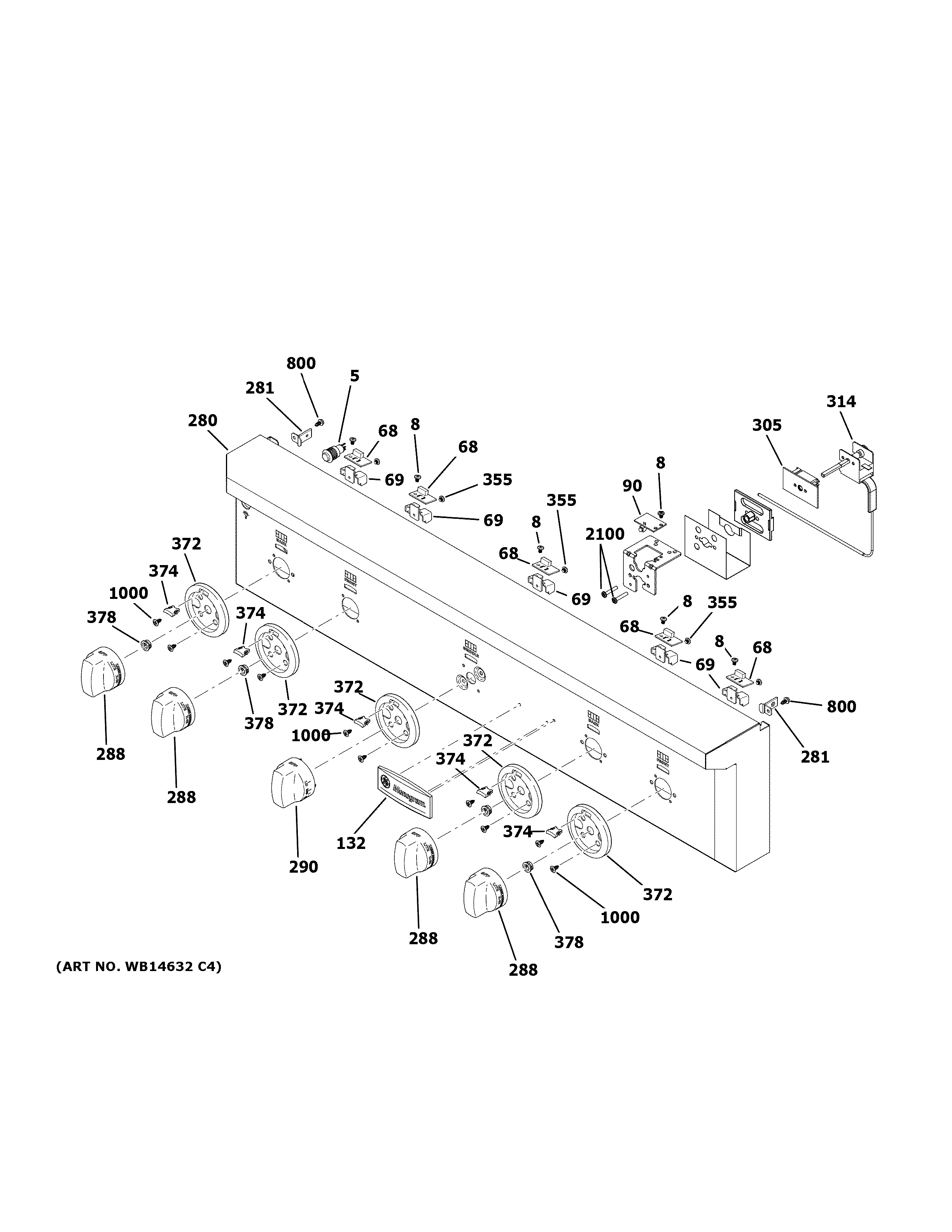

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forZGU364LDP3SS Cooktops

  • Hex Washer Head Screw WB01K0050
    #28

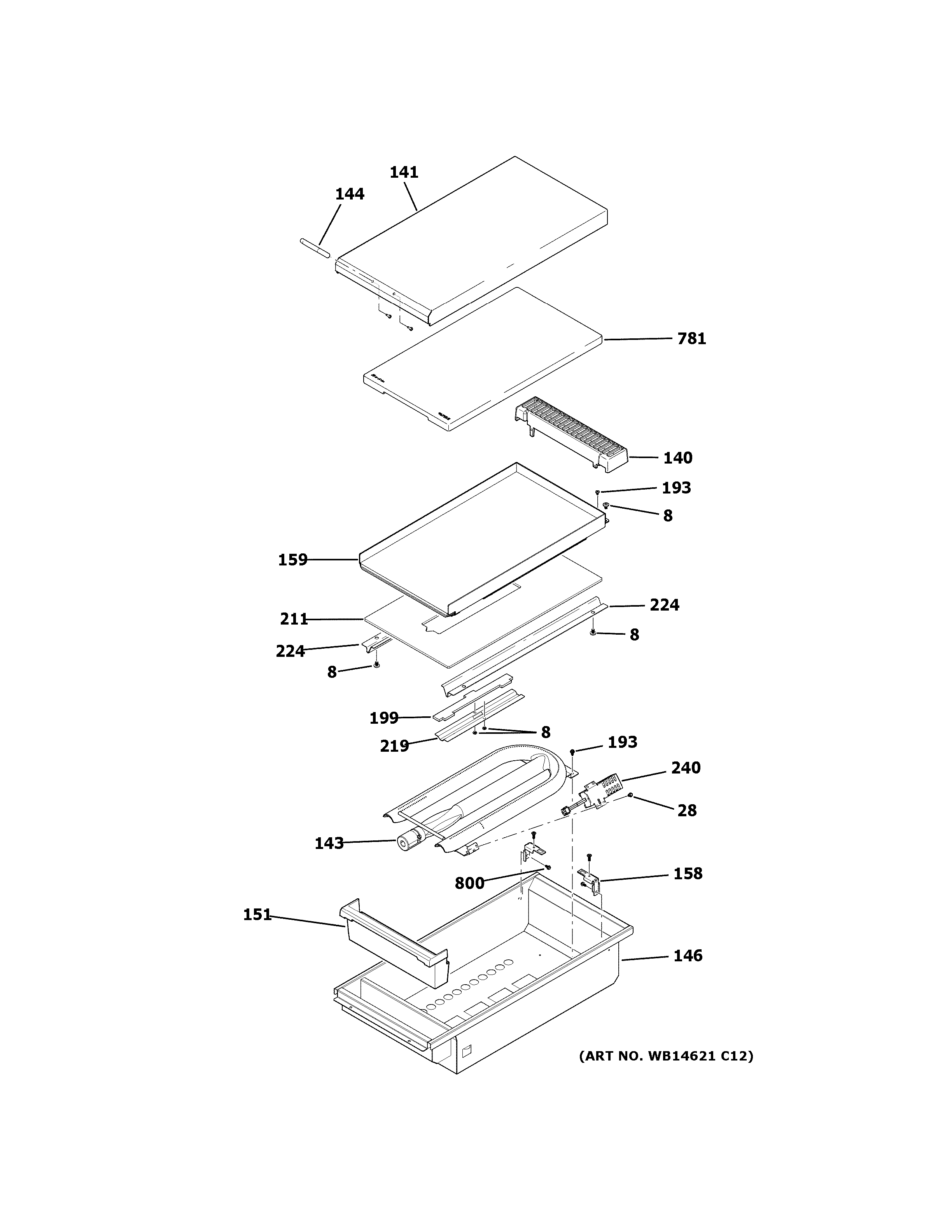

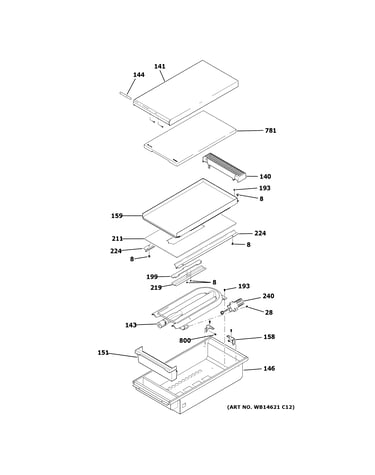

    Griddle assembly diagram

    Hex washer head screw

    Part #WB01K0050

    Replaced by #WB1X1293

    ?
    Manufacturer substitution
    This part replaces WB01K0050. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $8.70
    10% OFF Phone Price : $9.70
    In Stock
  • Grate WB31K10224
    #251

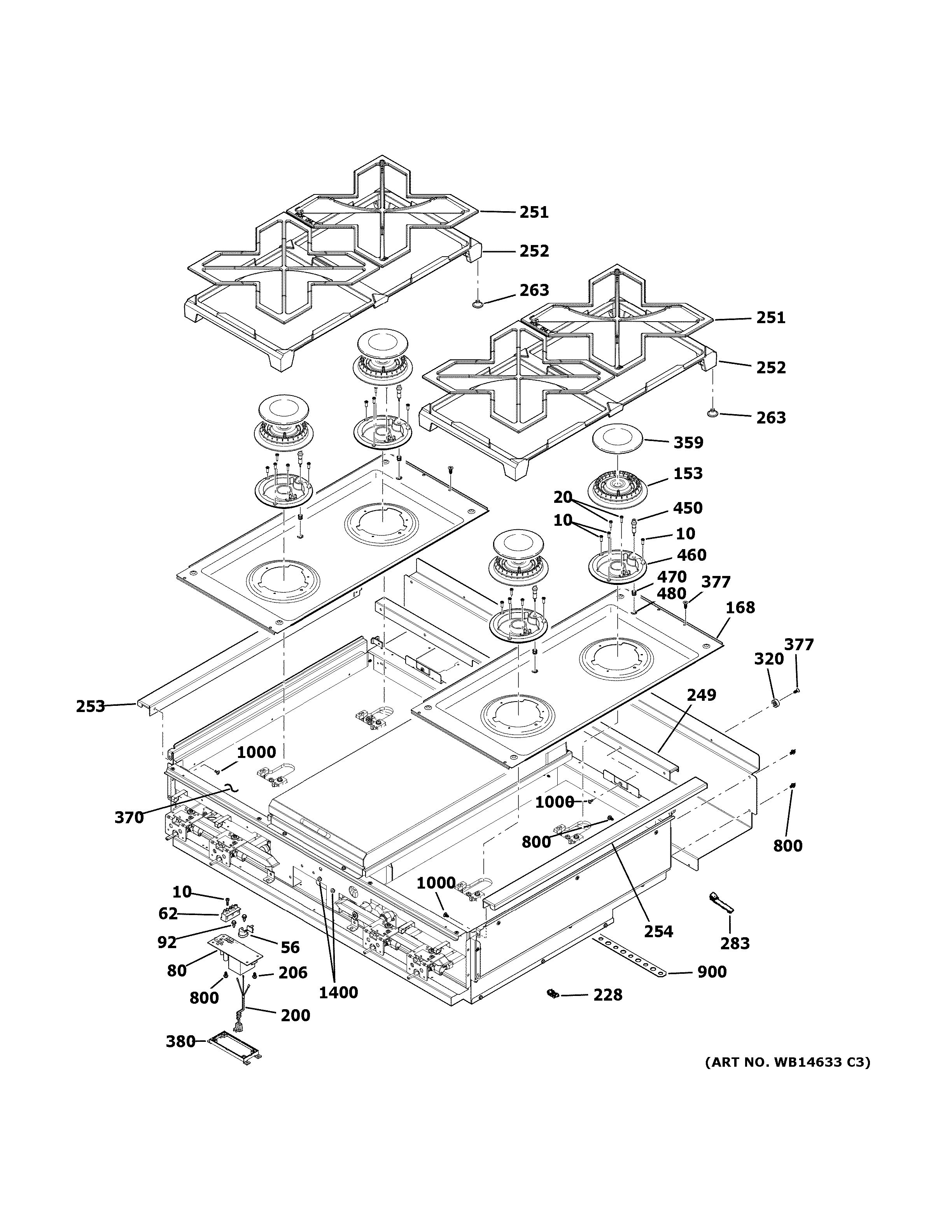

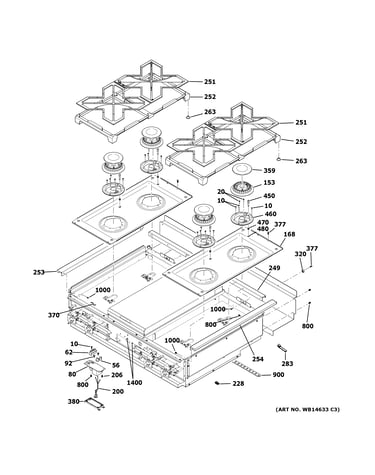

    Cooktop diagram

    Grate

    Part #WB31K10224

    Replaced by #WB31K10252

    ?
    Manufacturer substitution
    This part replaces WB31K10224. Substitute parts can look different from the original.
    $170.18
    7% OFF Phone Price : $182.18
    In Stock
  • Scr 8 Hd 1/4 WB01K10067
    #21

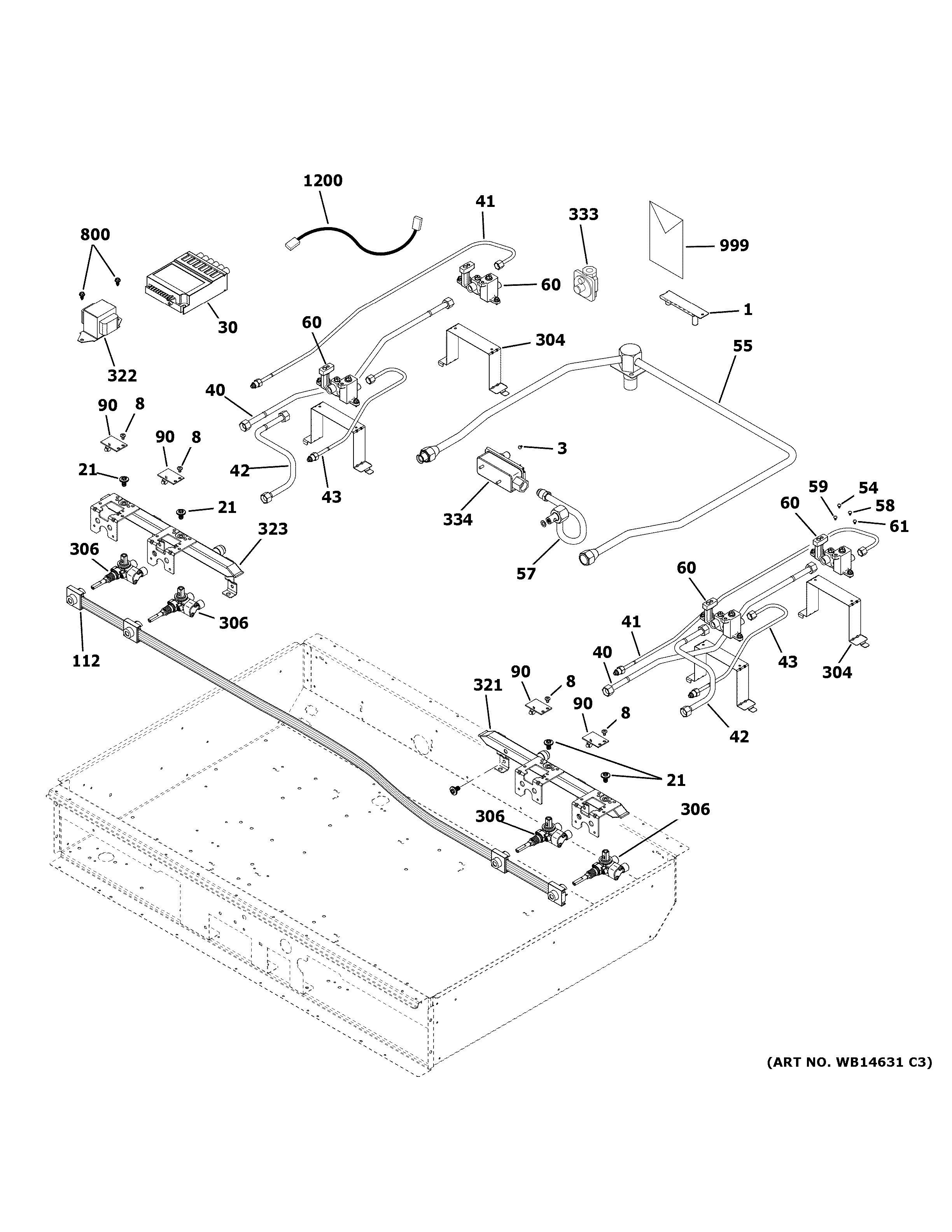

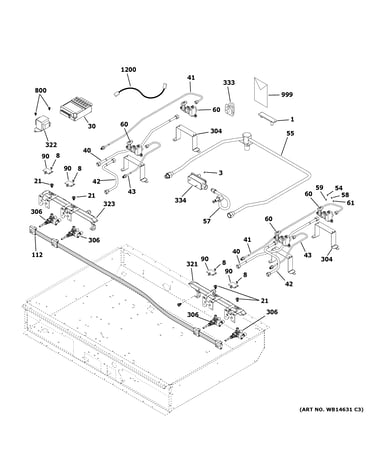

    Gas & burner parts diagram

    Scr 8 hd 1/4

    Part #WB01K10067

    This item is not returnable
    $9.49
    10% OFF Phone Price : $10.49
    In Stock
  • Range Burner Head WB16T10043
    #153

    Cooktop diagram

    Range burner head

    Part #WB16T10043

    Replaced by #WB16X26480

    ?
    Manufacturer substitution
    This part replaces WB16T10043. Substitute parts can look different from the original.
    $71.10
    8% OFF Phone Price : $77.10
    In Stock
  • Range Surface Burner Base WB28T10114
    #60

    Gas & burner parts diagram

    Range surface burner base

    Part #WB28T10114

    $74.30
    7% OFF Phone Price : $80.30
    In Stock
  • Range Surface Burner Base Screw WB01T10092
    #20

    Cooktop diagram

    Range surface burner base screw

    Part #WB01T10092

    $7.95
    11% OFF Phone Price : $8.95
    In Stock
  • Range Screw WB01K10091
    #206

    Cooktop diagram

    Range screw

    Part #WB01K10091

    This item is not returnable
    $9.49
    10% OFF Phone Price : $10.49
    In Stock
  • Range Screw WB01T10104
    #10

    Cooktop diagram

    Range screw

    Part #WB01T10104

    This item is not returnable
    $9.14
    10% OFF Phone Price : $10.14
    In Stock
  • Range Spark Module WB13T10078
    #30

    Gas & burner parts diagram

    Range spark module

    Part #WB13T10078

    $165.80
    7% OFF Phone Price : $177.80
    In Stock
  • Range Lp Conversion Kit WB28K10538
    #1

    Gas & burner parts diagram

    Range lp conversion kit

    Part #WB28K10538

    $76.76
    7% OFF Phone Price : $82.76
    In Stock

Most common symptoms to help you fix your cooktops

Choose a symptom to see related cooktop repairs.

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…

Repair guides for gas cooktops

How to replace a spark igniter switch on a gas cooktop

How to replace a spark igniter switch on a gas cooktop

Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…

Repair difficulty
Time required
 45 minutes or less
How to replace a spark module on a gas cooktop

How to replace a spark module on a gas cooktop

No flame on your gas cooktop? Installing a new spark module could be the fix you need.…

Repair difficulty
Time required
 30 minutes or less
