Miter Saw

Model # 31524392 Official Craftsman band saw

Here are the diagrams and repair parts for Official Craftsman 31524392 band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

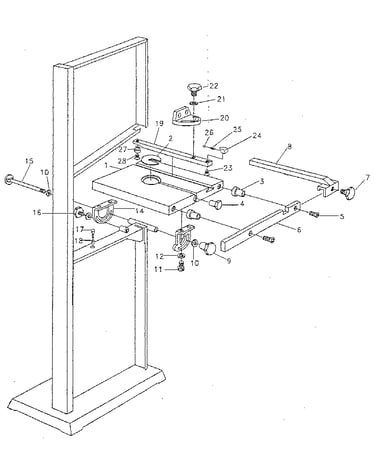

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Miter Sander Rocker Switch 1384.00
#3

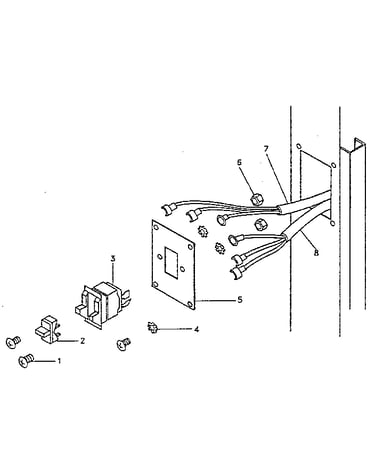

Figure 5 - switch illustration diagram

Miter sander rocker switch

Part #1384.00

The manufacturer no longer makes this part, and there's no substitute part

Pivot Shaft 3630.00
#54

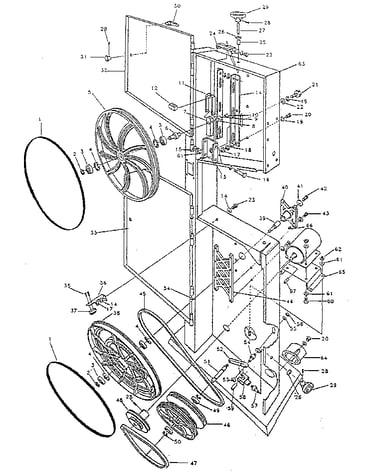

Figure 6 - blade drive illustration diagram

Pivot shaft

Part #3630.00

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 3670.00
#8

Figure 5 - switch illustration diagram

Line cord

Part #3670.00

The manufacturer no longer makes this part, and there's no substitute part

Screw 3648.00
#21

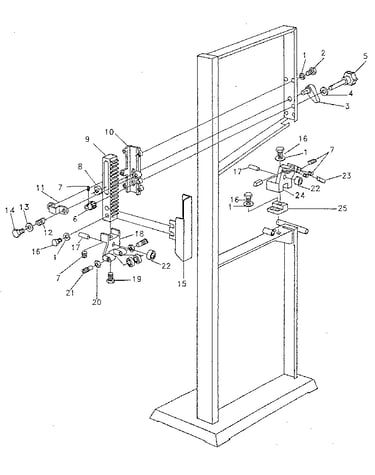

Figure 7 - blade guide illustration diagram

Screw

Part #3648.00

The manufacturer no longer makes this part, and there's no substitute part

Set Screw STD502503
Set screw

Part #STD502503

The manufacturer no longer makes this part, and there's no substitute part

1/4-in. Flat Lock Washer 8-pack STD551225
1/4-in. flat lock washer 8-pack

Part #STD551225

The manufacturer no longer makes this part, and there's no substitute part

Spring 3644.00
#12

Figure 7 - blade guide illustration diagram

Spring

Part #3644.00

The manufacturer no longer makes this part, and there's no substitute part

Knob Extension 0191.00
#21

Figure 6 - blade drive illustration diagram

Knob extension

Part #0191.00

The manufacturer no longer makes this part, and there's no substitute part

Ring STD315235
#3

Figure 6 - blade drive illustration diagram

Ring

Part #STD315235

The manufacturer no longer makes this part, and there's no substitute part

Washer 0695.00
#22

Figure 6 - blade drive illustration diagram

Washer

Part #0695.00

The manufacturer no longer makes this part, and there's no substitute part
