Model # RF010EXRW1 Official Whirlpool electric range

Here are the diagrams and repair parts for Official Whirlpool RF010EXRW1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Receptacle Element 4179038
#16

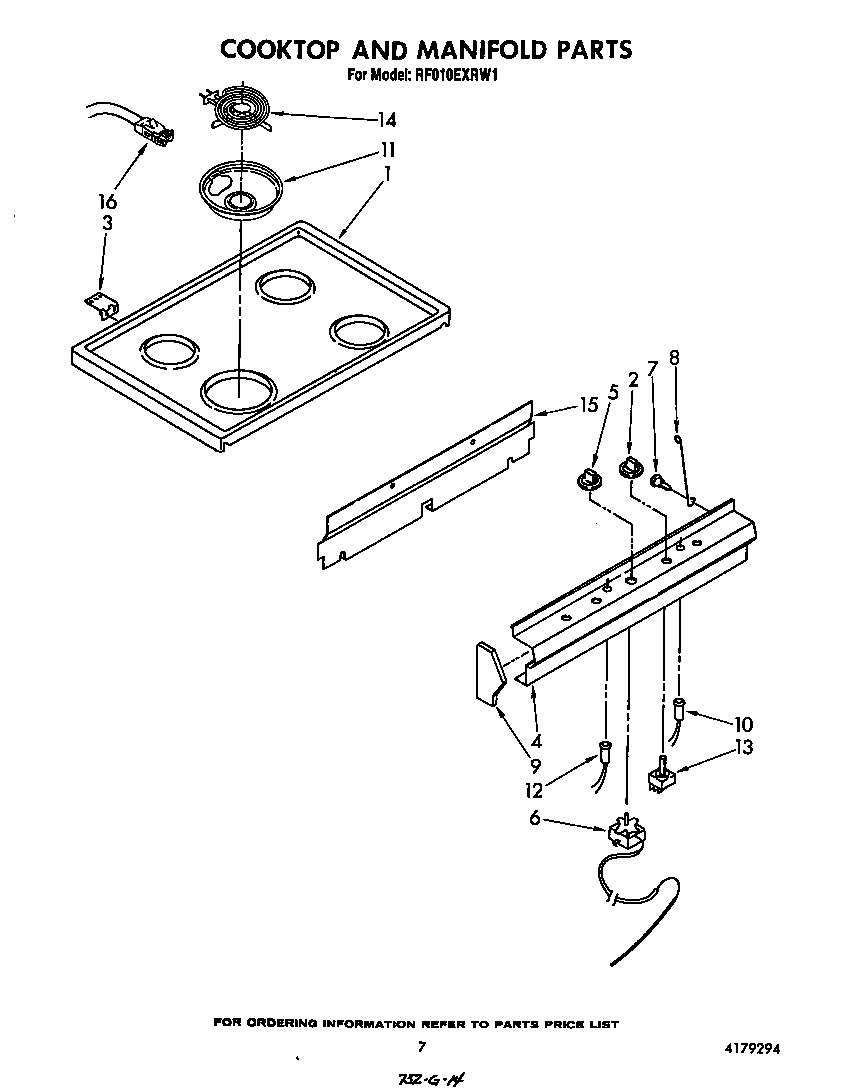

Cook top and manifold diagram

Receptacle element

Part #4179038

Replaced by #330031

?
Manufacturer substitution
This part replaces 4179038. Substitute parts can look different from the original.
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Screw 4157117
#7A

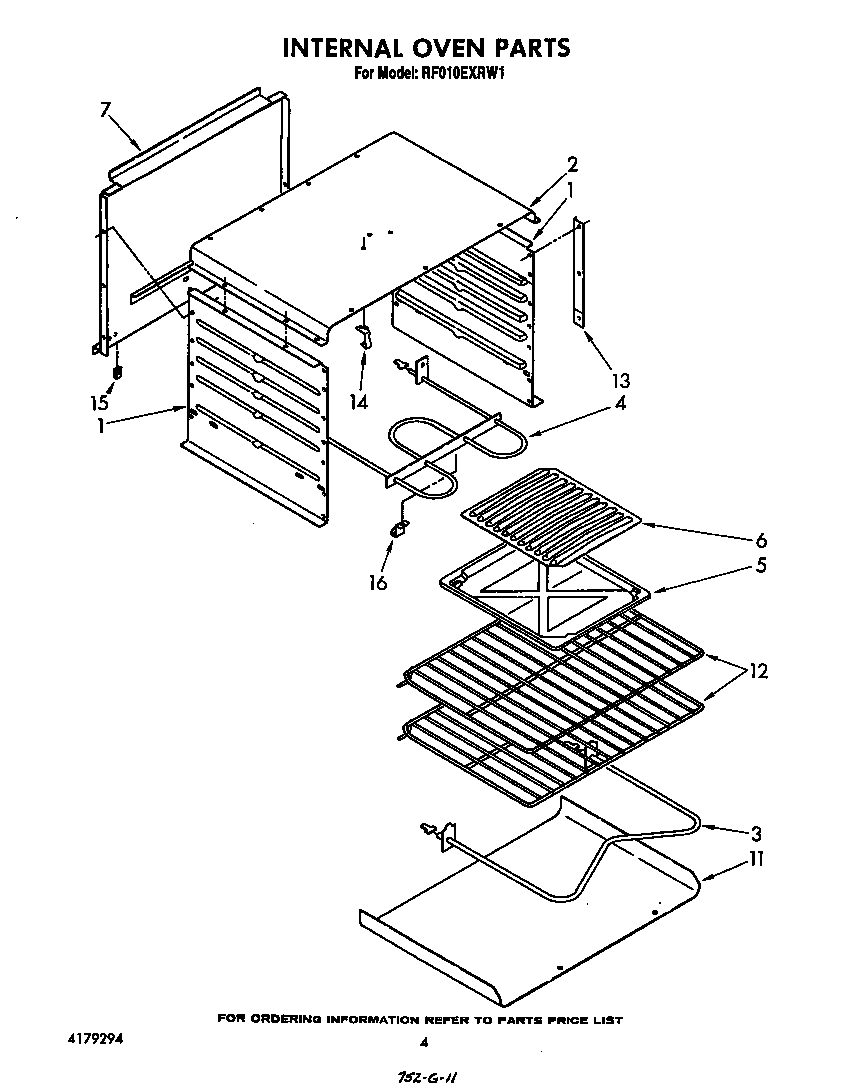

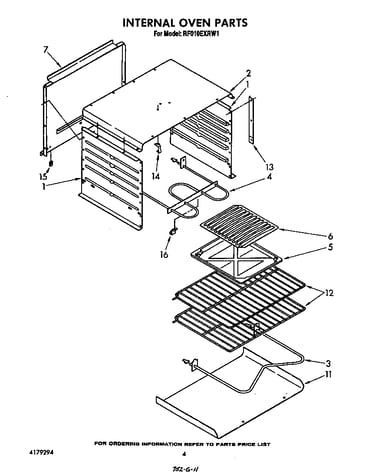

Internal oven diagram

Screw

Part #4157117

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 4157117. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 4157111
Screw

Part #4157111

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 4157111. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Drip Bowl 4157961
#11B

Cook top and manifold diagram

Drip bowl

Part #4157961

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 4157961. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Drip Bowl 4157960
#11A

Cook top and manifold diagram

Drip bowl

Part #4157960

Replaced by #W10196405RW

?
Manufacturer substitution
This part replaces 4157960. Substitute parts can look different from the original.
This item is not returnable
$10.52 |
16% OFF Phone Price : $12.52
In Stock
Terminal Block 4157955
#26

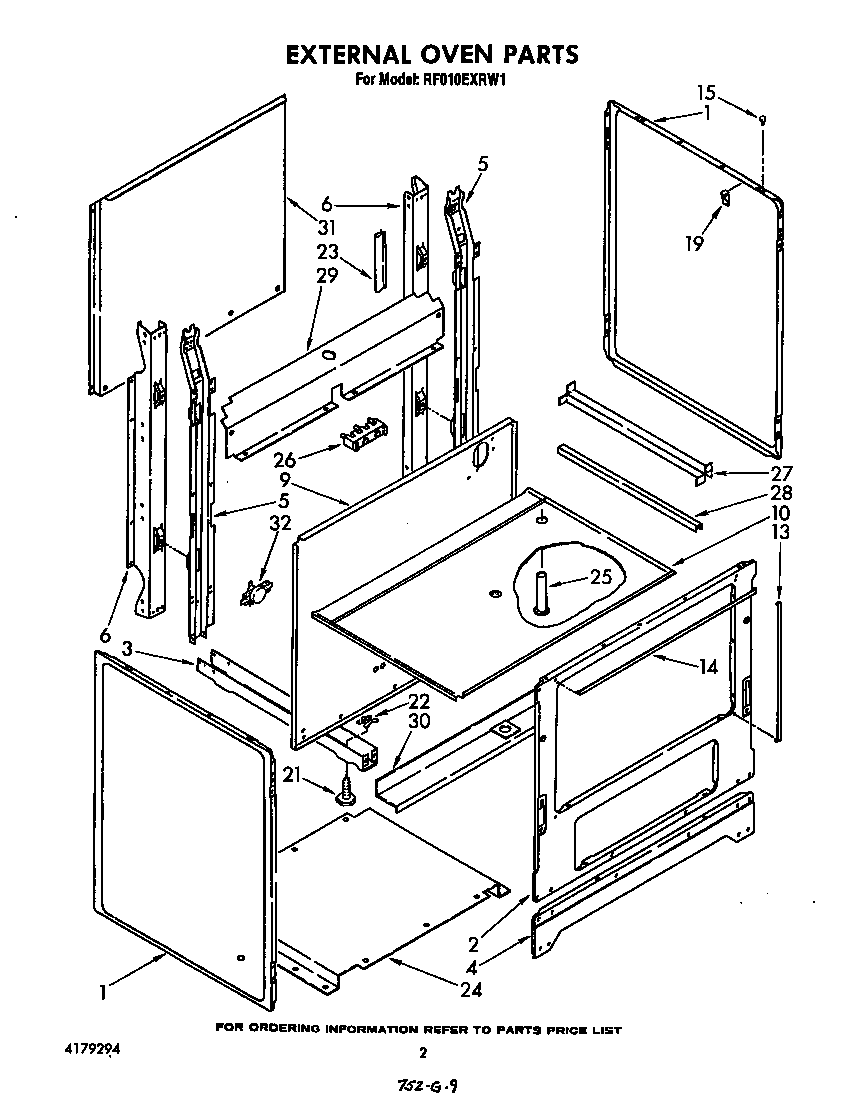

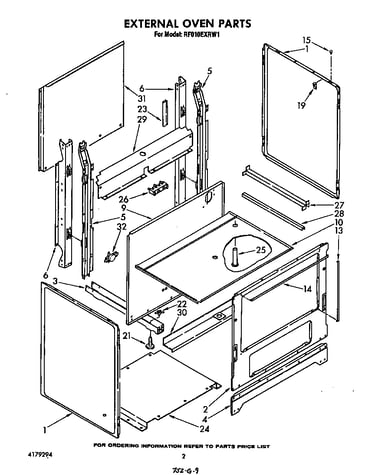

External oven diagram

Terminal block

Part #4157955

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 4157955. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Surface Element 4179293
#14A

Cook top and manifold diagram

Surface element

Part #4179293

The manufacturer no longer makes this part, and there's no substitute part

Bake Element 4179056
#3

Internal oven diagram

Bake element

Part #4179056

Replaced by #WPY07565600

?
Manufacturer substitution
This part replaces 4179056. Substitute parts can look different from the original.
$74.19 |
7% OFF Phone Price : $80.19
In Stock
Insulation 240132

#NI

All parts diagram

Insulation

Part #240132

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Clip Bulb 4157329
#14

Internal oven diagram

Clip bulb

Part #4157329

Replaced by #98005642

?
Manufacturer substitution
This part replaces 4157329. Substitute parts can look different from the original.
$35.73
In Stock
