Model # FH16M3WTFC Official Gibson chest freezer - lg30890060

Here are the diagrams and repair parts for Official Gibson FH16M3WTFC chest freezer - lg30890060, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 51 parts |

#26

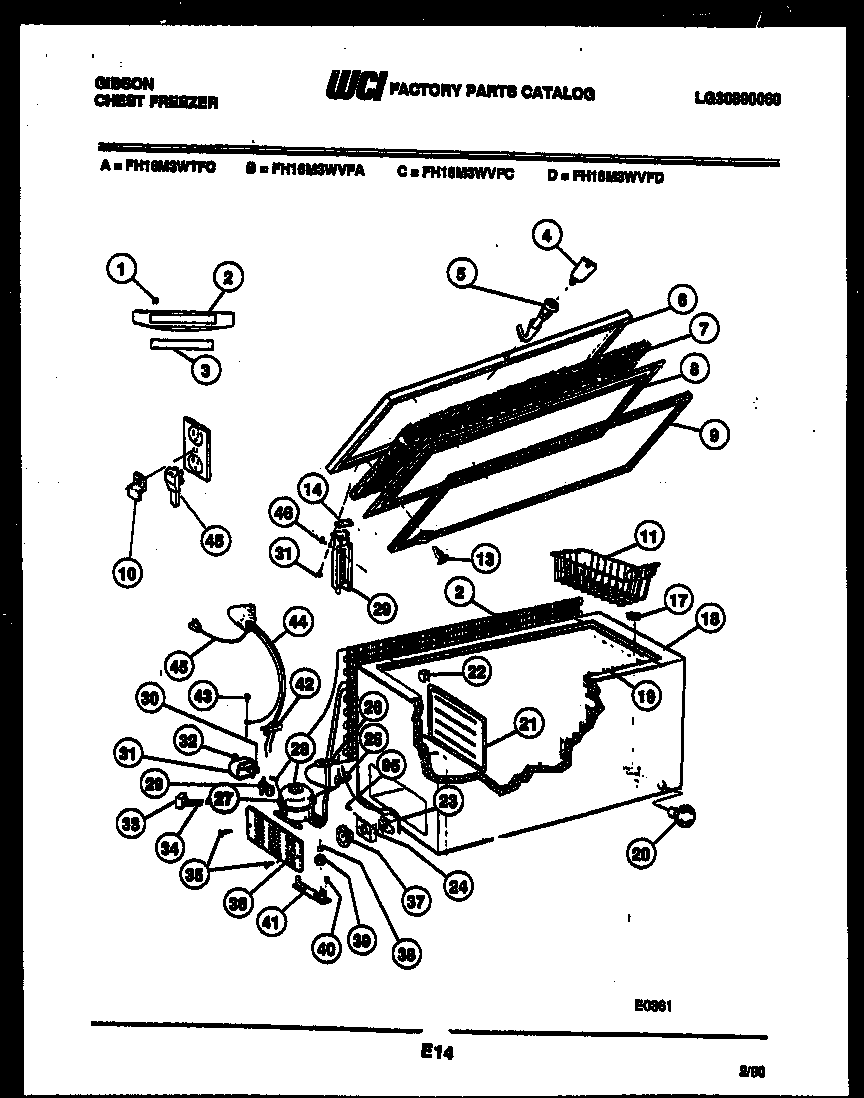

Chest freezer parts diagram

Filter

Part #5308000027

Replaced by #5303305677

$12.71 |

14% OFF Phone Price : $14.71

In Stock

Qty

Chest freezer parts diagram

Key

Part #5308037402

Replaced by #297147700

$9.25 |

10% OFF Phone Price : $10.25

In Stock

Qty

#13

Chest freezer parts diagram

Clip

Part #F300792

Replaced by #5304406520

$33.42 |

15% OFF Phone Price : $39.42

In Stock

Qty

#17

Chest freezer parts diagram

Drain plug

Part #F89354

Replaced by #216502600

This item is not returnable

$13.04 |

13% OFF Phone Price : $15.04

In Stock

Qty

#16

Chest freezer parts diagram

Hinge (white)

Part #5303925006

Replaced by #297321900

$68.89 |

8% OFF Phone Price : $74.89

In Stock

Qty

#39

Chest freezer parts diagram

Complete grommet

Part #F114221

Replaced by #218513300

$36.56 |

14% OFF Phone Price : $42.56

In Stock

Qty

Chest freezer parts diagram

Fastener

Part #F114337

Replaced by #216922700

This item is not returnable

$13.31 |

13% OFF Phone Price : $15.31

In Stock

Qty

#29

Chest freezer parts diagram

Clip

Part #3017758

This item is not returnable

$2.16

In Stock

Qty

#12

Chest freezer parts diagram

Condenser r1

Part #F300171

Replaced by #5303925238

$335.48

In Stock

Qty

#42

Chest freezer parts diagram

Harness clip

Part #F127473

Replaced by #5303212614

This item is not returnable

$2.16

In Stock

Qty
