GE
Chest Freezer

Model # FCM25DABWH Official GE freezer - b series

Here are the diagrams and repair parts for Official GE FCM25DABWH freezer - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Refrigerator Filter Dryer WR86X96
#740

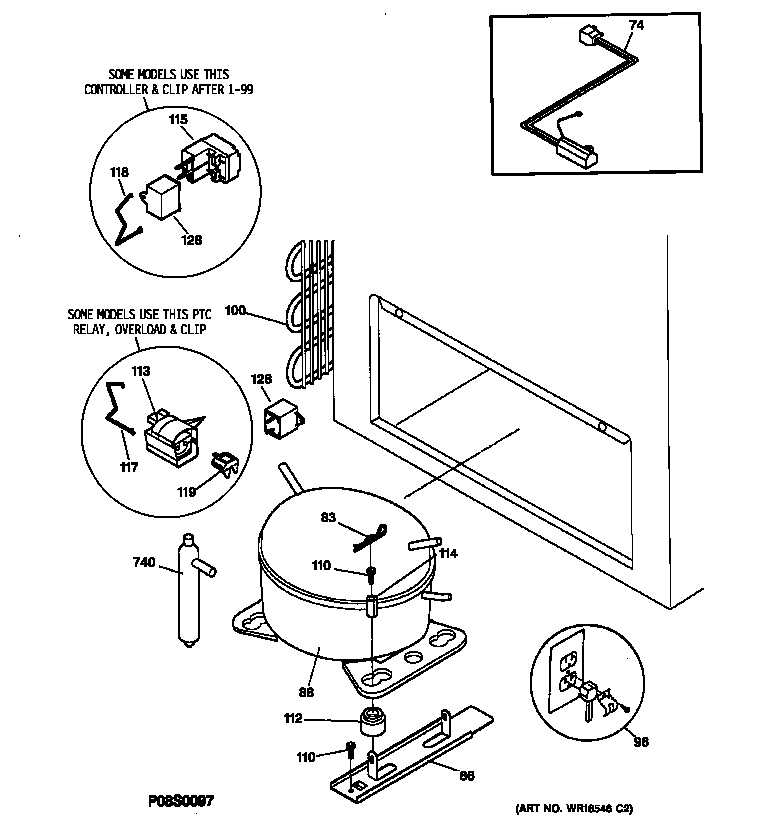

System diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X108
#74

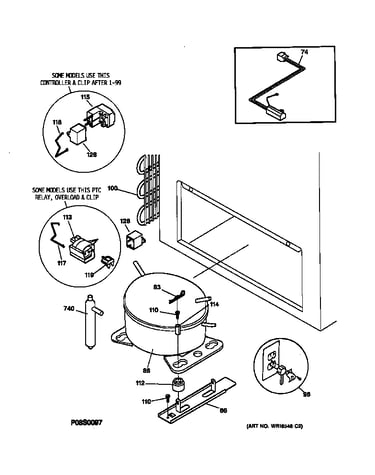

System diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Toe Screw WR1X2209
#129

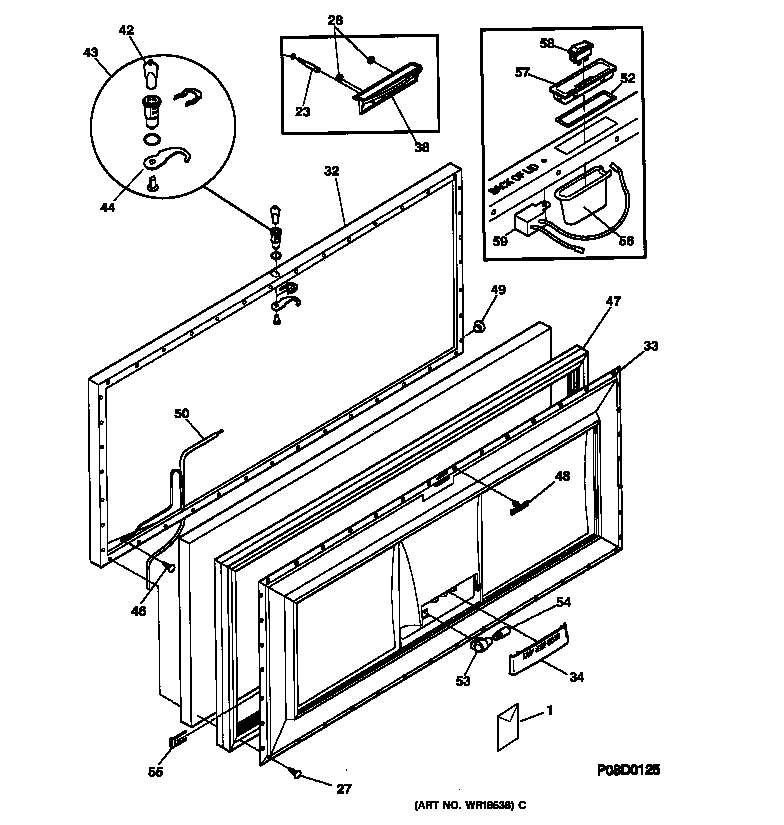

Cabinet diagram

Toe screw

Part #WR1X2209

$7.51
In Stock
Ge Controlle WR7X10020
#115

System diagram

Ge controlle

Part #WR7X10020

$87.49
In Stock
Nameplate WR4X10016
#37

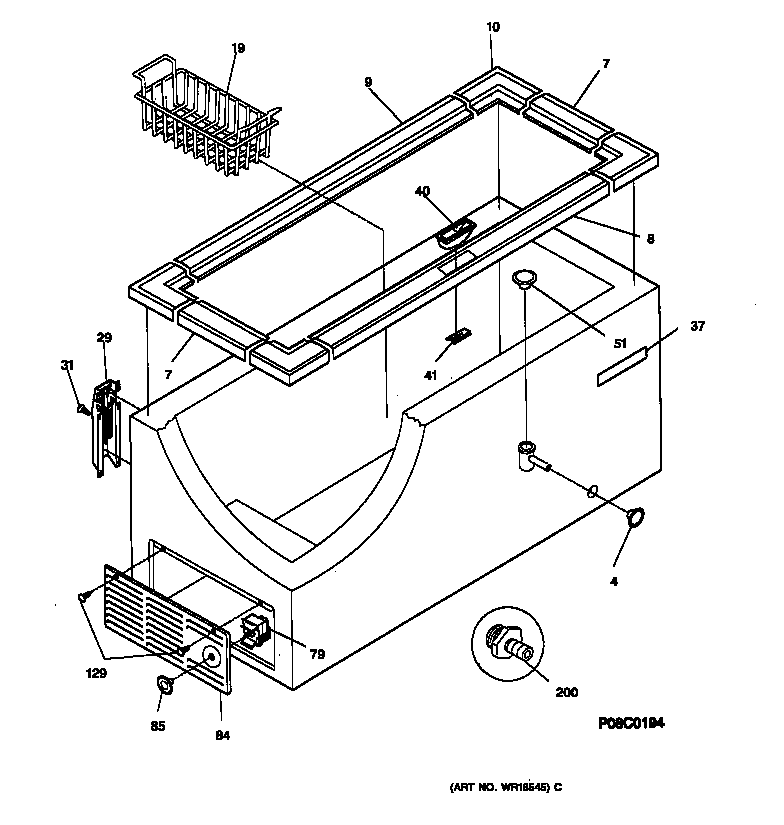

Cabinet diagram

Nameplate

Part #WR4X10016

$14.99
In Stock
Hose Adapter WR1X1965
#200

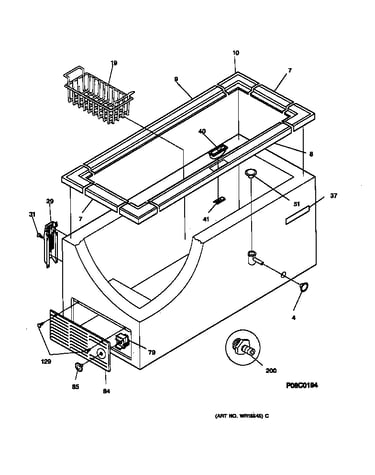

Cabinet diagram

Hose adapter

Part #WR1X1965

$26.59 |
18% OFF Phone Price : $32.59
In Stock
Auxiliary Condenser WR84X10001
#100

System diagram

Auxiliary condenser

Part #WR84X10001

$604.47
In Stock
Plg Drn Shel WR2X9508
#4

Cabinet diagram

Plg drn shel

Part #WR2X9508

Replaced by #WR02X12063

?
Manufacturer substitution
This part replaces WR2X9508. Substitute parts can look different from the original.
$41.53
In Stock
Access Panel WR17X10194
#84

Cabinet diagram

Access panel

Part #WR17X10194

Replaced by #WR17X3069

?
Manufacturer substitution
This part replaces WR17X10194. Substitute parts can look different from the original.
$88.70
In Stock
Uc Fum12 - F 49-6952
#1A

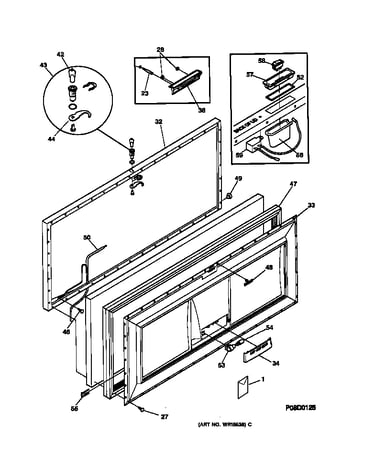

Door diagram

Uc fum12 - f

Part #49-6952

Replaced by #049-60040

?
Manufacturer substitution
This part replaces 49-6952. Substitute parts can look different from the original.
$8.59 |
10% OFF Phone Price : $9.59
In Stock
