Model # 6221D Official Makita cordless drill/driver

Here are the diagrams and repair parts for Official Makita 6221D cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Battery Holder 643909-9
#4

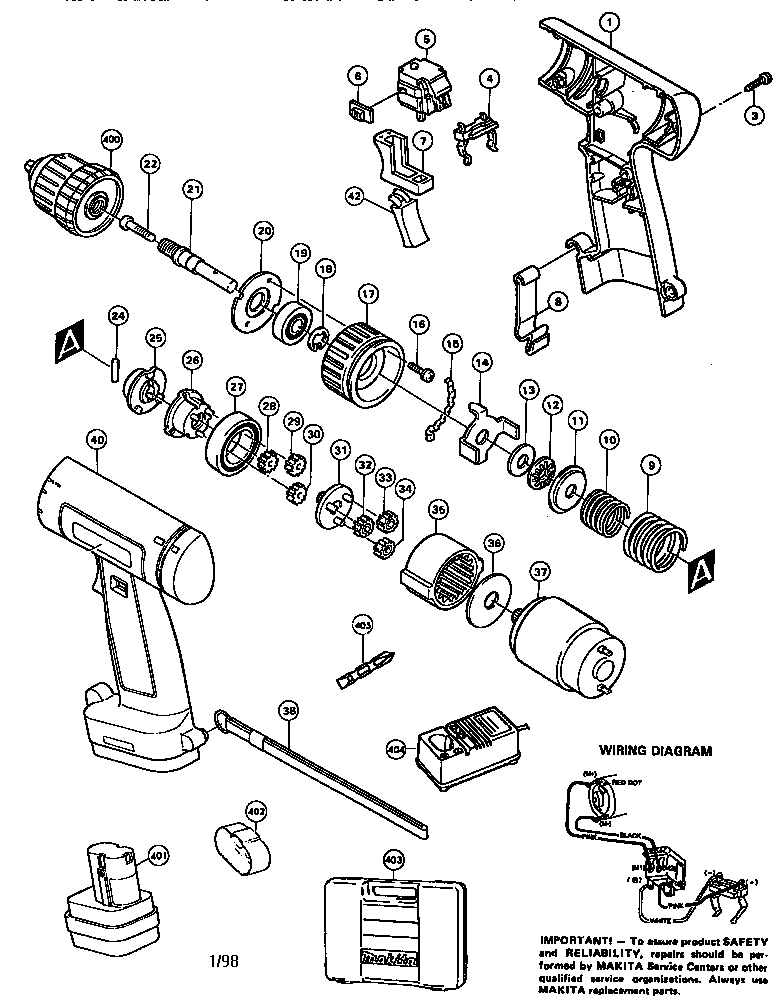

Cordless driver drill diagram

Battery holder

Part #643909-9

The manufacturer no longer makes this part, and there's no substitute part

Needle Gauge 216401-4
#12

Cordless driver drill diagram

Needle gauge

Part #216401-4

The manufacturer no longer makes this part, and there's no substitute part

Slider 165087-0
#14

Cordless driver drill diagram

Slider

Part #165087-0

The manufacturer no longer makes this part, and there's no substitute part

Stip Ring 961015-1
#18

Cordless driver drill diagram

Stip ring

Part #961015-1

The manufacturer no longer makes this part, and there's no substitute part

Switch 651909-5
#5

Cordless driver drill diagram

Switch

Part #651909-5

The manufacturer no longer makes this part, and there's no substitute part

Lever 414740-8
#6

Cordless driver drill diagram

Lever

Part #414740-8

The manufacturer no longer makes this part, and there's no substitute part

Ring 415515-8
#17

Cordless driver drill diagram

Ring

Part #415515-8

The manufacturer no longer makes this part, and there's no substitute part

Retainer 285678-2
#20

Cordless driver drill diagram

Retainer

Part #285678-2

The manufacturer no longer makes this part, and there's no substitute part

Chrg 9.6vdc 113103-2
#404

Cordless driver drill diagram

Chrg 9.6vdc

Part #113103-2

The manufacturer no longer makes this part, and there's no substitute part

Oc Relay 652719-3
#42

Cordless driver drill diagram

Oc relay

Part #652719-3

The manufacturer no longer makes this part, and there's no substitute part
