Model # 1674313892 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 1674313892 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Teflon Tape 089-6713

#NI

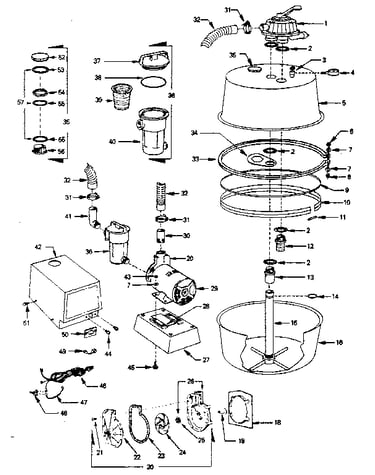

All parts diagram

Teflon tape

Part #089-6713

The manufacturer no longer makes this part, and there's no substitute part

Valve Pin 055-3718
#59

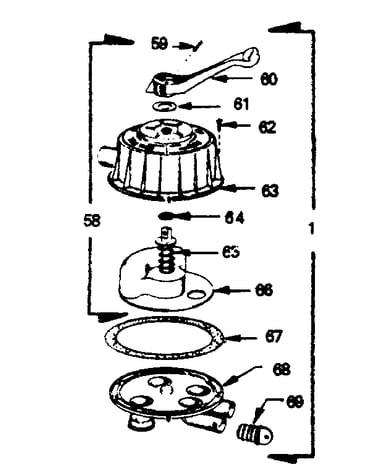

Backwash valve assembly diagram

Valve pin

Part #055-3718

The manufacturer no longer makes this part, and there's no substitute part

Valve Cover 098-7129
#63

Backwash valve assembly diagram

Valve cover

Part #098-7129

The manufacturer no longer makes this part, and there's no substitute part

V-clamp 08-5024
#33

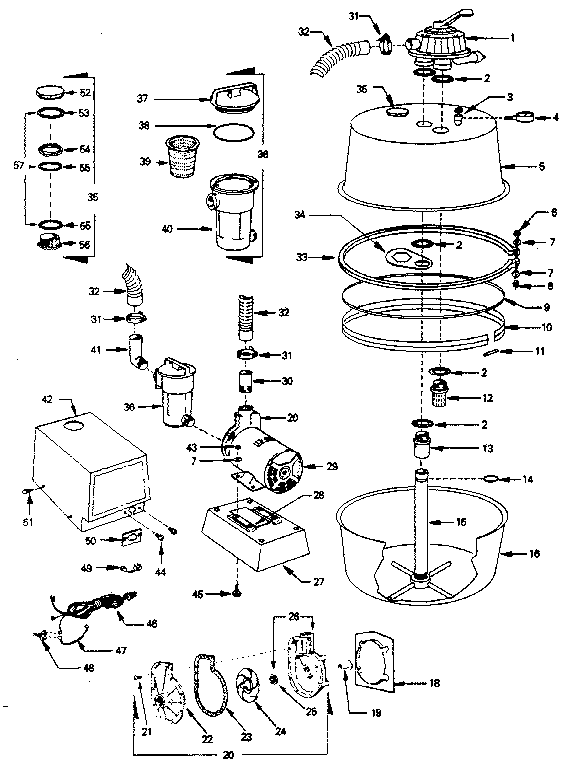

Replacement parts diagram

V-clamp

Part #08-5024

The manufacturer no longer makes this part, and there's no substitute part

Viewport 07-5186
#35

Replacement parts diagram

Viewport

Part #07-5186

The manufacturer no longer makes this part, and there's no substitute part

Rotor 07-5140
#66

Backwash valve assembly diagram

Rotor

Part #07-5140

The manufacturer no longer makes this part, and there's no substitute part

Body 09-3026
#26

Replacement parts diagram

Body

Part #09-3026

The manufacturer no longer makes this part, and there's no substitute part

Screw 054-3757
#62

Backwash valve assembly diagram

Screw

Part #054-3757

The manufacturer no longer makes this part, and there's no substitute part

Shim .025 052-3728
#61

Backwash valve assembly diagram

Shim .025

Part #052-3728

The manufacturer no longer makes this part, and there's no substitute part

Screw 054-3774
#44

Replacement parts diagram

Screw

Part #054-3774

The manufacturer no longer makes this part, and there's no substitute part
