Model # 10128990 Official Craftsman 12" metal turning lathe

Here are the diagrams and repair parts for Official Craftsman 10128990 12" metal turning lathe, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

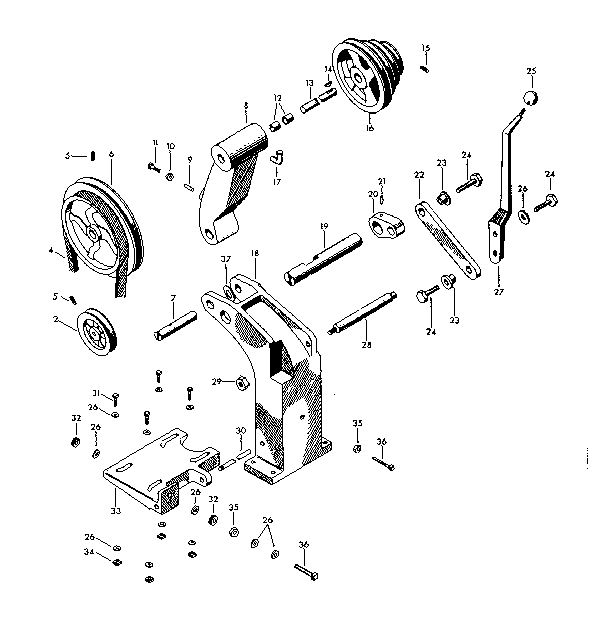

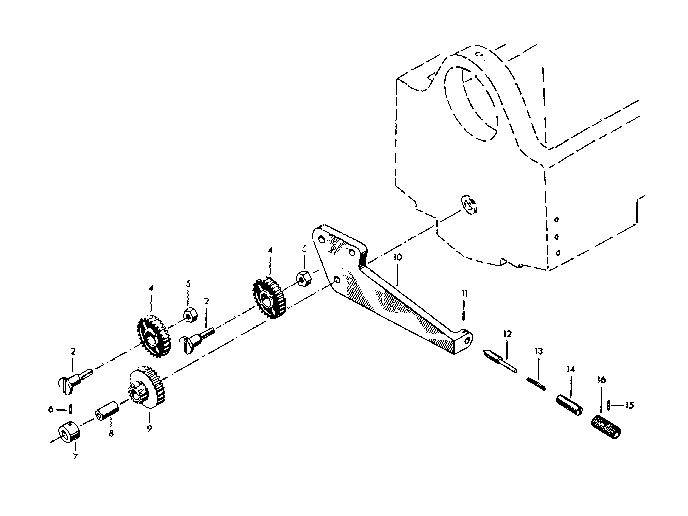

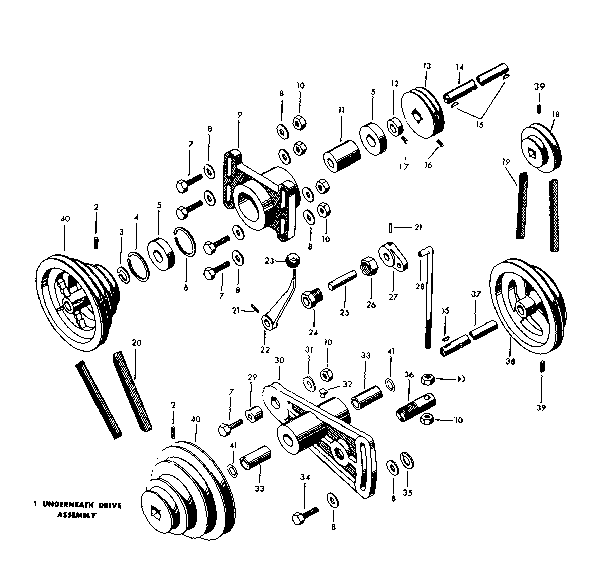

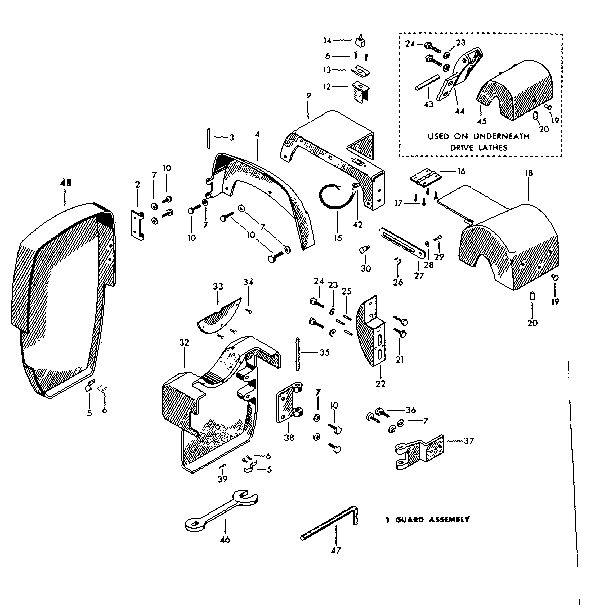

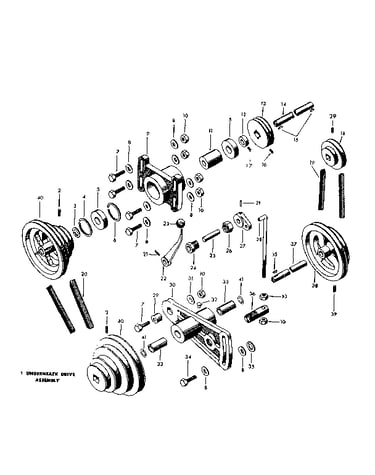

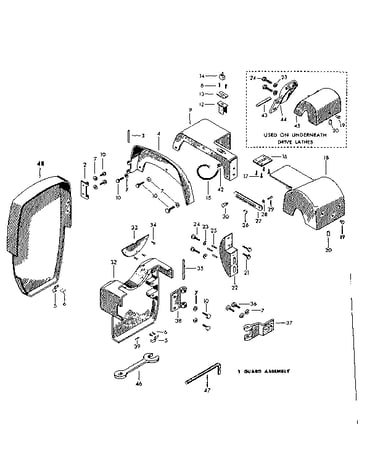

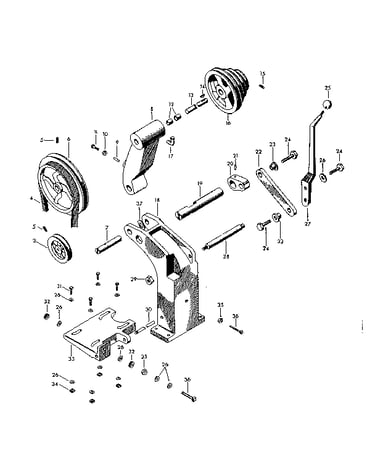

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 456 parts  |
Carriage Rack Bed, 54-in 9-86-54
#13

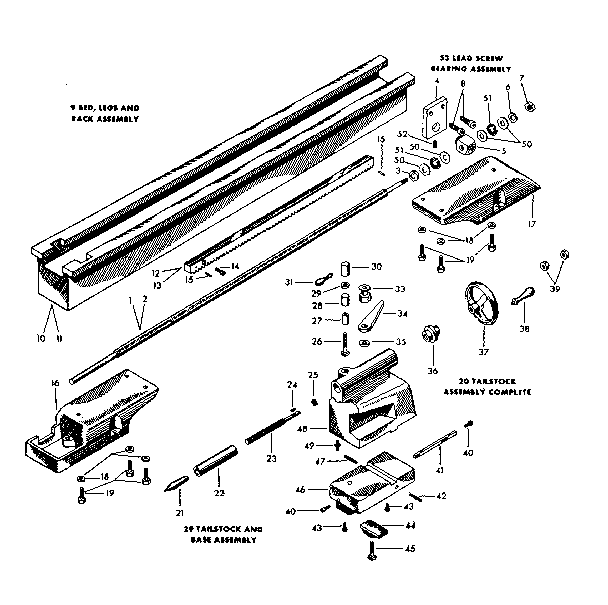

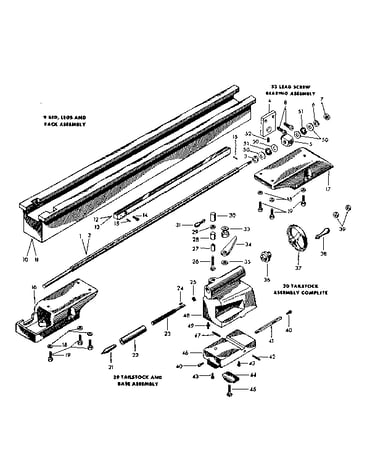

Bed, legs, and rack assembly diagram

Carriage rack bed, 54-in

Part #9-86-54

The manufacturer no longer makes this part, and there's no substitute part

Panel 566-003
#26

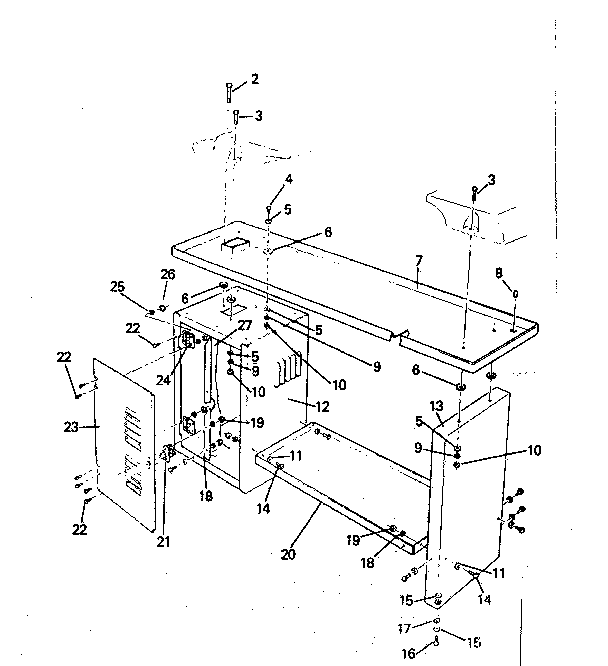

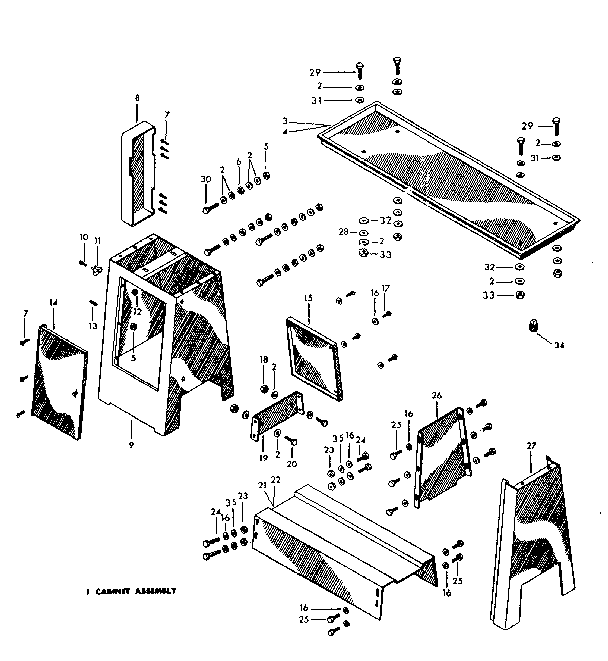

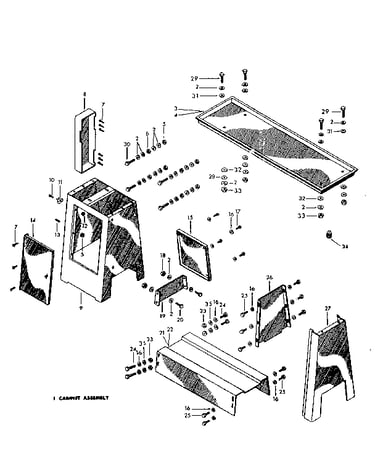

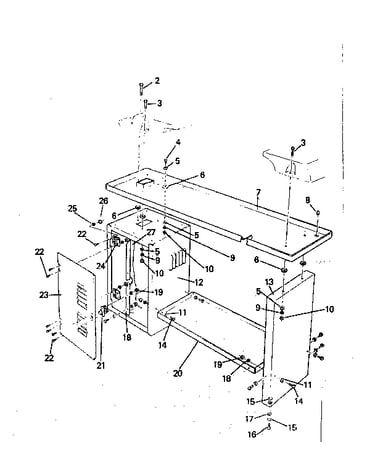

Cabinet assembly diagram

Panel

Part #566-003

The manufacturer no longer makes this part, and there's no substitute part

Washer M6-255
#38

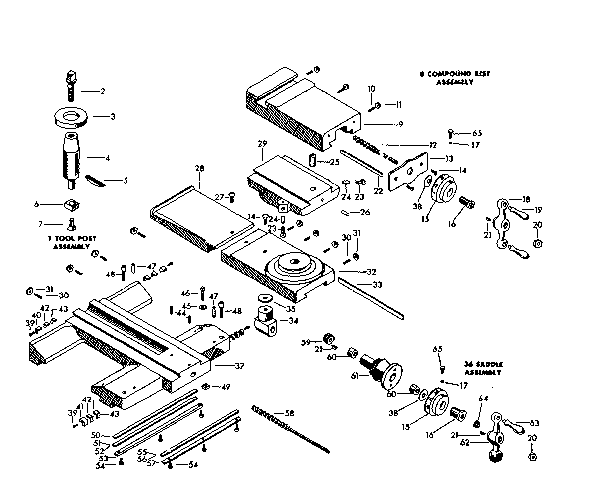

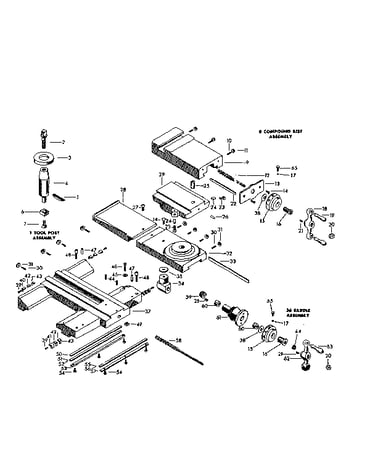

Tool post, saddle, and compound post assembly diagram

Washer

Part #M6-255

The manufacturer no longer makes this part, and there's no substitute part

Stack Gear 10-1522
#53

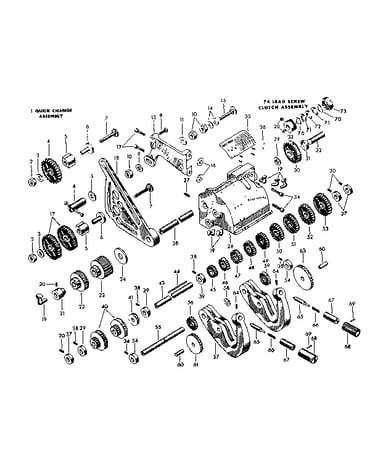

Quick change and lead screw clutch assembly diagram

Stack gear

Part #10-1522

The manufacturer no longer makes this part, and there's no substitute part

Bearing 046-040
#5

Bed, legs, and rack assembly diagram

Bearing

Part #046-040

The manufacturer no longer makes this part, and there's no substitute part

Shaft 700-073
#57

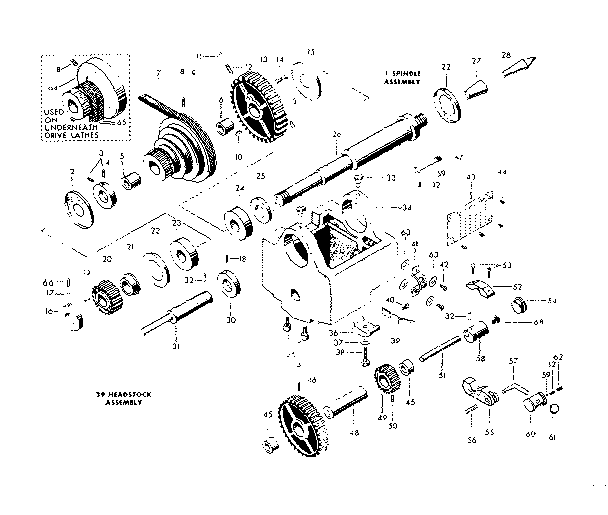

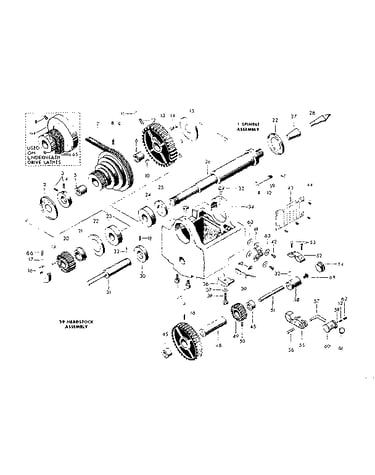

Headstock and spindle assembly diagram

Shaft

Part #700-073

The manufacturer no longer makes this part, and there's no substitute part

Gear Dial 9-64
#7

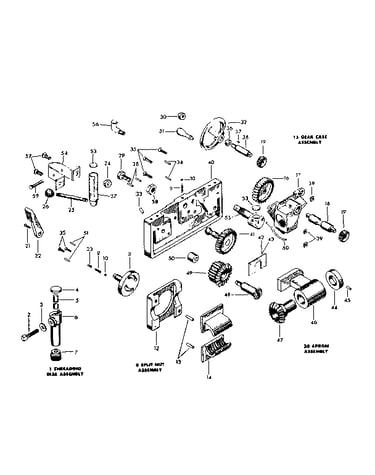

Gear case, threading dial, split nut, and apron assembly diagram

Gear dial

Part #9-64

The manufacturer no longer makes this part, and there's no substitute part

Washer 9-93
#3

Quick change and lead screw clutch assembly diagram

Washer

Part #9-93

The manufacturer no longer makes this part, and there's no substitute part

Bed 058-016
#11

Bed, legs, and rack assembly diagram

Bed

Part #058-016

The manufacturer no longer makes this part, and there's no substitute part

Bearing 043-018
#5

Headstock and spindle assembly diagram

Bearing

Part #043-018

The manufacturer no longer makes this part, and there's no substitute part
