Model # ZV681Y2SS Official GE range hood

Here are the diagrams and repair parts for Official GE ZV681Y2SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Hood Zv370 3 49-8816-1
#999

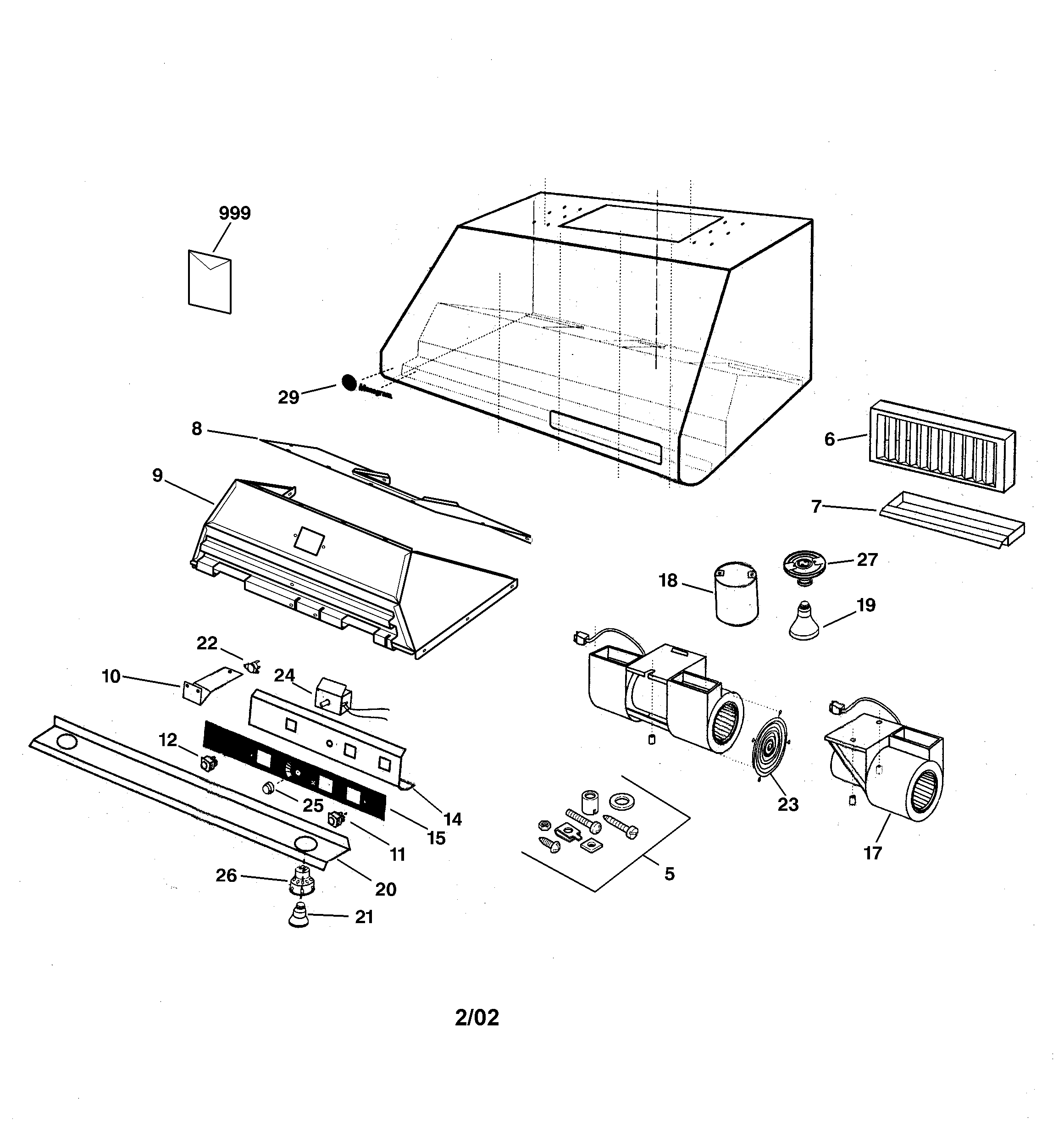

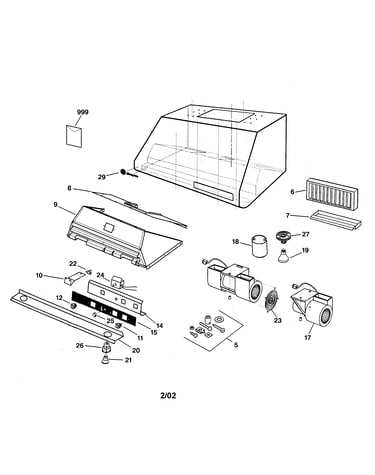

Range hood diagram

Hood zv370 3

Part #49-8816-1

This item is not returnable
$5.99
In Stock
Use & Care S 49-8815-1
#999

Range hood diagram

Use & care s

Part #49-8815-1

$8.49
In Stock
Thermostat Blower WB21X5369
#22

Range hood diagram

Thermostat blower

Part #WB21X5369

The manufacturer no longer makes this part, and there's no substitute part

Housing WB06X10351
#8

Range hood diagram

Housing

Part #WB06X10351

The manufacturer no longer makes this part, and there's no substitute part

Guard Heat L WB08X5126
#18

Range hood diagram

Guard heat l

Part #WB08X5126

The manufacturer no longer makes this part, and there's no substitute part

Speed Module WB27X5600
#24

Range hood diagram

Speed module

Part #WB27X5600

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Switch (red) WB24X10056
#11

Range hood diagram

Range hood blower switch (red)

Part #WB24X10056

The manufacturer no longer makes this part, and there's no substitute part

Filter WB02X8633
#6

Range hood diagram

Filter

Part #WB02X8633

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Guard WB02X8636
#23

Range hood diagram

Range hood blower guard

Part #WB02X8636

The manufacturer no longer makes this part, and there's no substitute part

Control Panel WB07X10461
#14

Range hood diagram

Control panel

Part #WB07X10461

The manufacturer no longer makes this part, and there's no substitute part
