Amana
Electric Cooktop

Model # AKT3630E-P1143717NE Official Amana cooktop

Here are the diagrams and repair parts for Official Amana AKT3630E-P1143717NE cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Ribon Elemnt 31939001
#25

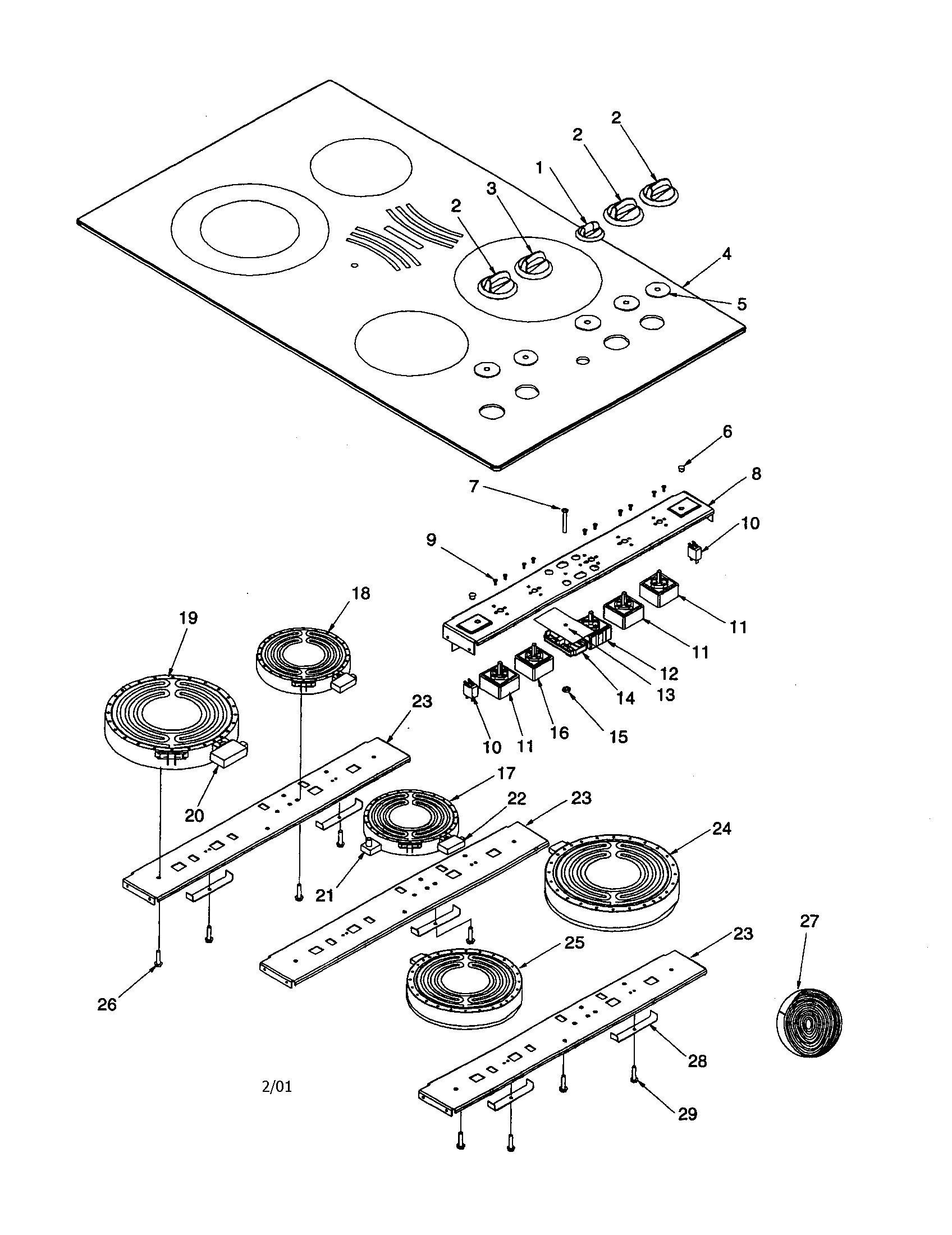

Cooktop diagram

Ribon elemnt

Part #31939001

Replaced by #W10823699

?
Manufacturer substitution
This part replaces 31939001. Substitute parts can look different from the original.
$74.52 |
7% OFF Phone Price : $80.52
In Stock
Switch 31891202
#11

Cooktop diagram

Switch

Part #31891202

The manufacturer no longer makes this part, and there's no substitute part

Screw 31750410
#7

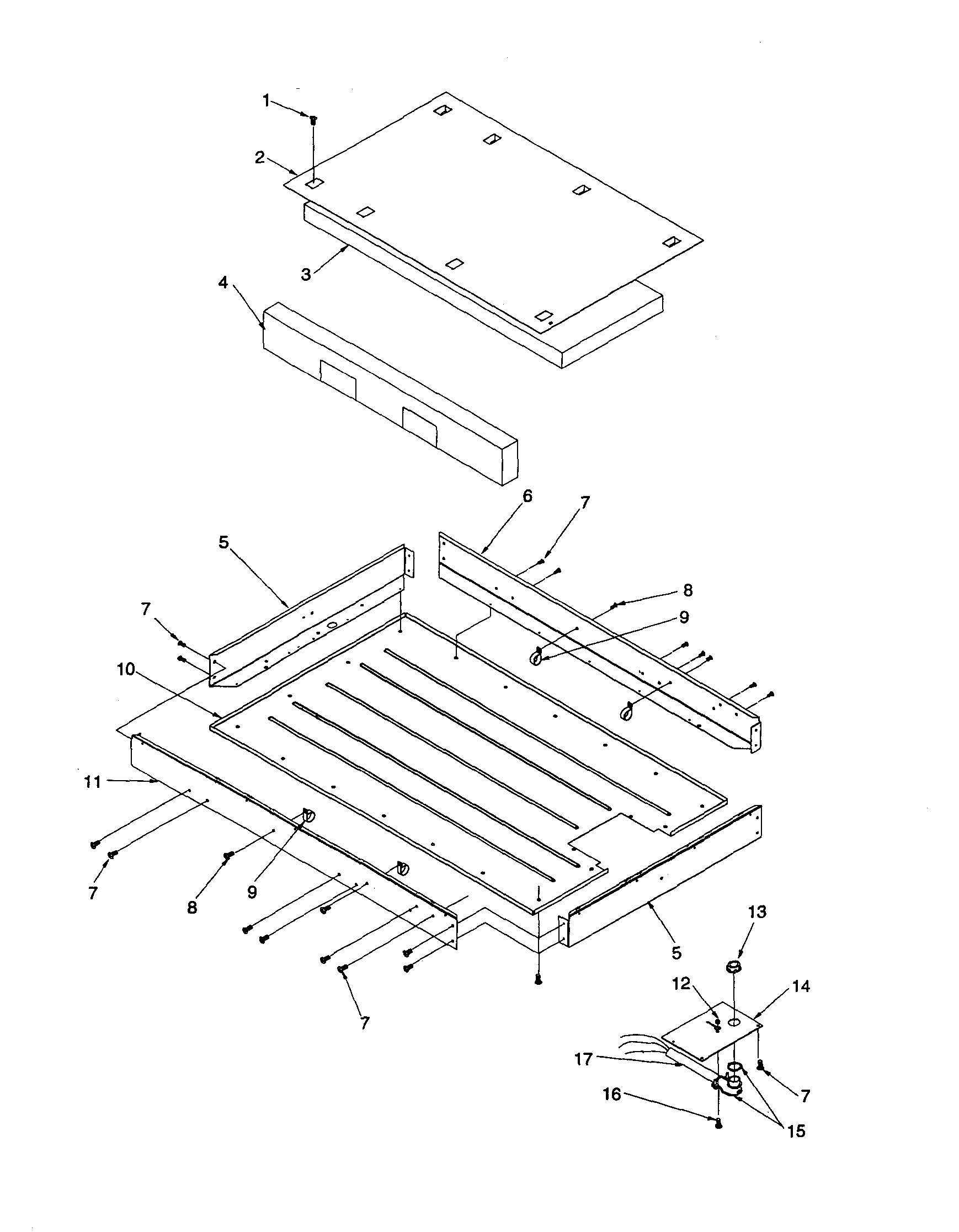

Heater box diagram

Screw

Part #31750410

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750410. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Infinite Switch 31875401
#16

Cooktop diagram

Infinite switch

Part #31875401

Replaced by #12002422

?
Manufacturer substitution
This part replaces 31875401. Substitute parts can look different from the original.
$81.54 |
7% OFF Phone Price : $87.54
In Stock
Element Module 31852001
#19

Cooktop diagram

Element module

Part #31852001

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 31852001. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Element 31939101
#24

Cooktop diagram

Element

Part #31939101

Replaced by #W10823710

?
Manufacturer substitution
This part replaces 31939101. Substitute parts can look different from the original.
$156.59 |
7% OFF Phone Price : $168.59
In Stock
Screw M0216703

#NI

All parts diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0234422
#9

Cooktop diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Conduit Bushing M0327601
#13

Heater box diagram

Conduit bushing

Part #M0327601

The manufacturer no longer makes this part, and there's no substitute part

Frame Assembly 31915903W
#4C

Cooktop diagram

Frame assembly

Part #31915903W

The manufacturer no longer makes this part, and there's no substitute part
