Amana
Electric Wall Oven

Model # 880.110 Official Amana wall oven

Here are the diagrams and repair parts for Official Amana 880110 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Screw 10-24 X 1/4 4d Hd M1D717
#30B

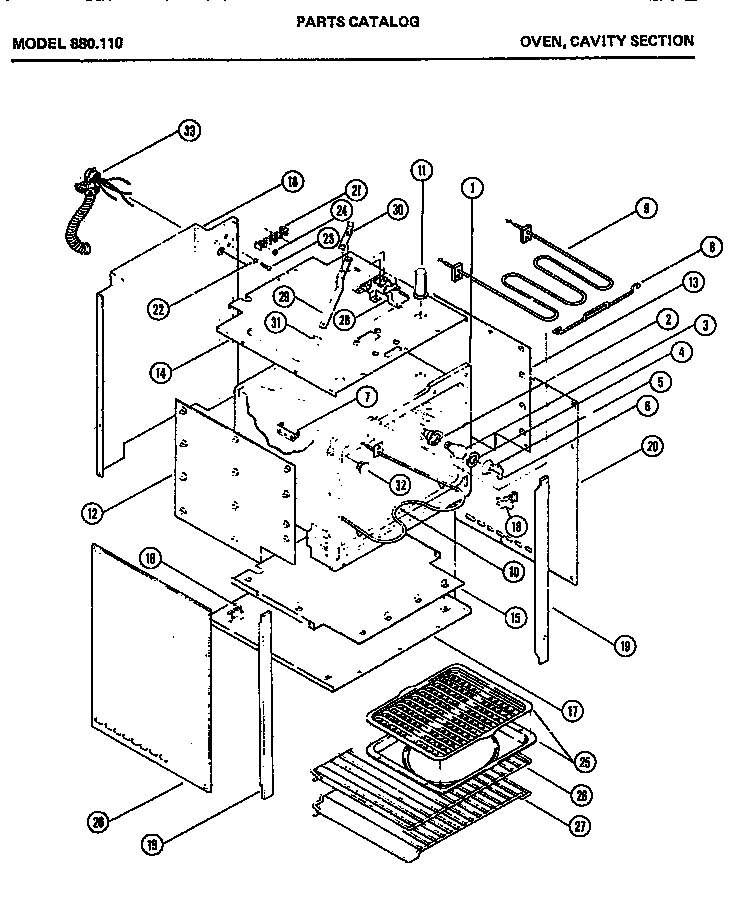

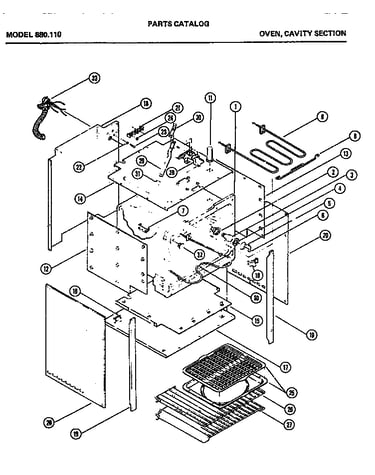

Oven cavity diagram

Screw 10-24 x 1/4 4d hd

Part #M1D717

The manufacturer no longer makes this part, and there's no substitute part

Screw, Bracket Mtg. M1D709
Screw, bracket mtg.

Part #M1D709

The manufacturer no longer makes this part, and there's no substitute part

Knob, Door Latch Handle M6D196
#31A

Oven cavity diagram

Knob, door latch handle

Part #M6D196

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Housing M52D145
#27A

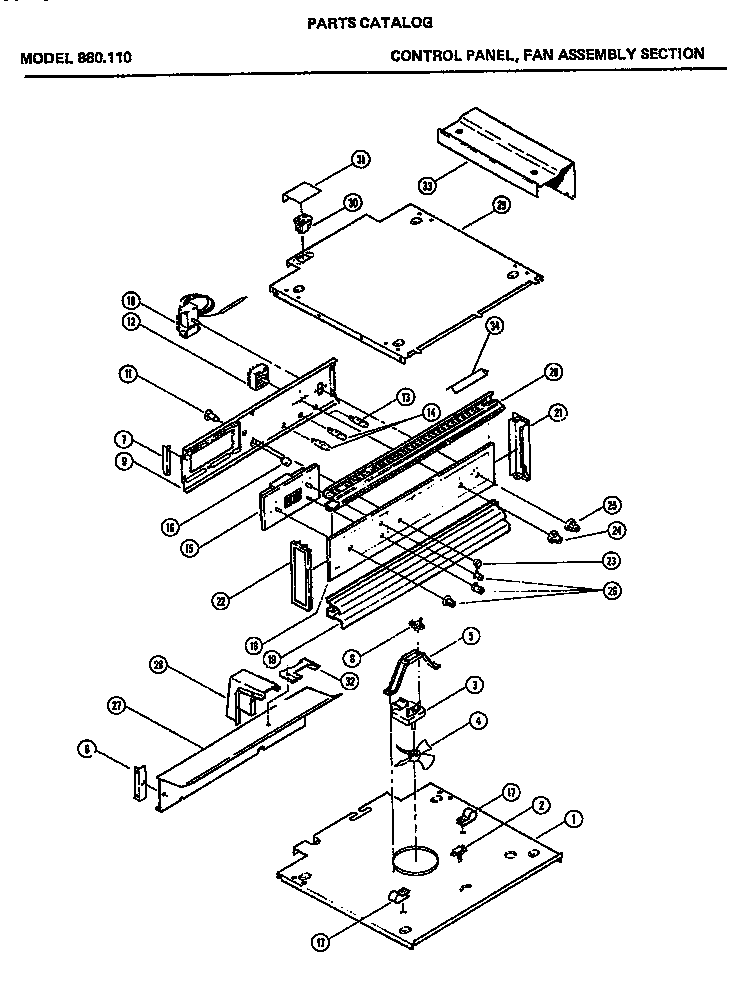

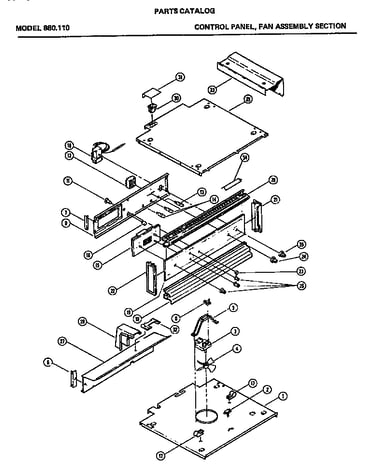

Control panel diagram

Control panel housing

Part #M52D145

The manufacturer no longer makes this part, and there's no substitute part

Bumper M2D346
#16

Control panel diagram

Bumper

Part #M2D346

The manufacturer no longer makes this part, and there's no substitute part

Limit Switch M14D151
#2A

Control panel diagram

Limit switch

Part #M14D151

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Air Wash M63D17

#NI

All parts diagram

Insulation, air wash

Part #M63D17

The manufacturer no longer makes this part, and there's no substitute part

Base Extrusion, Control Panel M52D144
#19A

Control panel diagram

Base extrusion, control panel

Part #M52D144

The manufacturer no longer makes this part, and there's no substitute part

Channel Assembly, Hinge (includes Ref. Nos. 21 & 22) M52D146
#22A

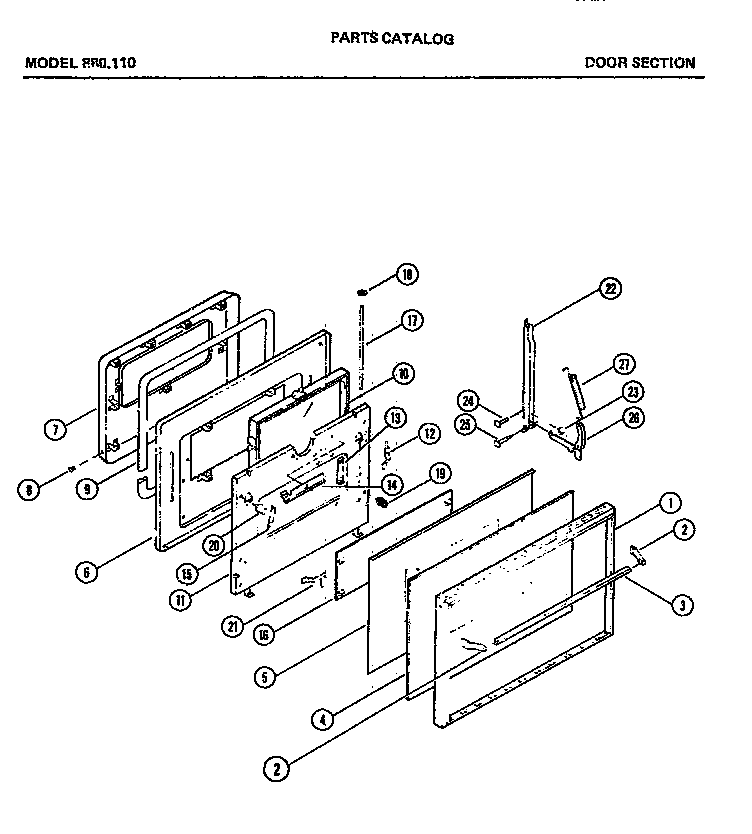

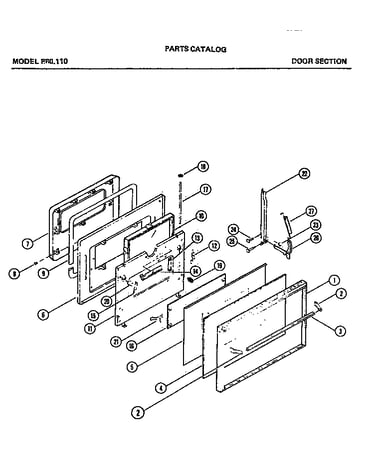

Door section diagram

Channel assembly, hinge (includes ref. nos. 21 & 22)

Part #M52D146

The manufacturer no longer makes this part, and there's no substitute part

Top, Control Panel M52D151
#20A

Control panel diagram

Top, control panel

Part #M52D151

The manufacturer no longer makes this part, and there's no substitute part
