Porter Cable
Rotary Tool

Model # 7499 Official Porter Cable cut-out tool

Here are the diagrams and repair parts for Official Porter Cable 7499 cut-out tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |

Porter Cable Field 882902
#2

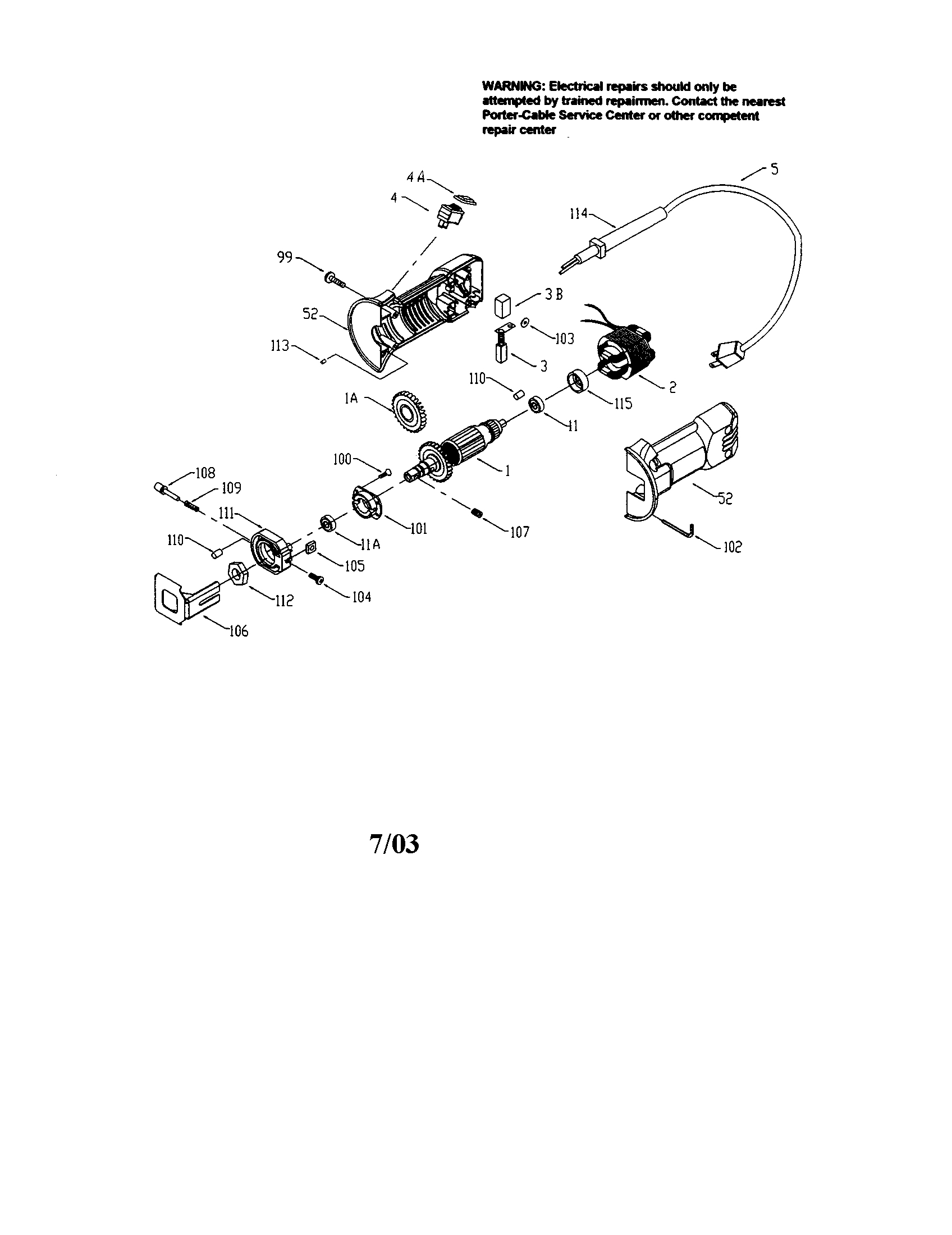

Cutout tool diagram

Porter cable field

Part #882902

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Power Tool Bearing 855284
#11

Cutout tool diagram

Craftsman power tool bearing

Part #855284

The manufacturer no longer makes this part, and there's no substitute part

Screw 882473
#104

Cutout tool diagram

Screw

Part #882473

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Armature 882903
#1

Cutout tool diagram

Porter cable armature

Part #882903

The manufacturer no longer makes this part, and there's no substitute part

Rubber Plug 878053
#113

Cutout tool diagram

Rubber plug

Part #878053

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 872761
#107

Cutout tool diagram

Set screw

Part #872761

The manufacturer no longer makes this part, and there's no substitute part

Router Spindle Lock Spring 698709
#109

Cutout tool diagram

Router spindle lock spring

Part #698709

The manufacturer no longer makes this part, and there's no substitute part

Sander On/off Switch 887453
#4

Cutout tool diagram

Sander on/off switch

Part #887453

The manufacturer no longer makes this part, and there's no substitute part

Nut-square 841983
#105

Cutout tool diagram

Nut-square

Part #841983

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Housing Set, Incl: Ref. 115 884187
#52

Cutout tool diagram

Porter cable housing set, incl: ref. 115

Part #884187

The manufacturer no longer makes this part, and there's no substitute part
