Radial Arm Saw

Model # 113197710 Official Craftsman radial saw

Here are the diagrams and repair parts for Official Craftsman 113197710 radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

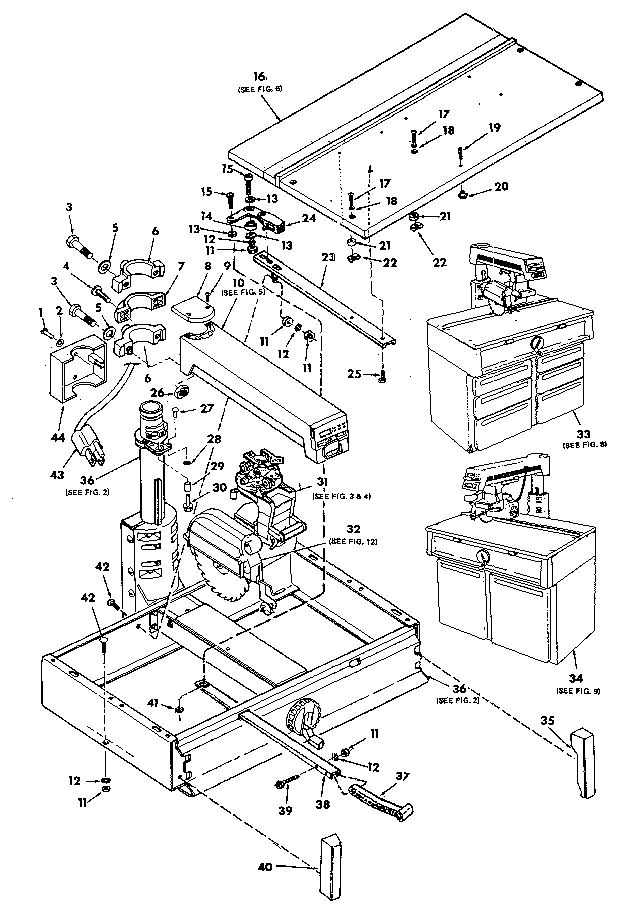

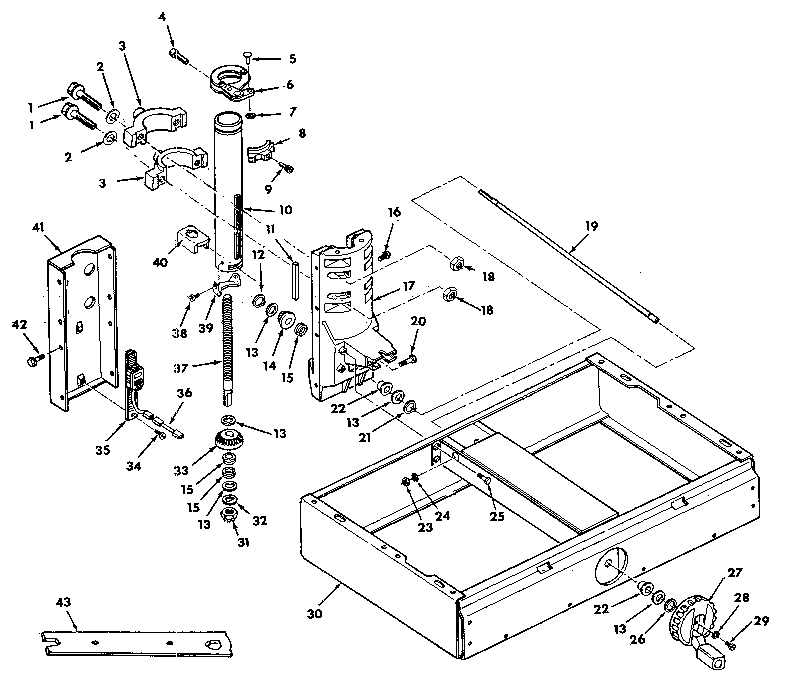

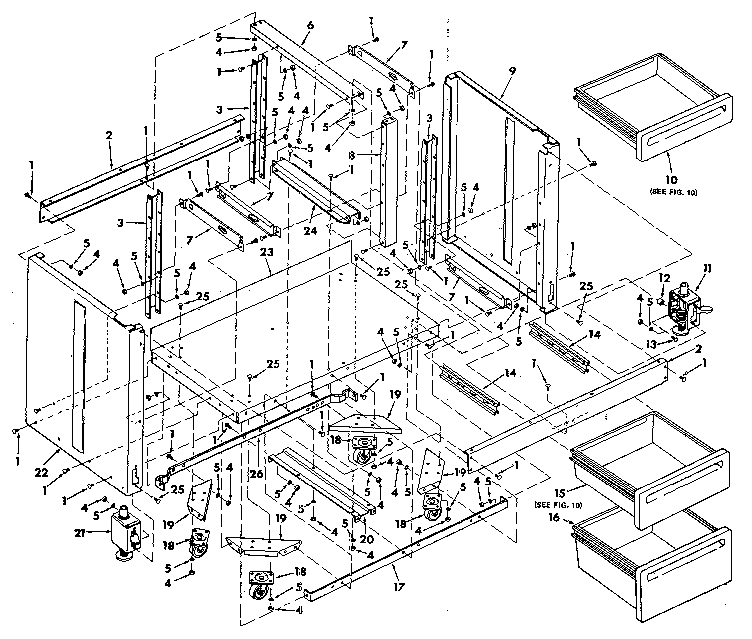

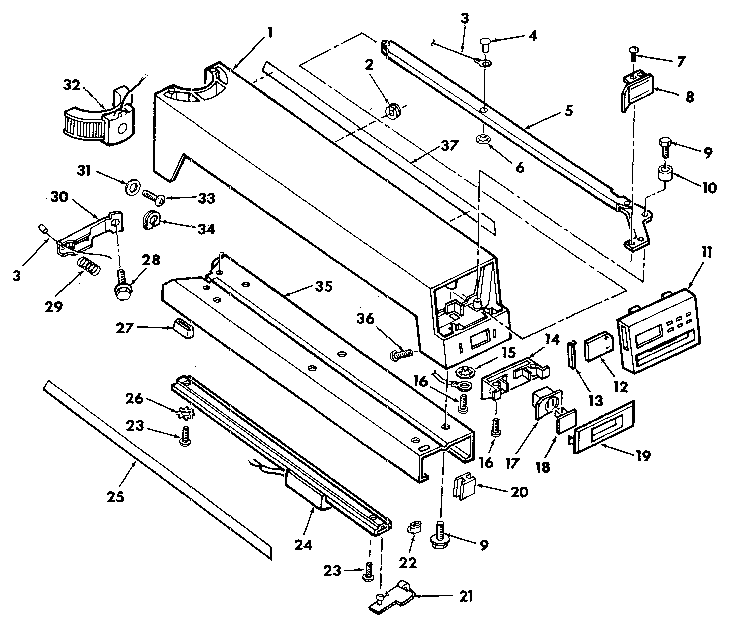

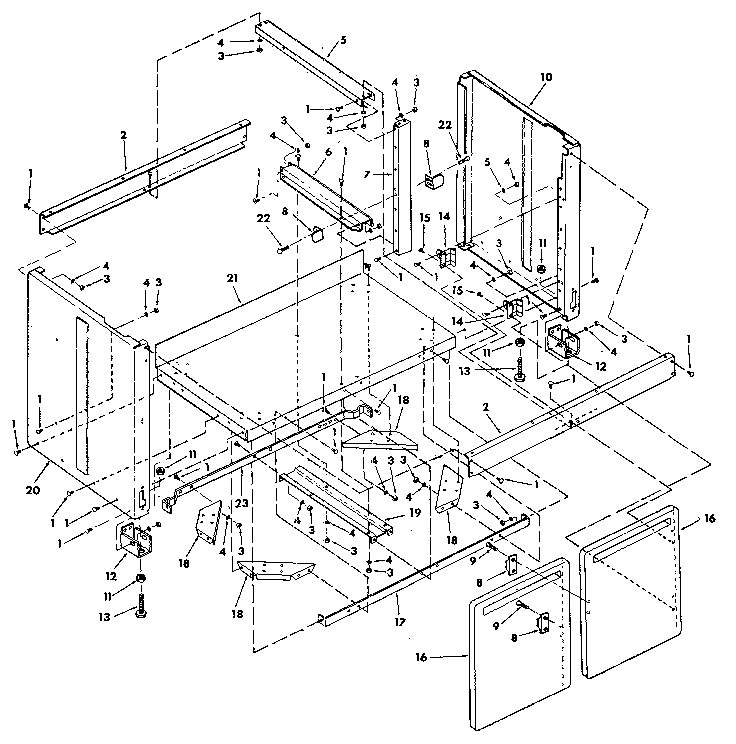

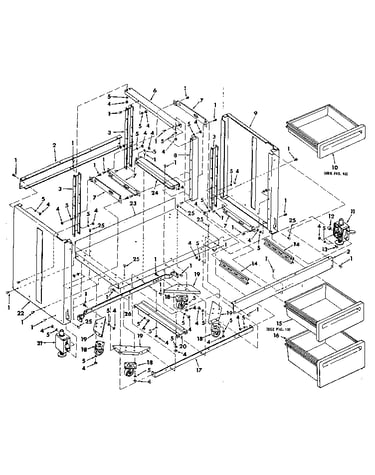

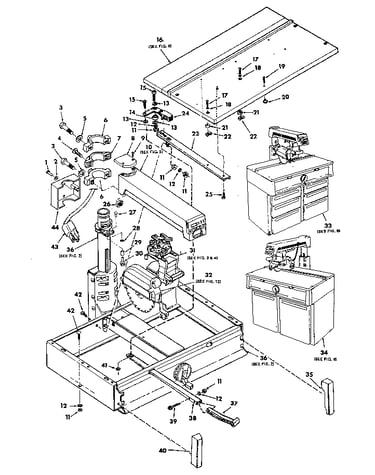

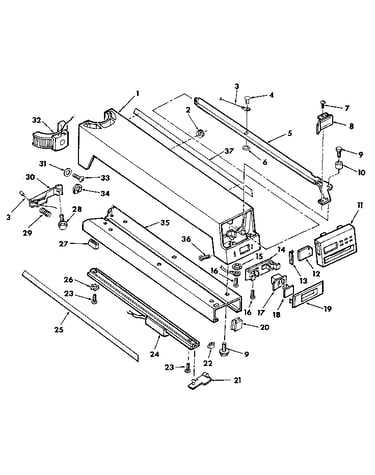

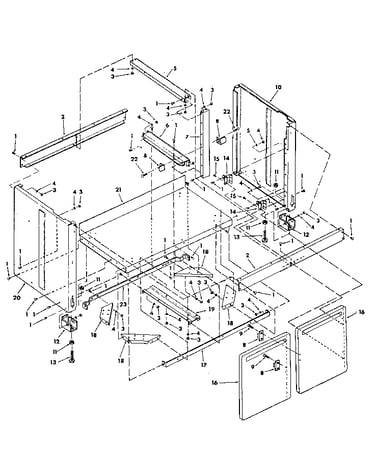

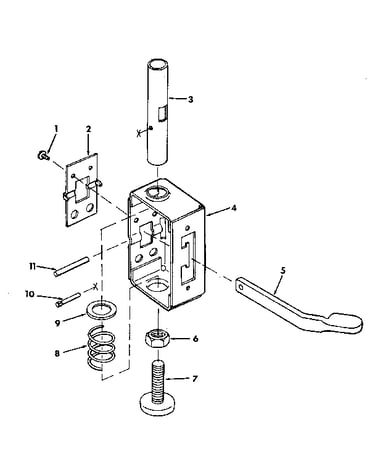

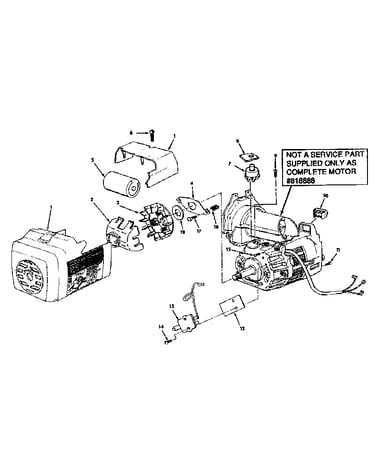

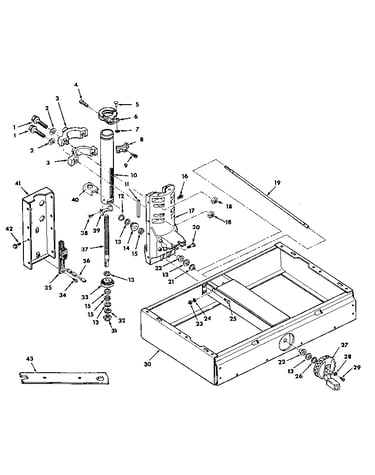

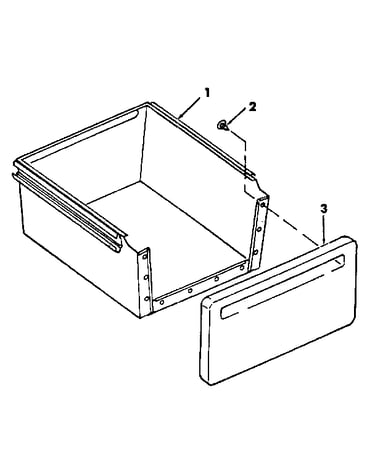

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 295 parts  |
Bolt STD533107
#23

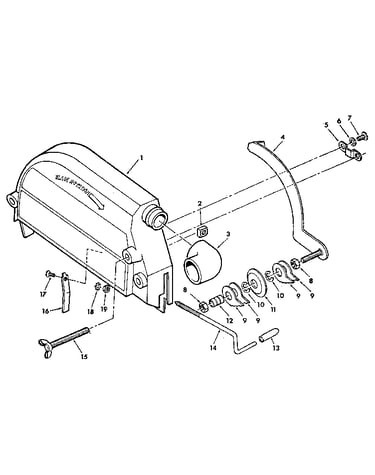

Guard diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 805839-1
#25

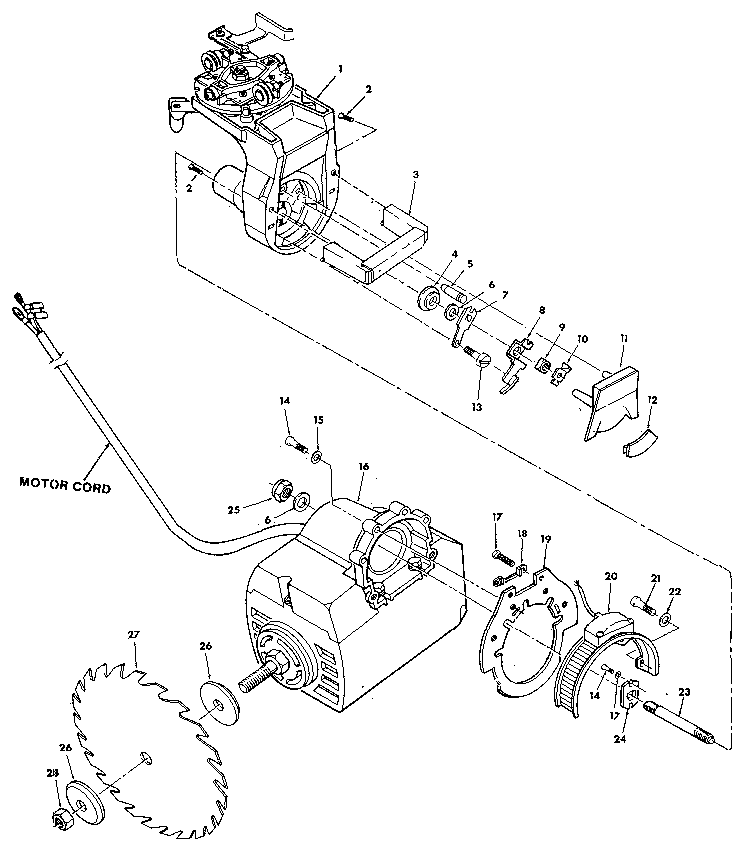

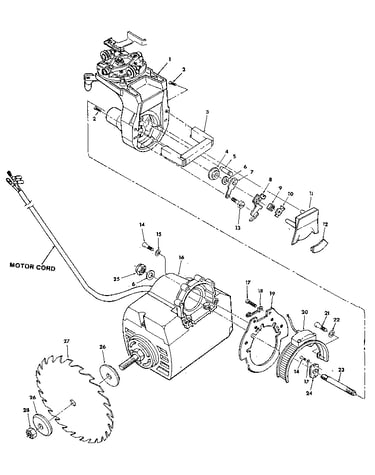

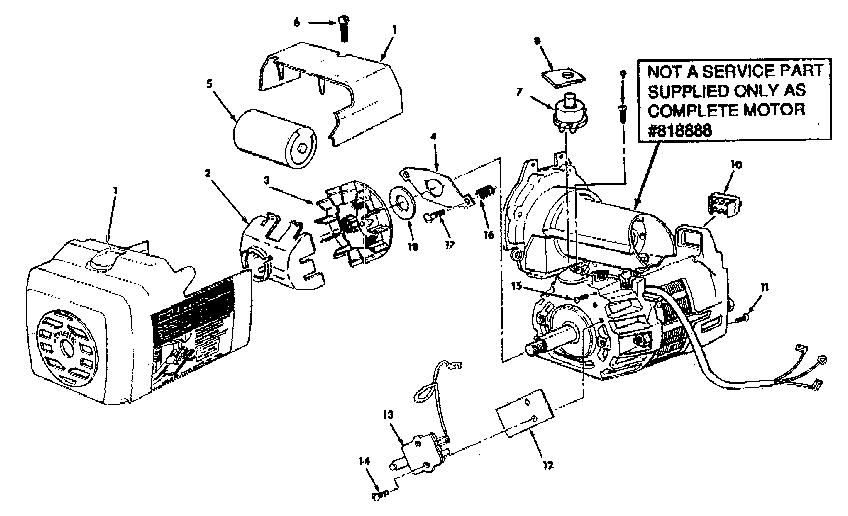

Figure 3 - yoke and motor assembly diagram

Lock nut

Part #805839-1

The manufacturer no longer makes this part, and there's no substitute part

Washer 805548-10
#15

Guard kit 509398/99 table/ handle diagram

Washer

Part #805548-10

The manufacturer no longer makes this part, and there's no substitute part

Table, Front 820568
#10A

Guard kit 509398/99 table/ handle diagram

Table, front

Part #820568

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table 820572
#10

Guard kit 509398/99 table/ handle diagram

Radial arm saw table

Part #820572

The manufacturer no longer makes this part, and there's no substitute part

Screw 824159
#17

Guard diagram

Screw

Part #824159

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 60413
#31

Guard diagram

Push nut

Part #60413

The manufacturer no longer makes this part, and there's no substitute part

Nut Sq 815813
#9

Figure 3 - yoke and motor assembly diagram

Nut sq

Part #815813

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Spacer 62520
#14

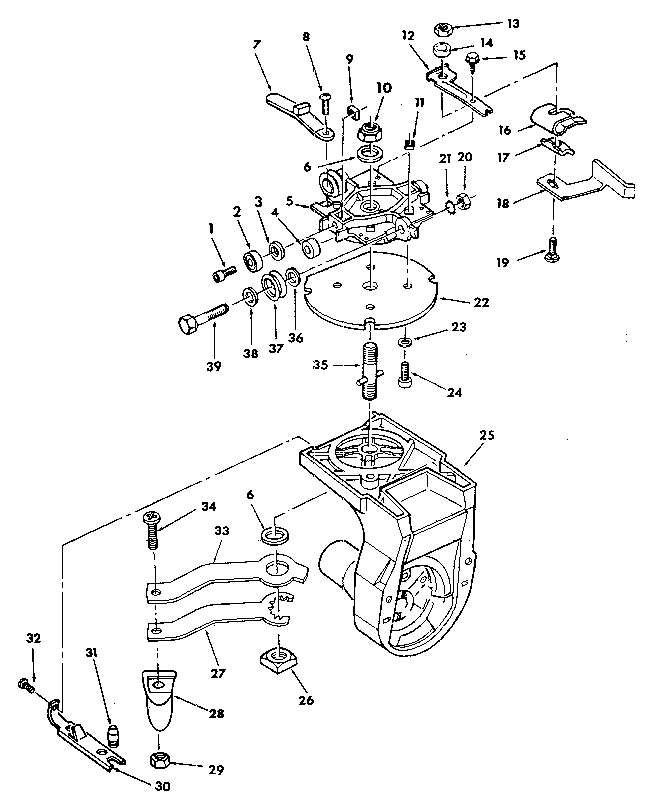

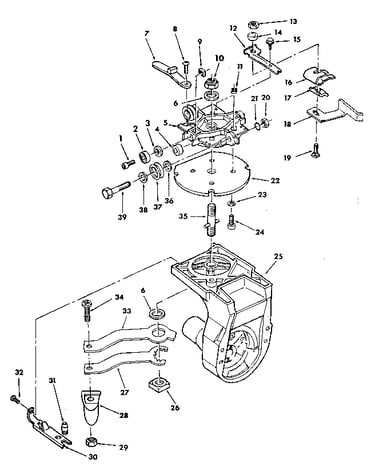

Figure 4 - yoke assembly diagram

Table saw spacer

Part #62520

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Front 818196-1
#4

Figure 6 - table assembly diagram

Radial arm saw table, front

Part #818196-1

The manufacturer no longer makes this part, and there's no substitute part
