Model # 502474170 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502474170 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

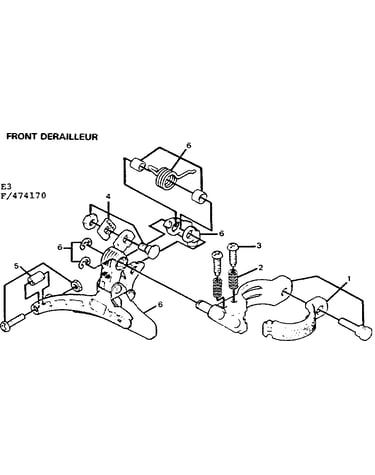

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Frt Cbl Csng 36199
#32A

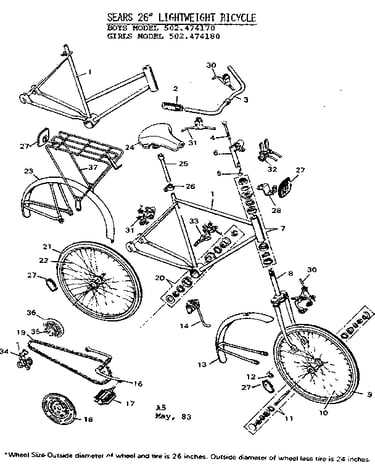

Unit parts diagram

Frt cbl csng

Part #36199

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#1

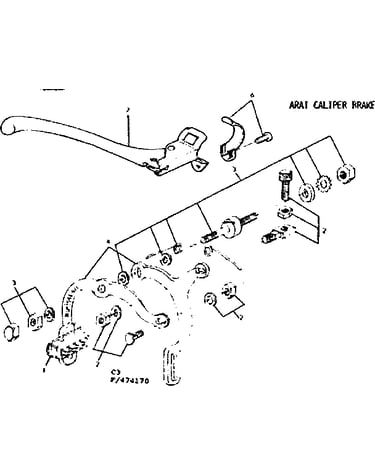

Arai claiper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Rr Cbl Csng 36201
#32B

Unit parts diagram

Rr cbl csng

Part #36201

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518
#11

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302335
#14

Unit parts diagram

Kickstand

Part #302335

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Shifter Assembly 35282

#NI

All parts diagram

Shifter assembly

Part #35282

The manufacturer no longer makes this part, and there's no substitute part

Bracket 32575Z
#28

Unit parts diagram

Bracket

Part #32575Z

The manufacturer no longer makes this part, and there's no substitute part

Bolt 300516
#14

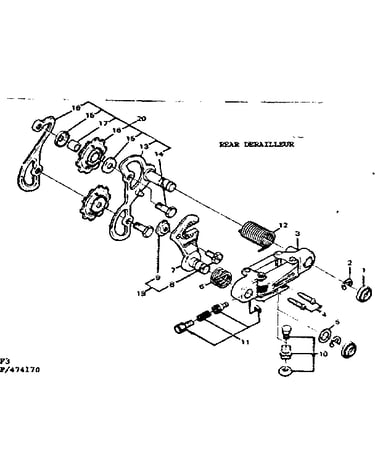

Rear derailleur diagram

Bolt

Part #300516

The manufacturer no longer makes this part, and there's no substitute part

Adpt Nut Asm 300568
Adpt nut asm

Part #300568

The manufacturer no longer makes this part, and there's no substitute part
