Model # YKGST307HW4 Official KitchenAid 30" designer-style slide-in range

Here are the diagrams and repair parts for Official KitchenAid YKGST307HW4 30" designer-style slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 274 parts  |
Oven Light Bulb 8935
#15

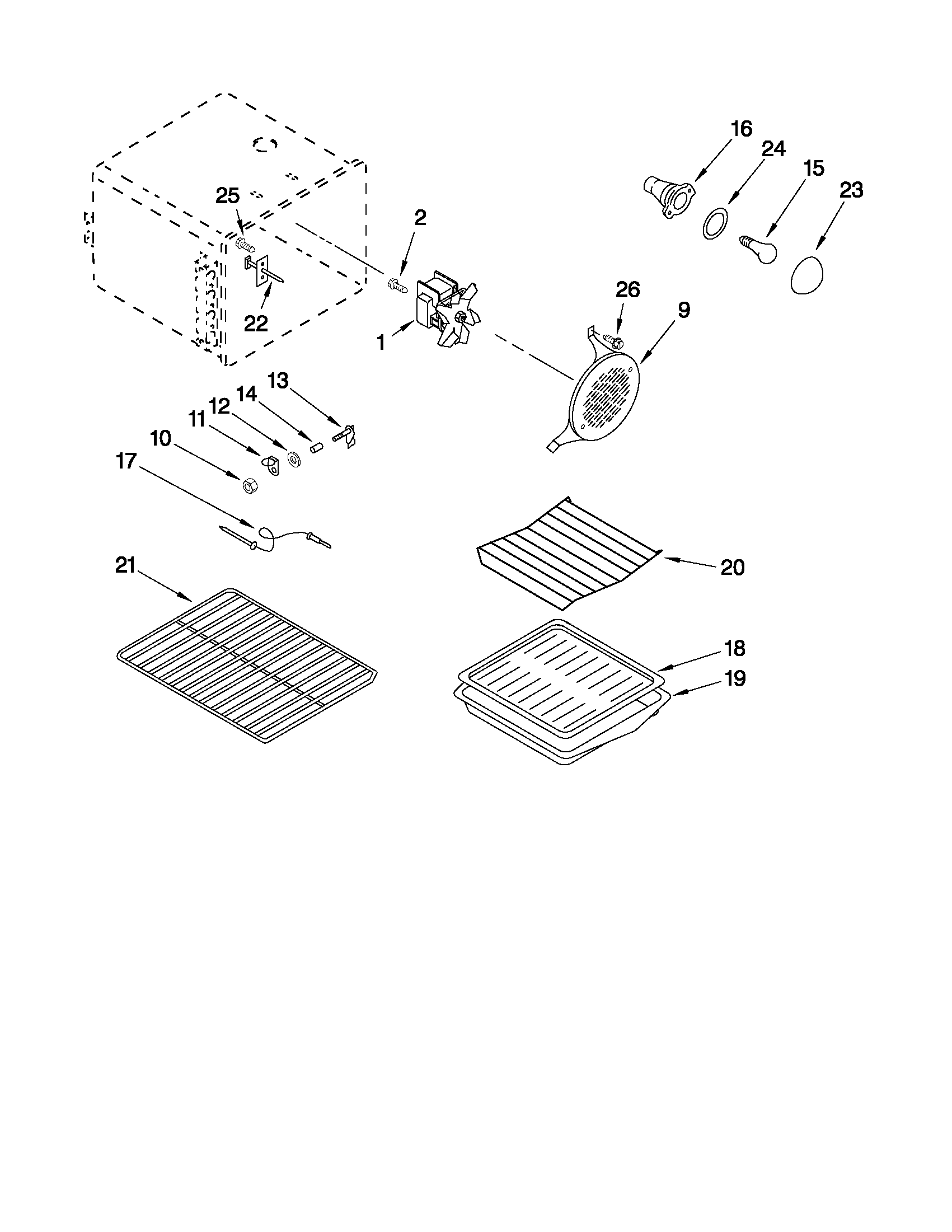

Oven parts diagram

Oven light bulb

Part #8935

Replaced by #40A15

?
Manufacturer substitution
This part replaces 8935. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Cleaner 9753543
#NI

Miscellaneous parts diagram

Cleaner

Part #9753543

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 9753543. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Appliance Touch-up Paint 72017
#NI

Miscellaneous parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Clip 90296
#27A

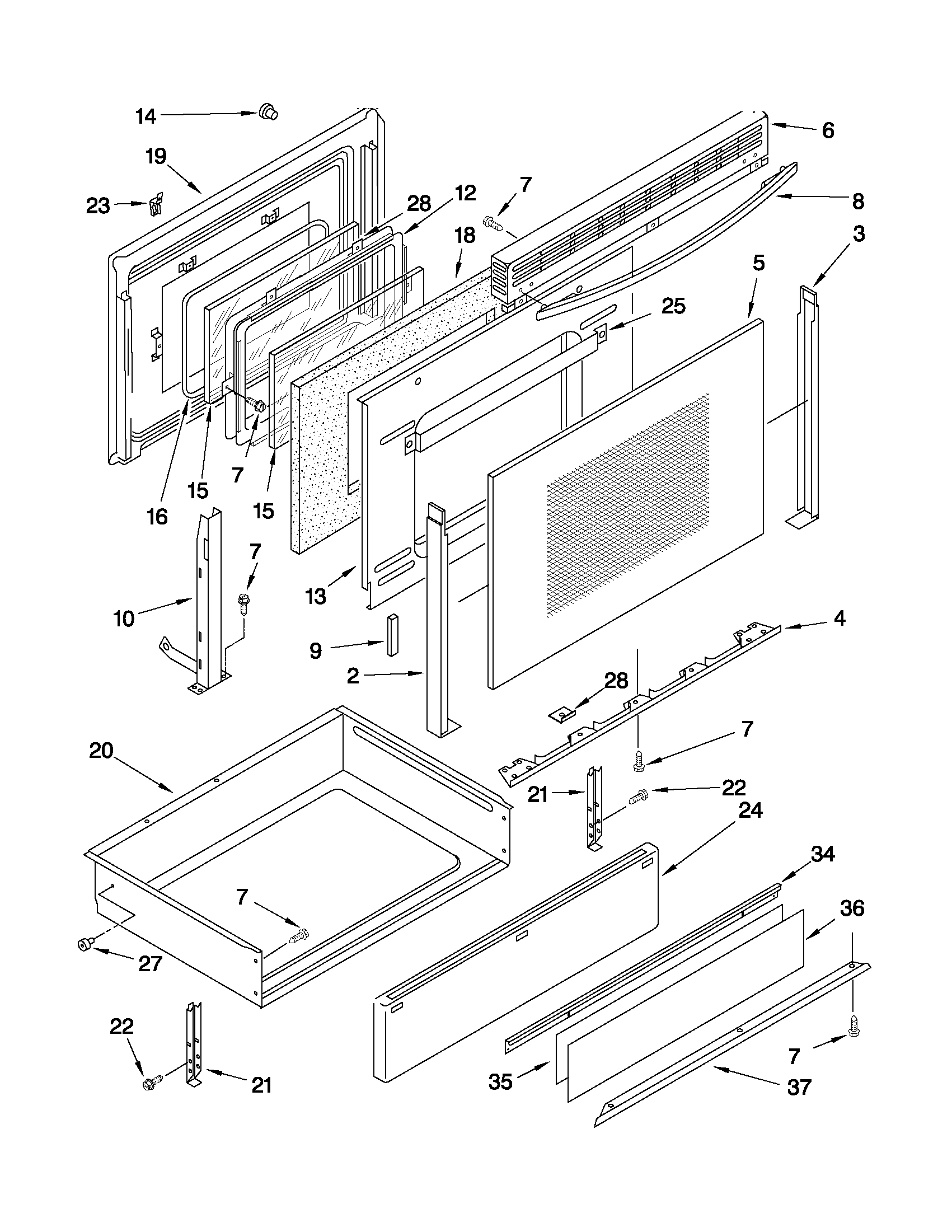

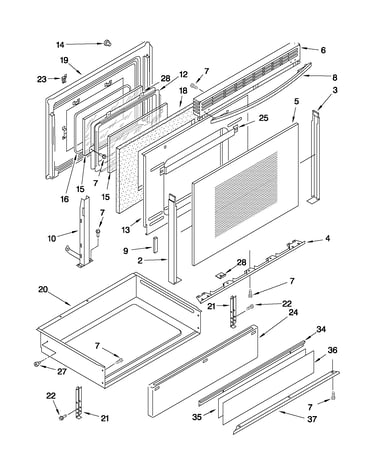

Door and drawer parts diagram

Clip

Part #90296

Replaced by #WP90296

?
Manufacturer substitution
This part replaces 90296. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Light Socket 9781050
#16

Oven parts diagram

Light socket

Part #9781050

Replaced by #W11594027

?
Manufacturer substitution
This part replaces 9781050. Substitute parts can look different from the original.
$56.53 |
10% OFF Phone Price : $62.53
In Stock
Range Oven Door Hinge 9782033
#10

Door and drawer parts diagram

Range oven door hinge

Part #9782033

Replaced by #WP9782033

?
Manufacturer substitution
This part replaces 9782033. Substitute parts can look different from the original.
$85.97 |
7% OFF Phone Price : $91.97
In Stock
Gaskt-lite 3184533
#24

Oven parts diagram

Gaskt-lite

Part #3184533

Replaced by #WP3184533

?
Manufacturer substitution
This part replaces 3184533. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Range Spark Module 8053421
#1

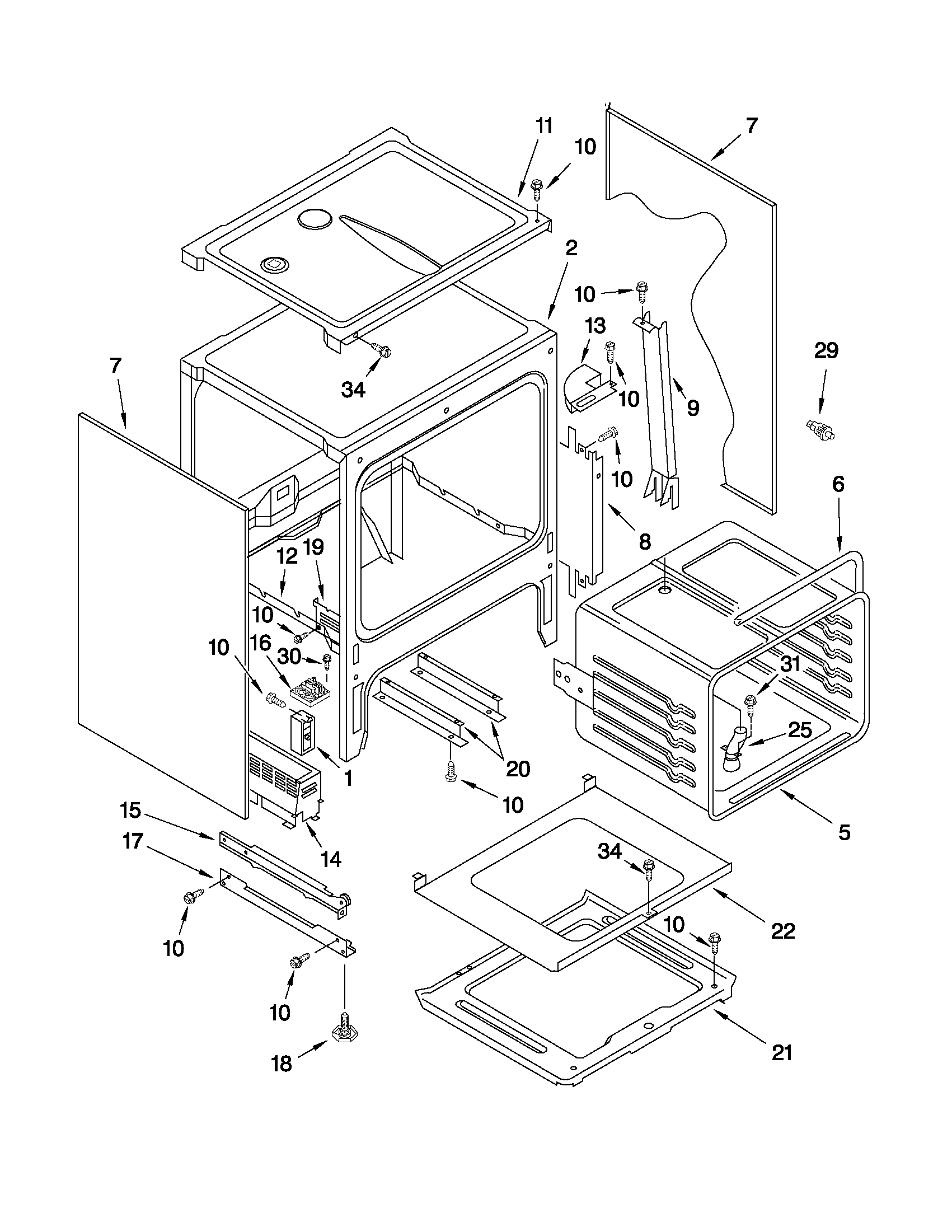

Oven chassis parts diagram

Range spark module

Part #8053421

The manufacturer no longer makes this part, and there's no substitute part

Touchup Ng 72110
#NI

Miscellaneous parts diagram

Touchup ng

Part #72110

Replaced by #72110

?
Manufacturer substitution
This part replaces 72110. Substitute parts can look different from the original.
This item is not returnable
$13.24 |
13% OFF Phone Price : $15.24
In Stock
Wire Tie 20082084
#NI

Miscellaneous parts diagram

Wire tie

Part #20082084

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 20082084. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
