Kenmore
Laundry Center

Model # 1106109101 Official Kenmore gas combination washer/dryer

Here are the diagrams and repair parts for Official Kenmore 1106109101 gas combination washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

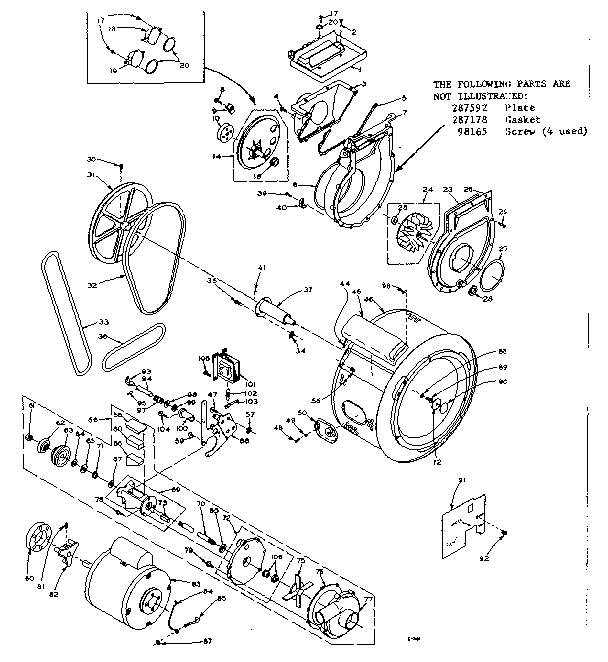

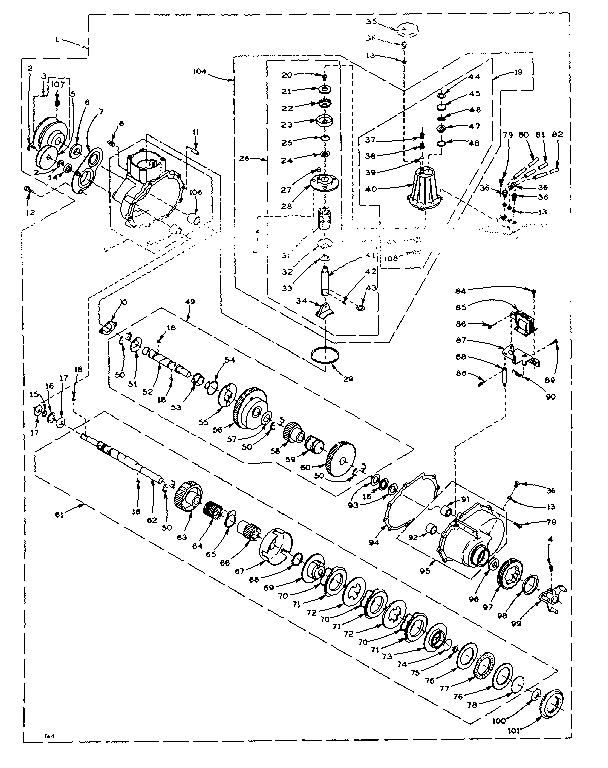

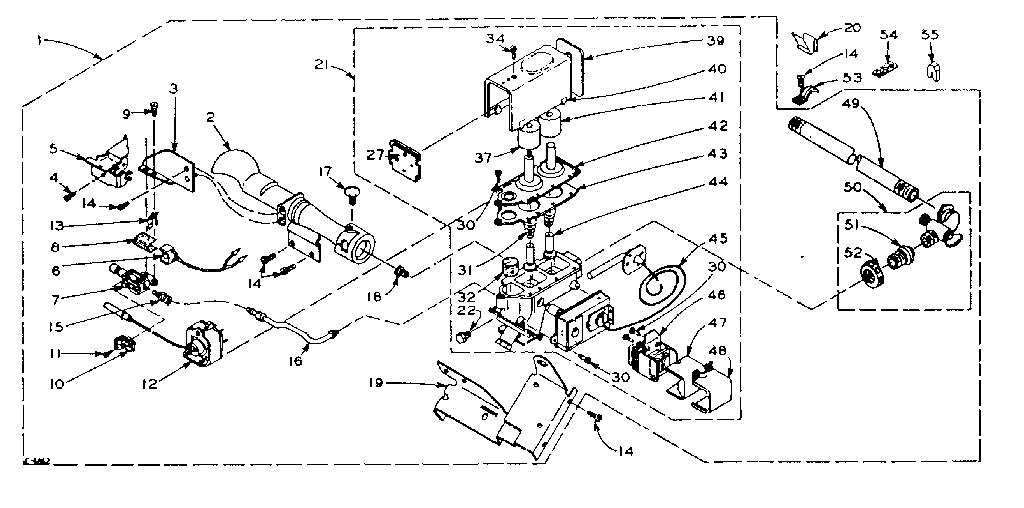

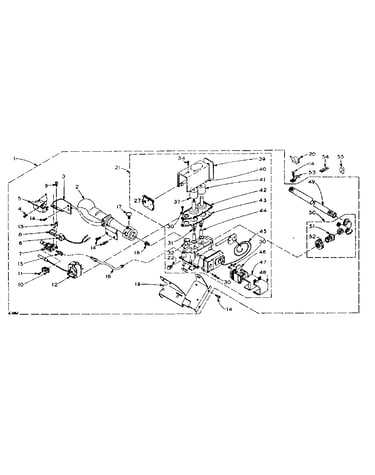

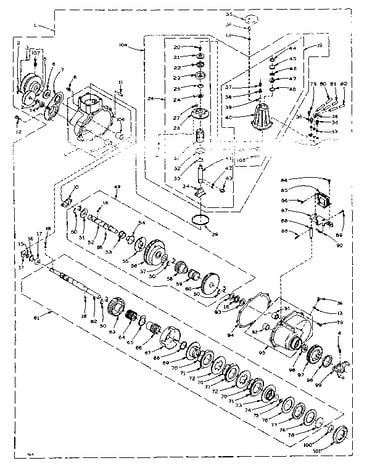

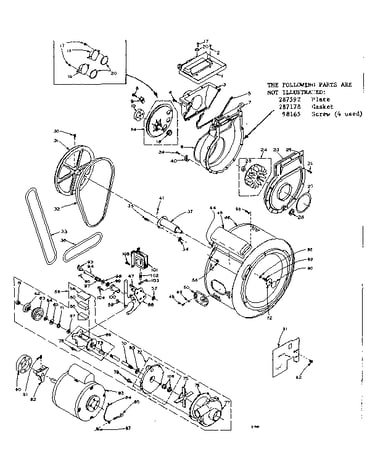

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 508 parts  |
Dispenser Tube 21503
#92

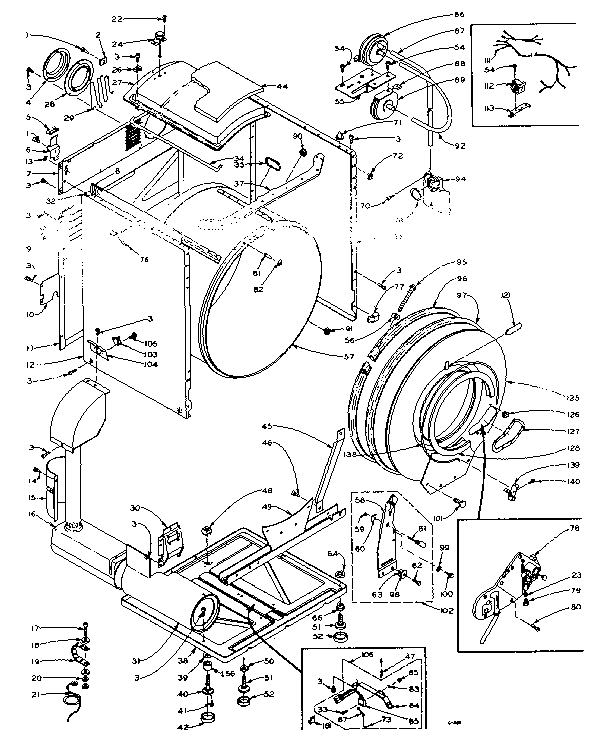

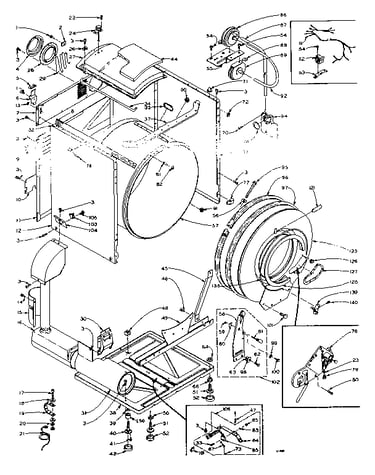

Base and tank assembly diagram

Dispenser tube

Part #21503

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 21503. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Hose 286091
#87

Base and tank assembly diagram

Hose

Part #286091

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 286091. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Dryer Top Panel Clip 18776
#48

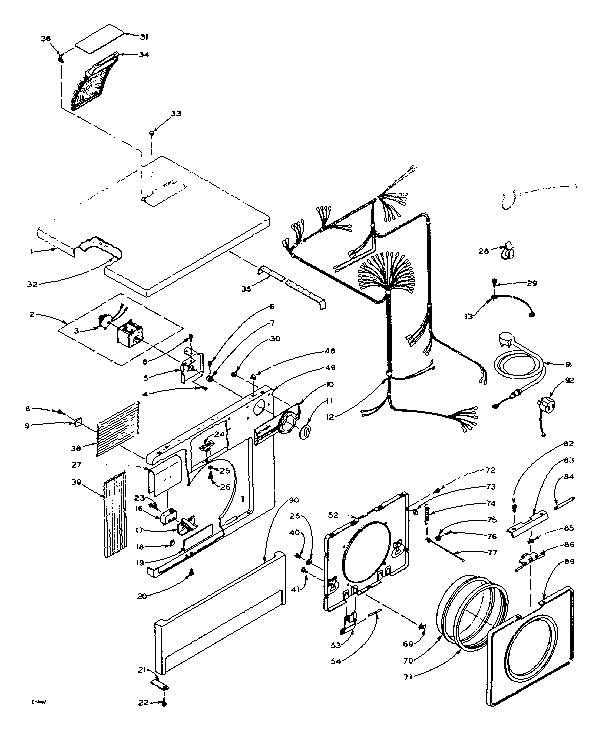

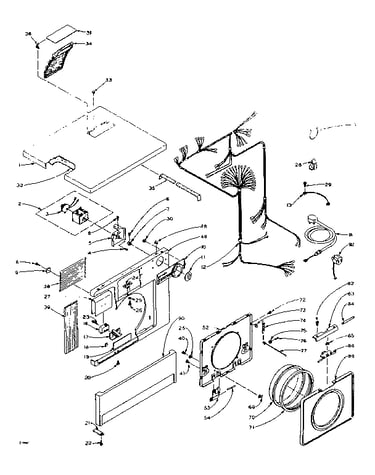

Top and front assembly diagram

Dryer top panel clip

Part #18776

Replaced by #WP18776

?
Manufacturer substitution
This part replaces 18776. Substitute parts can look different from the original.
This item is not returnable
$7.68 |
12% OFF Phone Price : $8.68
In Stock
Screen 10725
#11

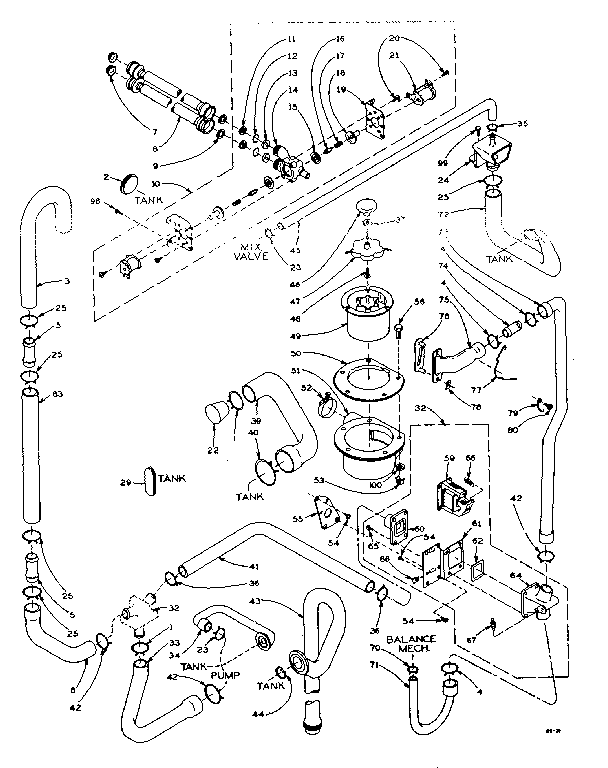

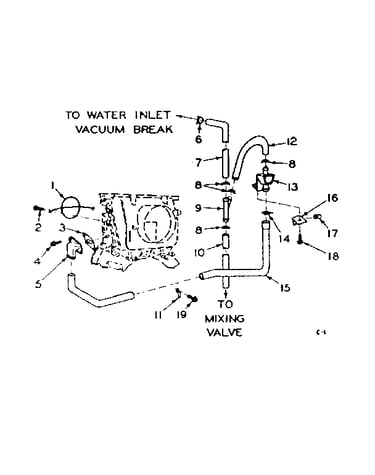

Water system diagram

Screen

Part #10725

Replaced by #WP96160

?
Manufacturer substitution
This part replaces 10725. Substitute parts can look different from the original.
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Filter Washer 21092
#7

Water system diagram

Filter washer

Part #21092

Replaced by #285452A

?
Manufacturer substitution
This part replaces 21092. Substitute parts can look different from the original.
This item is not returnable
$5.66 |
15% OFF Phone Price : $6.66
In Stock
Clip 237818
#77

Base and tank assembly diagram

Clip

Part #237818

Replaced by #279638

?
Manufacturer substitution
This part replaces 237818. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Cold/hot Water Fill Hose 76314
#8

Water system diagram

Washer cold/hot water fill hose

Part #76314

Replaced by #WP76314

?
Manufacturer substitution
This part replaces 76314. Substitute parts can look different from the original.
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Washing Machine Washer 16123
#9

Water system diagram

Washing machine washer

Part #16123

Replaced by #WP16123

?
Manufacturer substitution
This part replaces 16123. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 98614
#4

Top and front assembly diagram

Screw

Part #98614

Replaced by #WP356418

?
Manufacturer substitution
This part replaces 98614. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Wire Harness Retainer 16515
#14

Top and front assembly diagram

Washer wire harness retainer

Part #16515

This item is not returnable
$20.39 |
23% OFF Phone Price : $26.39
In Stock
