Upright Vacuum

Model # DC65 Official Dyson vacuum

Here are the diagrams and repair parts for Official Dyson DC65 vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part

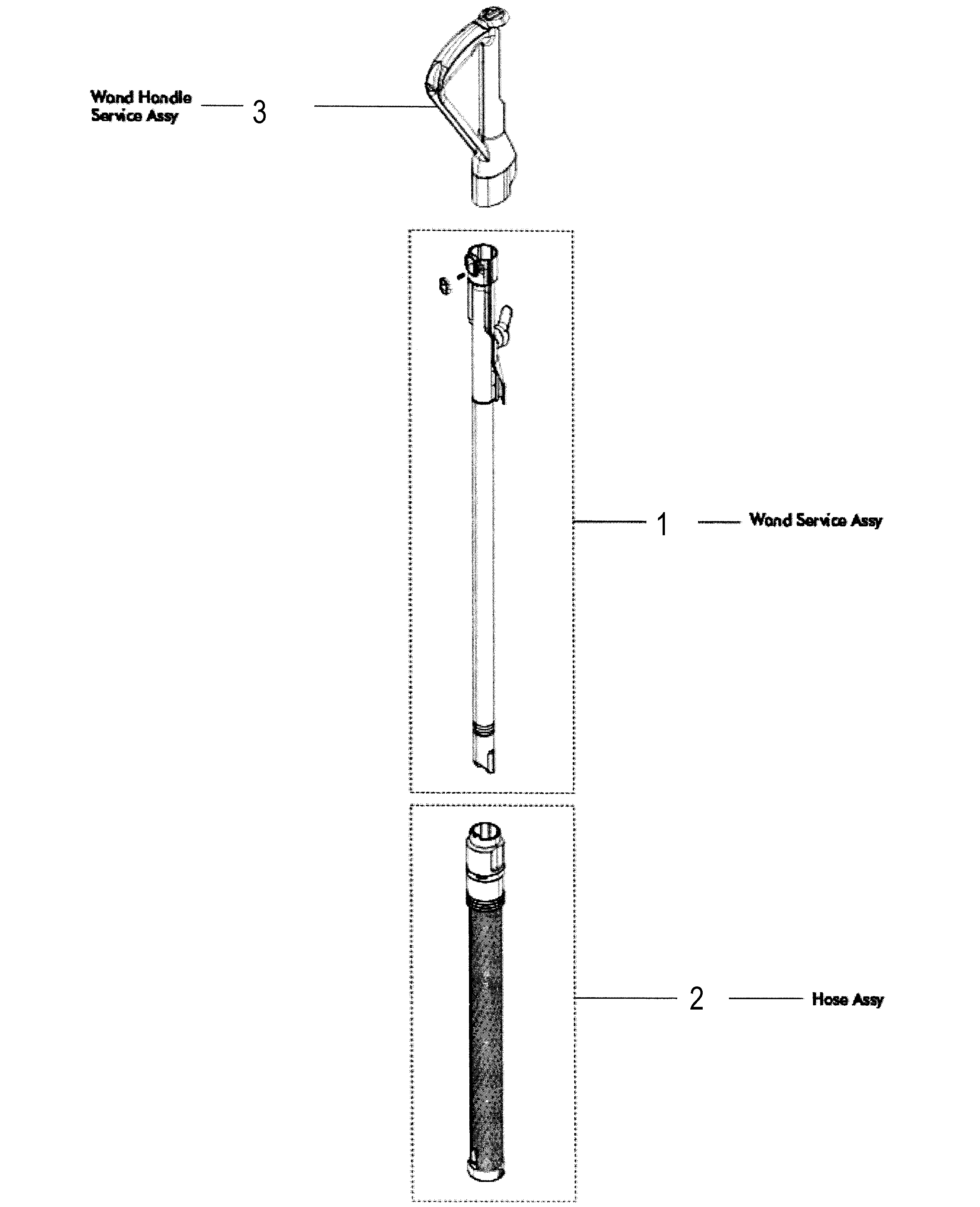

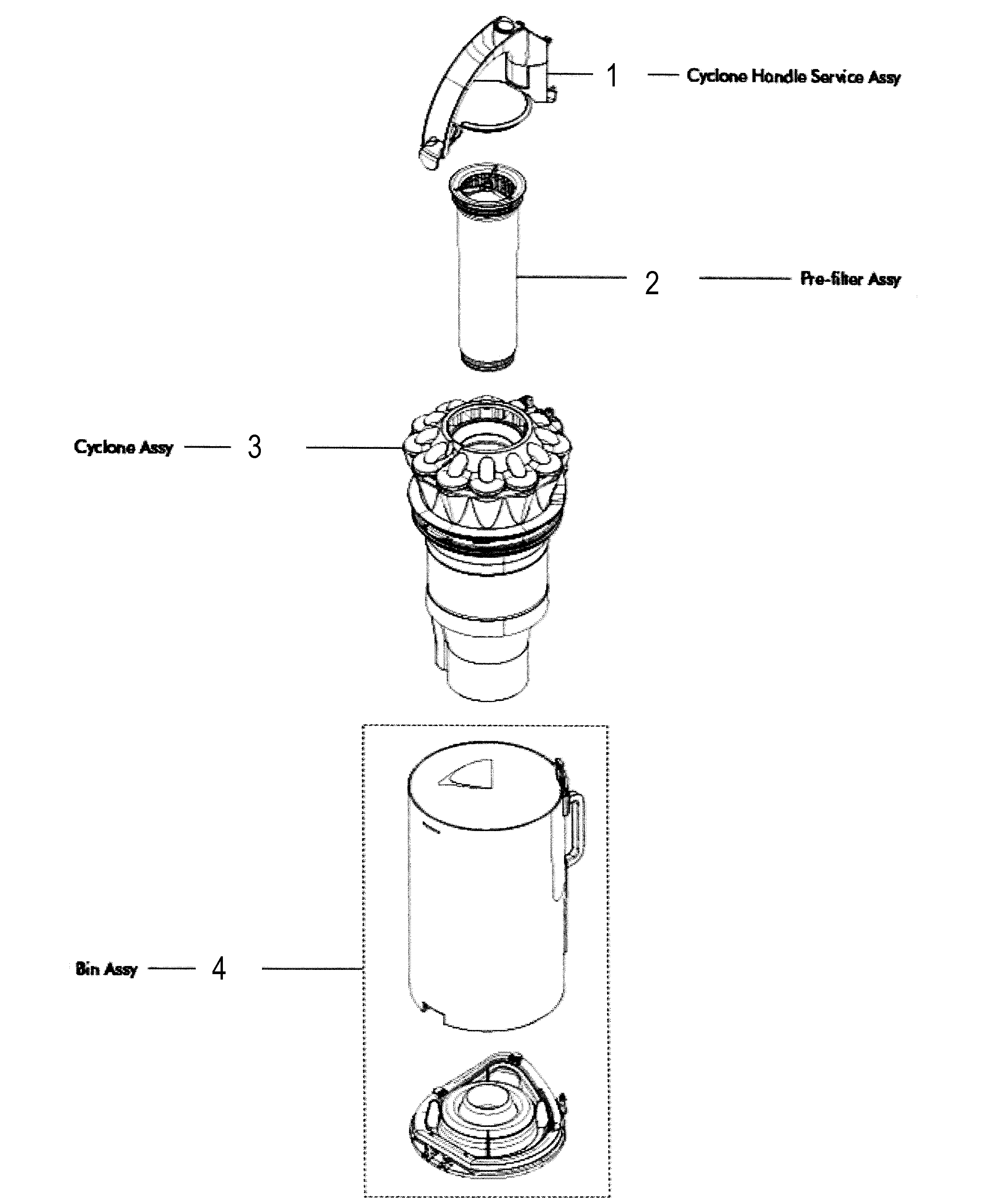

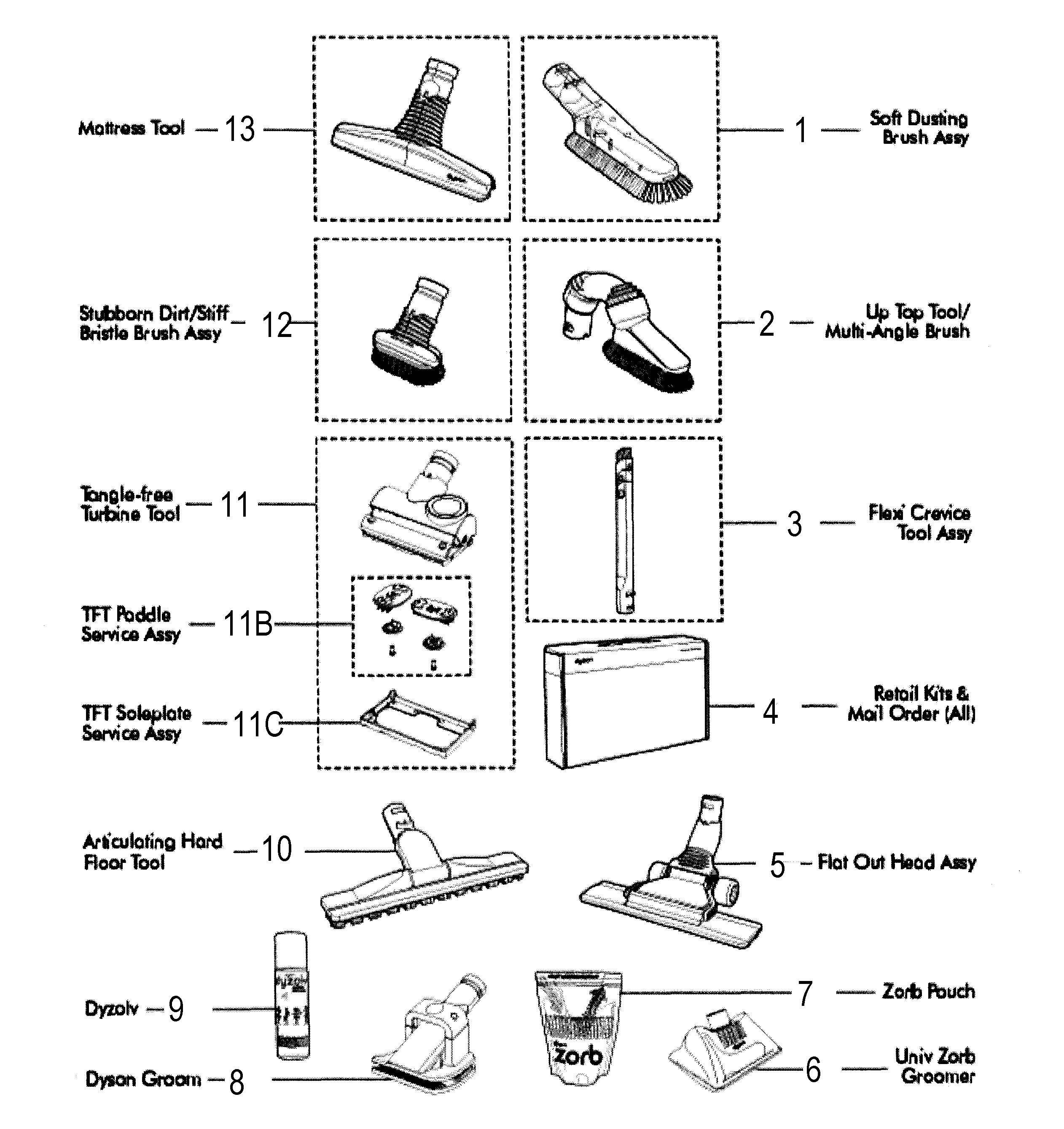

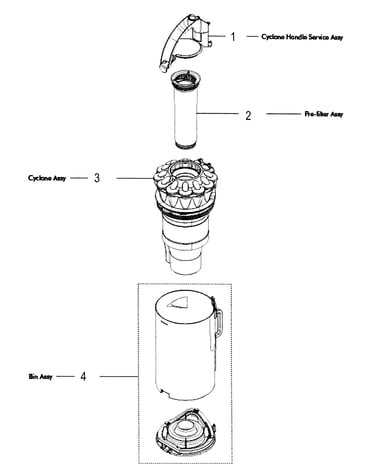

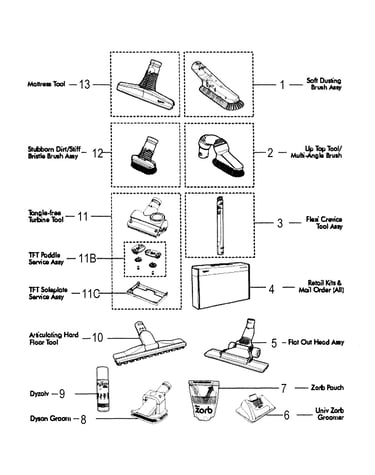

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDC65 Vacuum Cleaners

  • Vacuum Wheel 909747-02
    #10

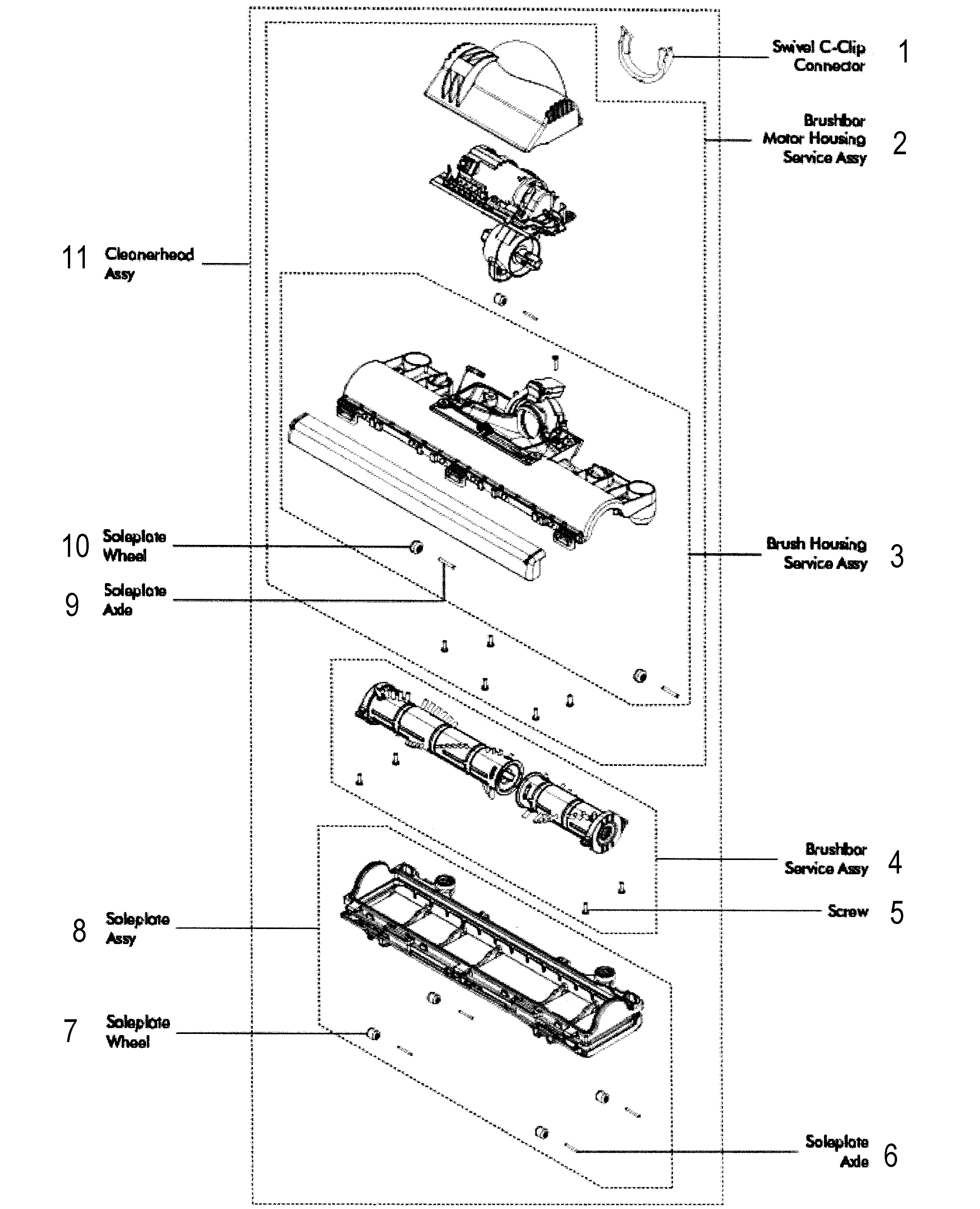

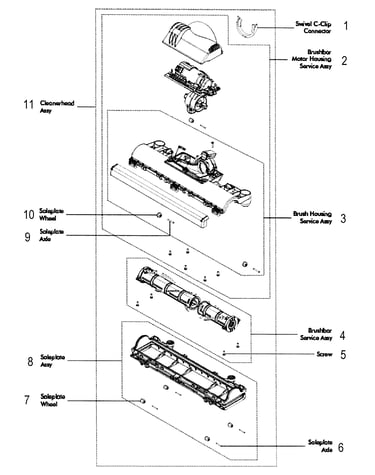

    Brush assy diagram

    Vacuum wheel

    Part #909747-02

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Roller Ball Case End Cap, Right 920703-02
    #1

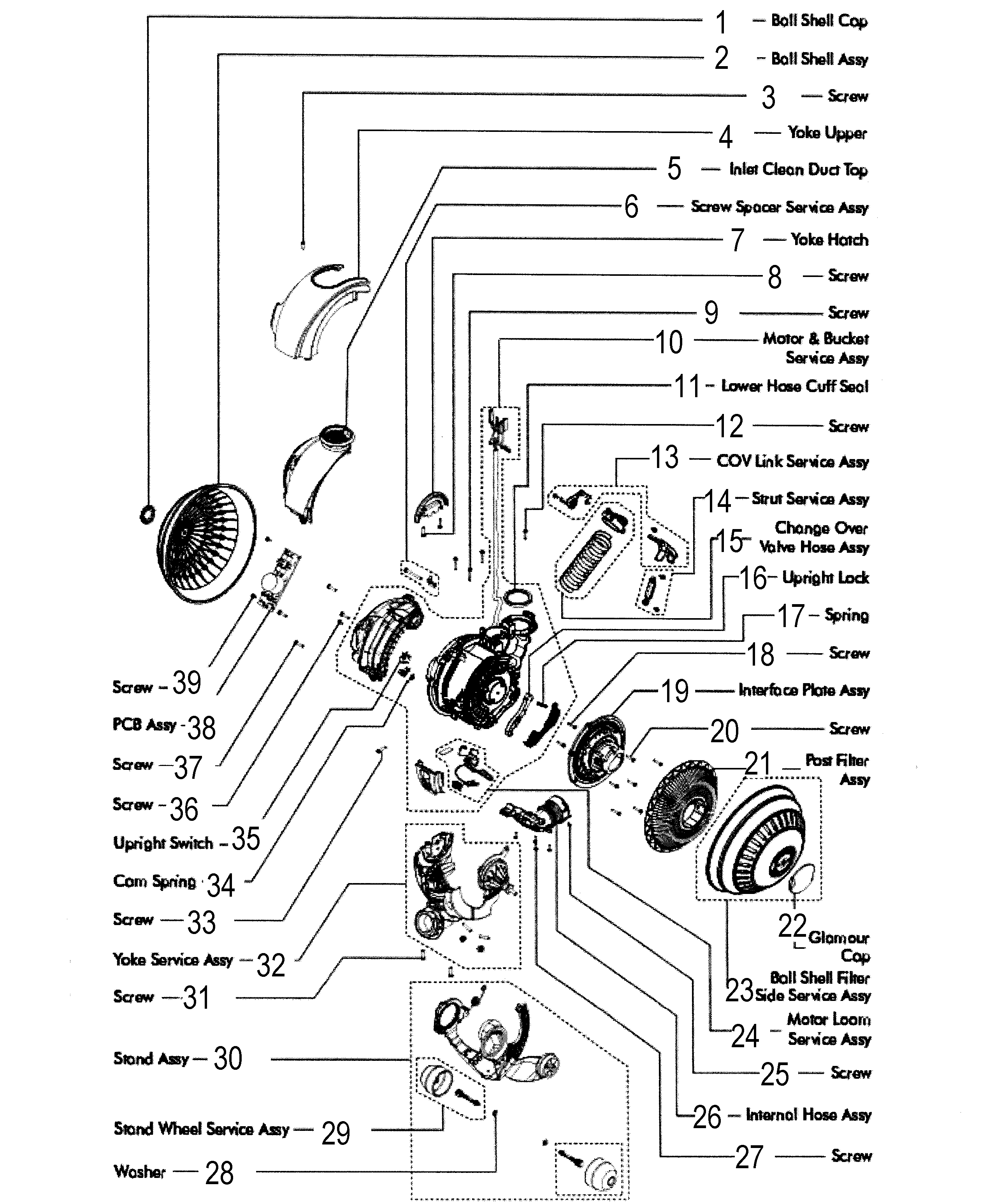

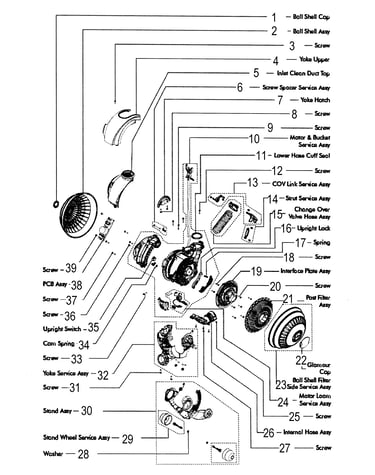

    Motor assy diagram

    Vacuum roller ball case end cap, right

    Part #920703-02

    The manufacturer no longer makes this part, and there's no substitute part

  • Reset Arm 920598-01
    #20

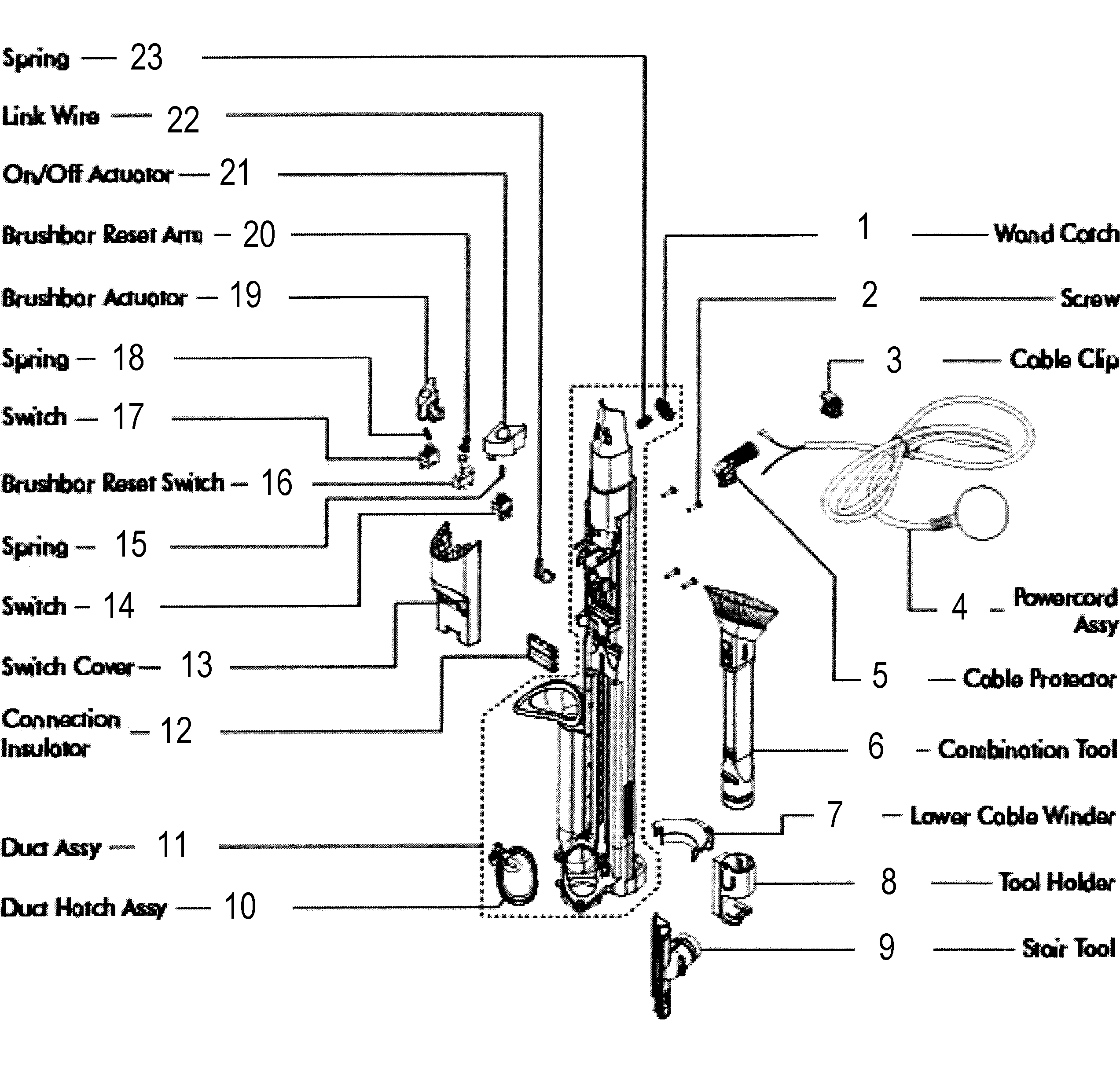

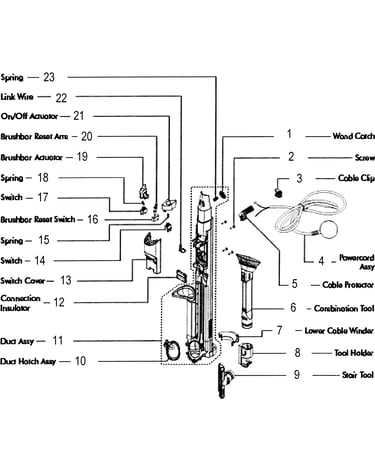

    Main assy diagram

    Reset arm

    Part #920598-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Screw 900200-06
    #2

    Main assy diagram

    Vacuum screw

    Part #900200-06

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Hose Assembly 922009-01
    #15

    Motor assy diagram

    Vacuum hose assembly

    Part #922009-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Roller Ball Case, Right 920772-03
    #2

    Motor assy diagram

    Vacuum roller ball case, right

    Part #920772-03

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Electronic Circuit Board 921030-01
    #38

    Motor assy diagram

    Vacuum electronic circuit board

    Part #921030-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Yoke Hatch 965239-01
    #7

    Motor assy diagram

    Vacuum yoke hatch

    Part #965239-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleplate 965920-01
    #8

    Brush assy diagram

    Soleplate

    Part #965920-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Wheel 924162-01
    #29

    Motor assy diagram

    Vacuum wheel

    Part #924162-01

    The manufacturer no longer makes this part, and there's no substitute part
