Model # 113298360 Official Craftsman 10" table saw

Here are the diagrams and repair parts for Official Craftsman 113298360 10" table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 183 parts  |

Table Saw Miter Gauge Locking Clamp Knob 62482
#7

Miter gauge and hold down clamp assembly 62776 diagram

Table saw miter gauge locking clamp knob

Part #62482

The manufacturer no longer makes this part, and there's no substitute part

Cam (black) 62940
#17

62952 fence assembly diagram

Cam (black)

Part #62940

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Self-threading Nut 60388
#18

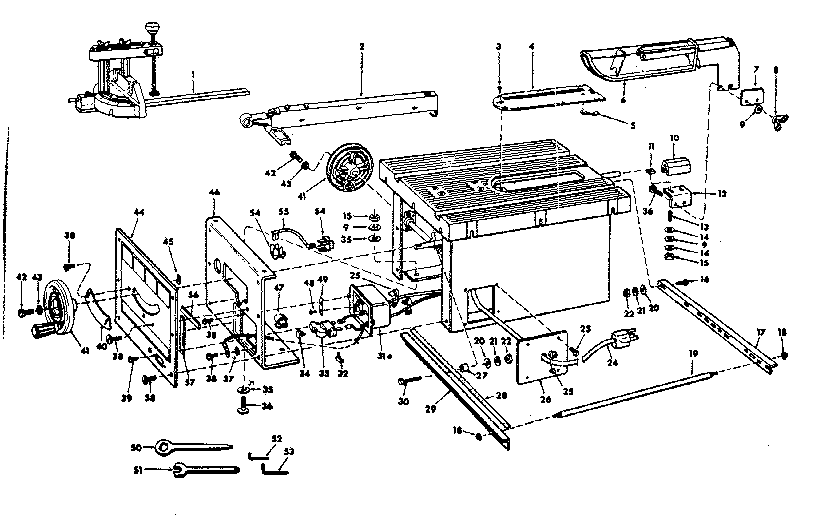

Unit housing diagram

Power tool self-threading nut

Part #60388

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Set Screw 60074
#13

Unit housing diagram

Radial arm saw set screw

Part #60074

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Table Insert Screw 447441
#3

Unit housing diagram

Table saw table insert screw

Part #447441

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Screw 436594
#43

Unit breakdown diagram

Pan head screw

Part #436594

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Blade Guard Clamp 62643
#7

Unit housing diagram

Table saw blade guard clamp

Part #62643

The manufacturer no longer makes this part, and there's no substitute part

Emerson Table Saw Arbor Nut 6362
#14

Unit breakdown diagram

Emerson table saw arbor nut

Part #6362

The manufacturer no longer makes this part, and there's no substitute part

Flat Head Screw 805297-1
#2

Unit breakdown diagram

Flat head screw

Part #805297-1

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Extension Wing 62590
#2

Table extension diagram

Table saw extension wing

Part #62590

The manufacturer no longer makes this part, and there's no substitute part
