Model # CHP412350 Official Climette/Keeprite/Zoneaire packaged terminal air conditioner

Here are the diagrams and repair parts for Official Climette/Keeprite/Zoneaire CHP412350 packaged terminal air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

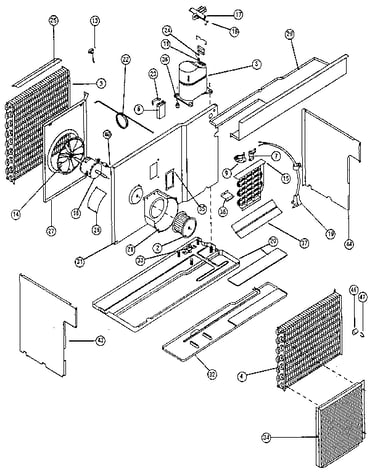

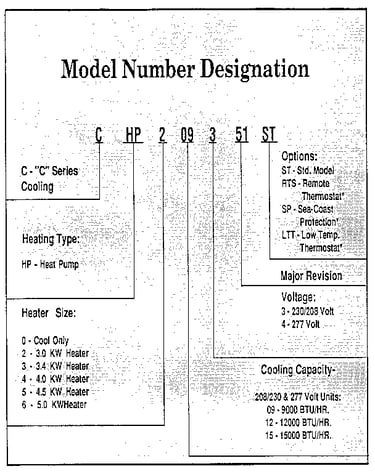

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Comp Cap 61903008

#6B

All parts diagram

Comp cap

Part #61903008

Replaced by #12908

?
Manufacturer substitution
This part replaces 61903008. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Limit Switch 54033003

#9

All parts diagram

Limit switch

Part #54033003

Replaced by #1320367

?
Manufacturer substitution
This part replaces 54033003. Substitute parts can look different from the original.
$25.82
In Stock
Valve 42804001

#17

All parts diagram

Valve

Part #42804001

Replaced by #V3-410080-770

?
Manufacturer substitution
This part replaces 42804001. Substitute parts can look different from the original.
$203.70
In Stock
Valve Coil 42893003

#18

All parts diagram

Valve coil

Part #42893003

Replaced by #1066549

?
Manufacturer substitution
This part replaces 42893003. Substitute parts can look different from the original.
$117.70
In Stock
Cap Tube 54057001

#22

All parts diagram

Cap tube

Part #54057001

The manufacturer no longer makes this part, and there's no substitute part

Indoor Coil 64044001

#3A

All parts diagram

Indoor coil

Part #64044001

The manufacturer no longer makes this part, and there's no substitute part

Control Rod 54125001

#34B

All parts diagram

Control rod

Part #54125001

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 40865002

#44A

All parts diagram

Sleeve

Part #40865002

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 64033001

#12

All parts diagram

Thermostat

Part #64033001

The manufacturer no longer makes this part, and there's no substitute part

Heater 74040003

#15A

All parts diagram

Heater

Part #74040003

The manufacturer no longer makes this part, and there's no substitute part
