Model # PC3/5 Official Canon photocopier

Here are the diagrams and repair parts for Official Canon PC3-5 photocopier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

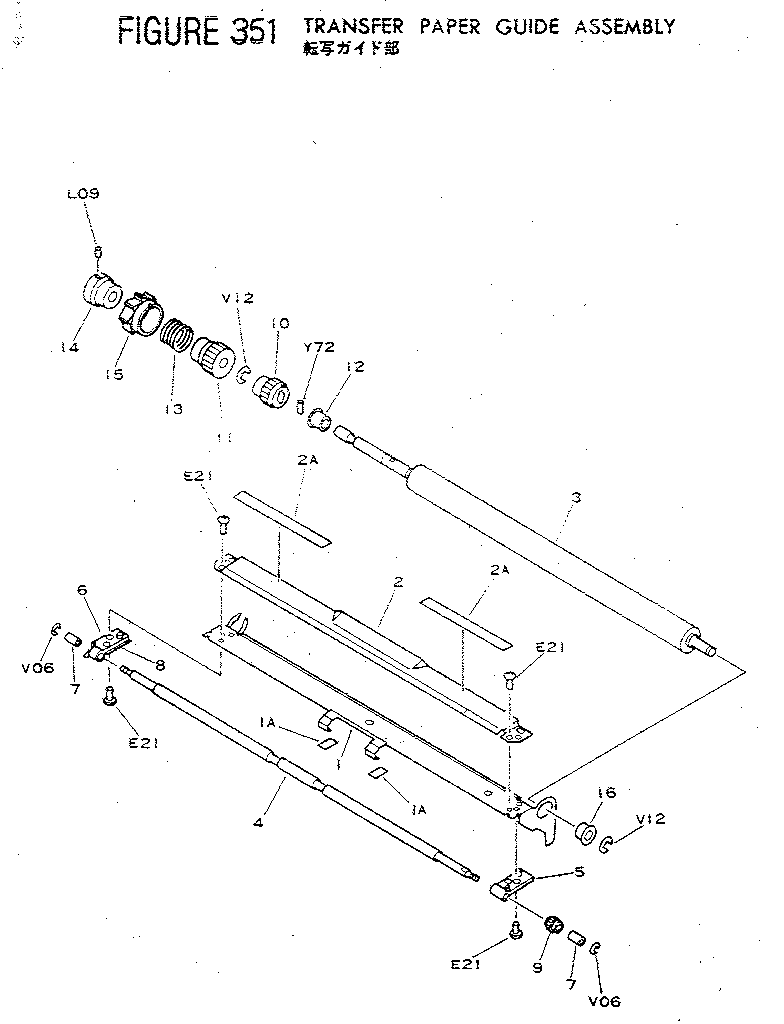

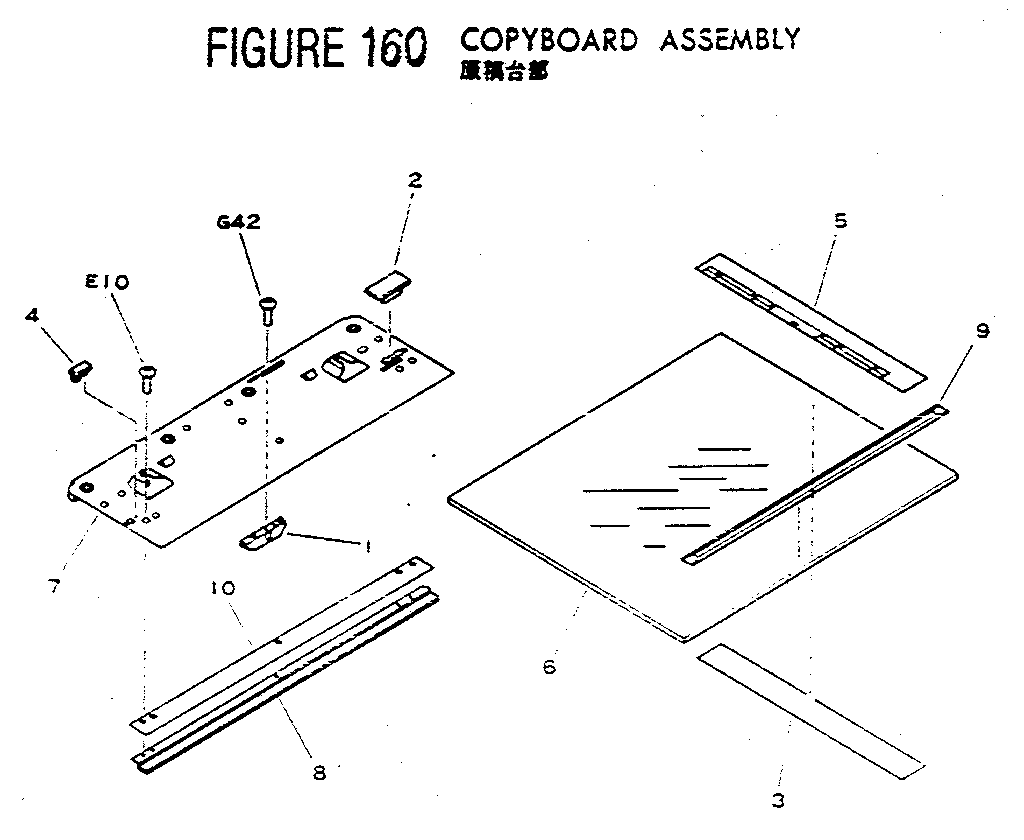

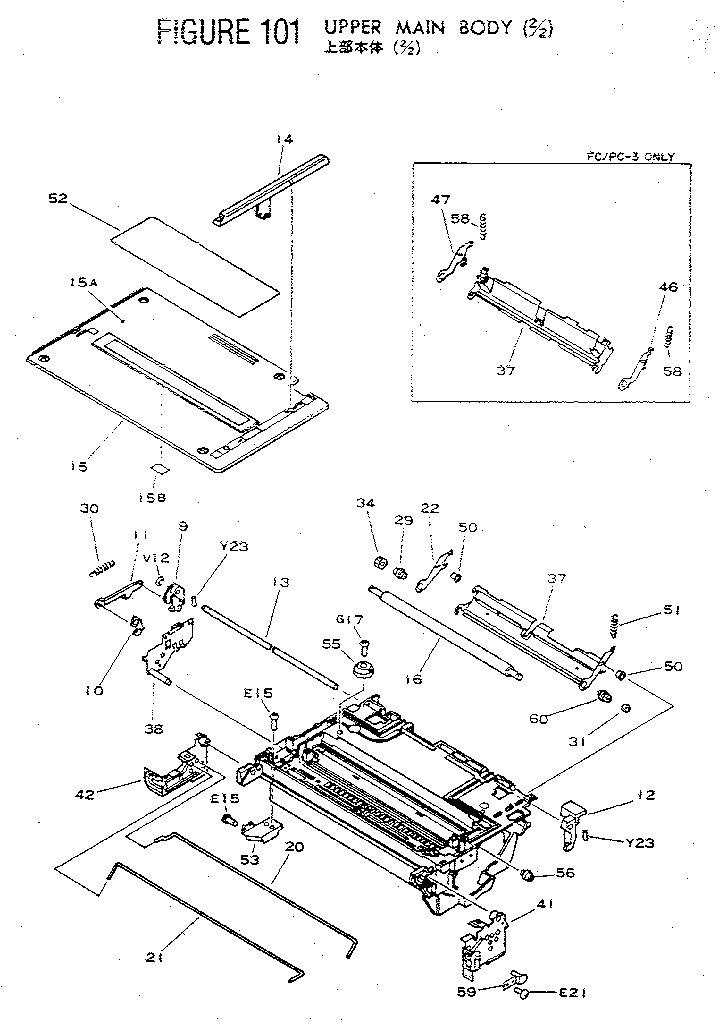

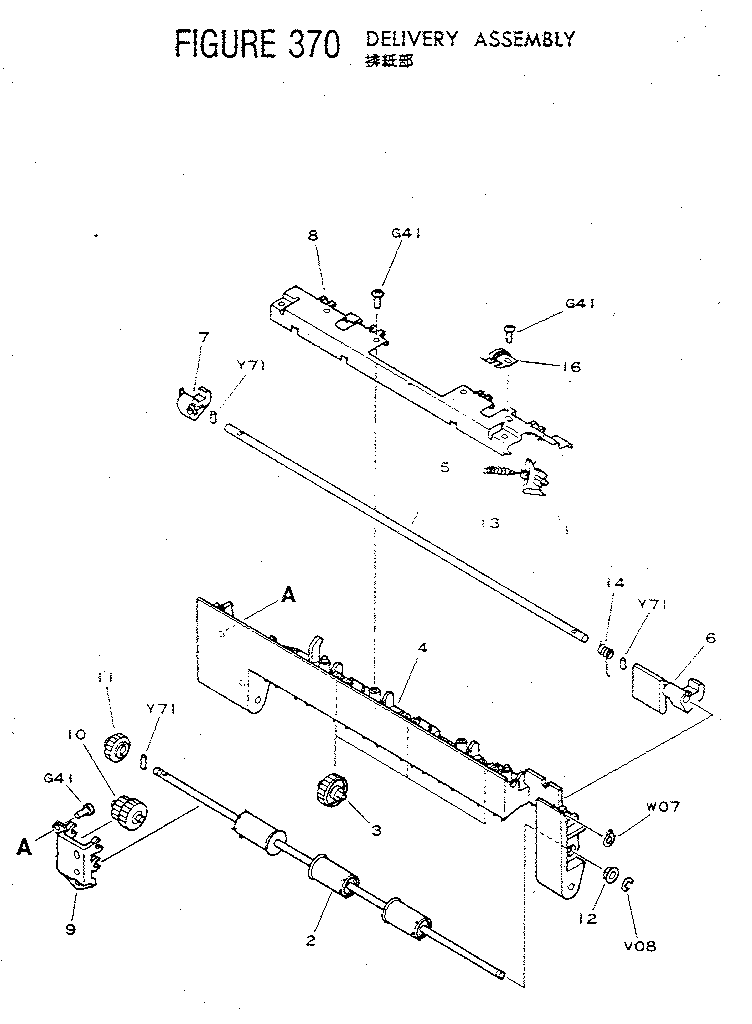

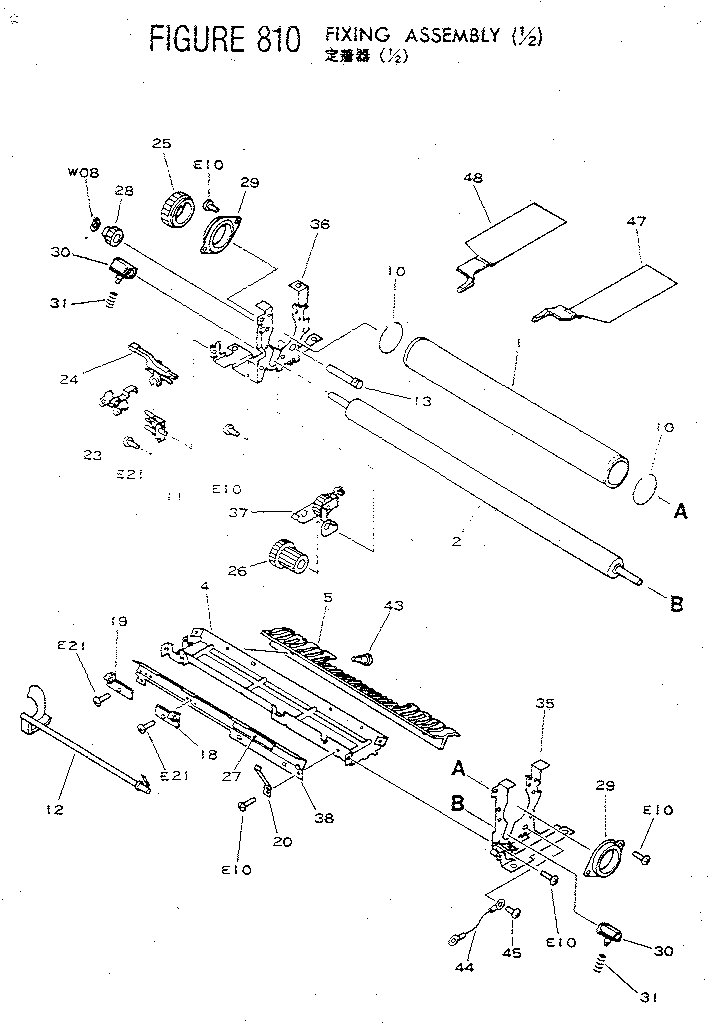

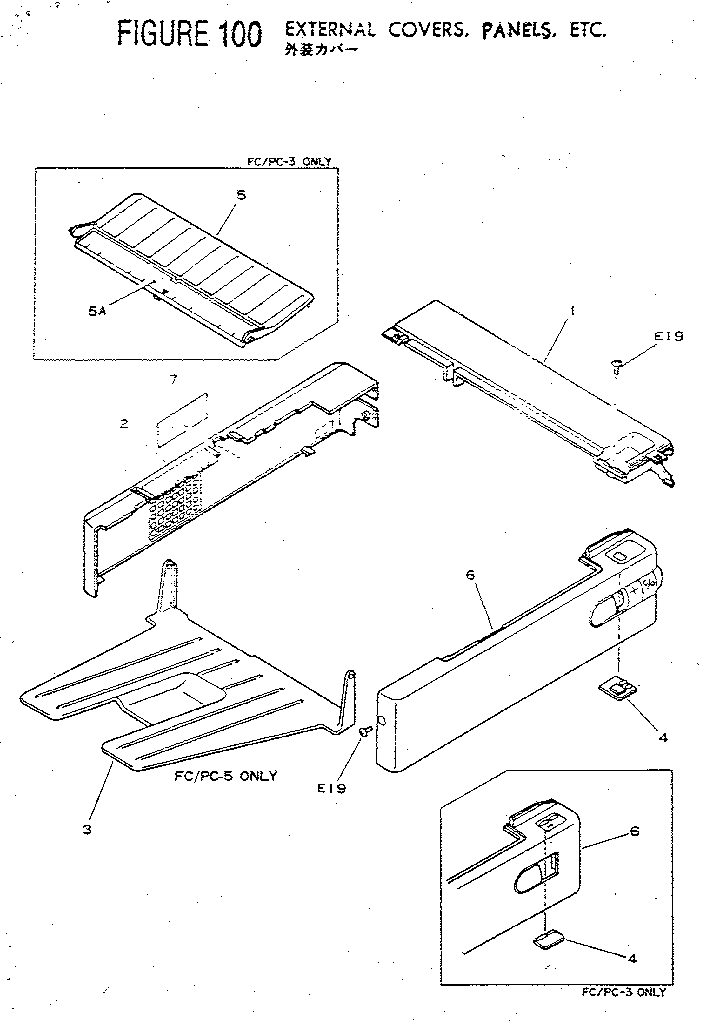

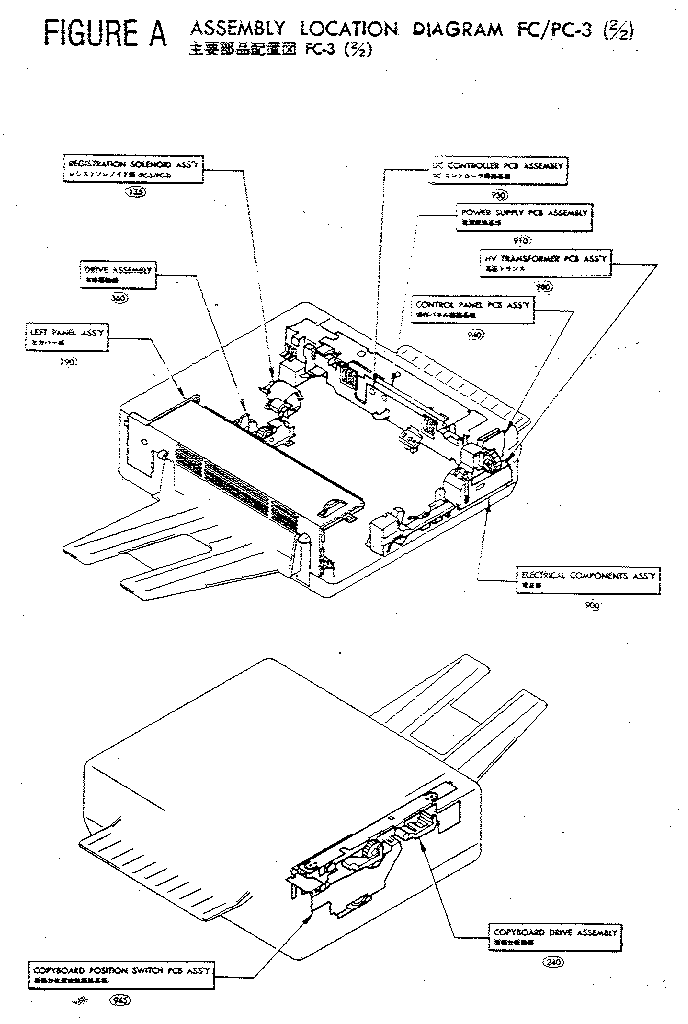

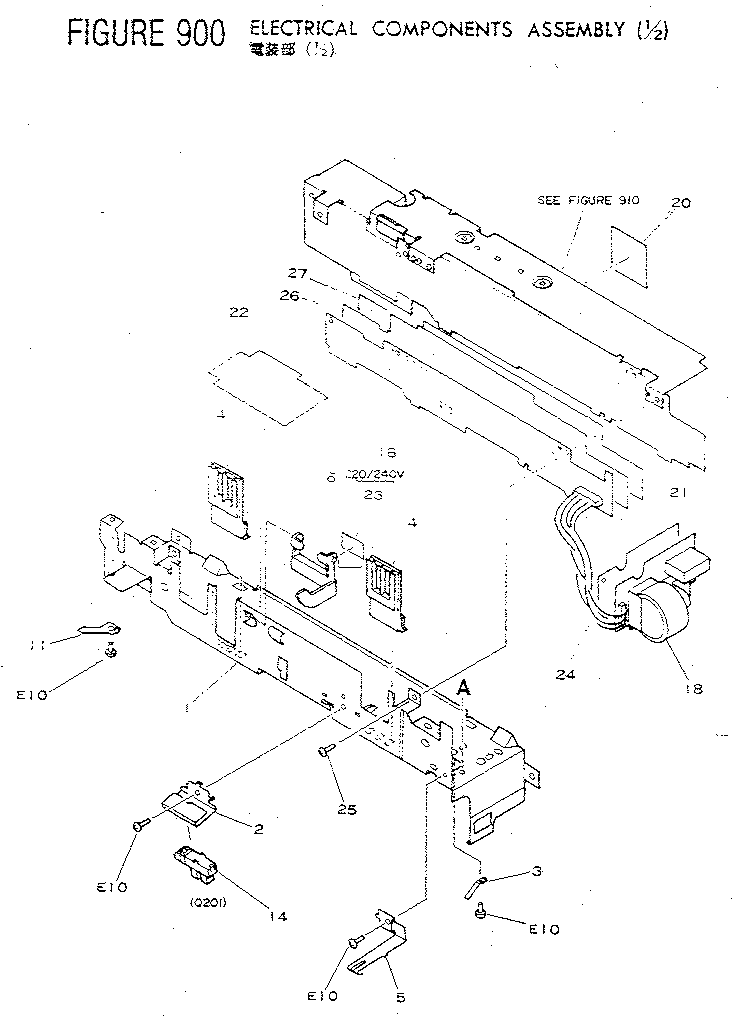

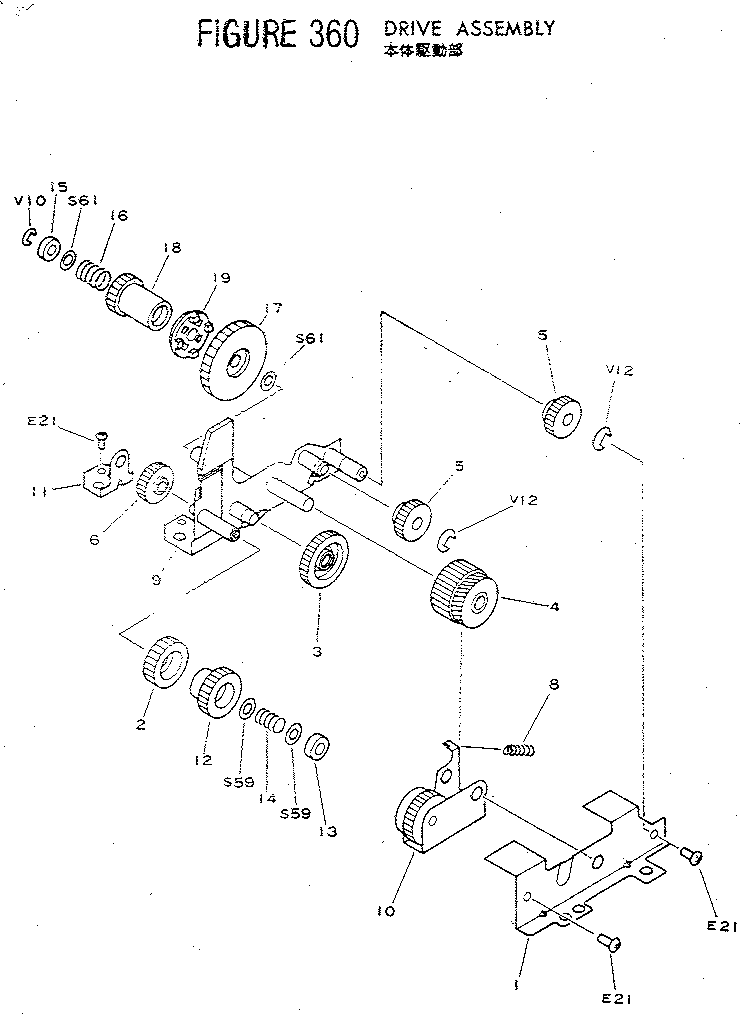

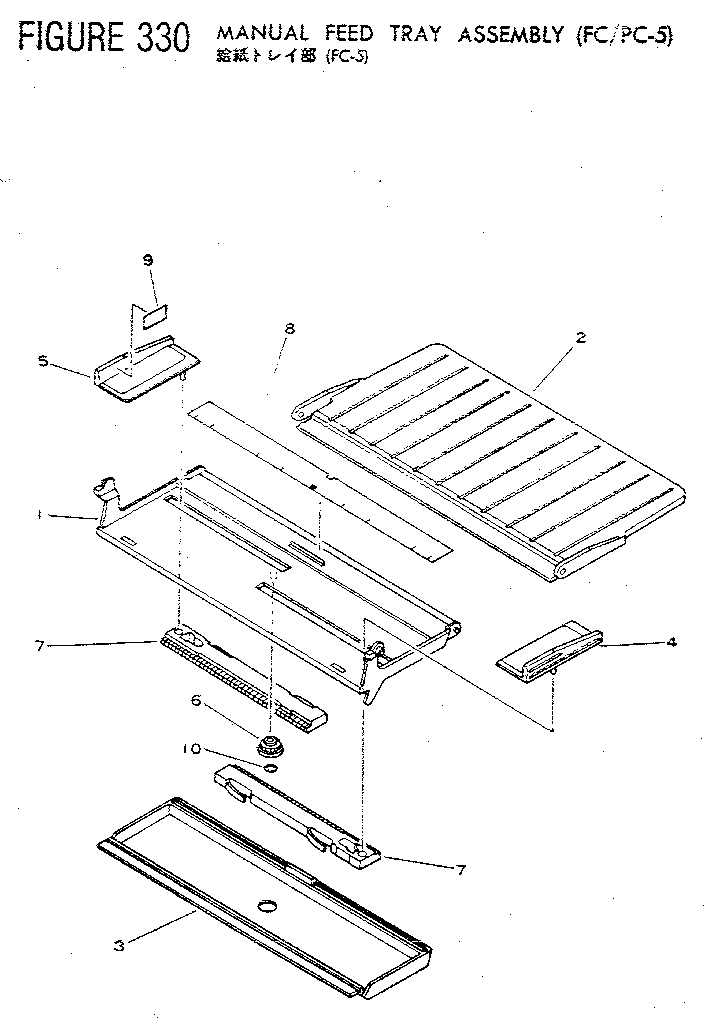

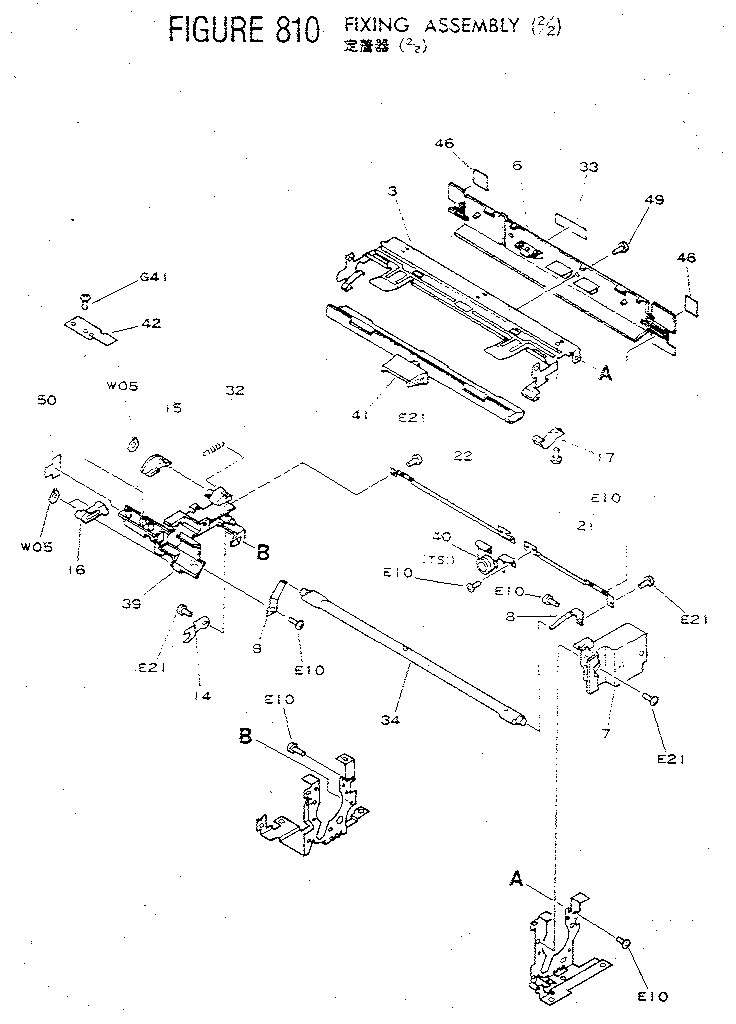

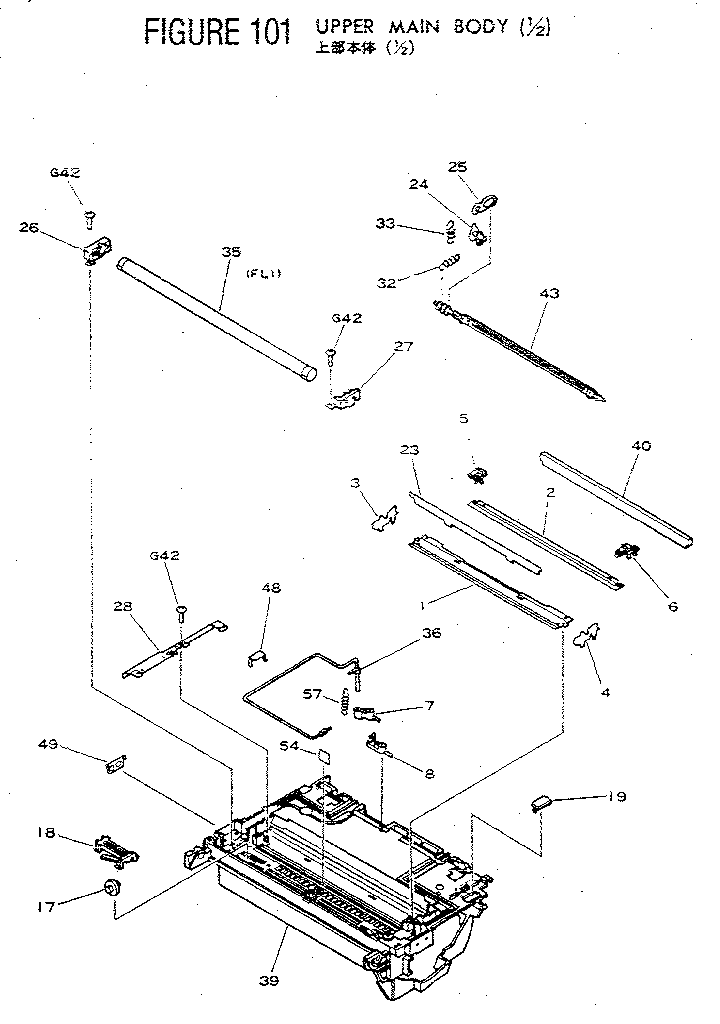

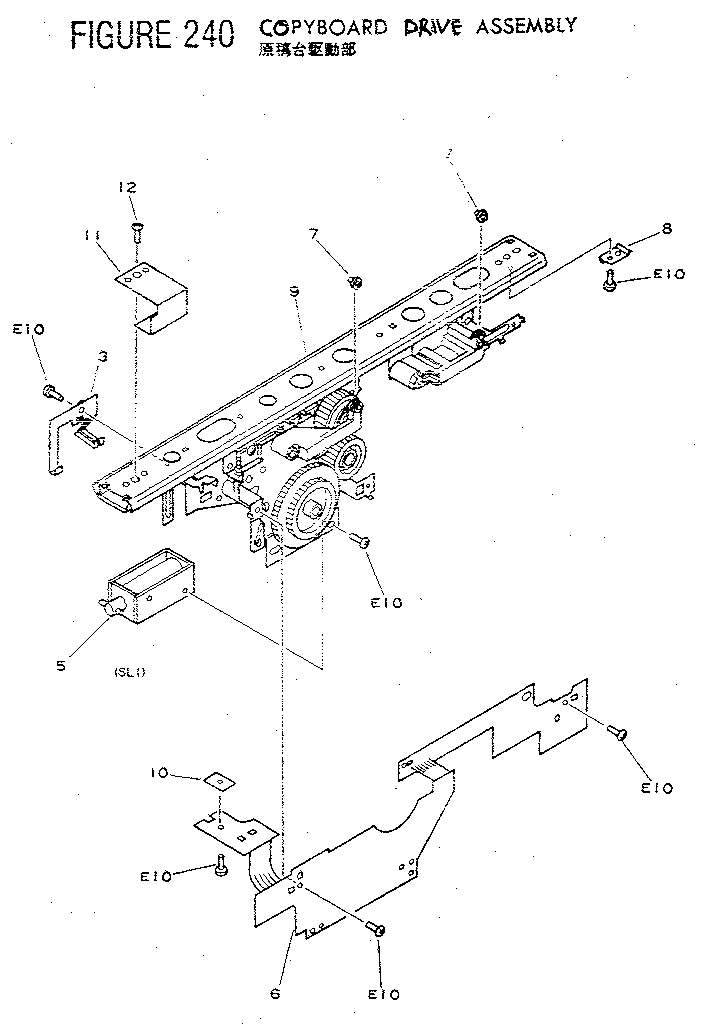

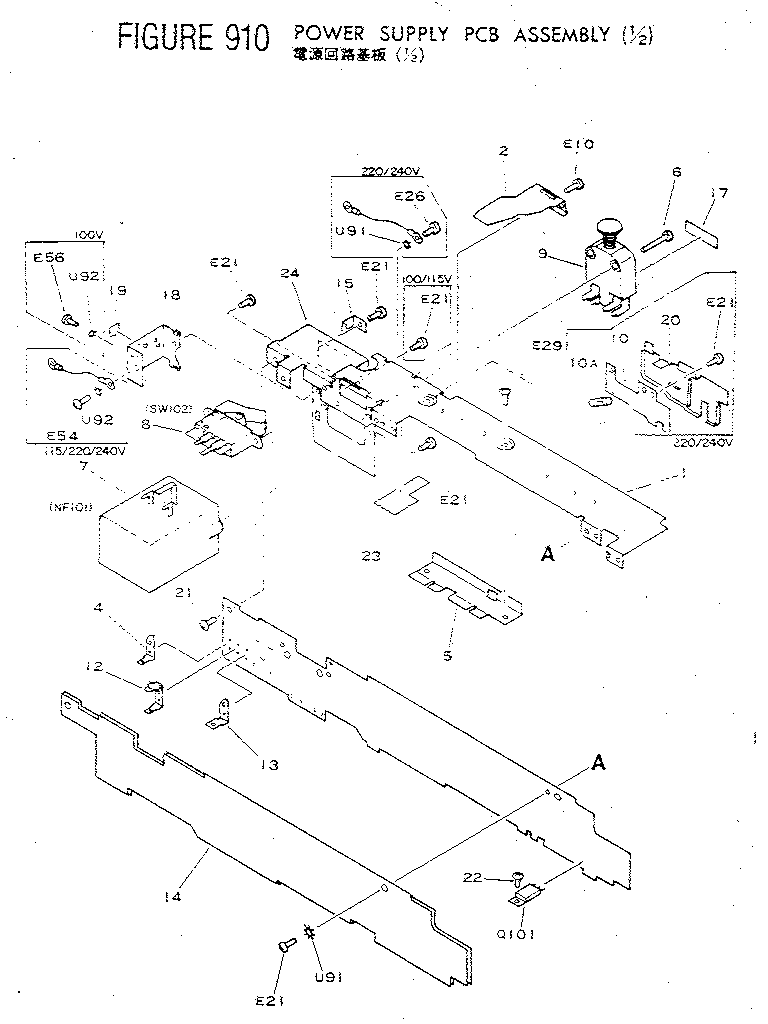

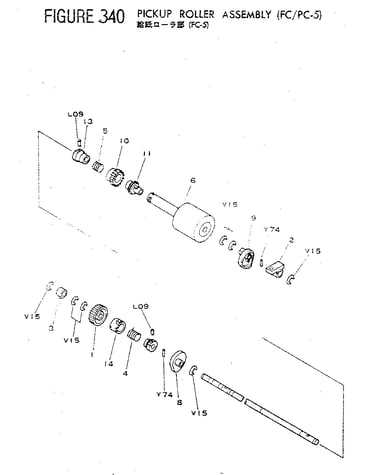

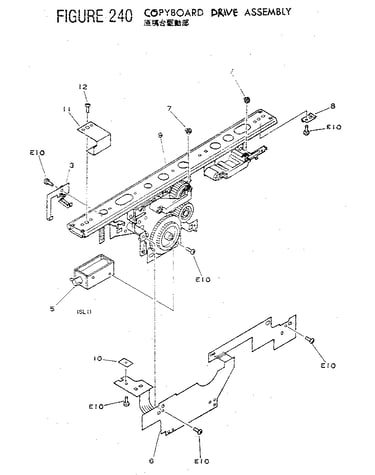

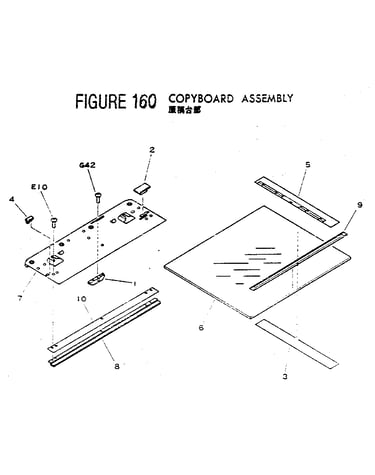

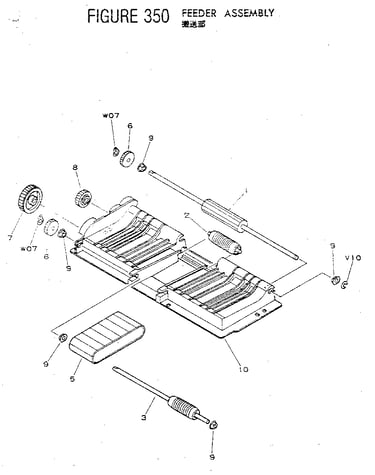

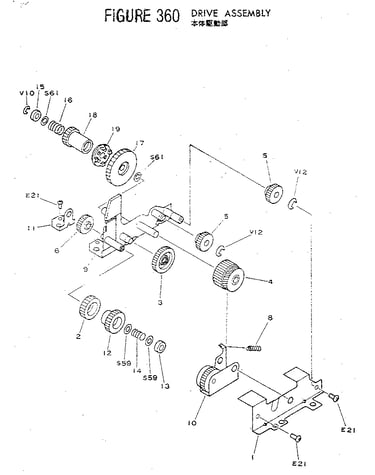

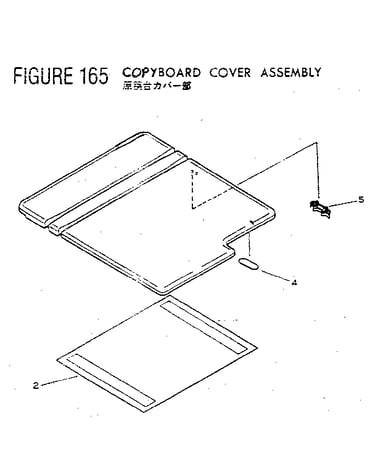

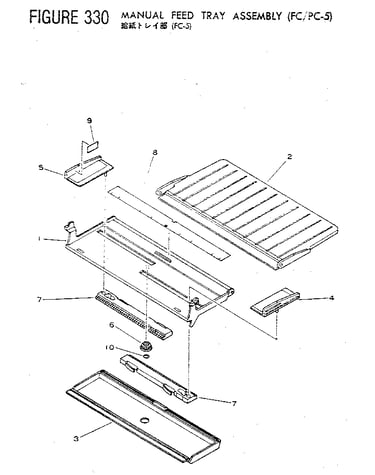

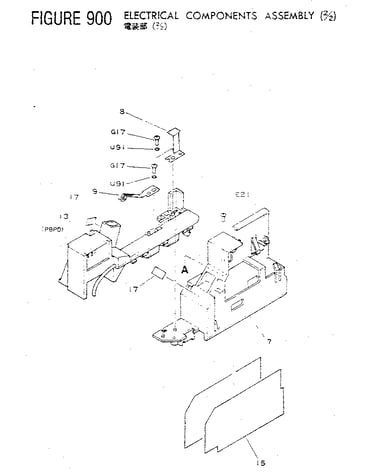

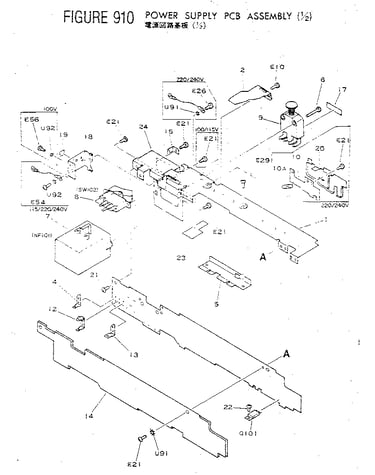

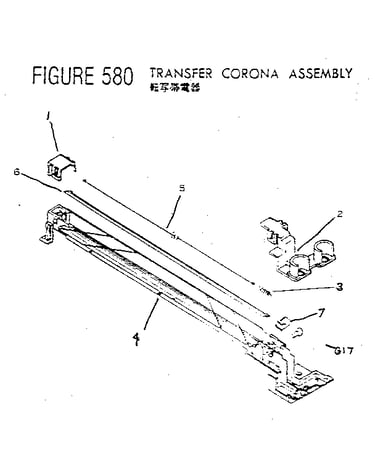

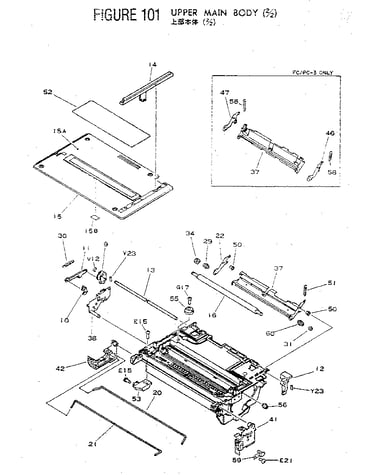

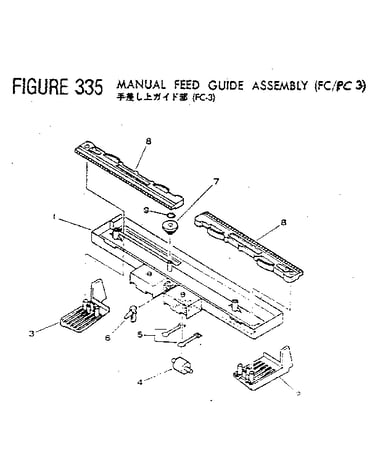

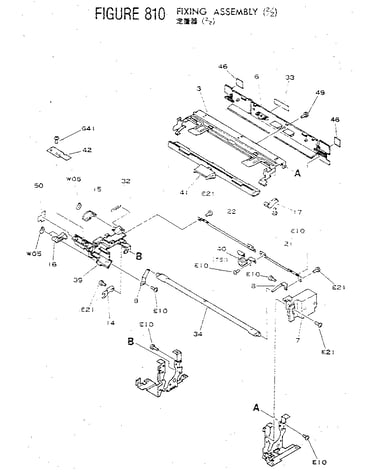

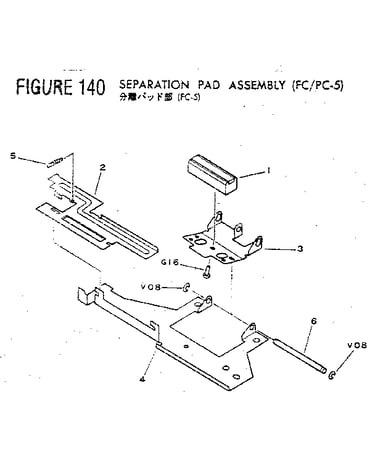

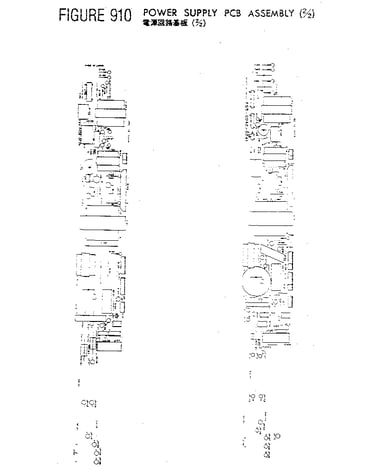

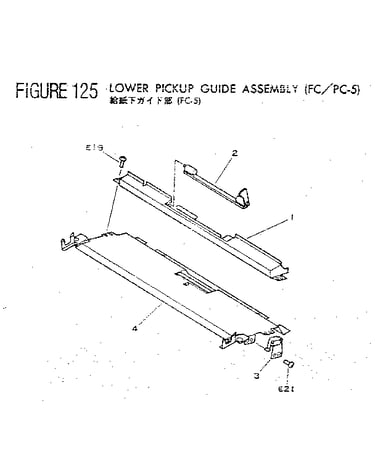

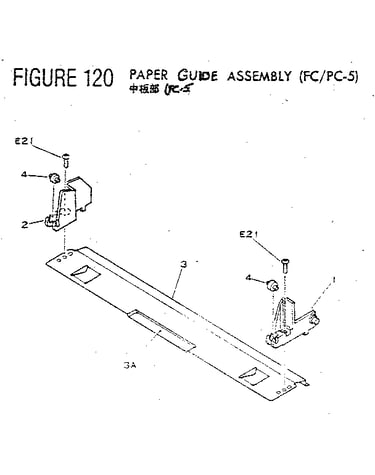

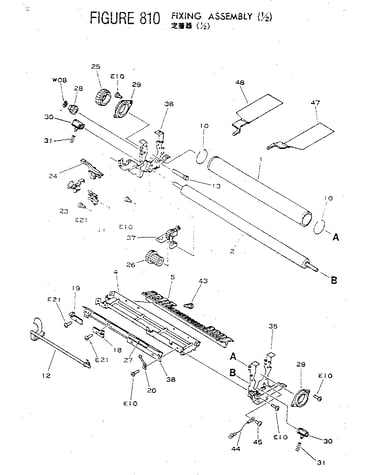

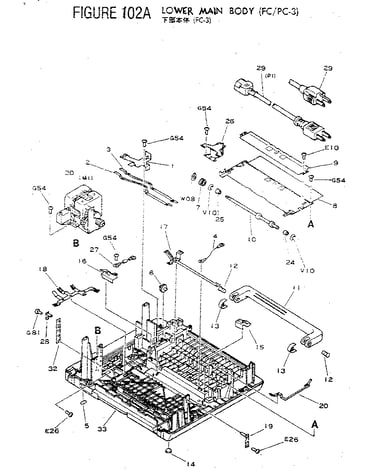

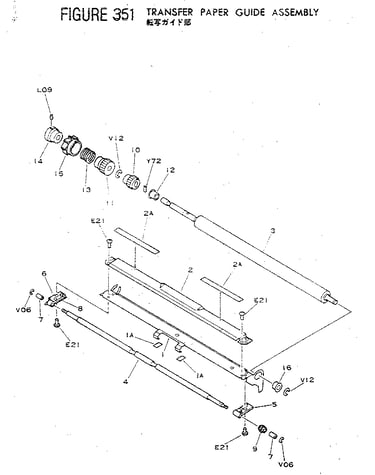

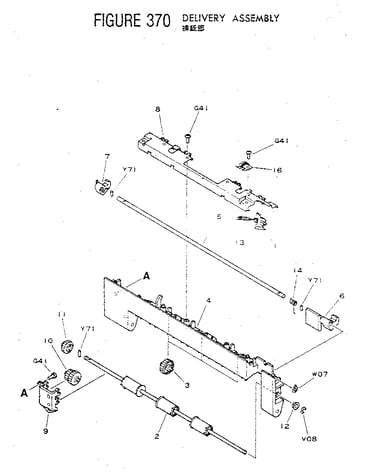

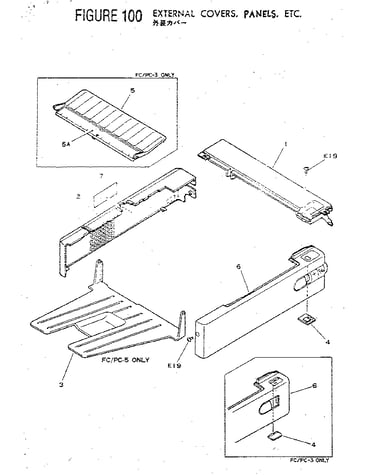

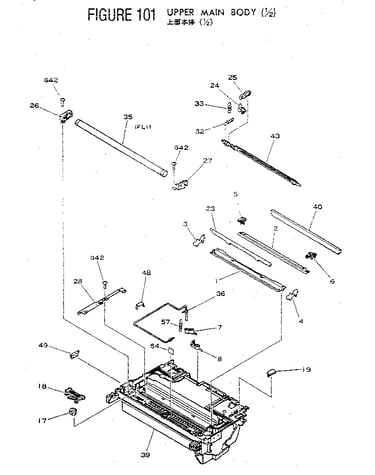

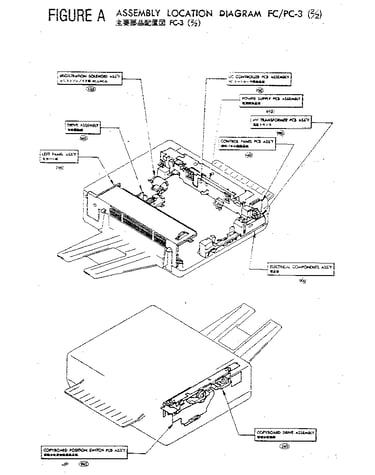

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 518 parts  |
Arm, Shutter FB1-0126-000
Arm, shutter

Part #FB1-0126-000

The manufacturer no longer makes this part, and there's no substitute part

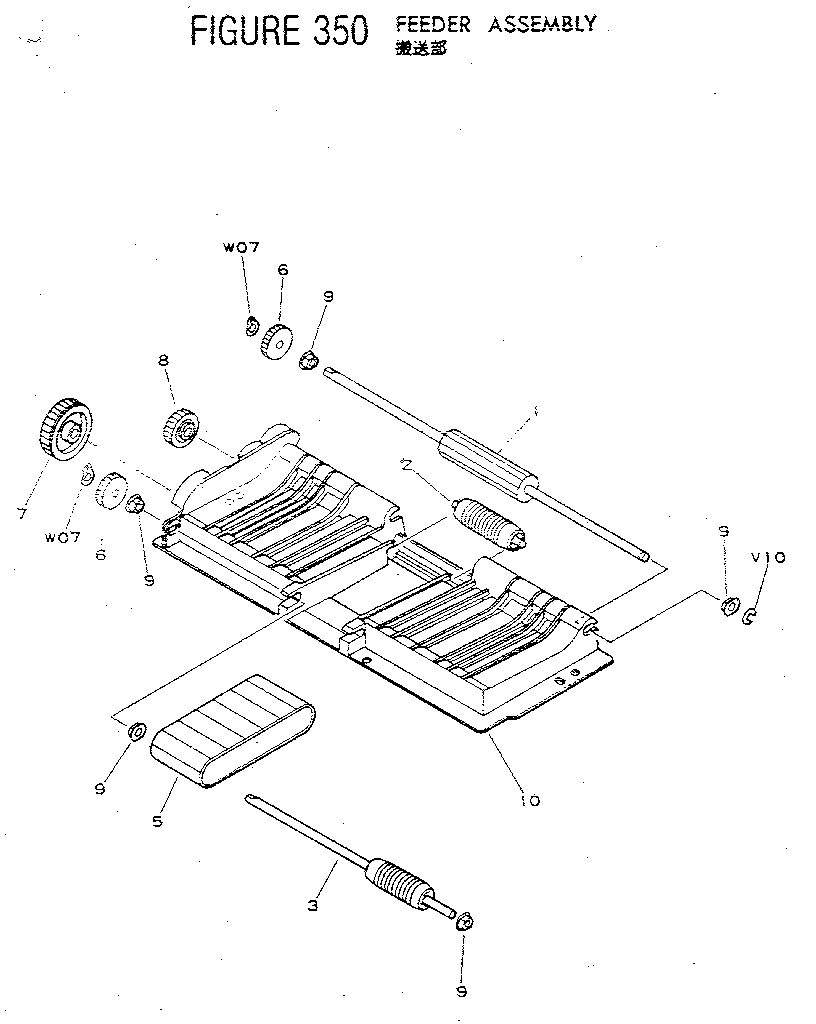

Roller, Registration, Lower (pc 5) FB1-0183-030
#3

Model pc 3, 5 (rev. 2) diagram

Roller, registration, lower (pc 5)

Part #FB1-0183-030

The manufacturer no longer makes this part, and there's no substitute part

Shutter, Blank FF5-0059-060
Shutter, blank

Part #FF5-0059-060

The manufacturer no longer makes this part, and there's no substitute part

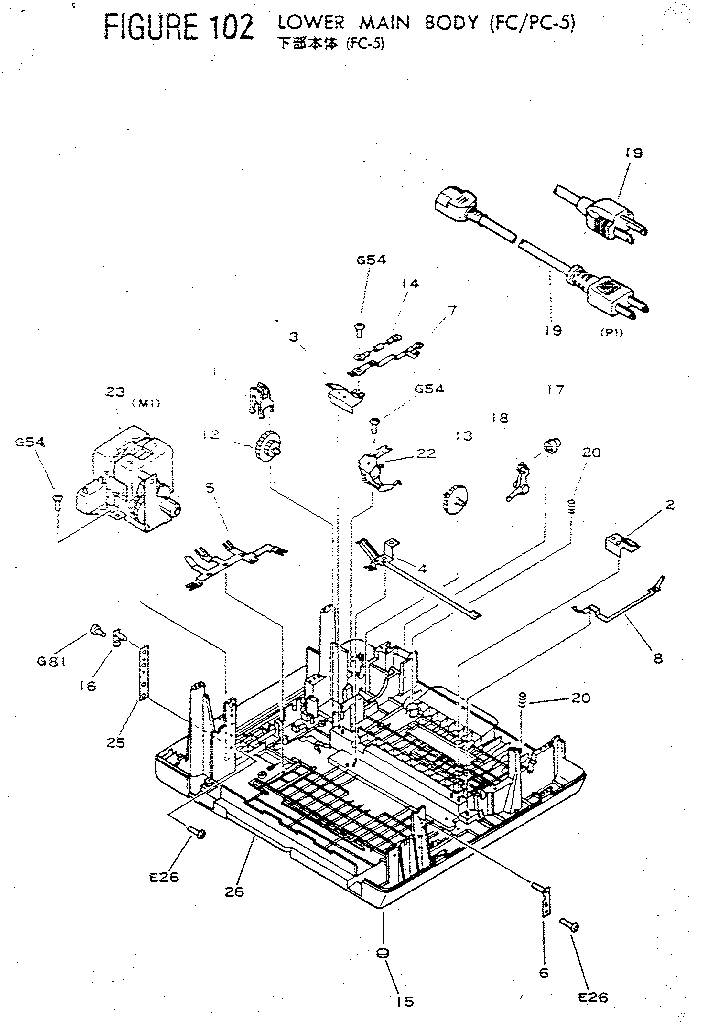

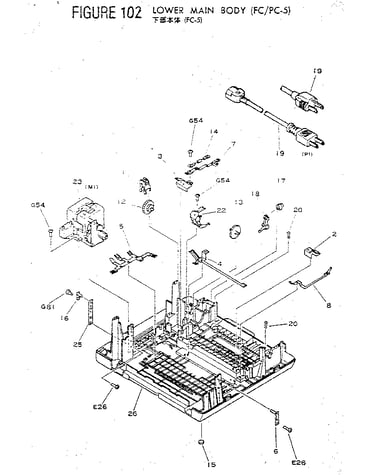

Main Motor Assembly (240v 50hz) FG5-0033-00
#23D

Model pc 3, 5 (rev. 2) diagram

Main motor assembly (240v 50hz)

Part #FG5-0033-00

The manufacturer no longer makes this part, and there's no substitute part

Cover, Upper Unit, White FF5-0109-020
Cover, upper unit, white

Part #FF5-0109-020

The manufacturer no longer makes this part, and there's no substitute part

Rating Plate, 100v 50hz (fc 3) FS5-8028-000
Rating plate, 100v 50hz (fc 3)

Part #FS5-8028-000

The manufacturer no longer makes this part, and there's no substitute part

Gear, 32t FS5-0020-000
Gear, 32t

Part #FS5-0020-000

The manufacturer no longer makes this part, and there's no substitute part

Rating, Plate, 100v 50hz (fc 5) FS5-8022-000
Rating, plate, 100v 50hz (fc 5)

Part #FS5-8022-000

The manufacturer no longer makes this part, and there's no substitute part

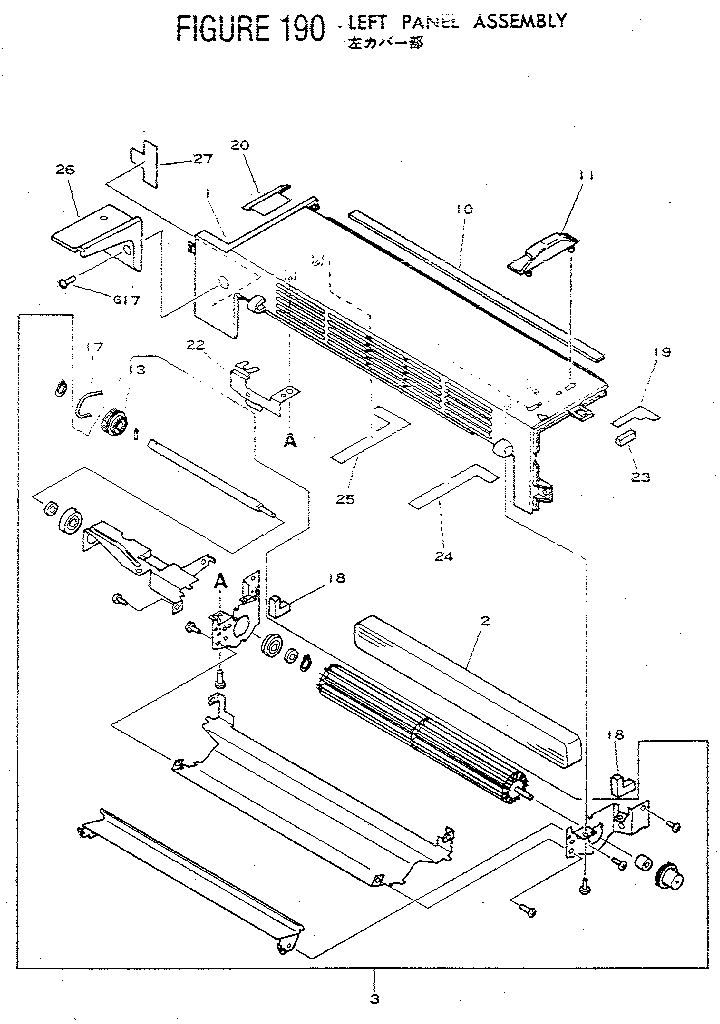

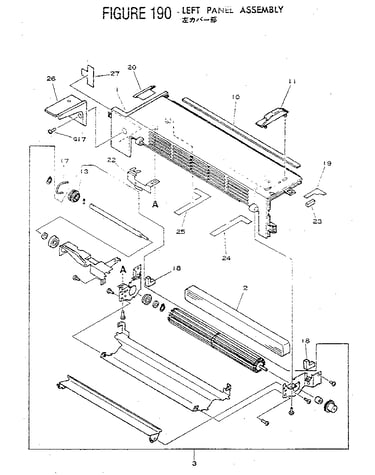

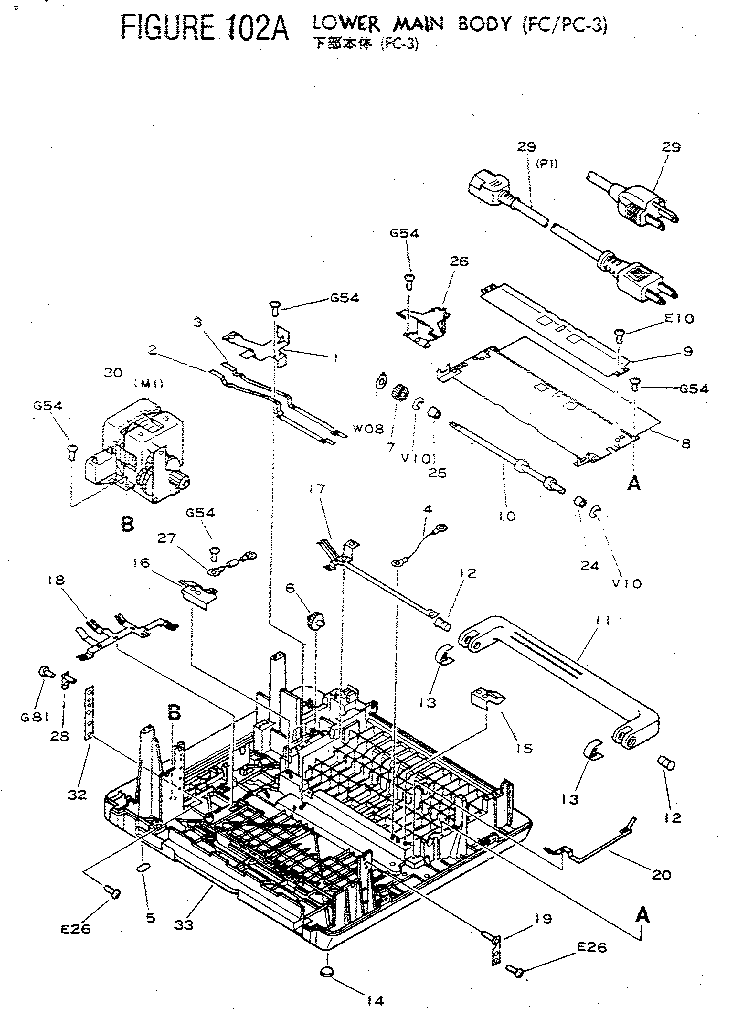

Left Panel Assembly, Black (pc 3) FG5-0086-190
#190B

Model pc 3, 5 (rev. 2) diagram

Left panel assembly, black (pc 3)

Part #FG5-0086-190

The manufacturer no longer makes this part, and there's no substitute part

Plate FB1-0121-000
Plate

Part #FB1-0121-000

The manufacturer no longer makes this part, and there's no substitute part
