Kenmore
Dryer

Model # 11064982300 Official Kenmore electric dryer

Here are the diagrams and repair parts for Official Kenmore 11064982300 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

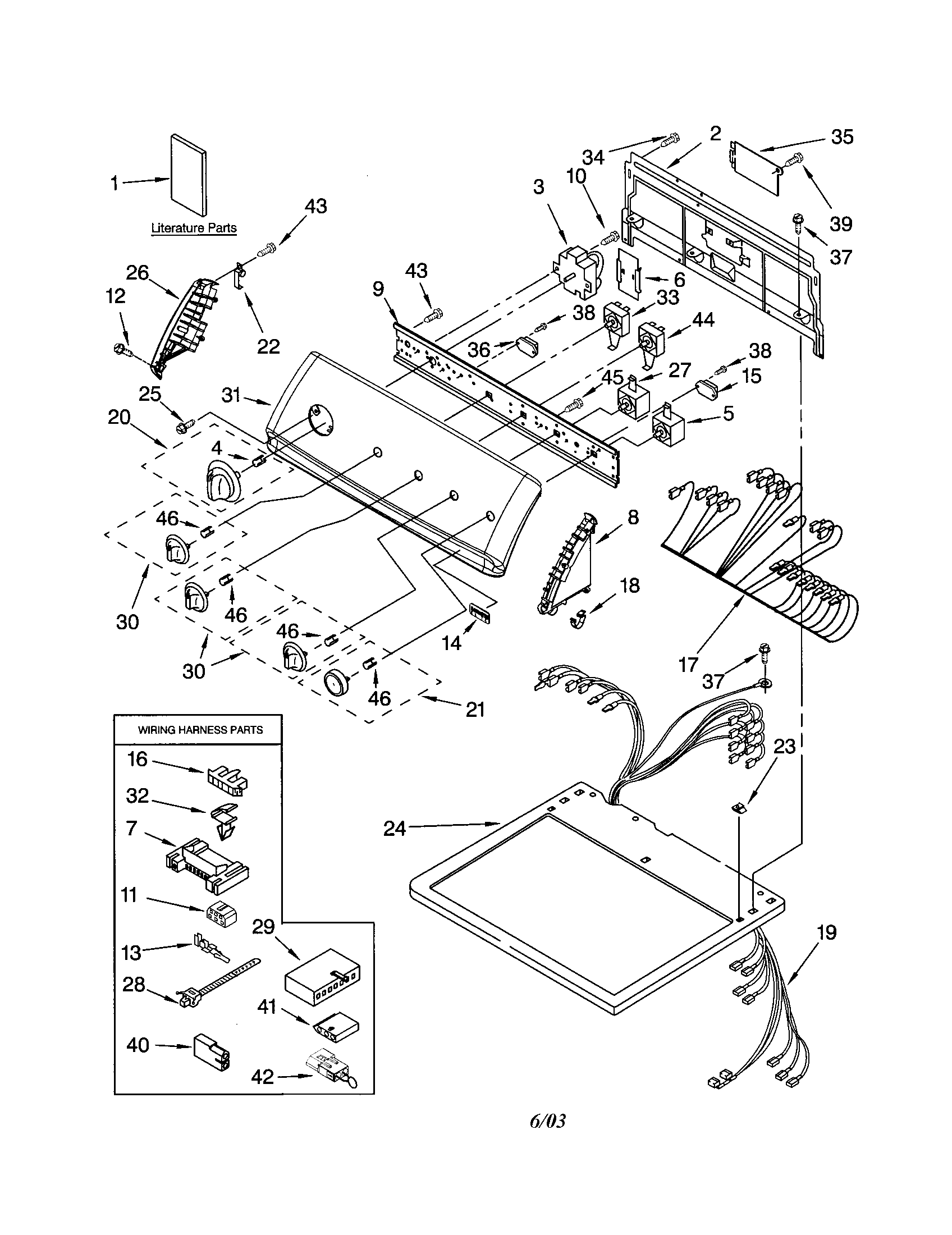

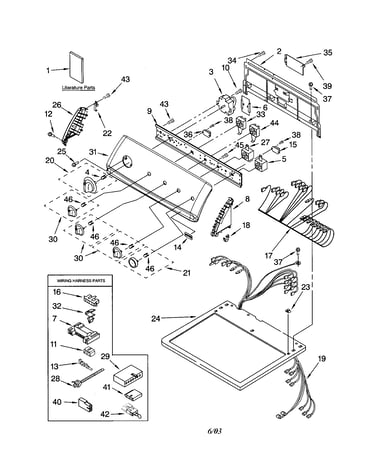

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Dryer Thermal Fuse 3392519
#59

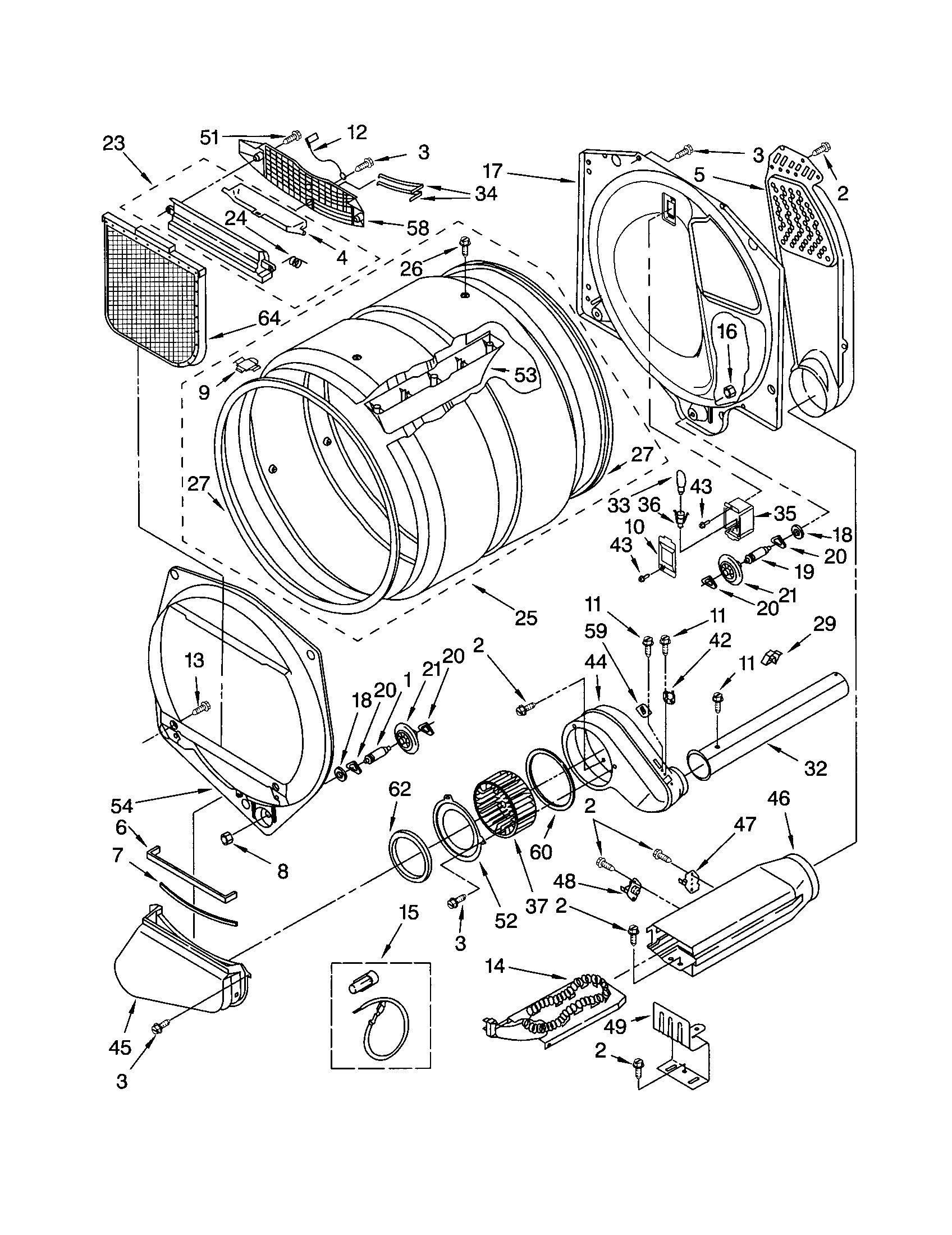

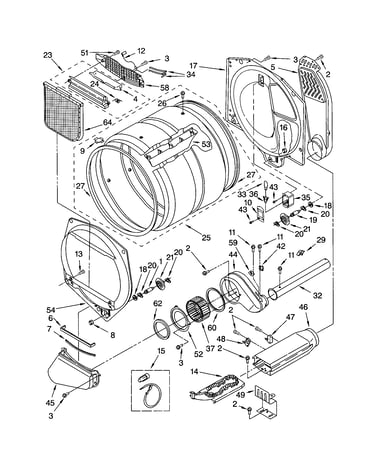

Bulkhead diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.12 |
9% OFF Phone Price : $21.12
In Stock
Dryer Idler Pulley 3388672
#13

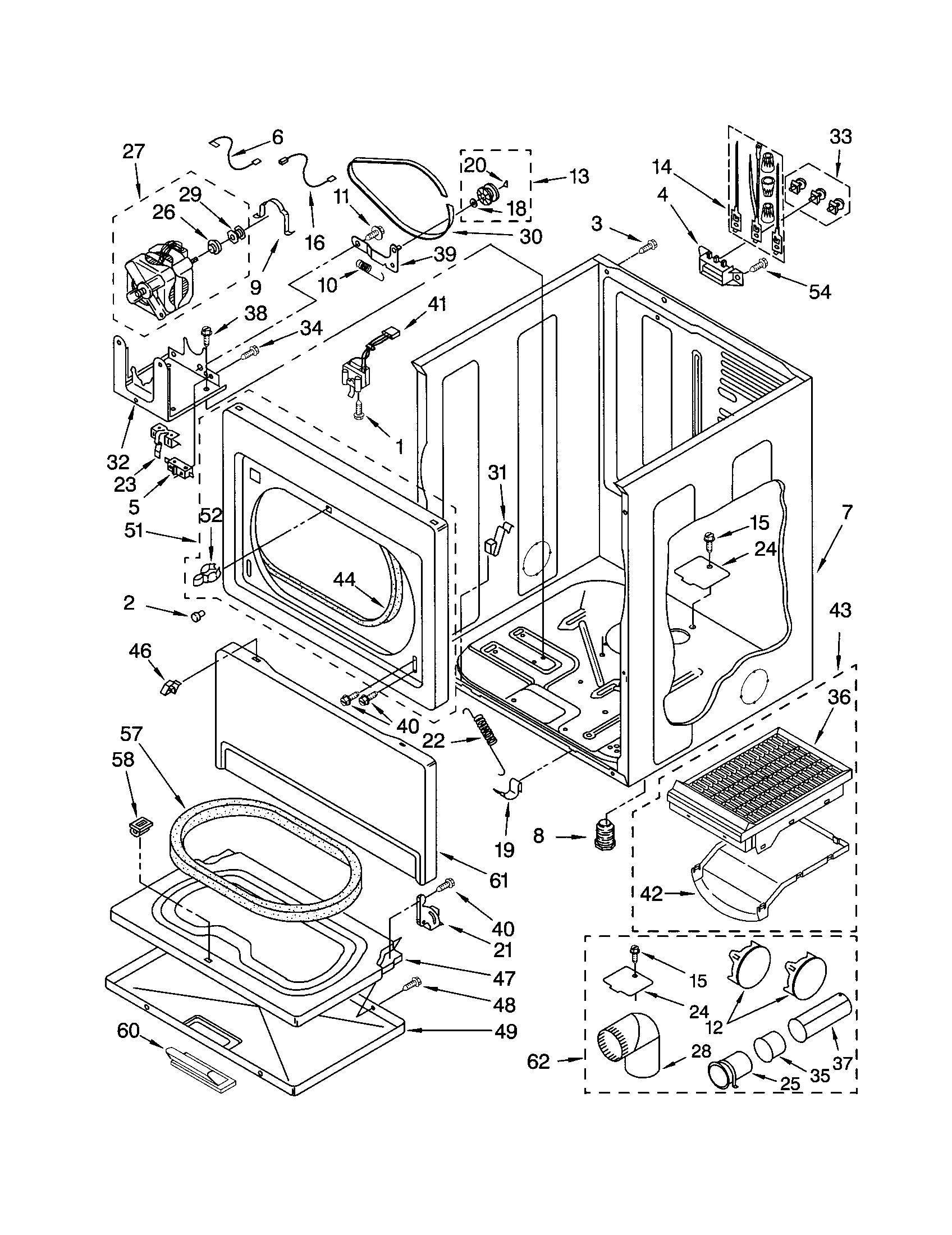

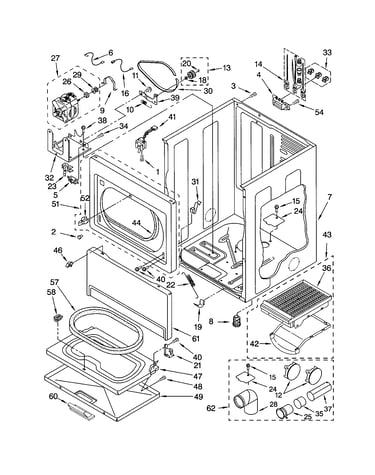

Cabinet diagram

Dryer idler pulley

Part #3388672

Replaced by #279640

?
Manufacturer substitution
This part replaces 3388672. Substitute parts can look different from the original.
BEST SELLER
$26.87 |
18% OFF Phone Price : $32.87
In Stock
Support 8536973
#21

Bulkhead diagram

Support

Part #8536973

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces 8536973. Substitute parts can look different from the original.
BEST SELLER
$16.24 |
11% OFF Phone Price : $18.24
In Stock
Bracket 3388674
#39

Cabinet diagram

Bracket

Part #3388674

Replaced by #W10837240

?
Manufacturer substitution
This part replaces 3388674. Substitute parts can look different from the original.
BEST SELLER
$21.25 |
22% OFF Phone Price : $27.25
In Stock
Dryer Drive Belt 3387610
#30

Cabinet diagram

Dryer drive belt

Part #3387610

Replaced by #661570V

?
Manufacturer substitution
This part replaces 3387610. Substitute parts can look different from the original.
BEST SELLER
$19.35 |
9% OFF Phone Price : $21.35
In Stock
Dryer Thermistor 3976615
#42

Bulkhead diagram

Dryer thermistor

Part #3976615

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 3976615. Substitute parts can look different from the original.
BEST SELLER
$32.80 |
15% OFF Phone Price : $38.80
In Stock
Dryer Repair Kit 80047

#NI01

All parts diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
$49.32 |
11% OFF Phone Price : $55.32
In Stock
Dryer Blower Wheel 697772
#37

Bulkhead diagram

Dryer blower wheel

Part #697772

Replaced by #WP697772

?
Manufacturer substitution
This part replaces 697772. Substitute parts can look different from the original.
BEST SELLER
$47.36 |
11% OFF Phone Price : $53.36
In Stock
Cut-off Kit 3977394
#47

Bulkhead diagram

Cut-off kit

Part #3977394

Replaced by #279769

?
Manufacturer substitution
This part replaces 3977394. Substitute parts can look different from the original.
BEST SELLER
$40.57 |
13% OFF Phone Price : $46.57
In Stock
Strike 696144
#52

Cabinet diagram

Strike

Part #696144

Replaced by #279570

?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your dryers

Choose a symptom to see related dryer repairs.

View all

Why is my dryer making a rattling noise?

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …

Read more

Why won't my dryer heat?

Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…

Read more

Why won't my dryer door stay shut?

Main causes: damaged door strike, worn door catch…

Read more

Why won't my dryer shut off?

Main causes: bad timer or electronic control board, door switch failure…

Read more

Why doesn't my dryer work?

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…

Read more

Why does my dryer start then stop?

Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…

Read more

Why isn't my dryer getting my laundry dry?

Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…

Read more

Why won't my dryer start?

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…

Read more
