Modern Maid
Electric Cooktop

Model # FET265 Official Modern Maid electric cooktop

Here are the diagrams and repair parts for Official Modern Maid FET265 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

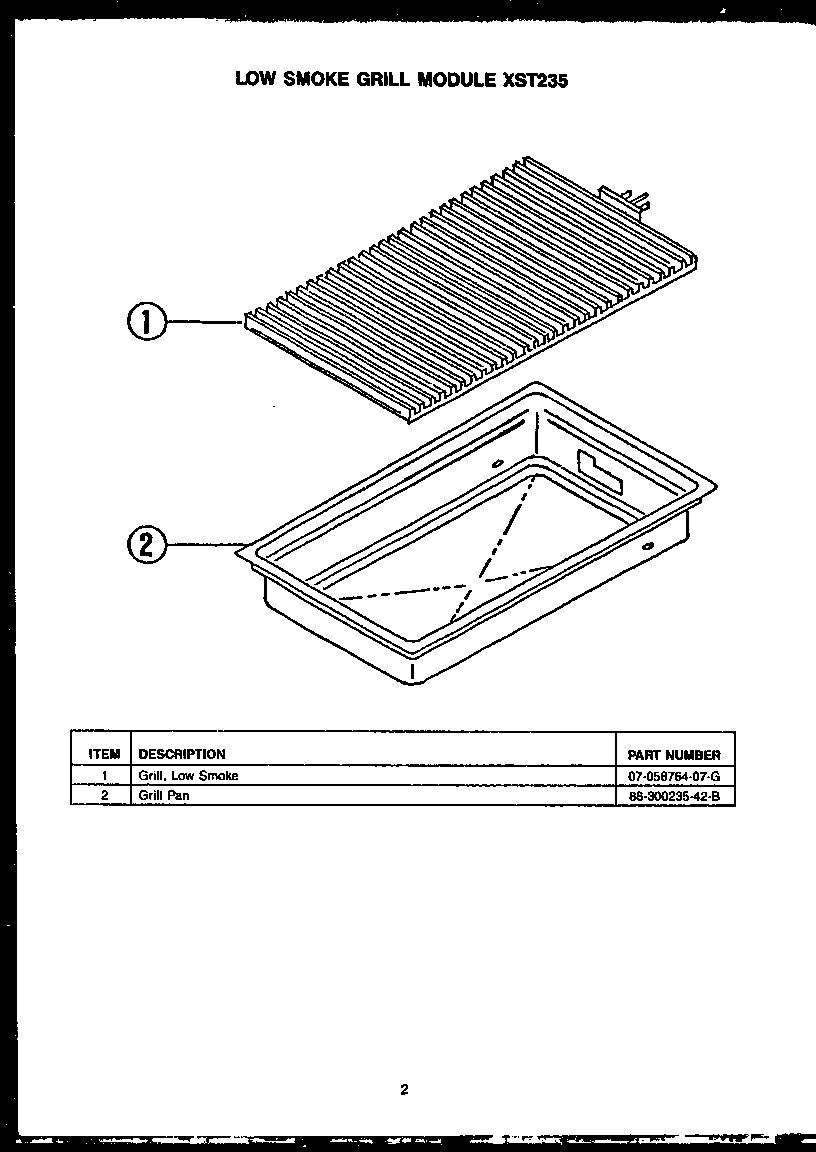

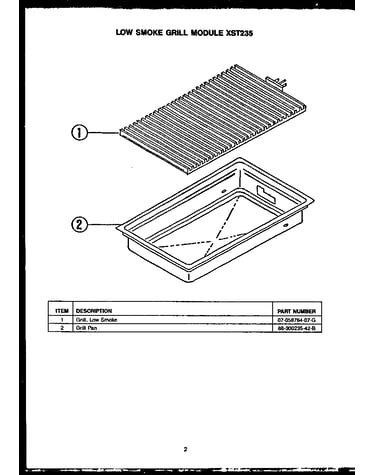

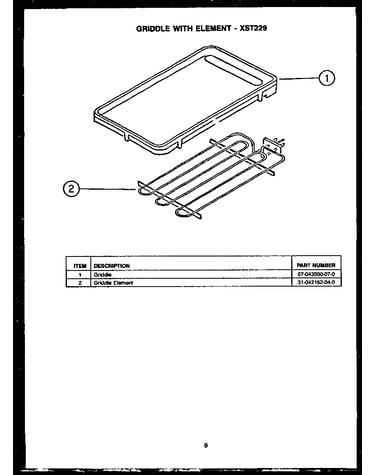

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Gasket, Silicone - Large 02-059632-01-0
#11

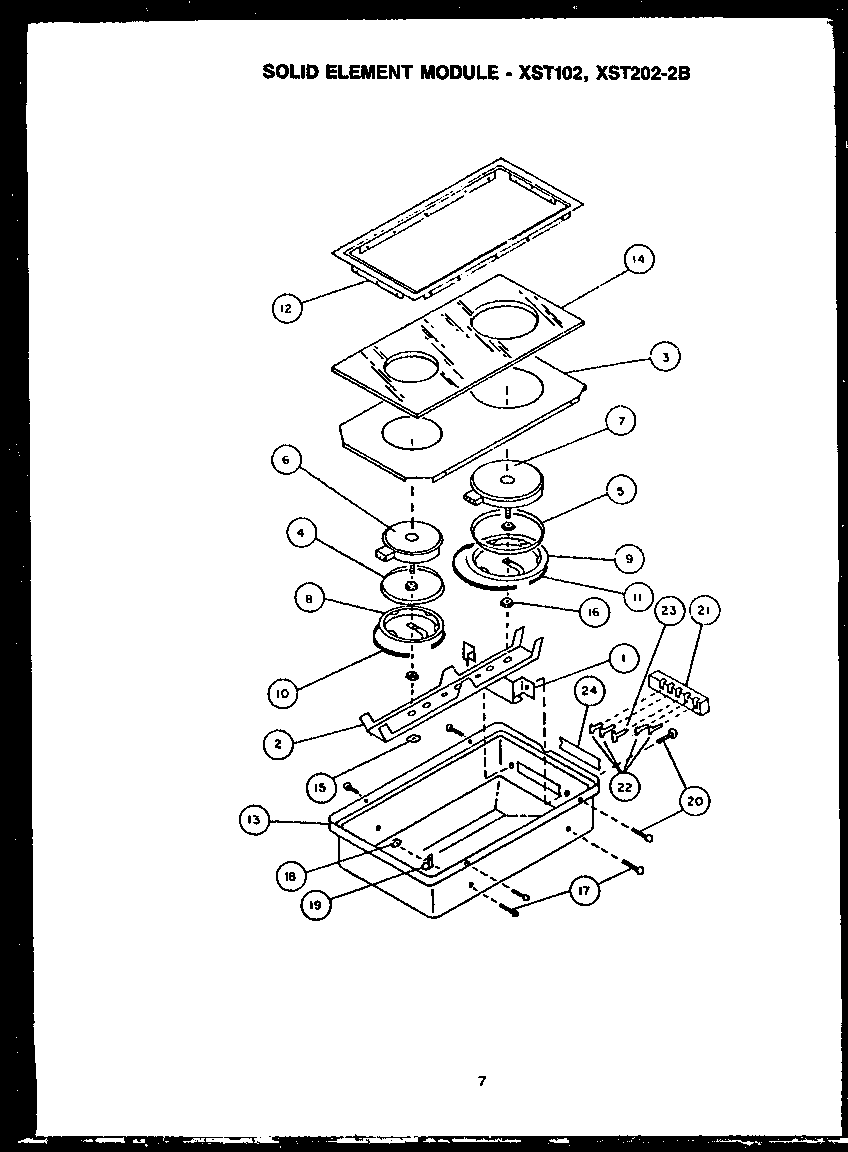

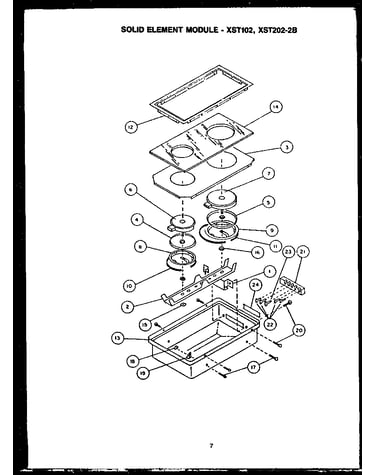

Solid element module - xst102/xst202-2b diagram

Gasket, silicone - large

Part #02-059632-01-0

The manufacturer no longer makes this part, and there's no substitute part

Contact, Spade - Power (4) 67-052040-44-J
Contact, spade - power (4)

Part #67-052040-44-J

The manufacturer no longer makes this part, and there's no substitute part

Module Pan 88-300749-42-B
#13

Solid element module - xst102/xst202-2b diagram

Module pan

Part #88-300749-42-B

The manufacturer no longer makes this part, and there's no substitute part

Ceramic Plug 32-042211-10-0
Ceramic plug

Part #32-042211-10-0

The manufacturer no longer makes this part, and there's no substitute part

Ground Wire Harness 32-043666-03-0
#12

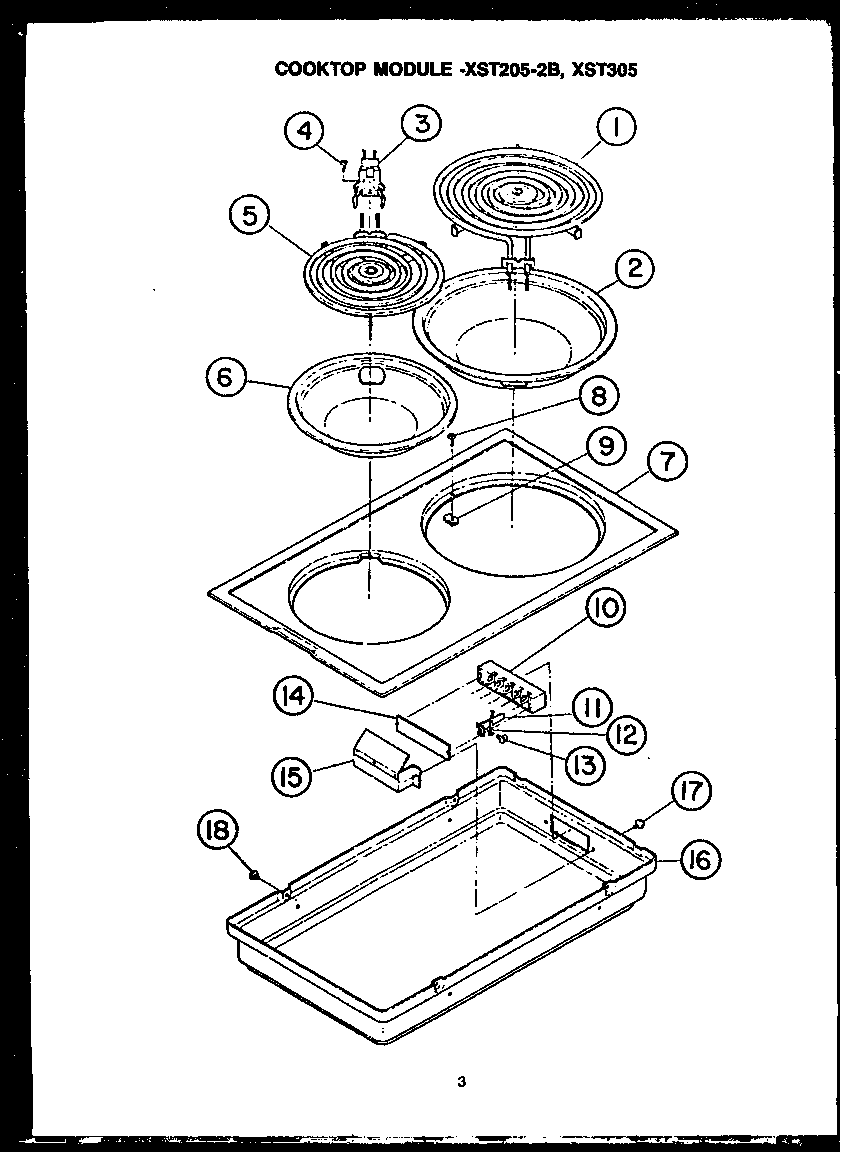

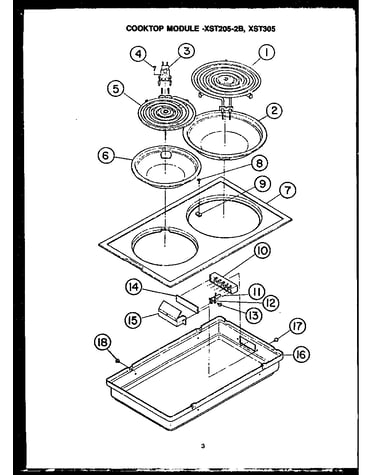

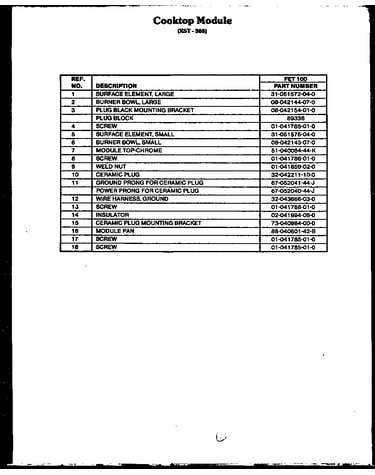

Cooktop module -xst205-2b/xst305 diagram

Ground wire harness

Part #32-043666-03-0

The manufacturer no longer makes this part, and there's no substitute part

Infinite Switch 31-051726-02-0
#7

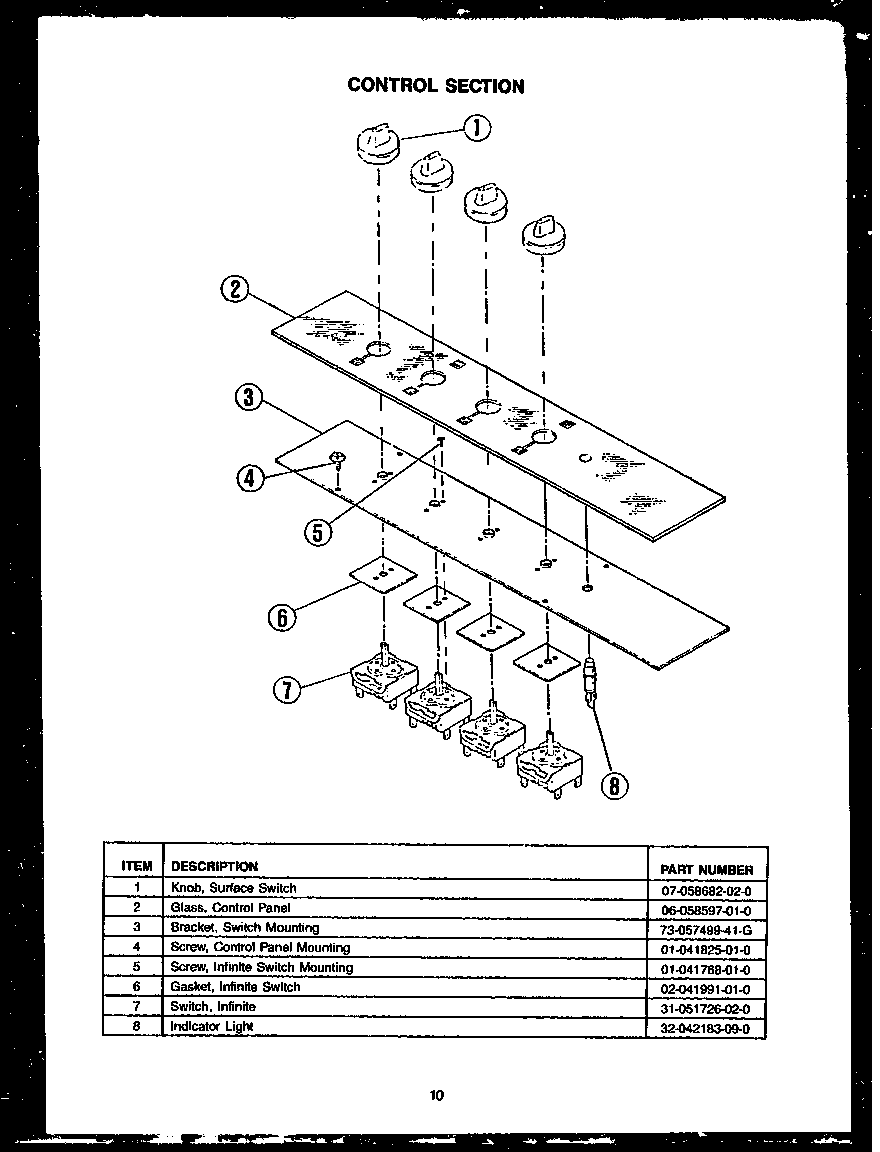

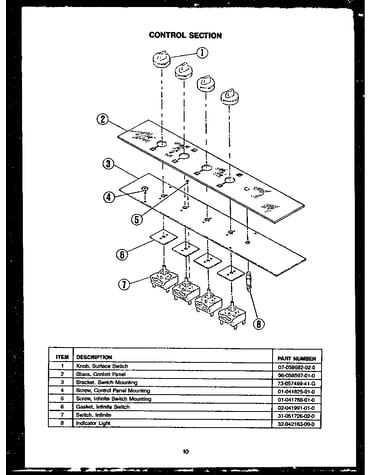

Control section diagram

Infinite switch

Part #31-051726-02-0

The manufacturer no longer makes this part, and there's no substitute part

Shield, Switch 74-040821-00-0
#2

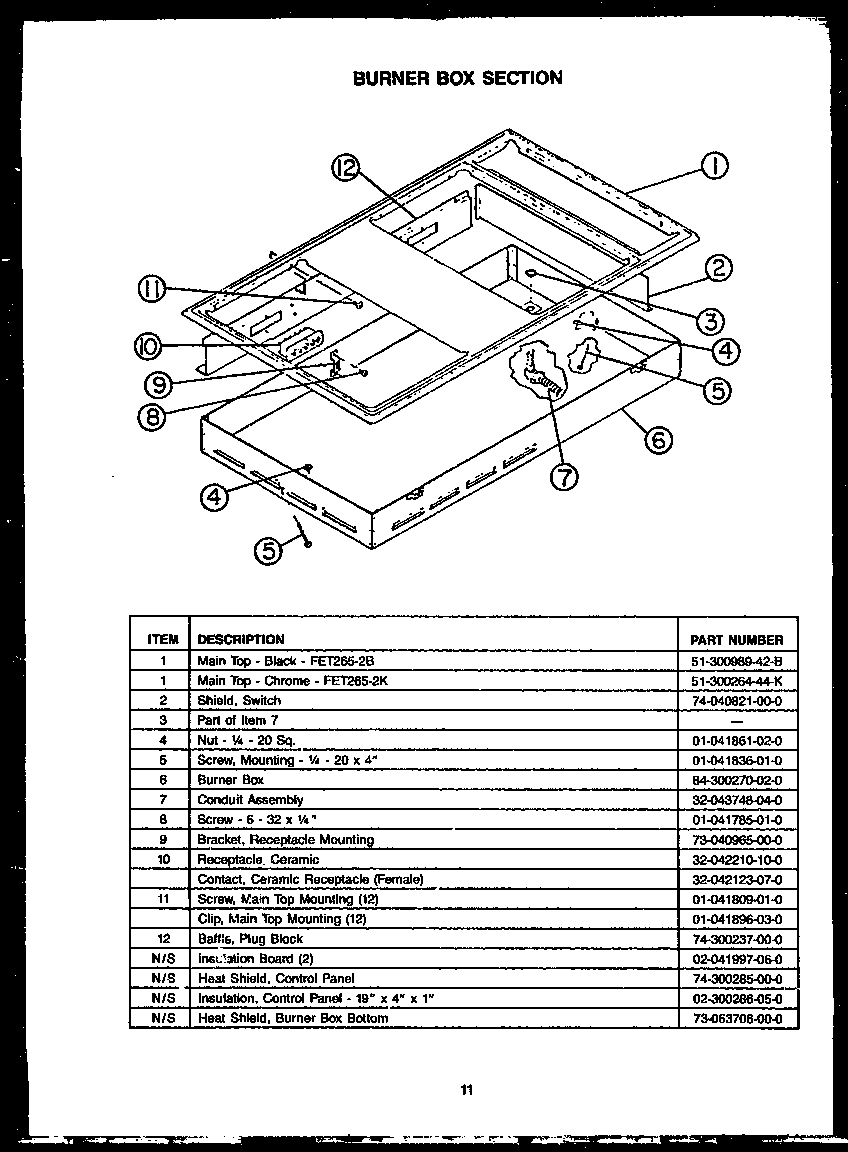

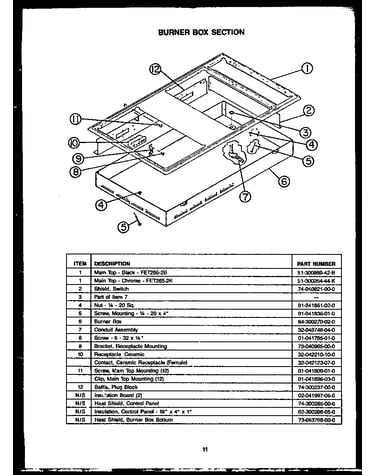

Burner box section diagram

Shield, switch

Part #74-040821-00-0

The manufacturer no longer makes this part, and there's no substitute part

Element, Large 31-061610-04-0
#7

Solid element module - xst102/xst202-2b diagram

Element, large

Part #31-061610-04-0

The manufacturer no longer makes this part, and there's no substitute part

Screw 01-041785-01-0
Screw

Part #01-041785-01-0

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Plug Block 74-300237-00-0
#12

Burner box section diagram

Baffle, plug block

Part #74-300237-00-0

The manufacturer no longer makes this part, and there's no substitute part
