Model # CPLE24-1B Official Goodman split-system heat pump

Here are the diagrams and repair parts for Official Goodman CPLE24-1B split-system heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Central Air Conditioner Condenser Fan Blade B1086771S
#161

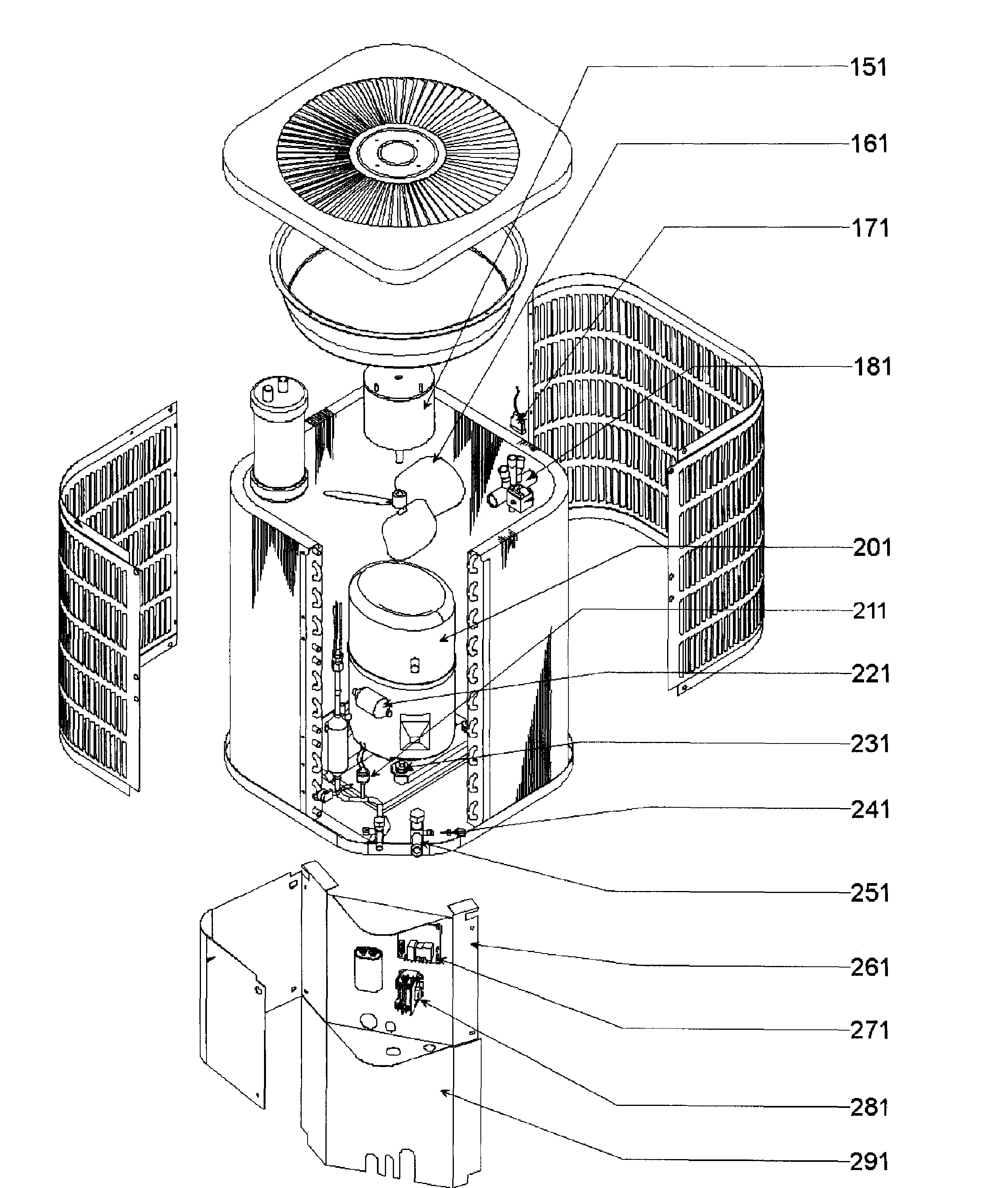

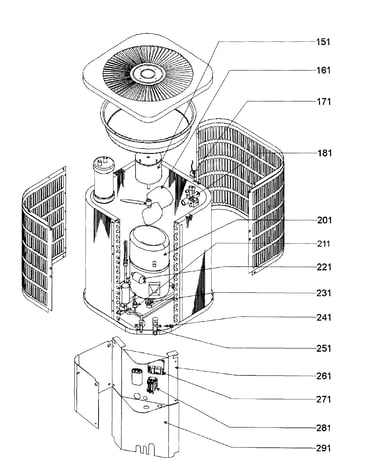

Main asy 2 diagram

Central air conditioner condenser fan blade

Part #B1086771S

$74.87 |
7% OFF Phone Price : $80.87
In Stock
Goodman Louver Panel Return Side 1259558P
#61

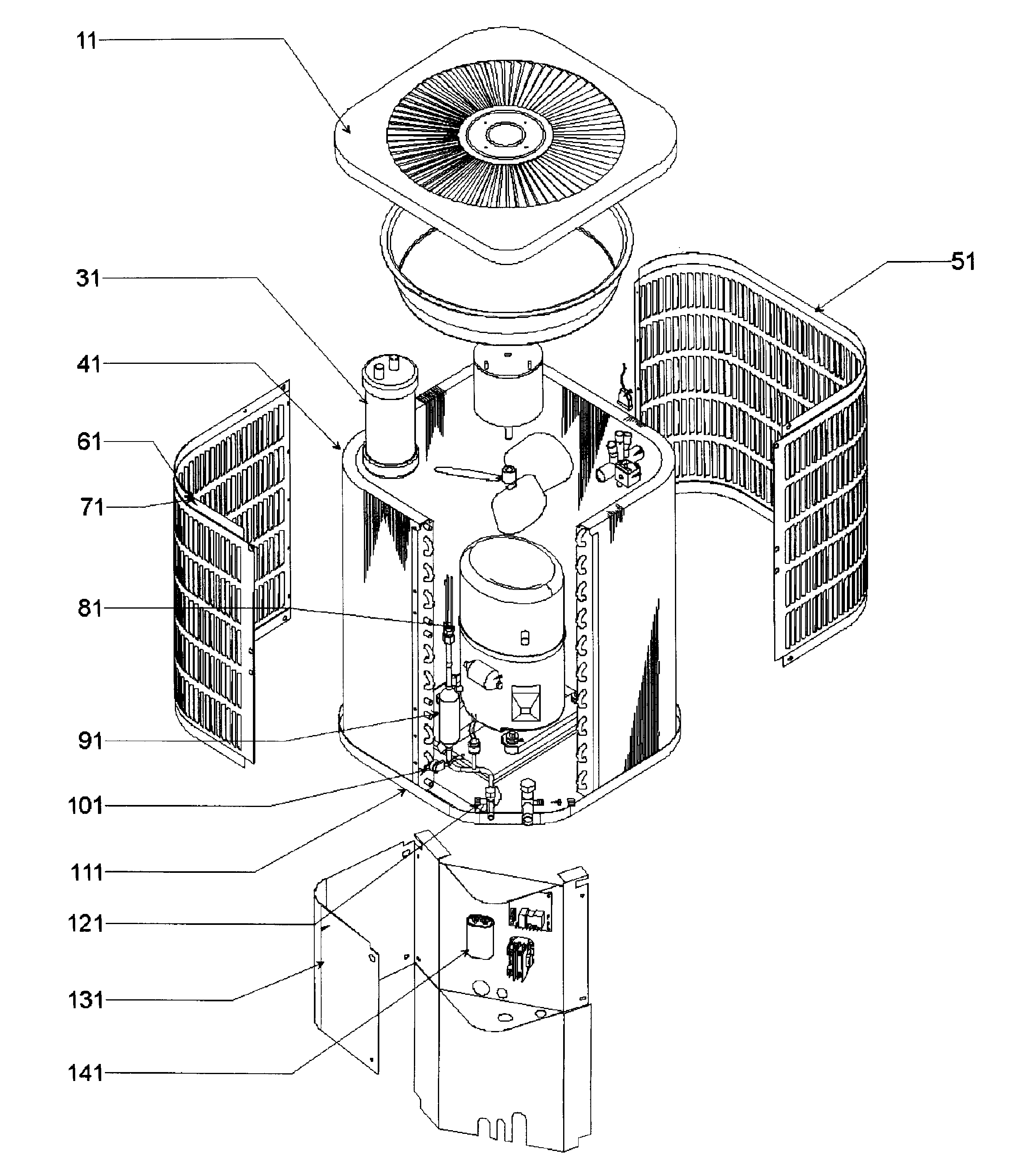

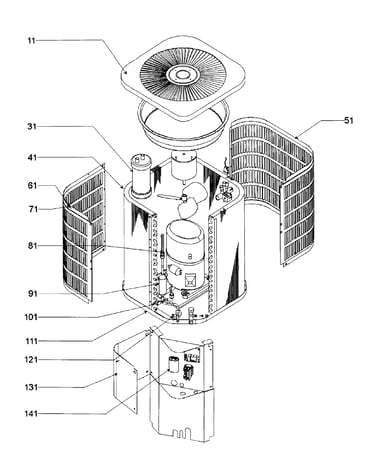

Main asy 1 diagram

Goodman louver panel return side

Part #1259558P

$51.07
In Stock
Goodman Bottom Pan Assy (2 Pc Louvered 1787211P
#111

Main asy 1 diagram

Goodman bottom pan assy (2 pc louvered

Part #1787211P

$68.62
In Stock
Core,valve B1787000
#241

Main asy 2 diagram

Core,valve

Part #B1787000

$8.29
In Stock
Muffler B1219300
#221

Main asy 2 diagram

Muffler

Part #B1219300

$32.27
In Stock
Grommet B1339530
#231

Main asy 2 diagram

Grommet

Part #B1339530

This item is not returnable
$2.40
Back Order
Board B1226008
#271

Main asy 2 diagram

Board

Part #B1226008

Replaced by #ICM318

?
Manufacturer substitution
This part replaces B1226008. Substitute parts can look different from the original.
$78.08 |
7% OFF Phone Price : $84.08
In Stock
Sw,low-pre B1360719
#211

Main asy 2 diagram

Sw,low-pre

Part #B1360719

Replaced by #0130R00058

?
Manufacturer substitution
This part replaces B1360719. Substitute parts can look different from the original.
$30.73
In Stock
Valve B1227314S
#181

Main asy 2 diagram

Valve

Part #B1227314S

Replaced by #0151R00067S

?
Manufacturer substitution
This part replaces B1227314S. Substitute parts can look different from the original.
$140.20 |
8% OFF Phone Price : $152.20
In Stock
Overload CAP050300370RSS
#141

Main asy 1 diagram

Overload

Part #CAP050300370RSS

Replaced by #CAP050300440RSP

?
Manufacturer substitution
This part replaces CAP050300370RSS. Substitute parts can look different from the original.
This item is not returnable
$34.08 |
15% OFF Phone Price : $40.08
In Stock
