Frigidaire
Chest Freezer

Model # FFC09K0DW1 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFC09K0DW1 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Filter Drier 216938600
#4

System diagram

Filter drier

Part #216938600

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938600. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Grille Screw 131168200
#71

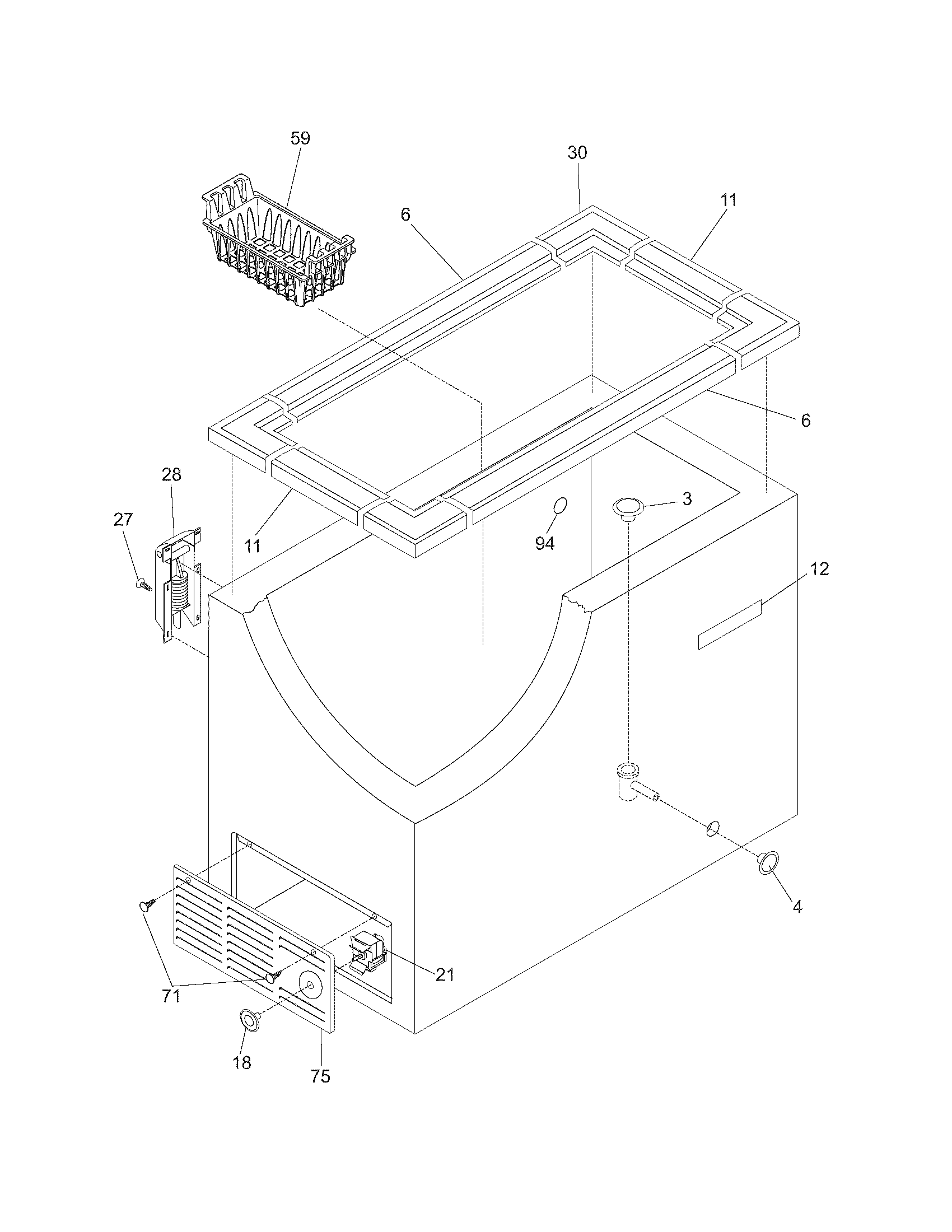

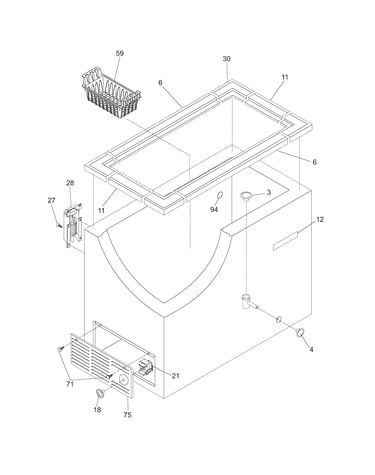

Cabinet diagram

Grille screw

Part #131168200

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131168200. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Freezer Compressor 216966300
#29

System diagram

Freezer compressor

Part #216966300

Replaced by #5304507767

?
Manufacturer substitution
This part replaces 216966300. Substitute parts can look different from the original.
BEST SELLER
$362.44 |
$12.00 OFF Phone Price : $374.44
In Stock
Chest Freezer Run Capacitor 218909911
#55

System diagram

Chest freezer run capacitor

Part #218909911

Replaced by #297286802

?
Manufacturer substitution
This part replaces 218909911. Substitute parts can look different from the original.
BEST SELLER
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Freezer Basket (replaces 216848202, 216848205) 216848200
#59

Cabinet diagram

Freezer basket (replaces 216848202, 216848205)

Part #216848200

$40.43 |
13% OFF Phone Price : $46.43
In Stock
Freezer Temperature Control Knob 216707200
#18

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
Freezer Temperature Control Thermostat 216787700
#21

Cabinet diagram

Freezer temperature control thermostat

Part #216787700

Replaced by #5304496559

?
Manufacturer substitution
This part replaces 216787700. Substitute parts can look different from the original.
This item is not returnable
$41.79 |
13% OFF Phone Price : $47.79
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Crosley Freezer Lid Gasket (replaces 216481003, 216481011, 3018999, 3200692, 3201115, 5300301163, 5300301164, 5304400866, F114263, F114263-1, F122447-1, F122447-2, F126493, F129788, F129789, F301163, F301164, R000901010) 216481001
#1

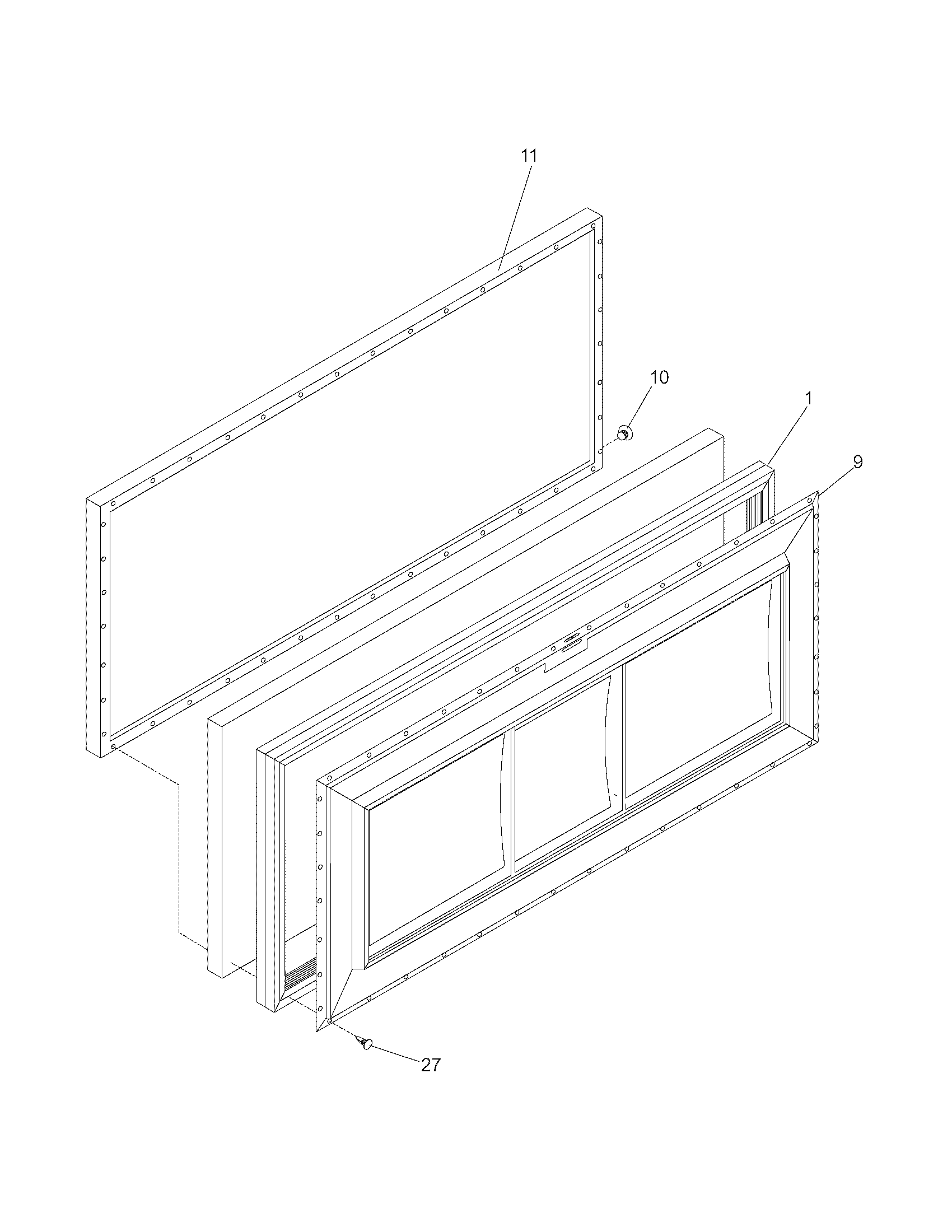

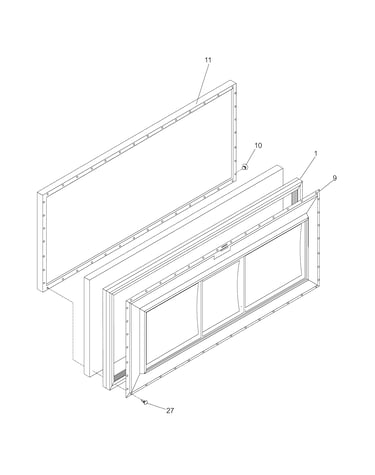

Door diagram

Crosley freezer lid gasket (replaces 216481003, 216481011, 3018999, 3200692, 3201115, 5300301163, 5300301164, 5304400866, f114263, f114263-1, f122447-1, f122447-2, f126493, f129788, f129789, f301163, f301164, r000901010)

Part #216481001

$144.01 |
8% OFF Phone Price : $156.01
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
